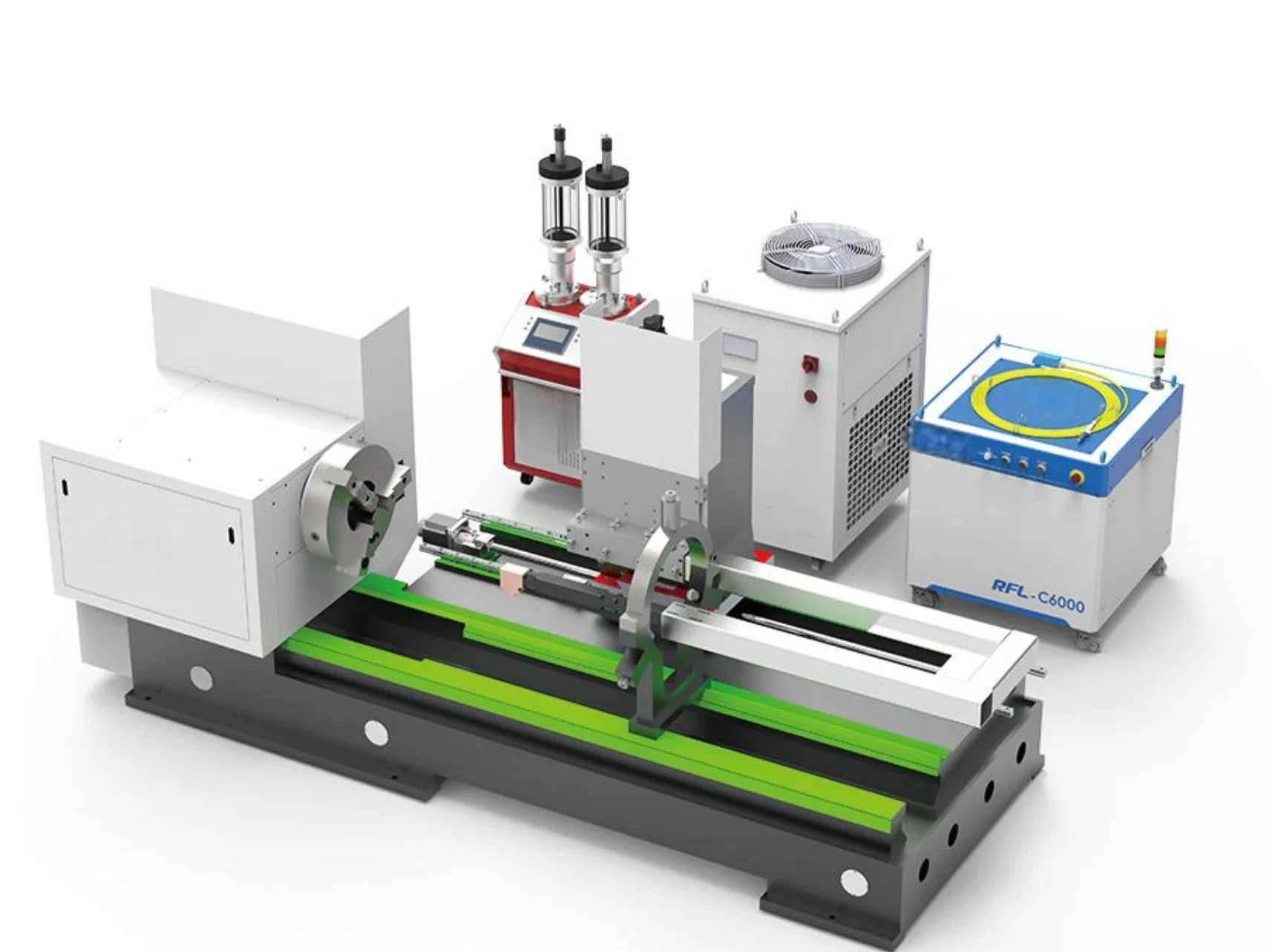

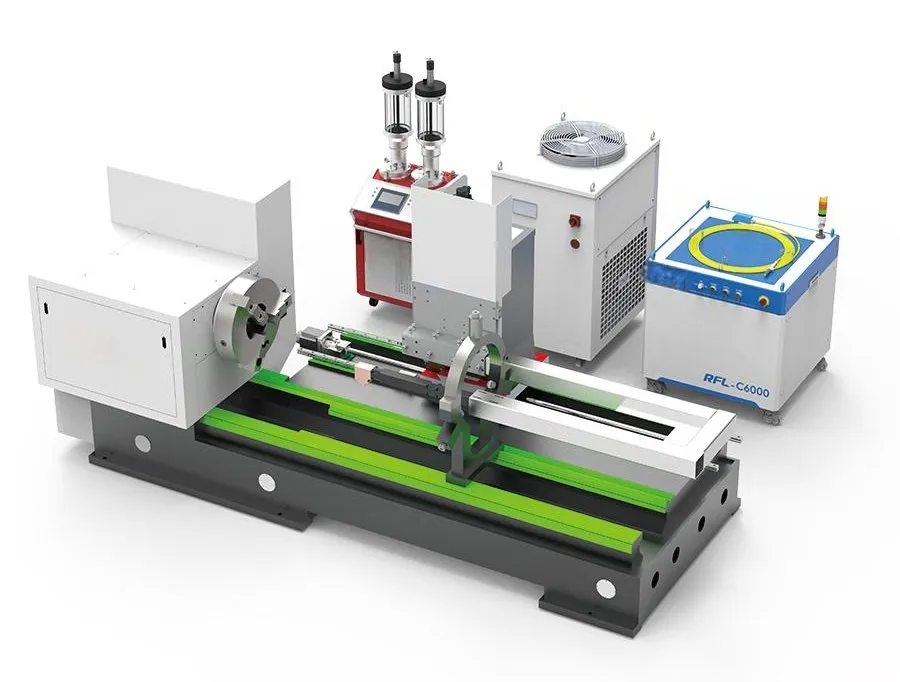

| Product Name | Ultra-High-Speed Laser Cladding System |
| Control | Automatic |
| Laser Classification | Fiber / Diode Laser |
| Laser Power | ≤ 12 Kw |
| Processing Length | 3 M |
| Max Rotation Diameter | 400 / 600 mm |
| Weight Capacity | 3 T |
| Motion Mechanism | 3+1 Axis |
| Spindle Speed | 1-150 / 1-200 Rpm |
| Deposition Efficiency | ≤ 500 Cm²/Min |
| Layer Thickness | 50 - 1500 μm |
| Substrate Dilution Rate | < 1% |
| Position Accuracy | ± 0.05 mm |
| Origin | China |

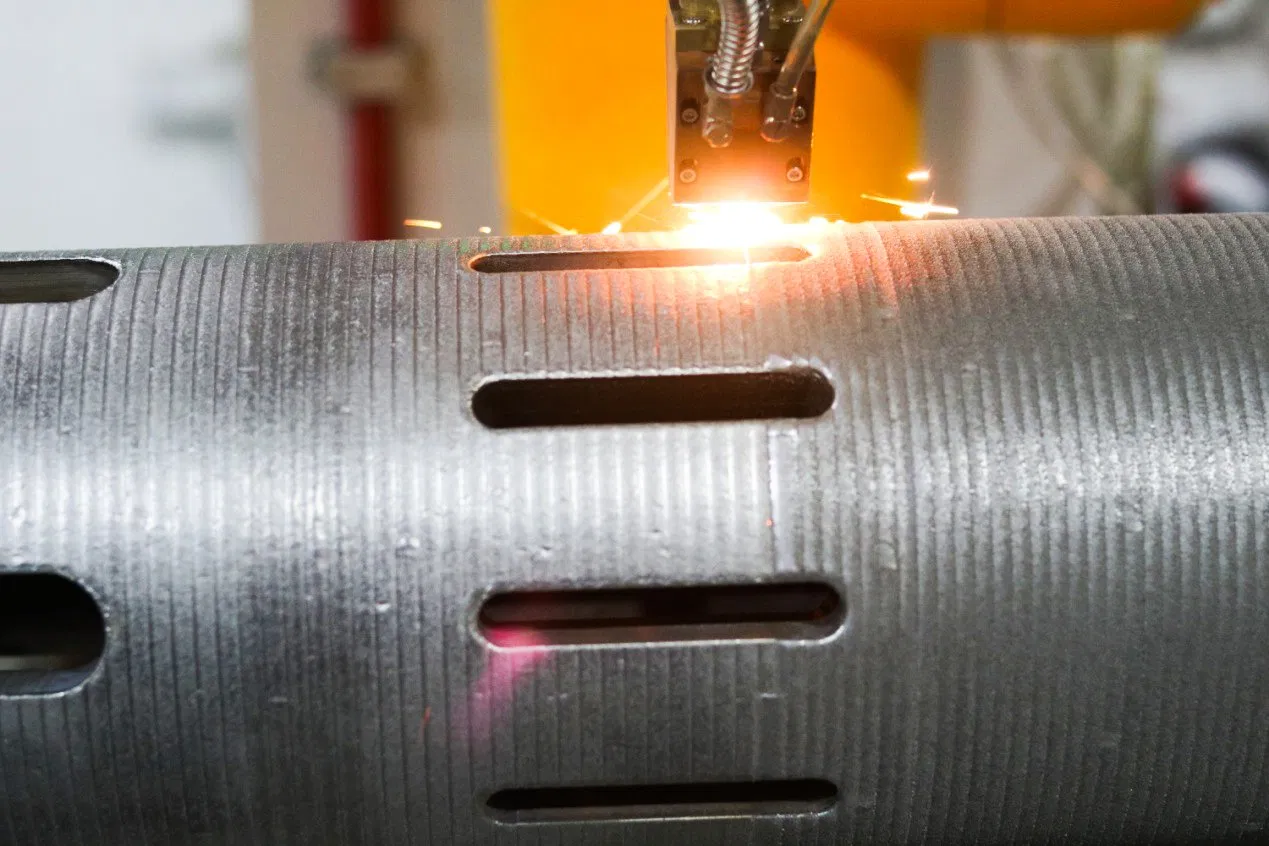

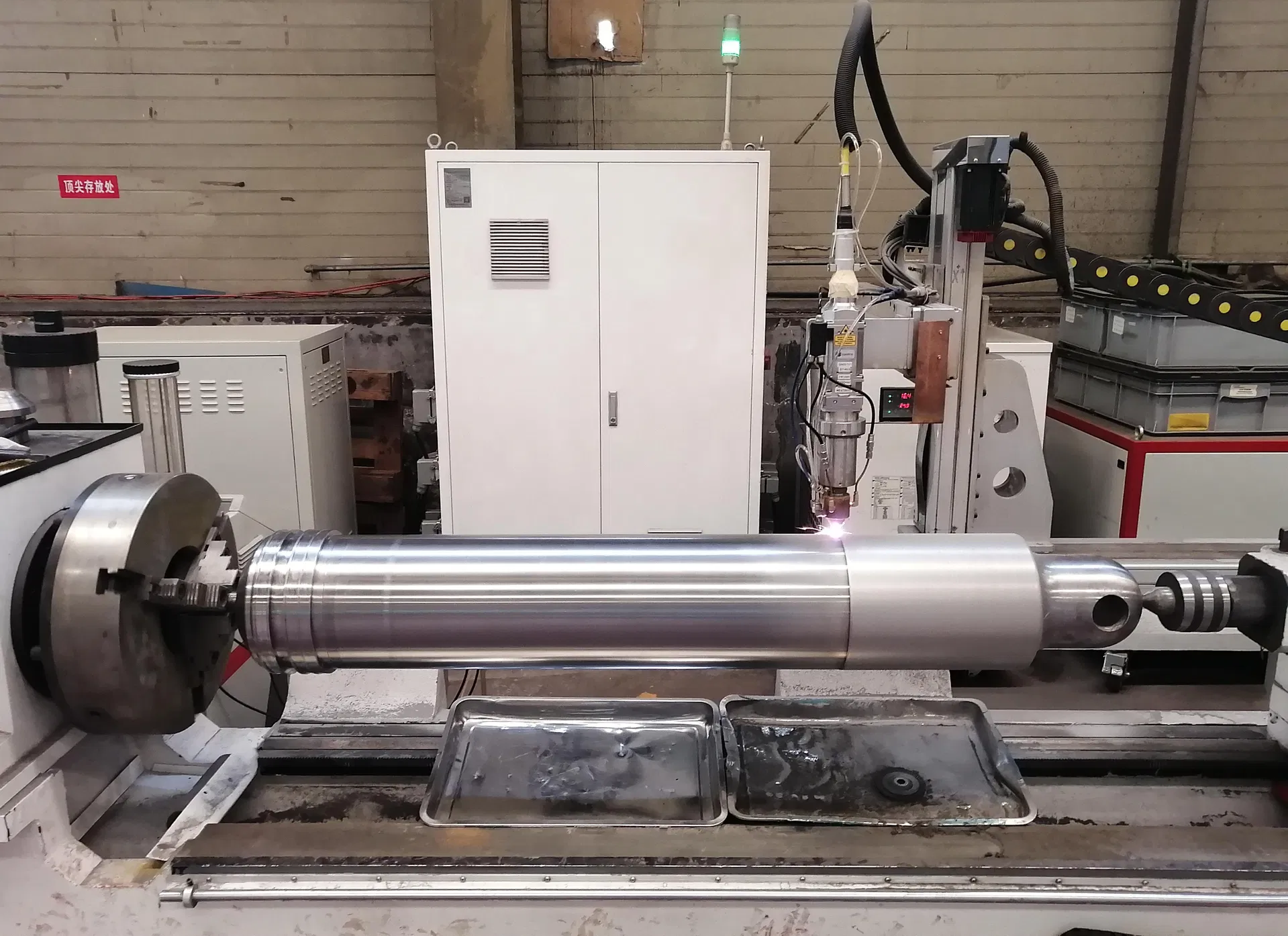

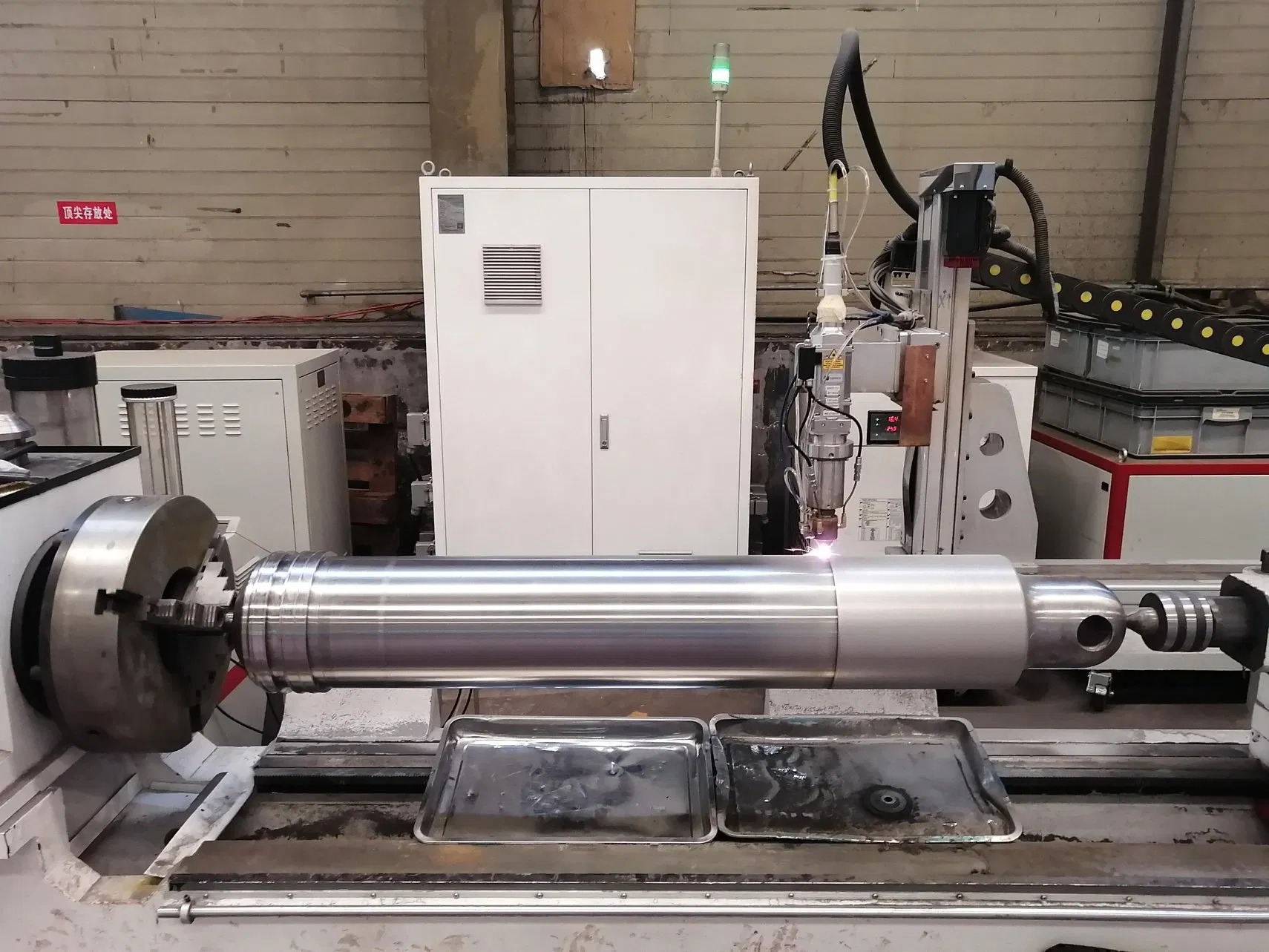

Specifically designed as an advanced composite machine, this system perfectly integrates turning, cladding, and mirror processing into one platform. Operators can sequentially complete additive machining, deductive machining, and mirror finishing on shaft parts using just a single clamping setup. This eliminates the round runout errors usually caused by multiple clampings, drastically improving both coating quality and overall production efficiency.
| Specifications | Details |
| Laser Source | Fiber / Diode laser |
| Laser Power | ≤ 12 kW |
| Deposition Efficiency | ≤ 500 cm²/min |
| Layer Thickness | 50 - 1500 μm |
| Repeat Position Accuracy | ± 0.05 mm |

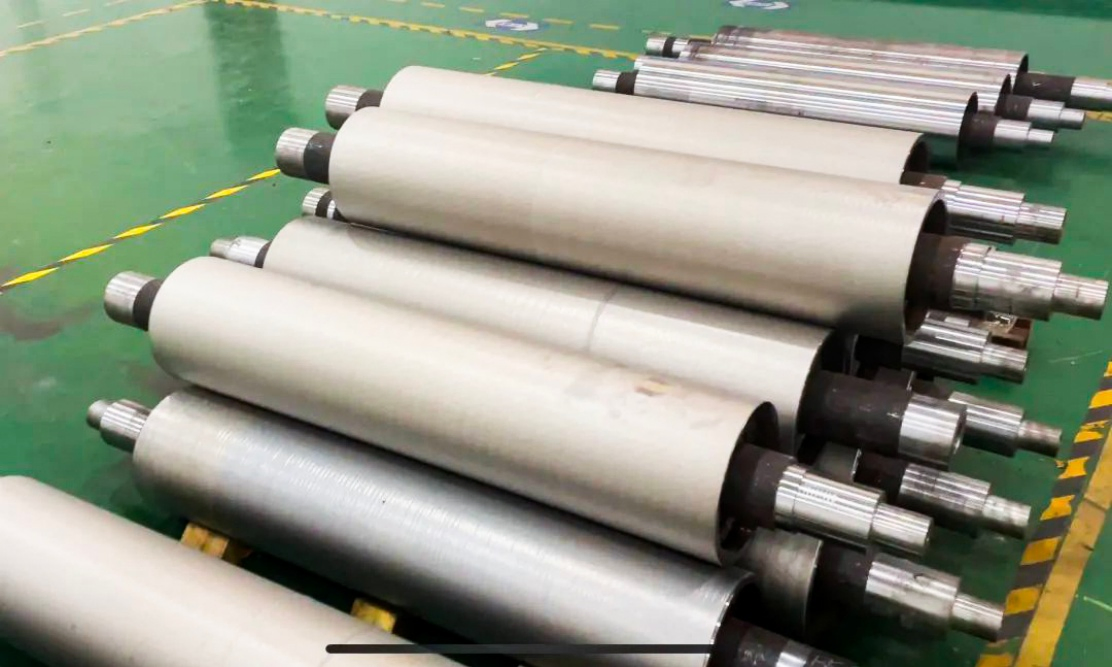

This equipment processes all types of industrial shafts and rolls perfectly. It serves as an essential tool for:
Nondestructively repair high-value metal parts. Traditional repair methods work slowly and generate high heat that distorts precision parts. Our new smart system provides industry-leading surface strengthening:
