Product Description

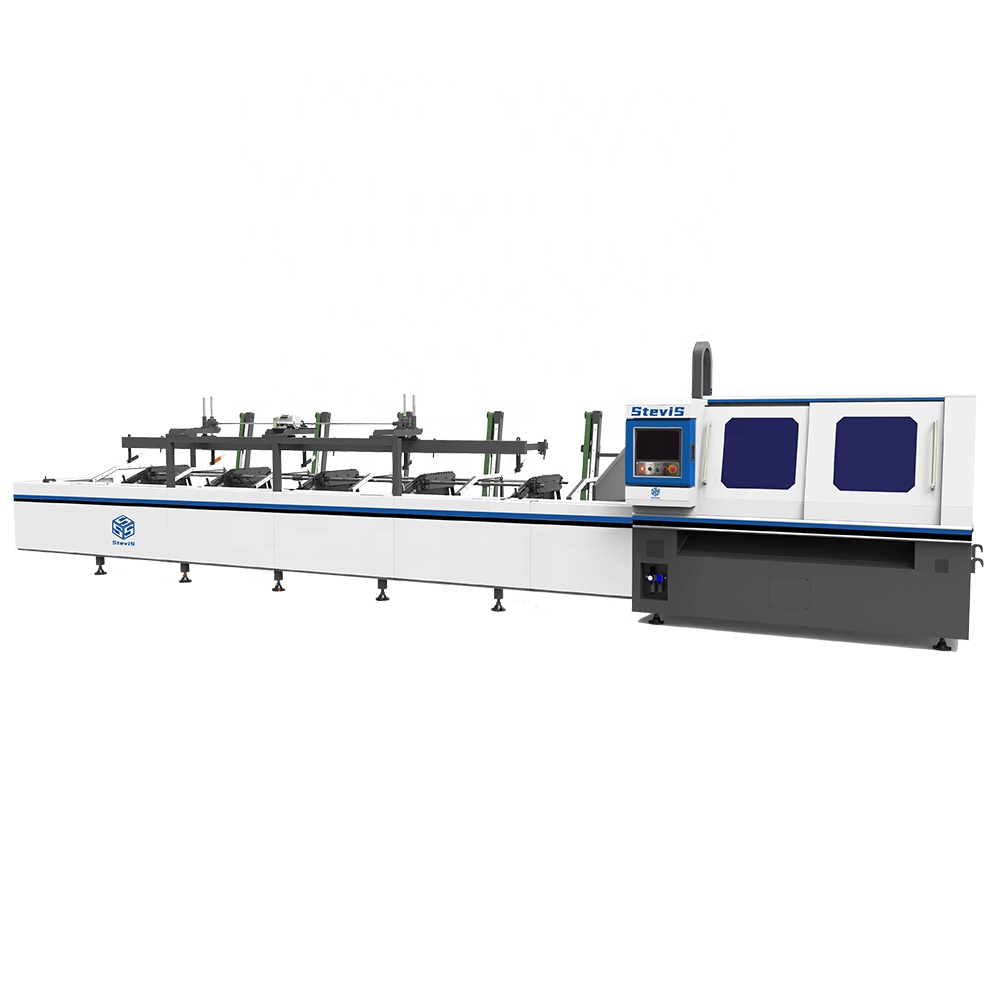

Fully Automatic Laser Pipe Cutting Machine for Automotive & Motorcycle Manufacturing

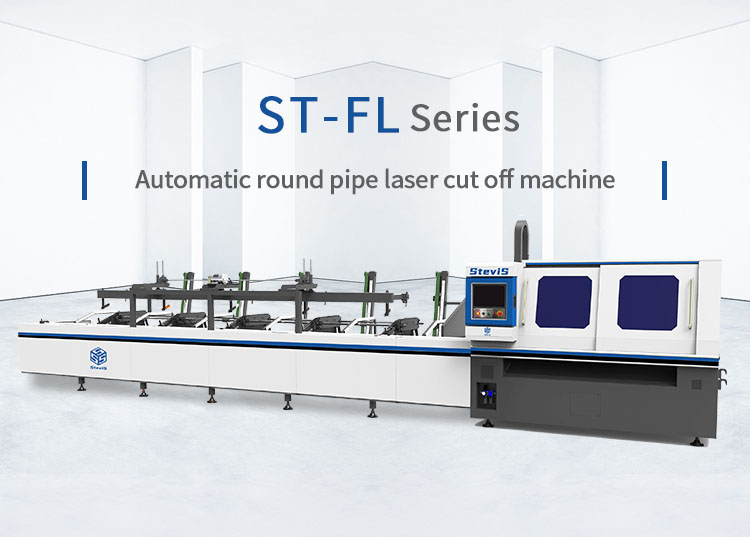

Laser Pipe Cutting Machine

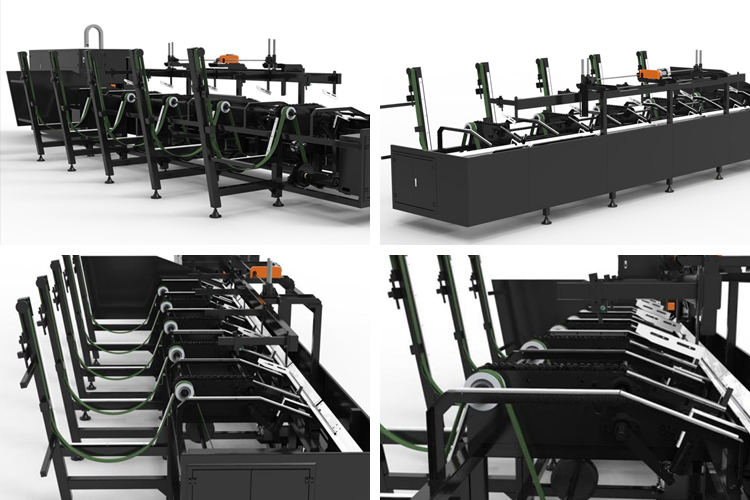

Production Line
Core Advantages

Smooth and Burr-free Cutting

✓
High efficiency: can reach less than 1 second per cut.
✓
Minimum tail material length as short as 40mm.

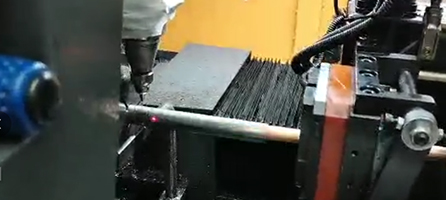

Cutting Sample
Cutting Capacity Data
Material Dimensions (D*T*L) Capacity (8 Hours)
Stainless Steel (Curtain rods) 15.88 * 0.4 * 1023mm 5,000 pcs
Carbon Steel (Shock absorbers) 45 * 1.0 * 187mm 8,500 pcs
Detailed 1000W Laser Capacity for Shock Absorbers:
Diameter * Thickness * Length Cutting Capacity (per hour) Time per Piece (seconds)
45 * 1.0 * 187mm1,054 pcs2.2
29.4 * 1.2 * 304mm988 pcs2.0
29 * 1.0 * 172mm1,088 pcs2.0
65 * 1.5 * 330mm756 pcs2.9
75 * 1.2 * 260mm792 pcs2.7
Key Components & Features
1

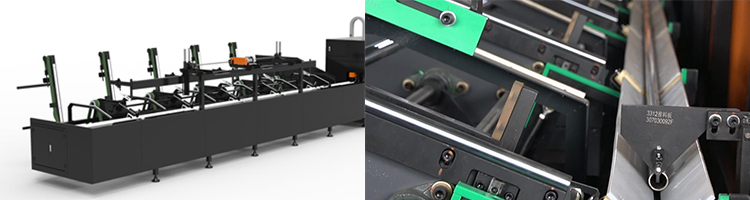

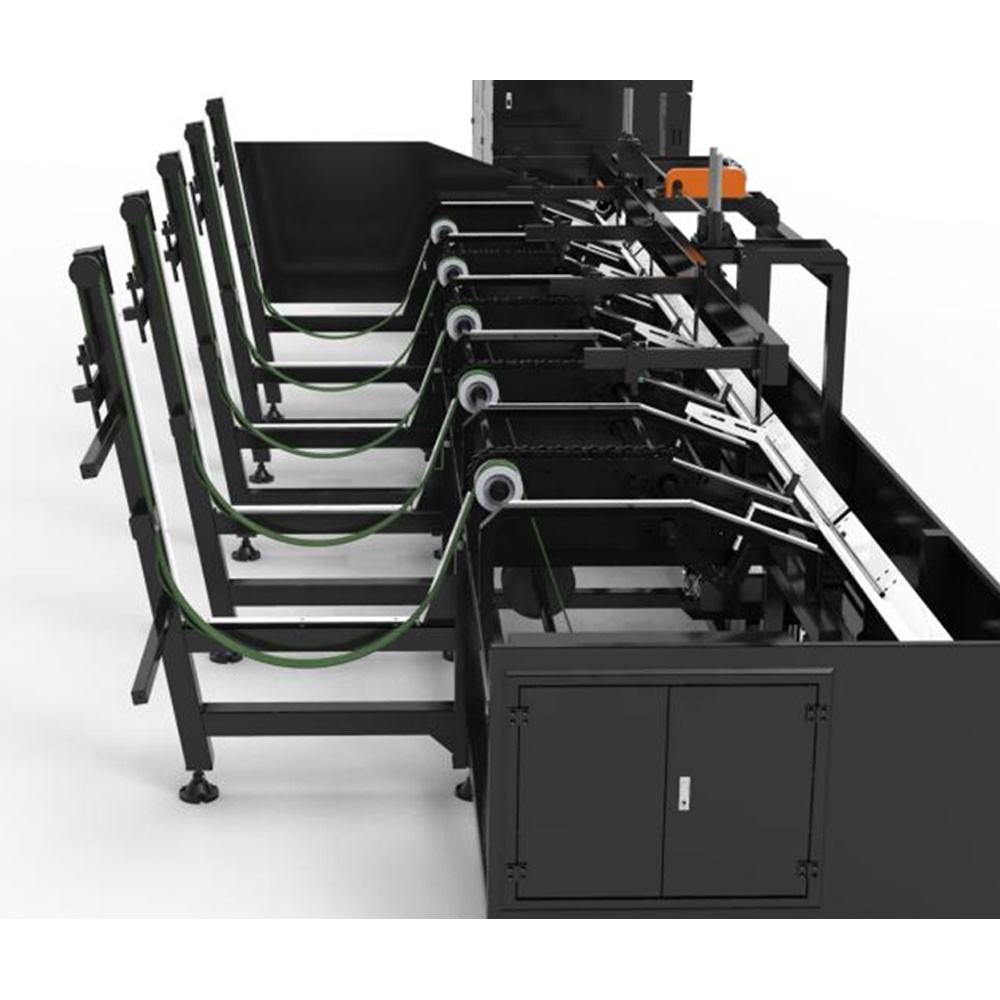

Fully Automatic Loading & Feeding: Reduces labor by 3-5 workers compared to saw blade machines, significantly lowering operational costs.

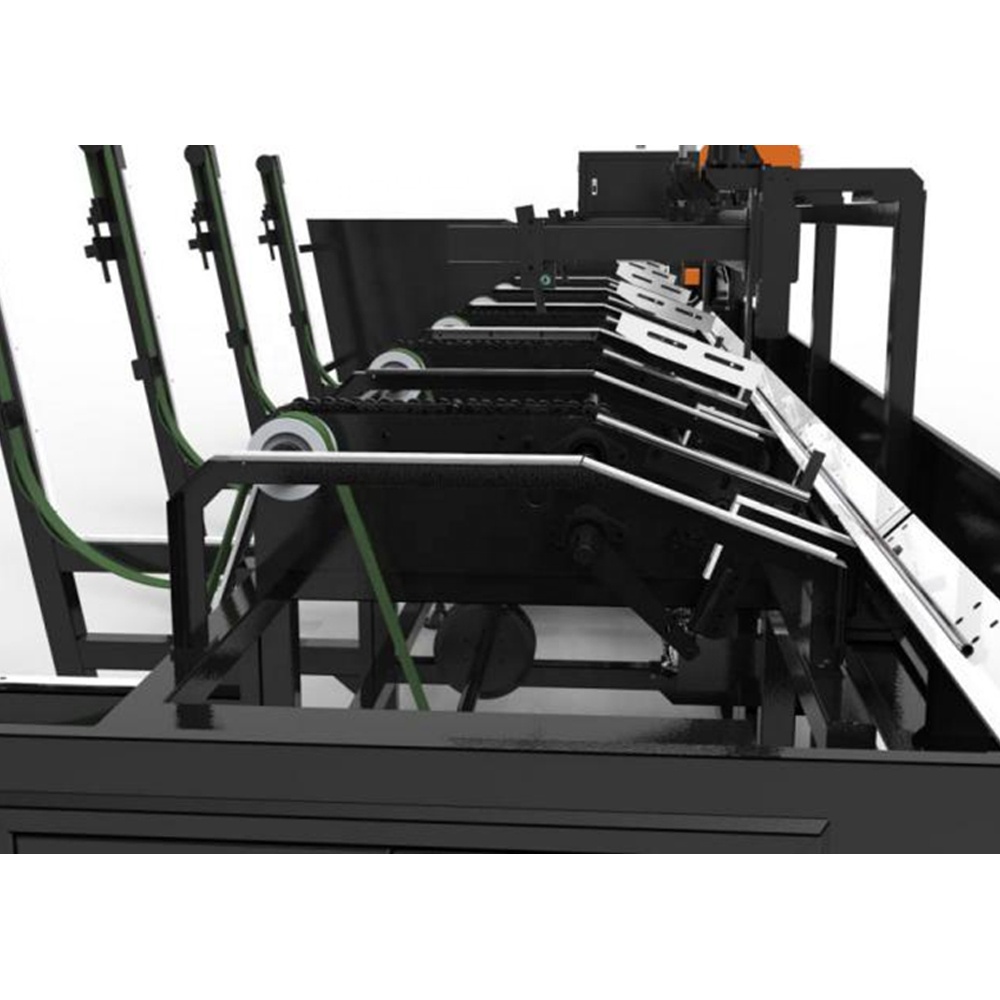

Automatic Loading

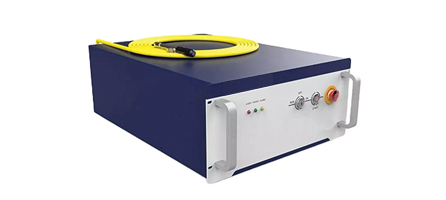

Fiber Laser Source

Equipped with industry-leading MAX or RAYCUS fiber laser sources. IPG options are available for specialized high-precision requirements.

Laser Source

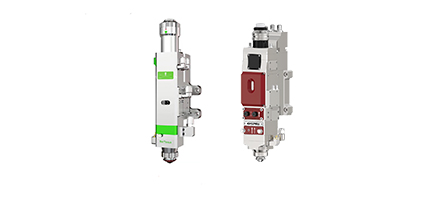

Precision Laser Cutting Head

Utilizing high-performance RAYTOOLS or OSPRI cutting heads for stable and accurate processing.

Laser Head

Spatter Reducing Device

Optional automatic spatter reduction ensures the inner walls of the workpieces remain clean and debris-free.

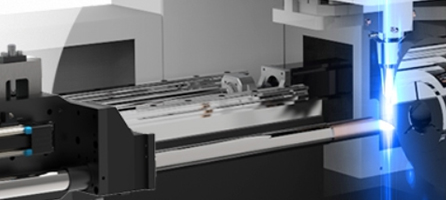

Spatter Device
Processing Versatility
Our technology supports various pipe profiles and complex shapes:

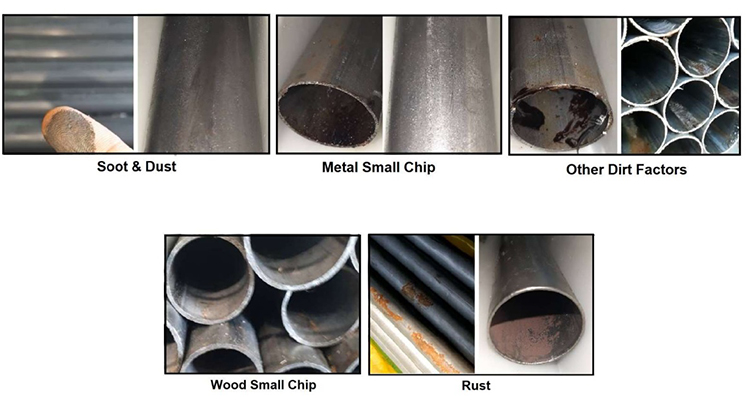

Pipe Types
Product Parameters
Specifications Model ST-FL120F Model ST-FL70F
Cutting DiameterRound pipe 16-115mm15-65mm
Machine Size10300 x 2500 x 2000mm8700 x 1800 x 1900mm
Max Cutting Length1500mm (Customizable)1500mm
Laser Power1000W - 2000W1000W - 2000W
Servo SystemDELTA / TaiwanDELTA / Taiwan

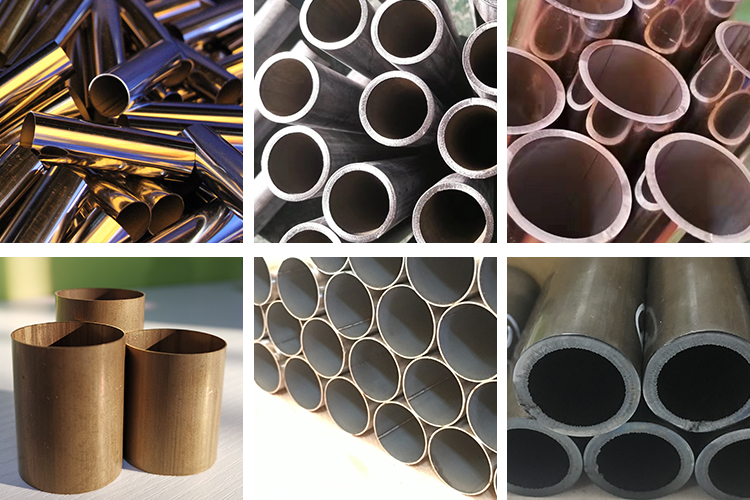

Workpiece Samples
Samples
Production and Packaging

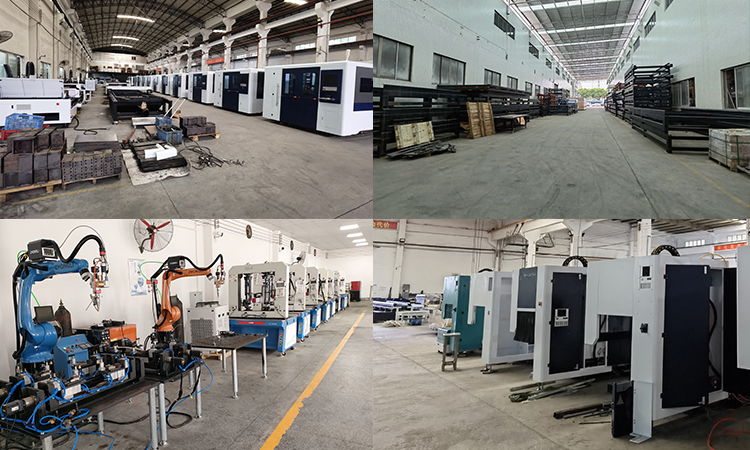

Factory

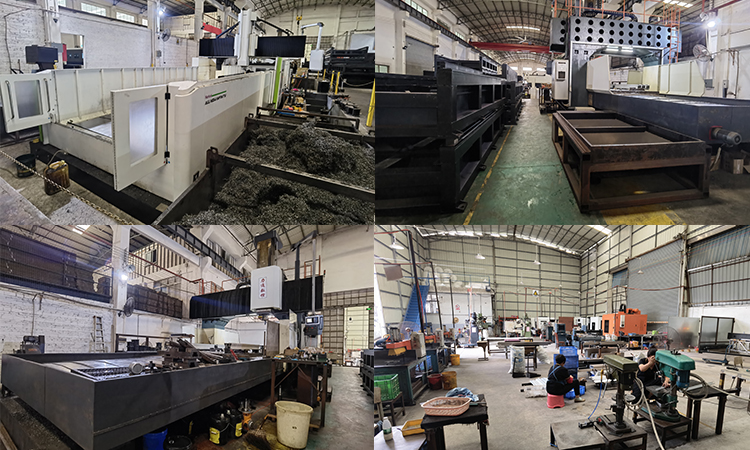

Equipment
Packaging
Frequently Asked Questions
Does the machine have an automatic lubrication system?
Yes, the machine features an automatic lubrication system where you can set specific lubrication times and intervals as needed.
How does the machine handle slightly bent tubing?
The laser head includes a scanning function to detect tube bending. The control system automatically compensates for the deviation based on the degree of bending.
What is the working lifespan of the laser source?
The laser source has a lifespan of approximately 100,000 hours, which equates to over 20 years of typical operation.
What is the material loss during laser cutting?
Laser cutting loss is extremely minimal, only 0.05-0.1mm per cut, whereas traditional saw cutting results in 2-5mm of waste per cut.
When should I choose a laser machine over a saw machine?
If your production exceeds 1,000 pieces per day, we recommend a laser machine. It offers higher efficiency, no burrs, and significantly lower operating costs (approx. $0.6/hour).
How long does it take to recover the machine cost?
Based on customer data, the investment is typically covered by the increased profit and efficiency within 0.5 to 1.5 years.
