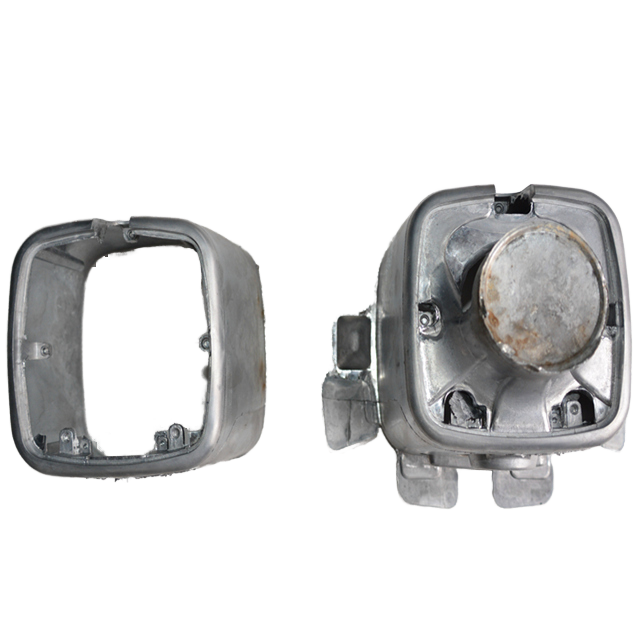

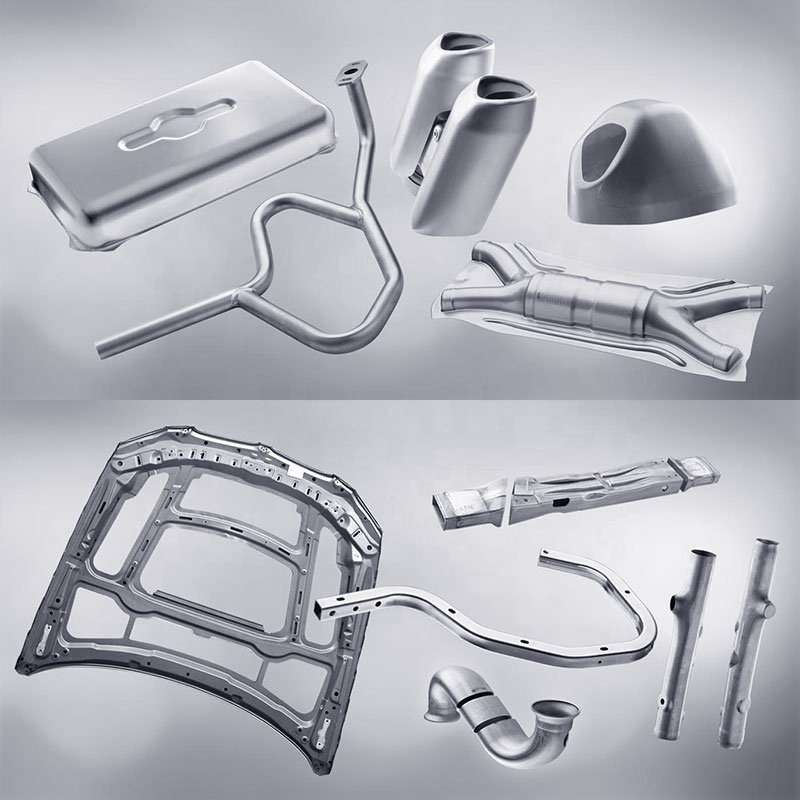

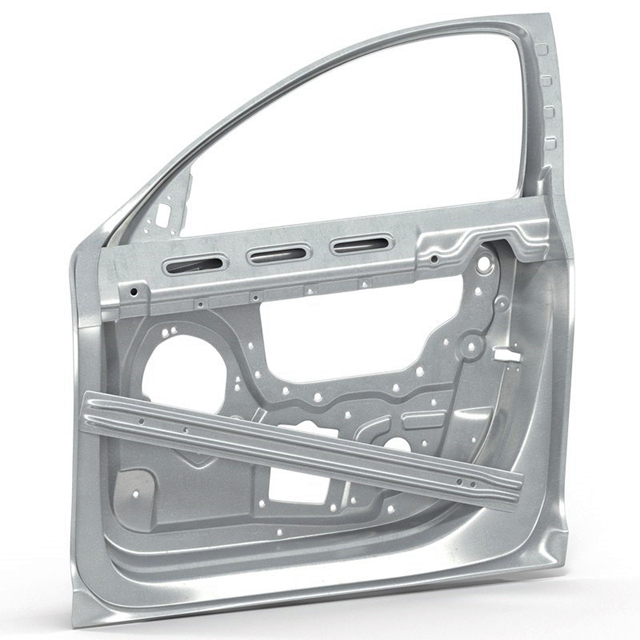

This 3D robot laser cutting machine with a fiber laser source is equipped with an industrial robot from leading brands such as ABB, FANUC, KUKA, or STAUBLI. It provides flexible 3D dynamic laser metal cutting across multi-dimensional and multi-angle planes. The system is widely utilized in automotive sheet metal, 3D curved metal parts, shaped tubes, internal high-pressure tubes, thermoformed tubes, household appliances, and specialized bathroom fixtures.
The system offers significant advantages including low investment costs, convenient adjustment, short processing cycles, and zero deformation post-processing. It is exceptionally suited for high-volume production of workpieces and special-shaped pipe fittings.

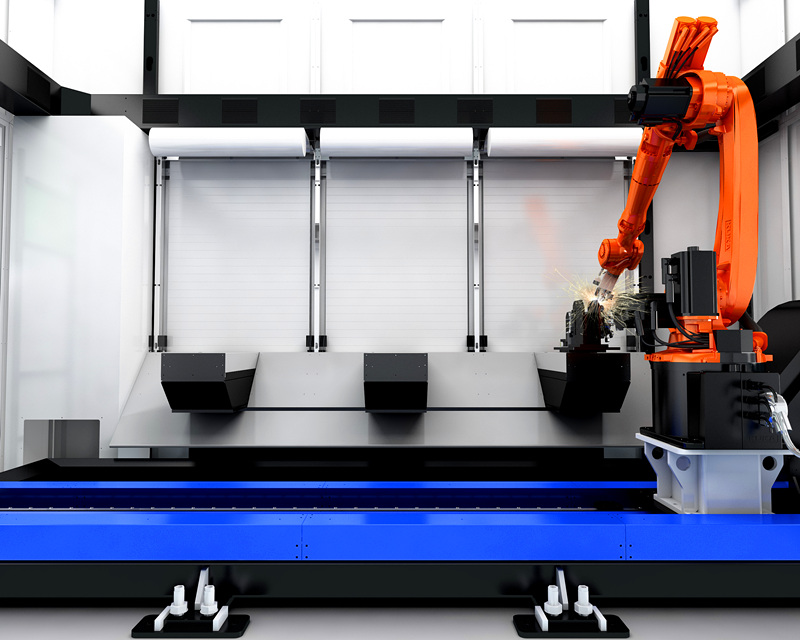

Optional follow-up 3D laser cutting heads from top international brands ensure the beam remains in focus at all times, guaranteeing superior cutting quality.

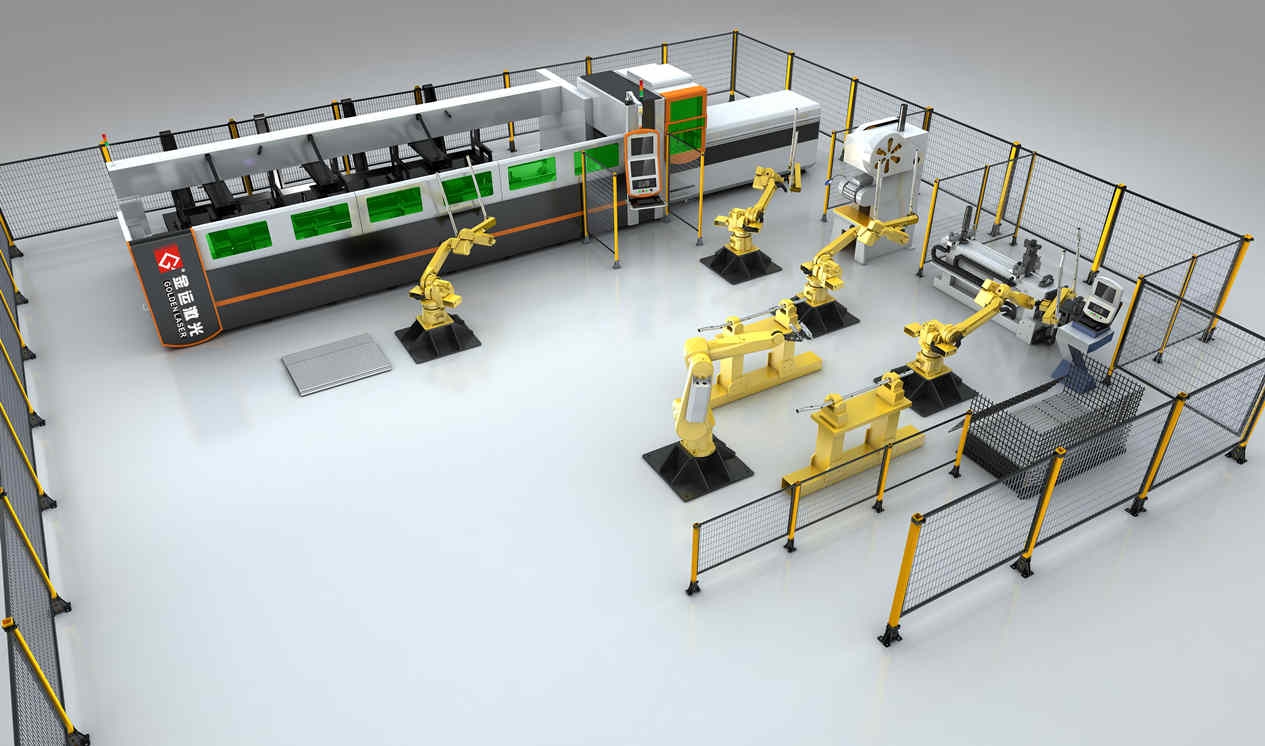

Beyond cutting, functions such as packaging, handling, and welding can be realized by changing hardware and modifying the 3D programming software.

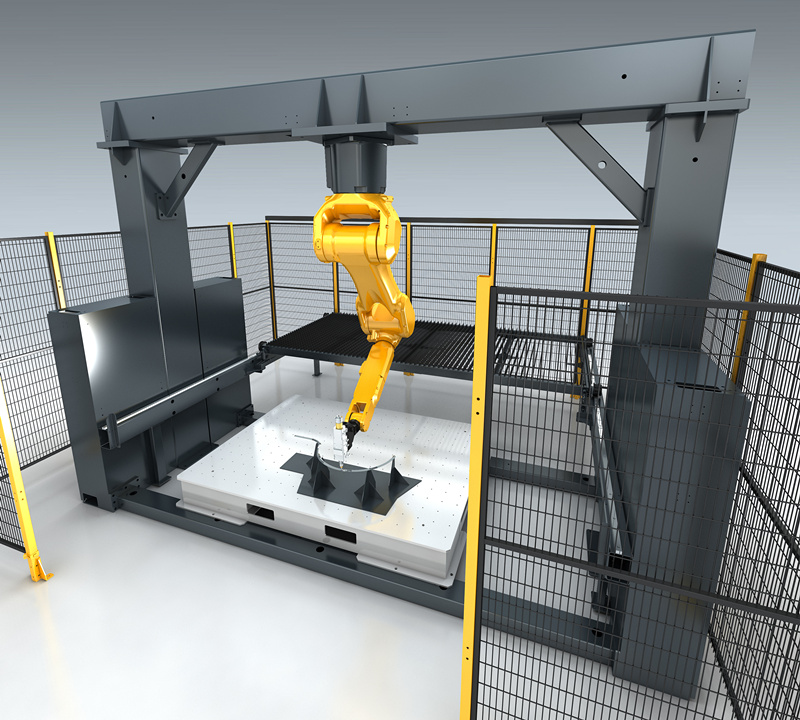

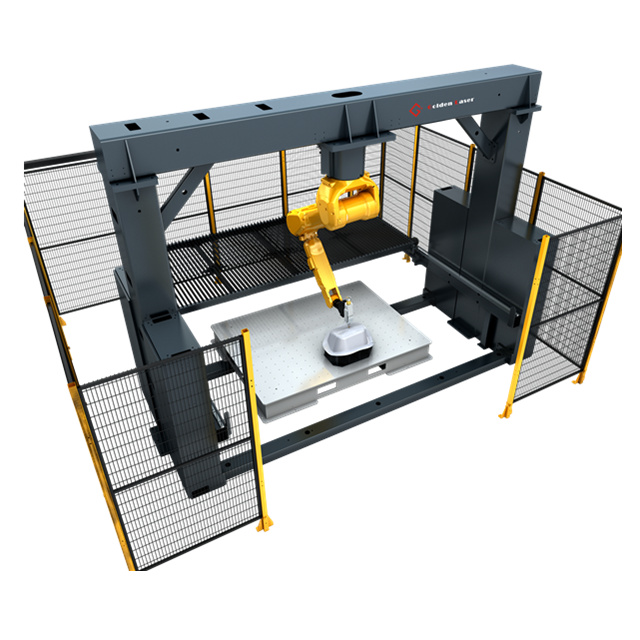

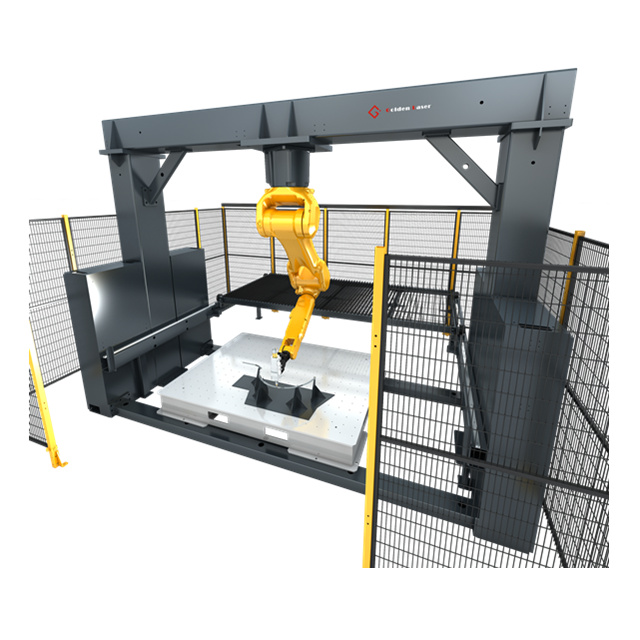

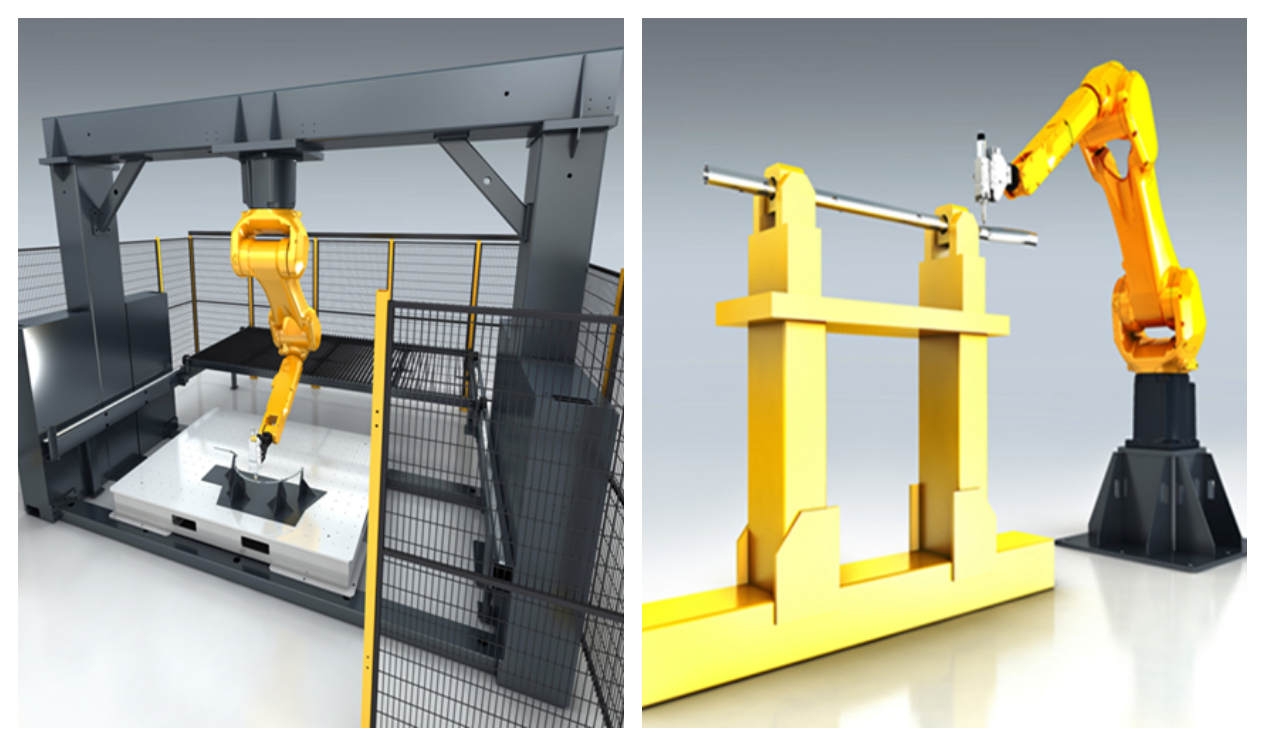

Depending on factory space and processing requirements, users can choose between a gantry type or stand-type installation. This allows for high-performance operation even within limited floor space.
| Model | Mi20B |
| Laser Type | Fiber Laser |
| Applicable Material | Metal, SS, CS, MS, Aluminum, Brass, Copper |
| Cutting Area | 1850mm |
| Laser Source Brand | RAYCUS |
| Weight | 4000KG |
| Warranty | 2 years |
| Configuration | 6-axis |
| Cutting Thickness | 0.5mm - 20mm |
| Control System | Cypcut |
| Cooling Mode | Water Cooling |
| Graphic Support | AI, BMP, DWG, DXF, PLT, etc. |
1. High Efficiency: Features powerful RAYCUS fiber lasers with adjustable speeds for precise metal processing.
2. Robust Performance: Built with high-quality motors and gears, achieving 0.15mm process accuracy and 0.2mm repeatability.
3. Versatile Material Handling: Compatible with stainless steel, carbon steel, aluminum, and brass up to 20mm thick.

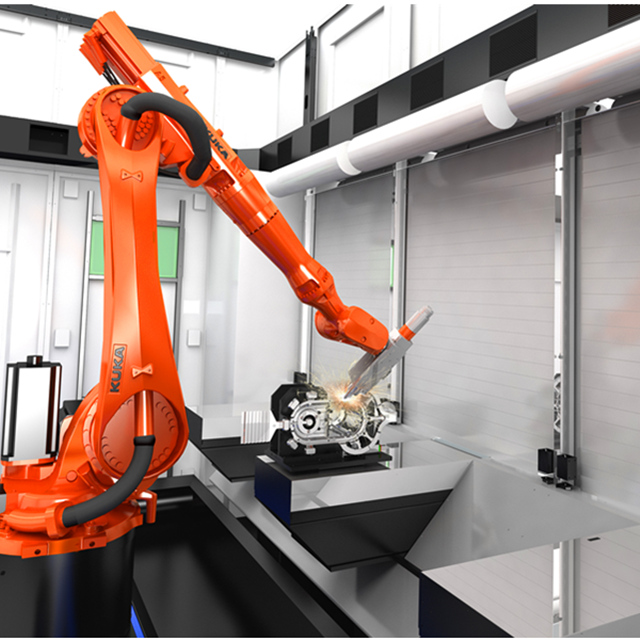

4. Advanced 6-Axis Control: Supports Fanuc, ABB, KUKA, or Staubli robots with Cypcut control systems for continuous wave operation.

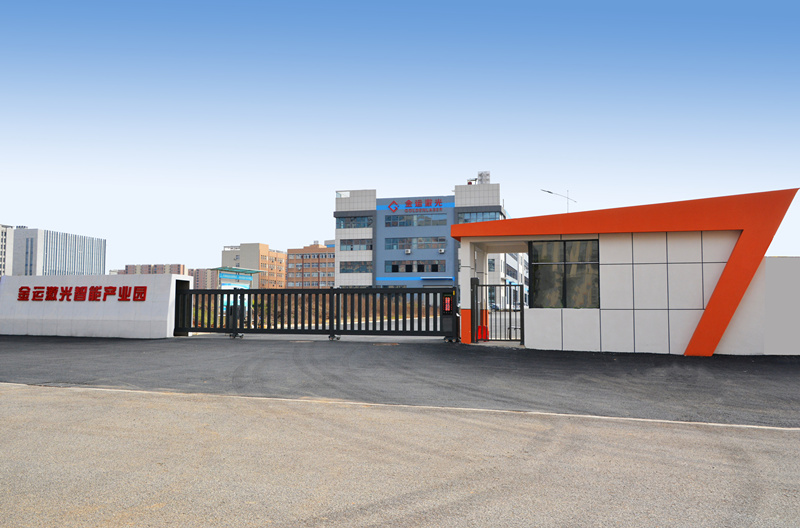

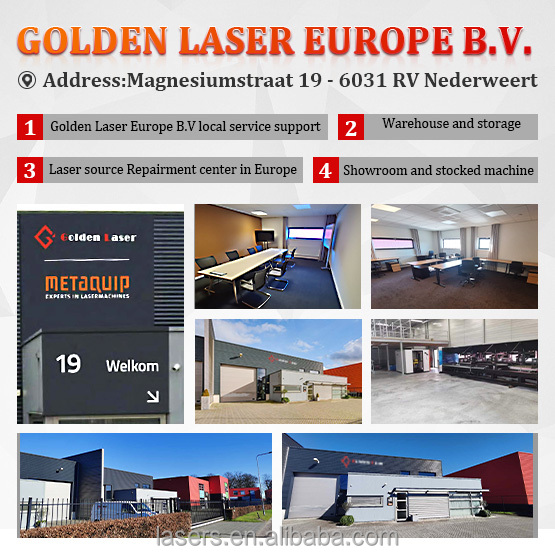

The manufacturer specializes in intelligent equipment including fiber laser cutting machines for sheet and tube, 3D robotic welding systems, and customized laser solutions. With a global presence, equipment is exported to over 120 countries including the USA, Germany, UK, France, and India.
