| Model NO. | 3015-3000W | Laser Power | 3000W |
|---|---|---|---|
| Application | Metal, Home Appliance, Aerospace, Automotive, etc. | Cooling System | Water Cooling |
| Technical Class | Continuous Wave Laser | Structure Type | Gantry Type |
| Processing Range | 3000mm*1500mm | Positioning Accuracy | ±0.05mm/M |
| X-Axis Travel | 1525 mm | Y-Axis Travel | 3025 mm |
| Repeated Accuracy | ±0.03mm/M | Max Linkage Speed | 100m/Min |
| Origin | China | HS Code | 8456110090 |

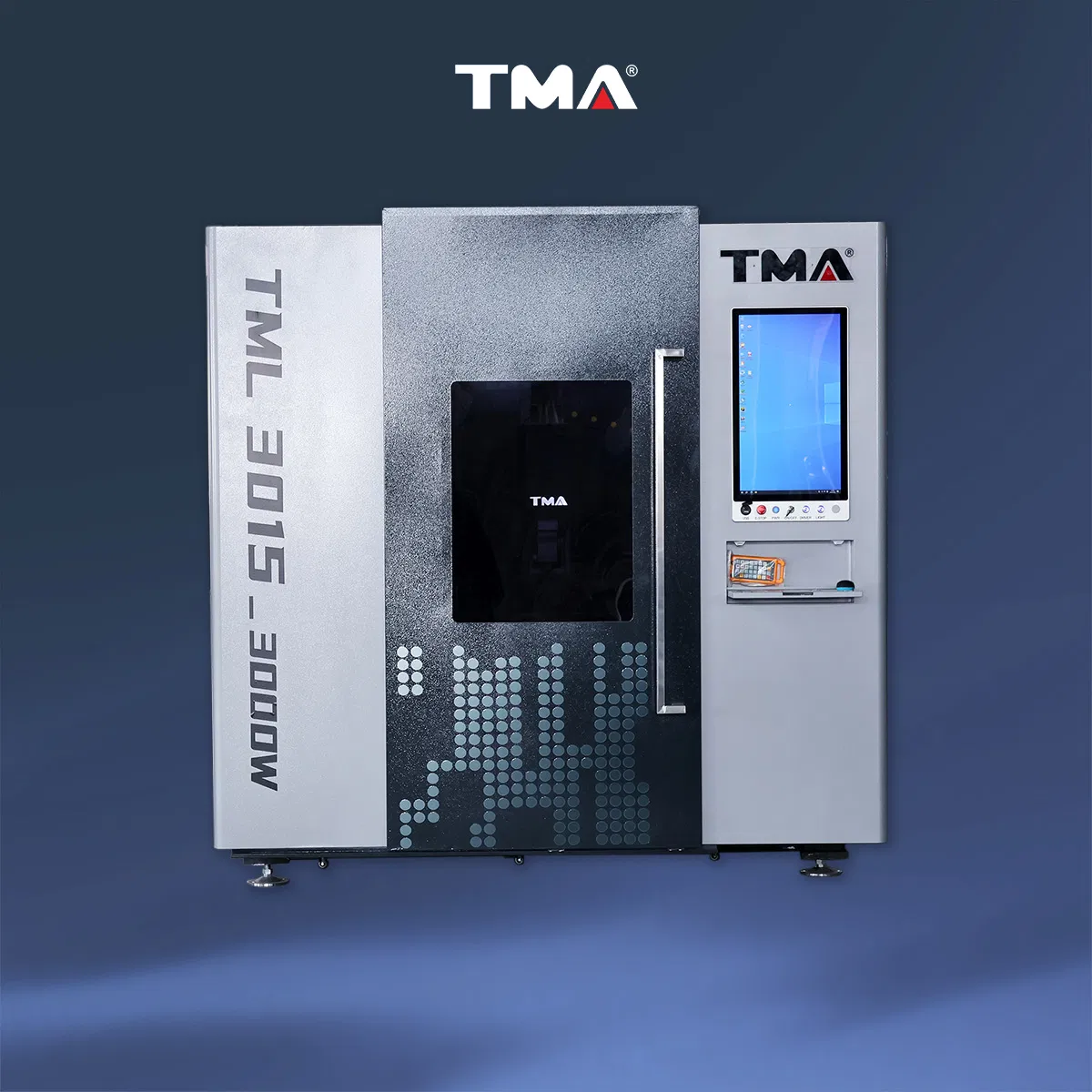

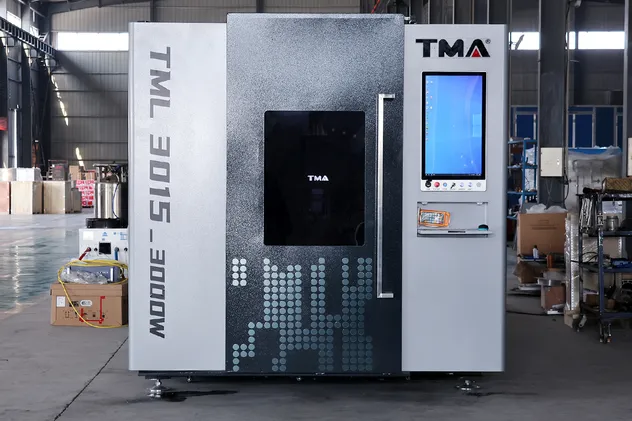

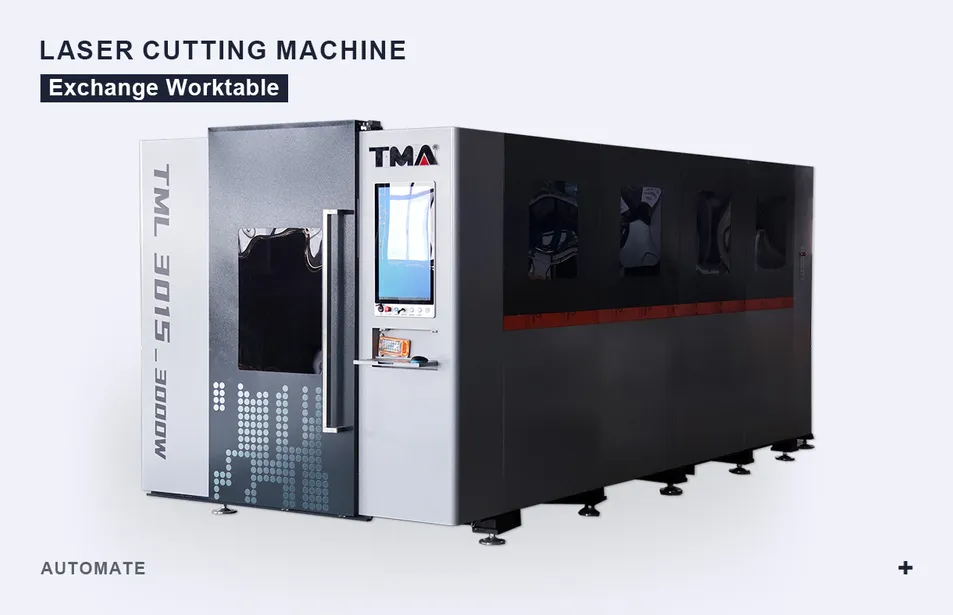

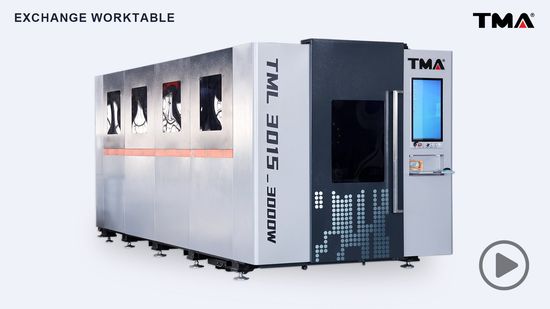

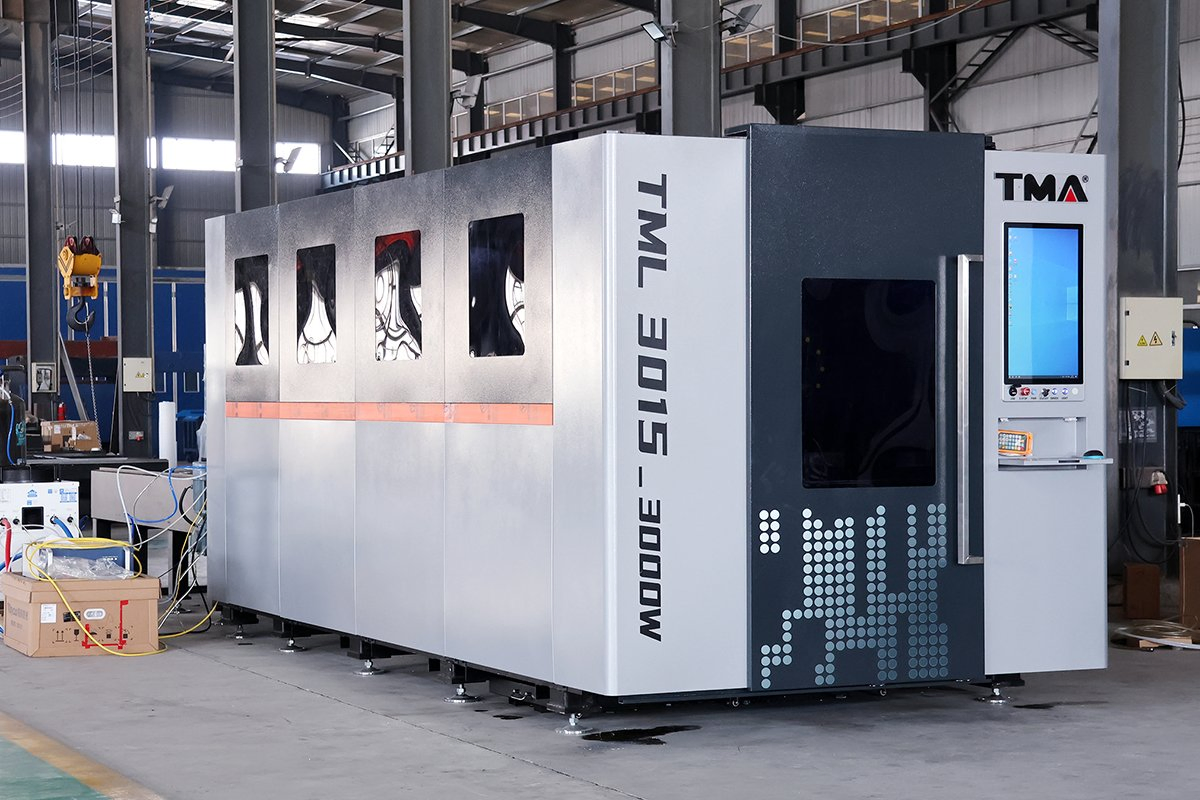

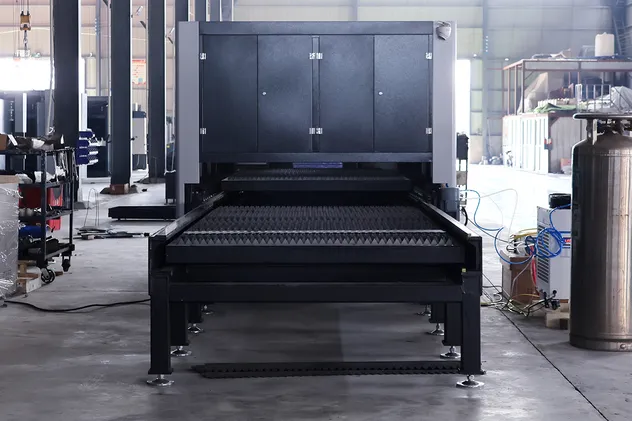

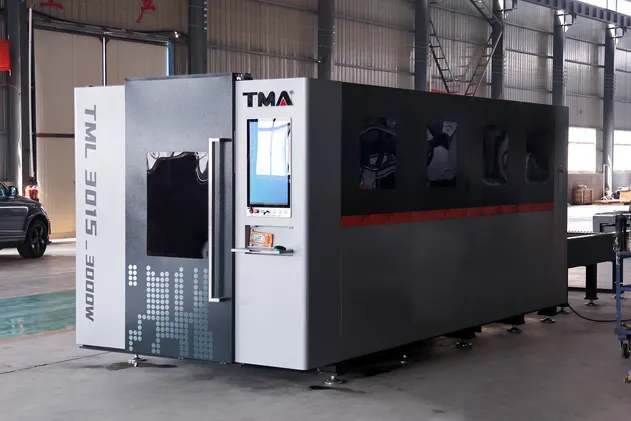

Introducing the Exchange Worktable Laser Cutting Machine — engineered for maximum productivity. Its dual-table system allows continuous operation: load materials on one table while the other is cutting, eliminating downtime. The fully enclosed safety guard ensures a protected, stable, and clean working environment.

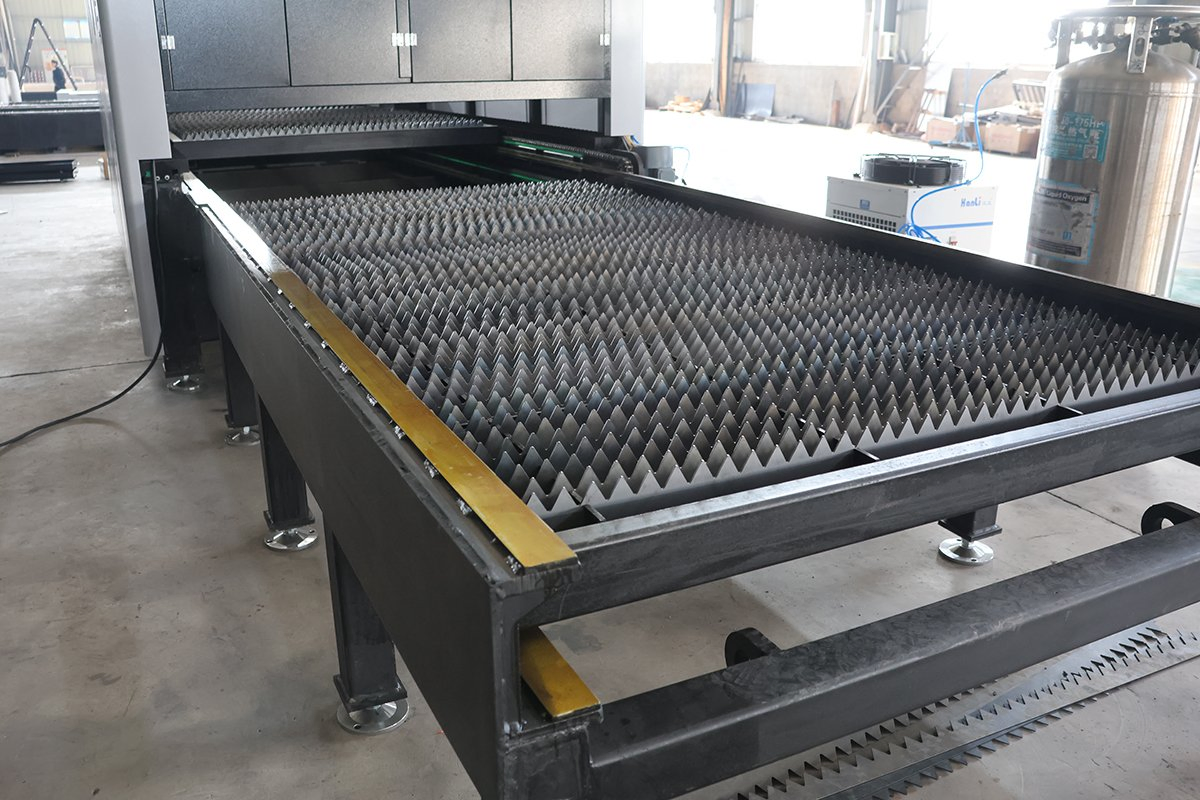

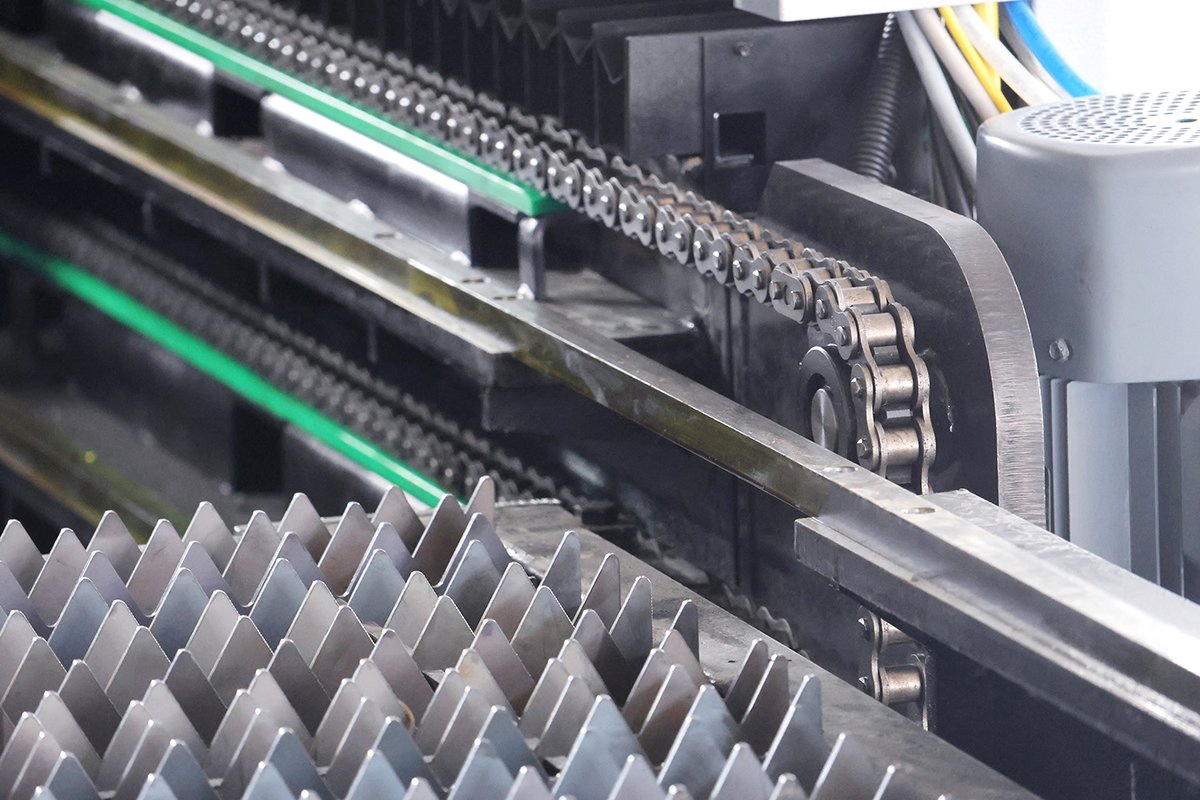

Uninterrupted Production: Load and unload materials on one table while the other is actively cutting, boosting productivity by up to 90%.
Enclosed Safety: Ensures maximum operator safety and protects the cutting process from environmental interference.
Smart Integration: Reduces manual programming time and minimizes errors with advanced management software.

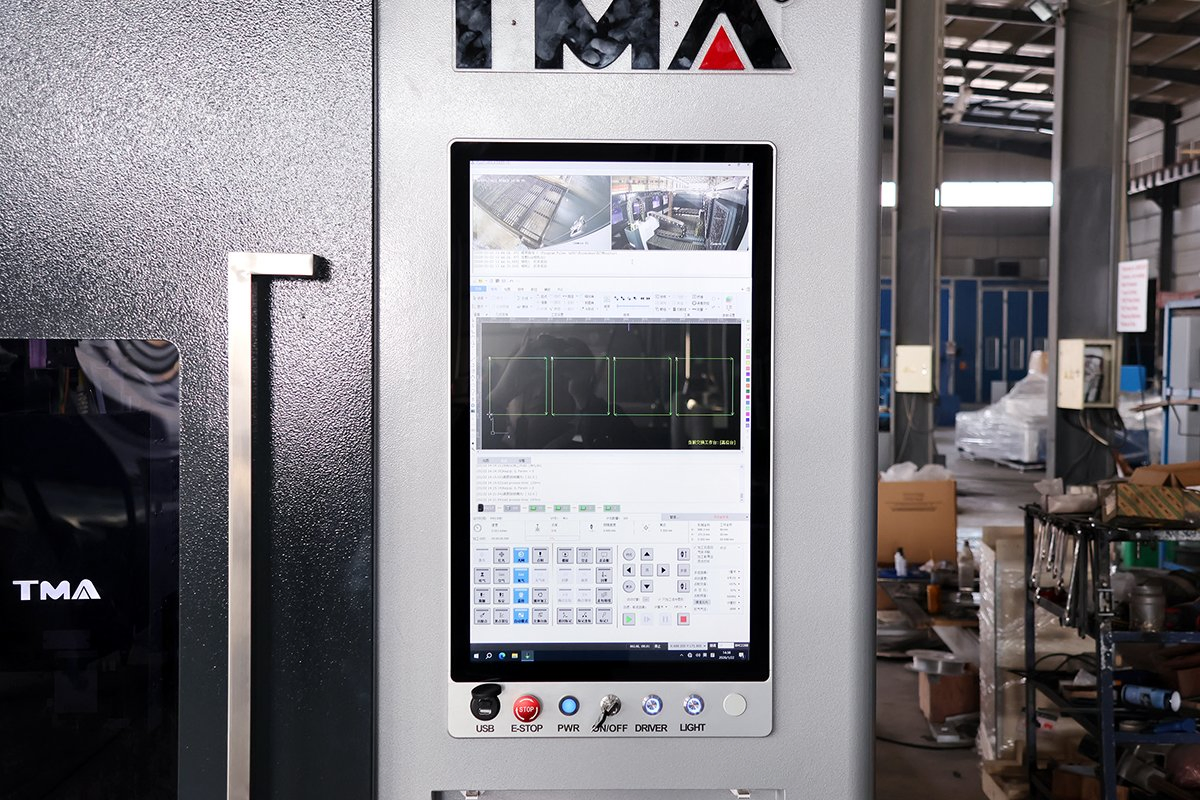

Intelligent command center for high-speed precision and optimal material utilization.

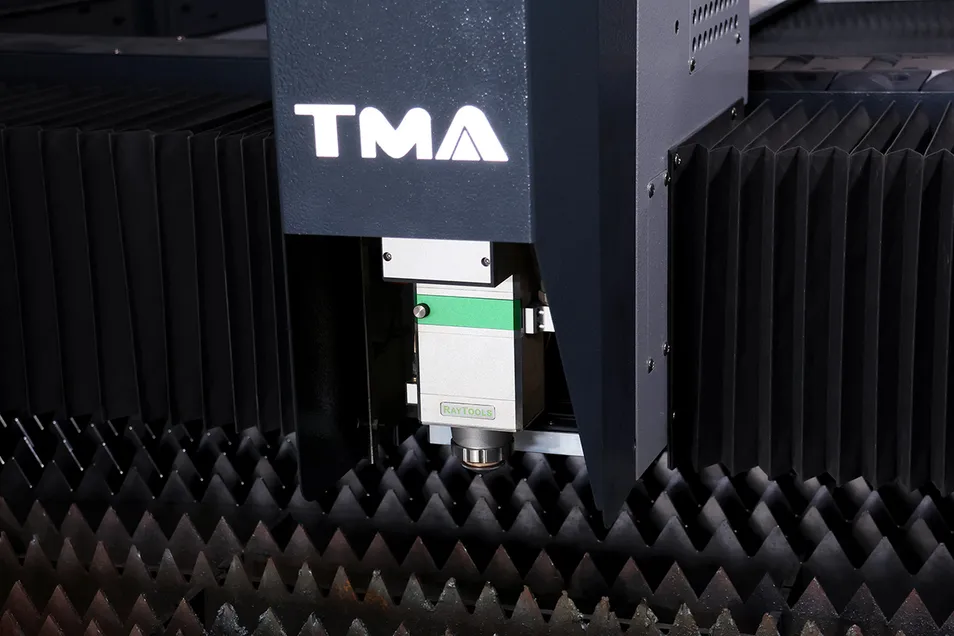

Integrated with automatic capacitive height sensor for real-time optimal distance maintenance.

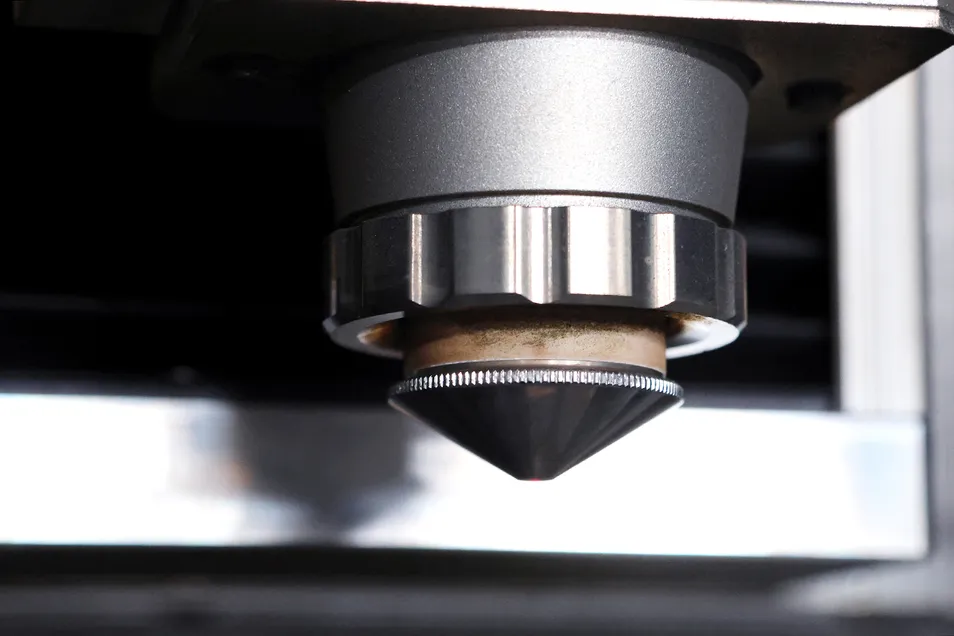

Precision-calibrated bore ensures stable gas dynamics for clean, dross-free cuts.

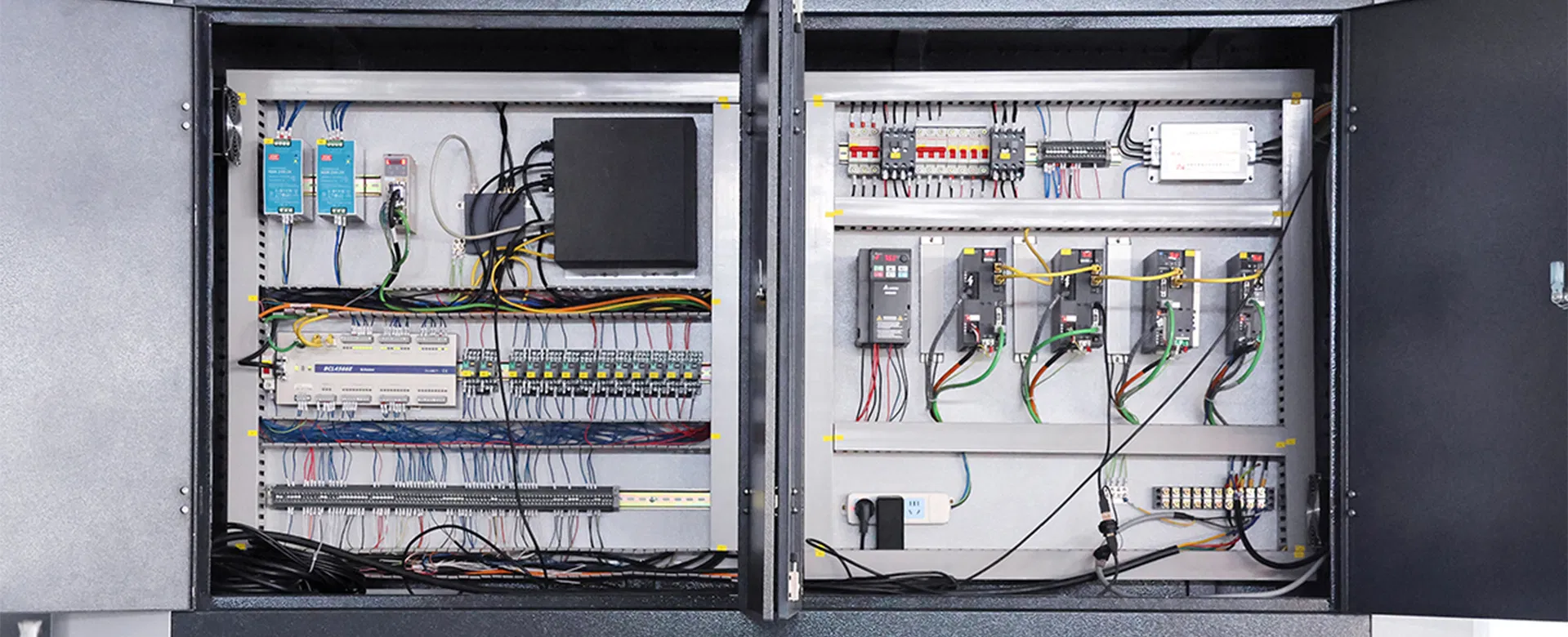

Modular layout providing superior heat dissipation and protection for reliable operation.
Robust fiber laser source delivering exceptional beam quality and maintenance-free performance.

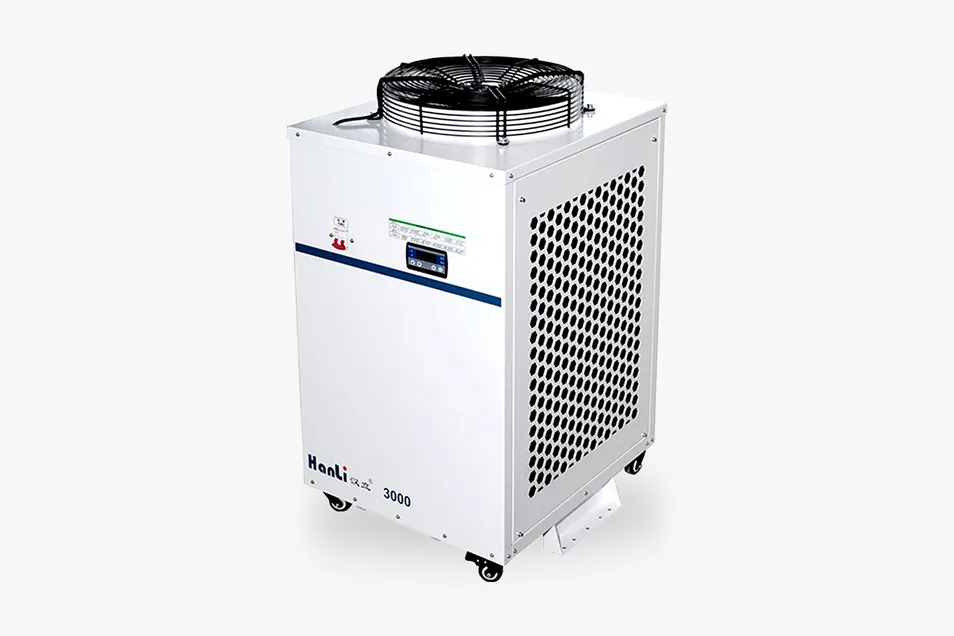

Precision cooling system protects critical components and guarantees consistent performance.
| NO. | Model Parameter | Unit | 3015 3000W Value |
|---|---|---|---|
| 1 | Processing Range | mm | 3000 * 1500 |
| 2 | Laser Power | W | 3000 |
| 3 | X-Axis Travel | mm | 1525 |
| 4 | Y-Axis Travel | mm | 3025 |
| 5 | Z-Axis Travel | mm | 100 |
| 6 | Positioning Accuracy | mm/m | ±0.05 |
| 7 | Repeated Positioning Accuracy | mm/m | ±0.03 |
| 8 | Maximum Linkage Speed | m/min | 100 |
| 9 | Maximum Acceleration | G | 1.5 |
Warranty: 12-month full warranty from B/L date, with a 10-year warranty on the machine frame.
Technical Support: 24/7 support available. Remote guidance via photos and videos for prompt resolution.
Replacement Parts: Free replacement for defective parts within warranty. Cost-price parts provided thereafter.
On-site Service: Professional engineer site service available upon request.
