3D Laser Cutting Machine for Locomotives

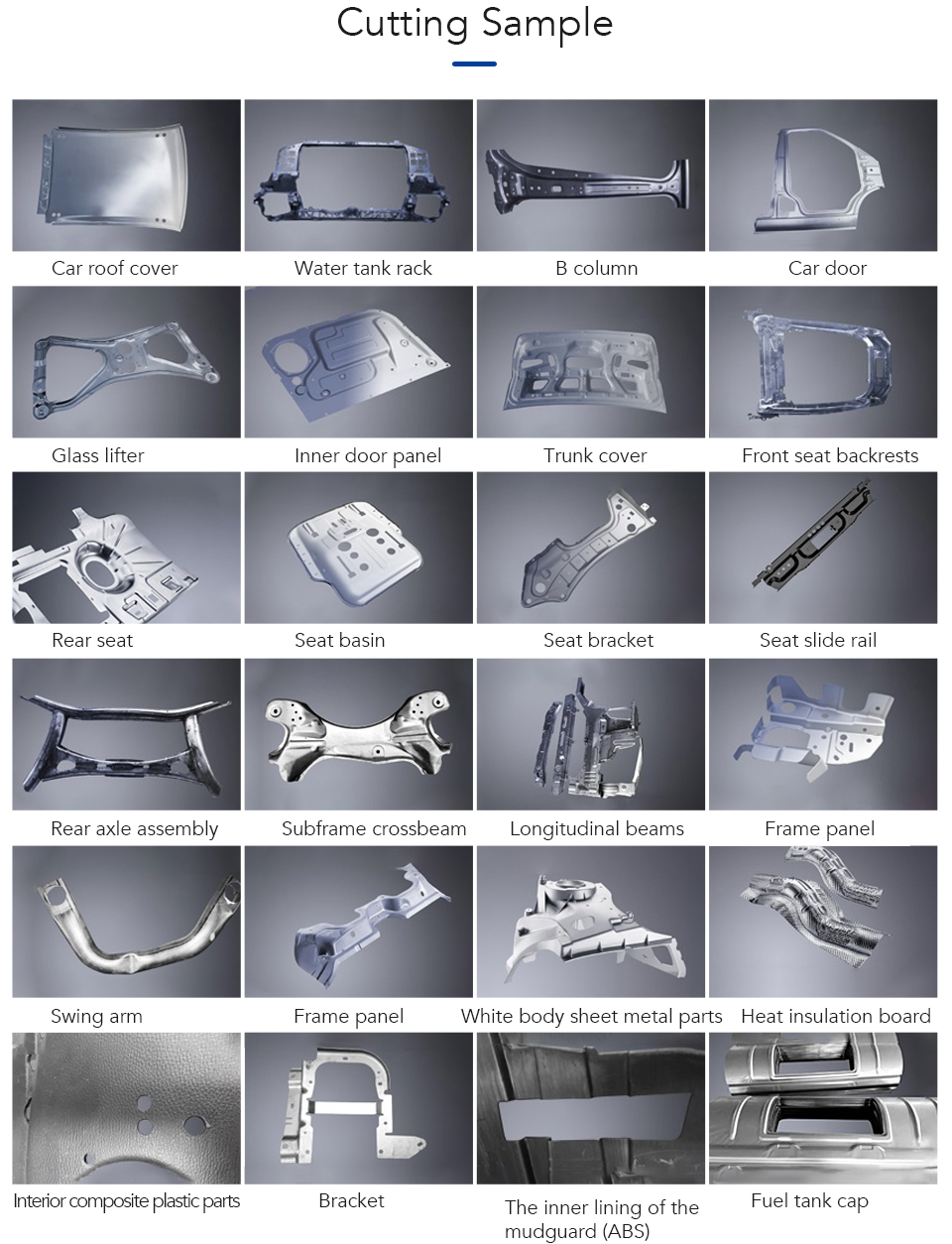

The 3D laser cutting machine is currently the preferred solution product for processing special-shaped pipe fittings such as helmets, aluminum alloy frames, automotive drawn parts, and flat pipes. The processing of this equipment is not affected by the shape and Angle of the workpiece. The cut surface is smooth and fat without burrs, occupies a small area, is easy to operate and maintain, and has a low maintenance cost. It is an advanced three-dimensional fiber laser cutting equipment integrating high stability, high precision, high performance and high speed.
💡
Core Applications
1. With "high precision, high flexibility and high efficiency" as the core, it reduces manual intervention through intelligent technology, and significantly improves the customization ability and production efficiency.
2. The PLC system independently developed, combined with the flexible and fast action performance of industrial robots, can be programmed or off-line.
3. It is an advanced and cost-effective cutting and blanking tool for research and development and small-scale trial production. It is particularly suitable for multi-angle, high-precision flexible cutting and trimming of metal three-dimensional hot-formed parts.
⭐
Key Features
Non-contact cutting: Minimal workpiece deformation without mechanical stress.
Fast cutting speed: Up to 12 meters per minute, 3 times higher than CNC.
Good cutting quality: Smooth and burr-free surface, no post-processing needed.
High precision: Small laser spot and narrow incision up to ±0.05mm.
Environmental protection: Almost no consumables, high yield, and no pollutants.
Economic benefit: Shortens product development cycles and reduces maintenance costs.
🛠️

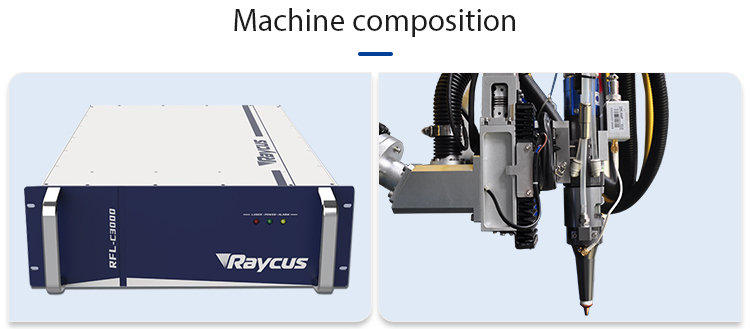

System Components
Laser Source: Raycus fiber laser with high anti-reaction, strong reliability, and 10m reinforced optical cable.

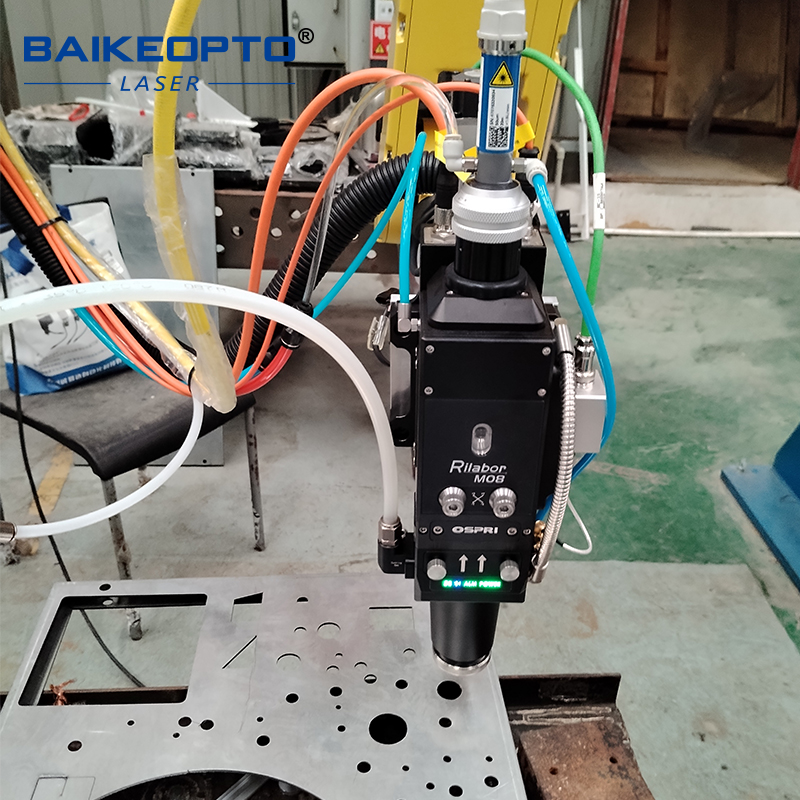

3D Cutting Head: Lightweight specialized anti-collision head for medical parts or irregular pipeline curves.

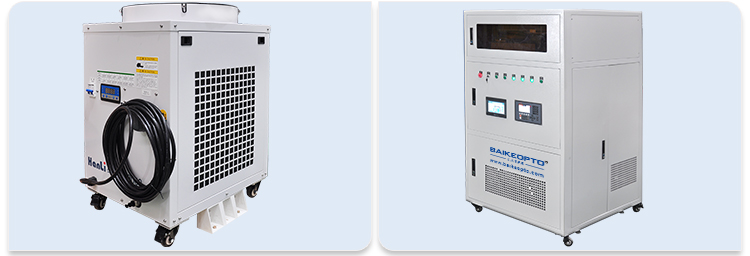

Water Cooler: Efficient cooling for both laser and cutting head with linkage signal protection.
Control Cabinet: Dustproof and anti-corrosion with integrated PWM control and industrial air conditioning.
🤖

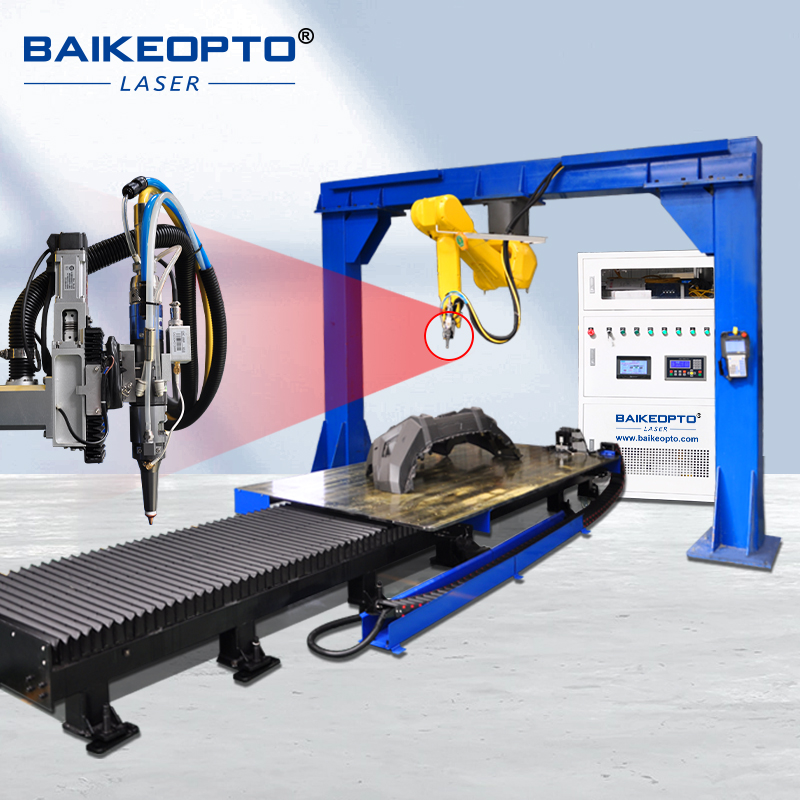

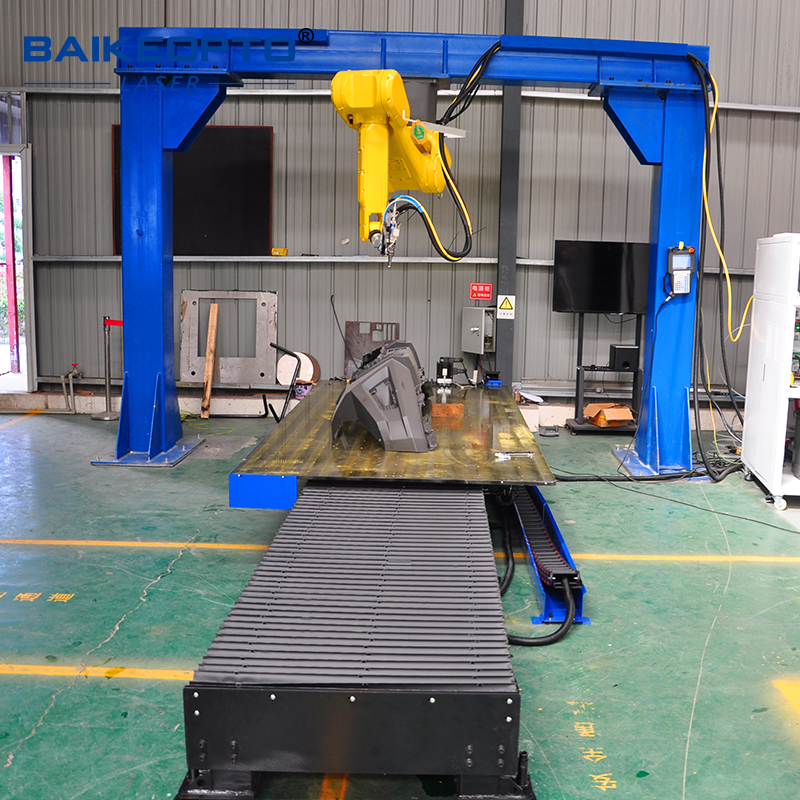

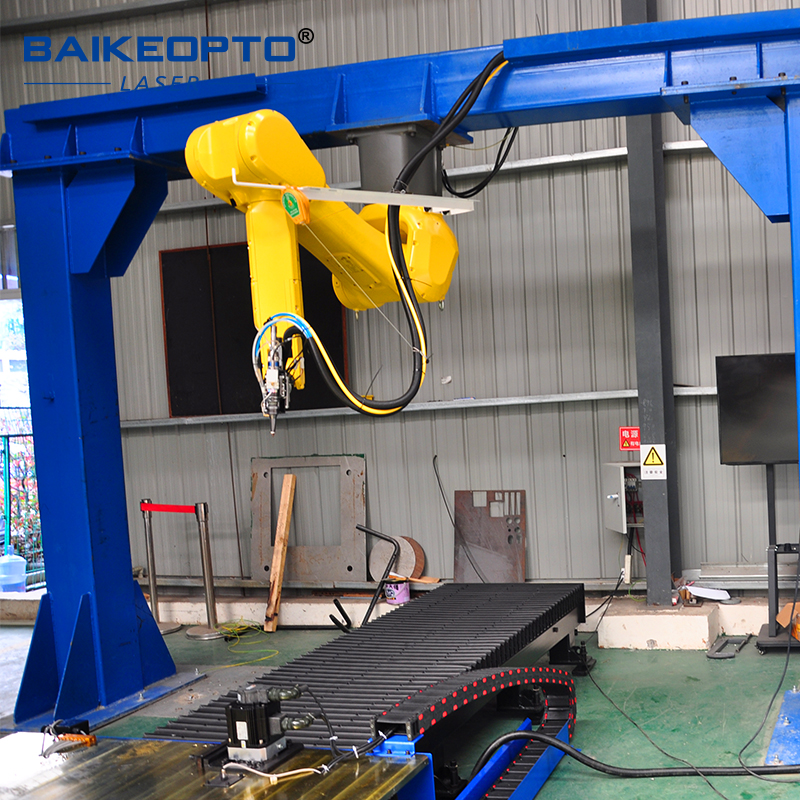

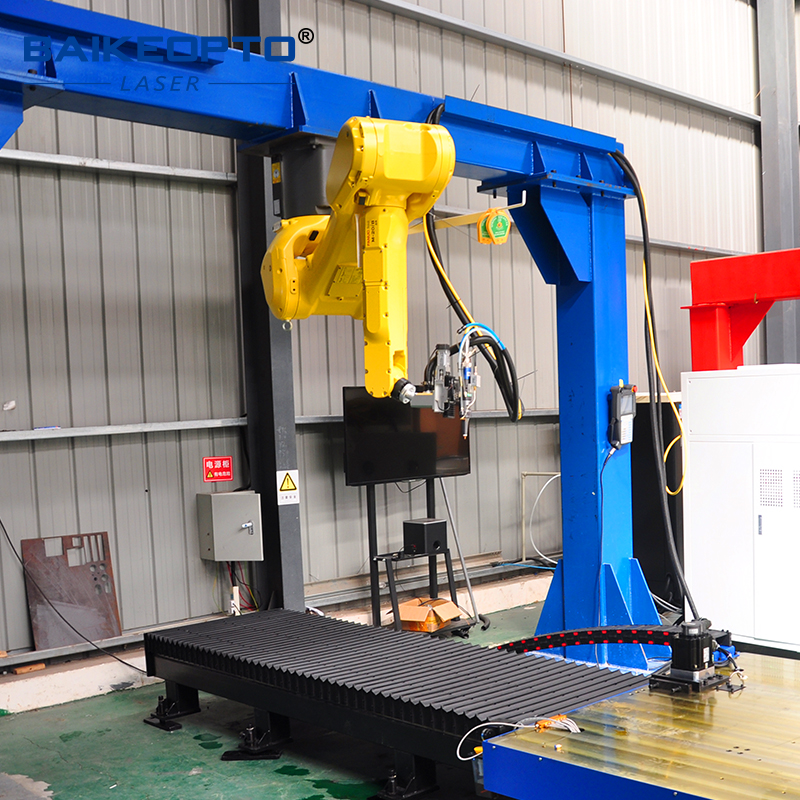

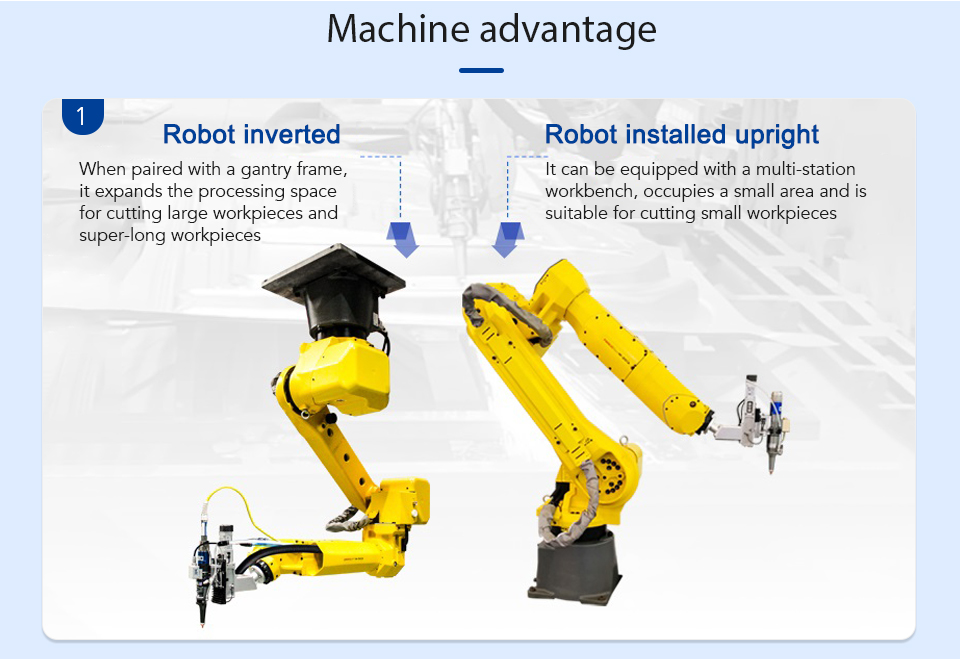

Robotic Integration

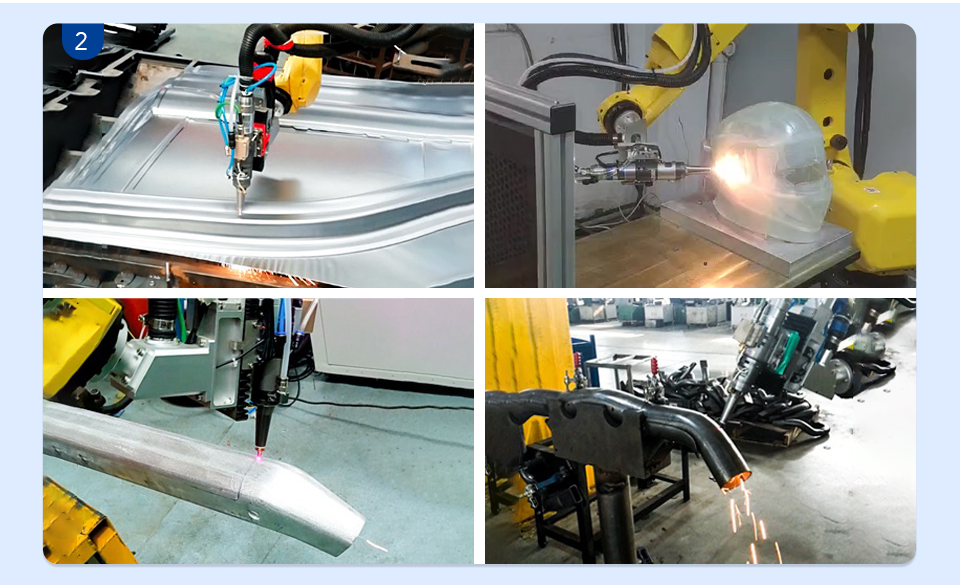

Robots can be selected based on workpiece size and accuracy requirements. They are perfectly matched with PLC systems, offline mapping software, and displacement machines. Flexible movement enables multi-directional, rapid, and efficient cutting of special-shaped fittings of different sizes and thicknesses.
❓
Frequently Asked Questions
Q1. What materials can be cut by the 3D laser cutting machine?
It's widely used in metal and non-metallic materials, such as stainless steel, carbon steel, aluminum alloy, brass, titanium alloy, rubber, plastic, etc.
Q2. What are the main components of this machine?
The main components are: laser source, robot arm, water cooling system, control system, cutting head, cutting platform, etc.
Q3. How about the cutting precision and speed?
The accuracy is up to 0.05 mm, and speed is 12m/min at most.
Q4. How to choose the right power for the cutting machine?
It depends on the material and thickness. For example, 1000W-3000W is suitable for cutting stainless steel plates between 0-8 mm.
Q5. What are the advantages compared to traditional processing?
It offers high precision, fast efficiency (3-5 times faster than traditional methods), extreme flexibility, and superior cutting quality.
Q6. How long is the warranty period and support?
The standard warranty is one year. Even after the warranty, specialized engineering support is available to assist with technical needs.
