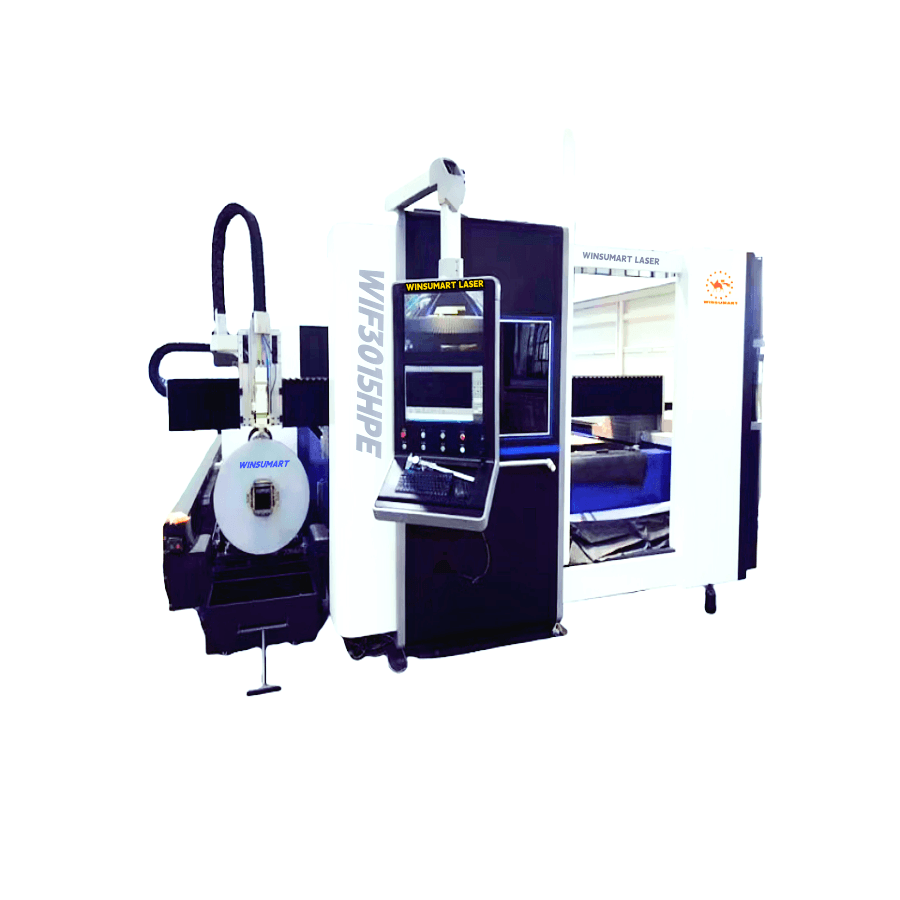

Laser System

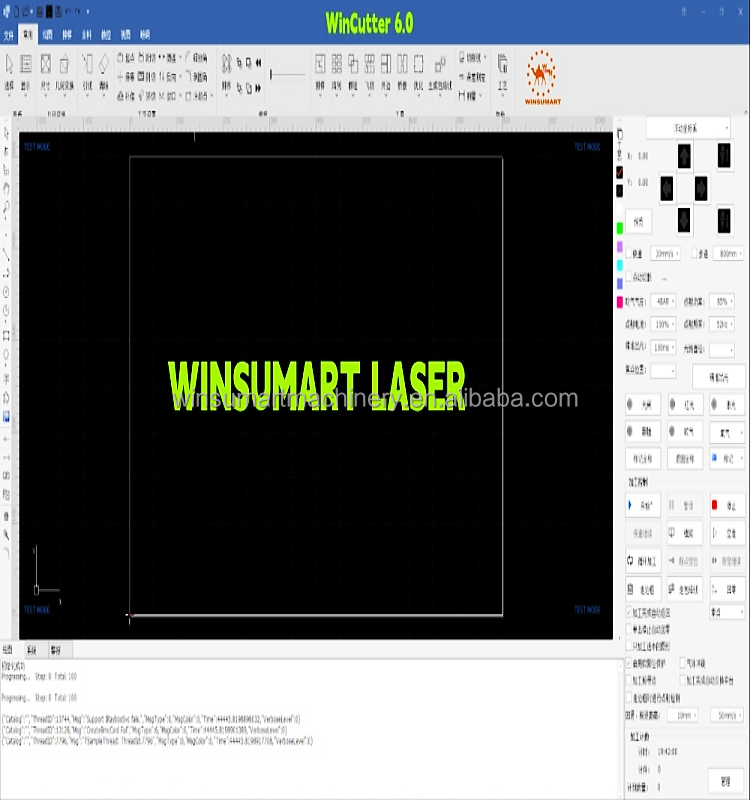

Adopts WinCutter 2.0 or 6.0 Controller System. Supports fly cutting, bulk cutting, and laser power up to 40,000W with IPG or other brand laser sources.
Dust Collection
The smoke and dust removal design is built to meet high standards for optimal workshop air safety and filtering.
Working Stroke & Structure

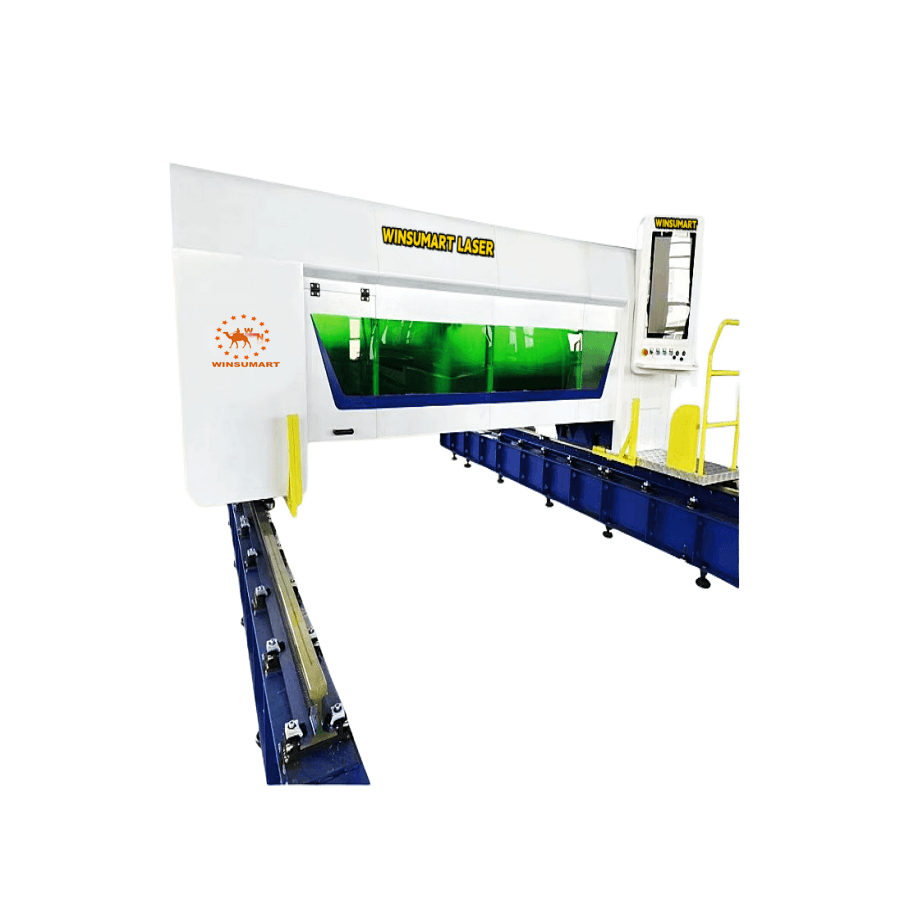

Equipped with large gantry milling centers supporting lengths up to 60m and widths up to 4.5m. Options for 4x cross beam, 4x laser head, and 4x controller.
Technical Specifications
| Parameters |
Configuration Details |
| Model Number |

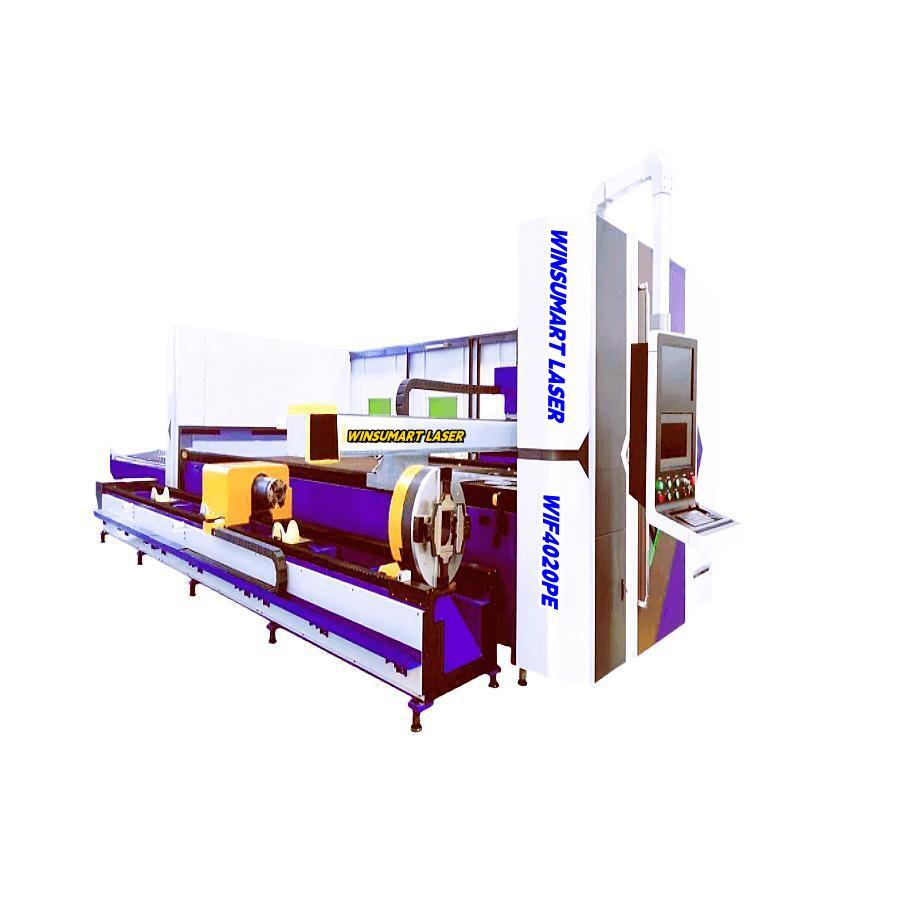

WIF3015PE (Optional models: WIF4020PE, WIF6025PE, WIF8025PE, WIF12035PE, WIF20024, WIF20035, WIF30035, etc.) |
| Product Name |

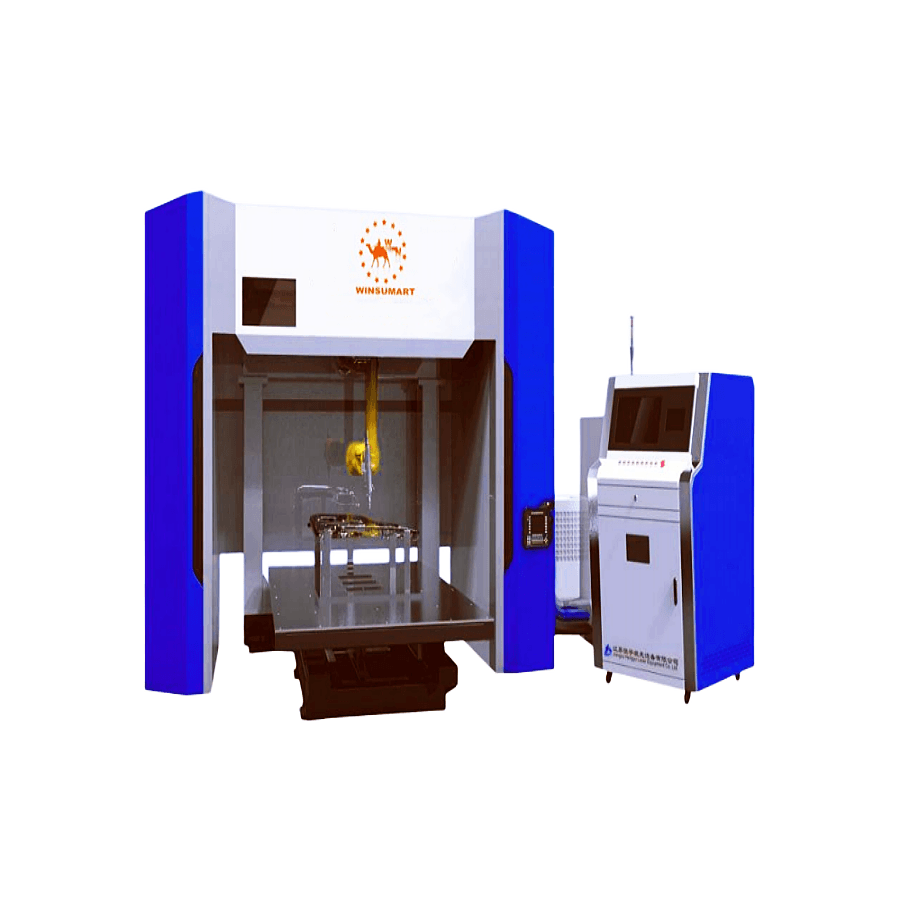

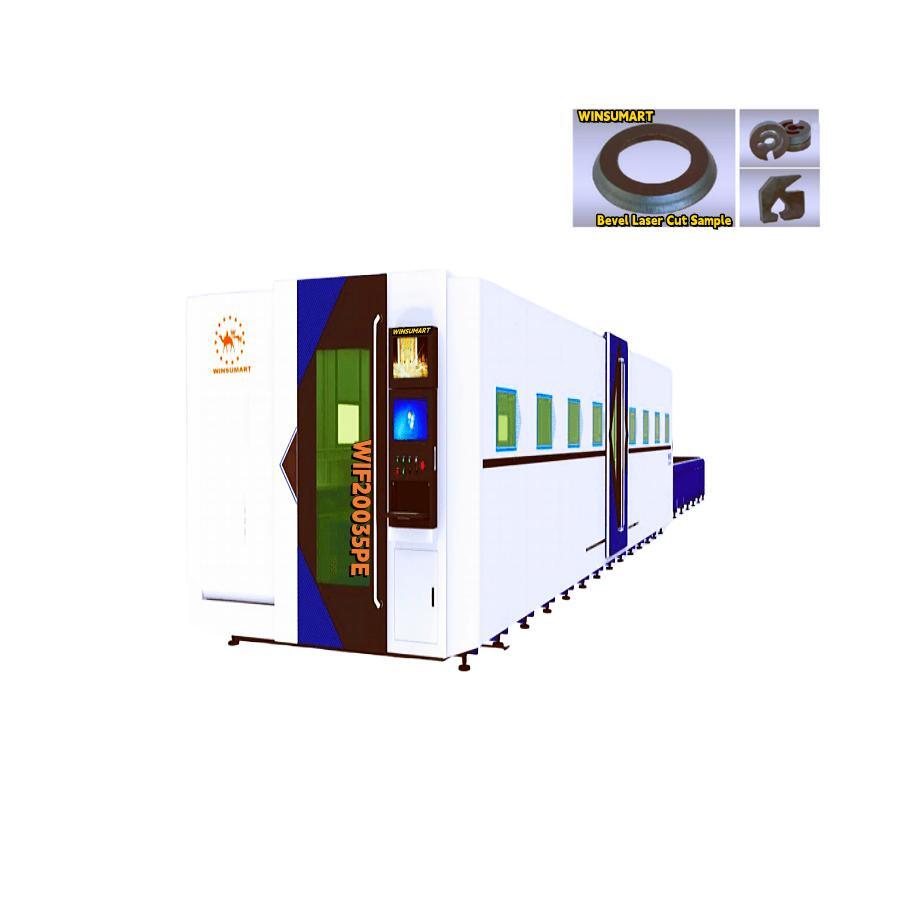

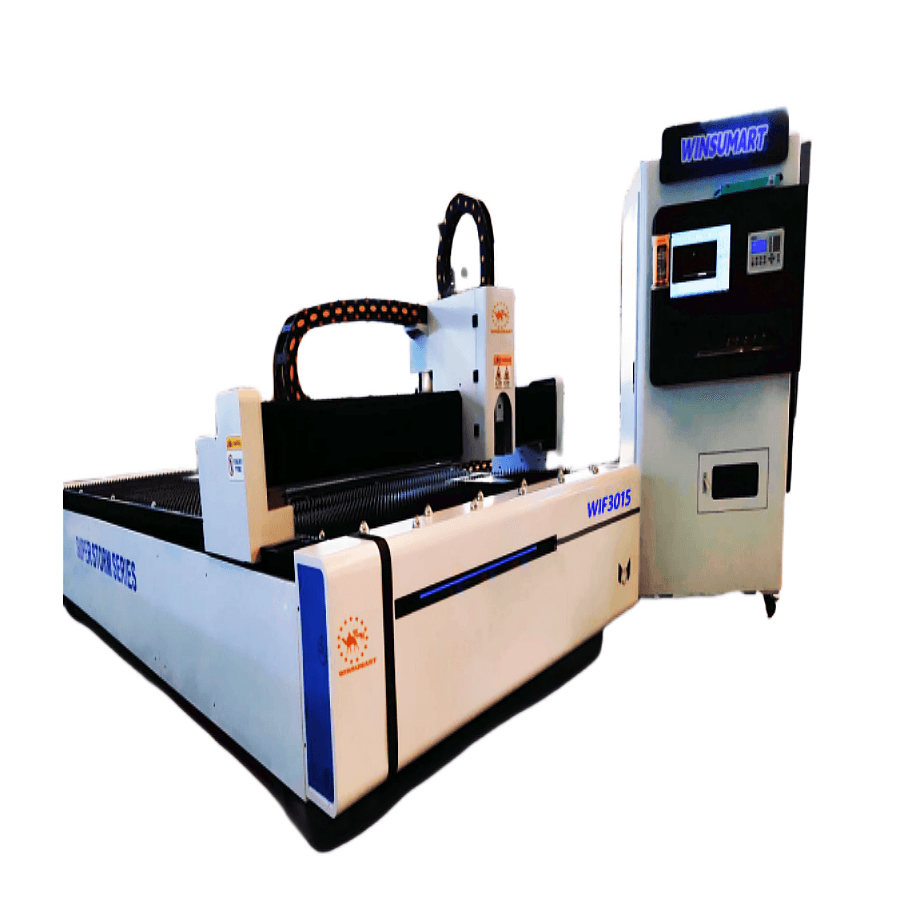

Customized WFD2510 3D Robot Fiber Laser Metal Cutting Machine |
| Working Stroke |
2500x1000mm (Optional for larger strokes up to 2500x13000mm etc.) |
| Laser Head |
Raytools Swiss / IPG or Precitec Germany (Optional brands: FiberCut USA, OSPRI, WSX, or AU3TEC) |
| Laser System |
WinCutter System / FSCUT / Beckhoff / PA (Optional controllers available) |
| Laser Generator |
IPG / TRUDISC / TRUFIBER / FUJIKURA / RAYCUS / MAX / RECI / GW |
| Hydraulic Lifting |
Standard configuration without lifting; optional Hydraulic or Electric Cylinder Lifting system. |
| Breakaway Supports |
Bevel Laser Function (adds extra AB Axis) allowing cutting at ±30° to ±45° angles (Standard version cuts at 90° angle). |
| Laser vs Plasma |
Plasma cutting has no arcing position, while the fiber laser system successfully achieves this difficult cutting process. |
| Government Bidding |
Fully supported project configurations. |
| Control Cabinet Cooling |
Enclosed style standard cabinet equipped with Air Conditioner cooling. |
| Proportion Valves |
Z-axis Nitrogen Proportion Valves available as optional. |
| Power Support |
Certified licensing support for laser power up to 40,000W and above. |

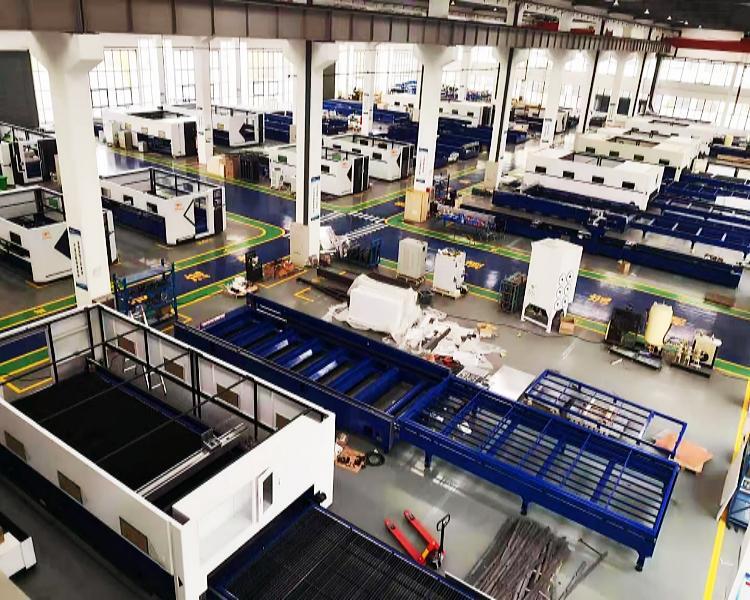

Production Facility
Product Configuration Details

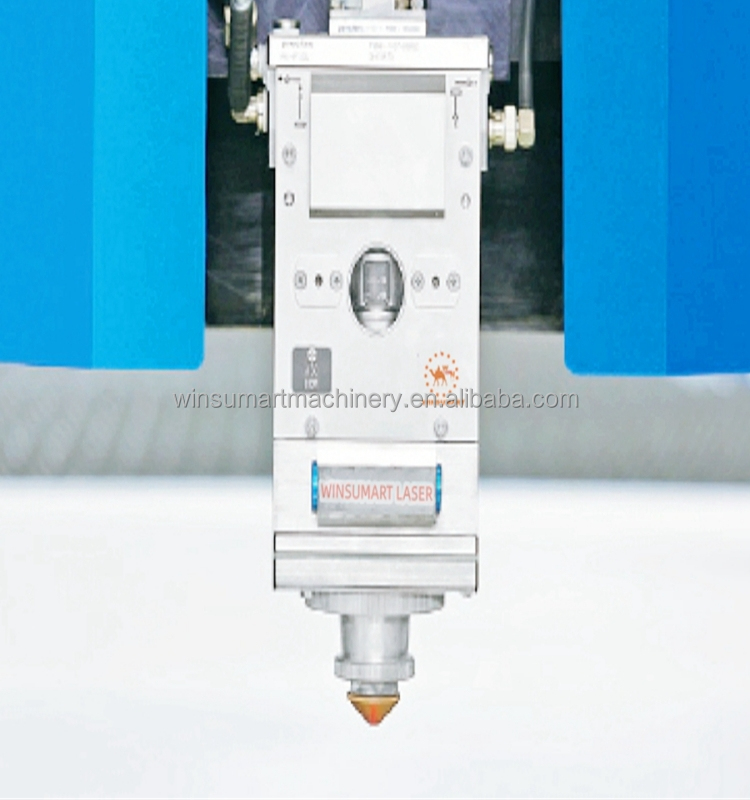

Laser Head (Options: Raytools, WSX, Precitec, IPG, Ospri, HighYag, etc.)
WinCutter Laser System (Optional: Beckhoff, FSCUT, WEIHONG, PA, AU3TEC)

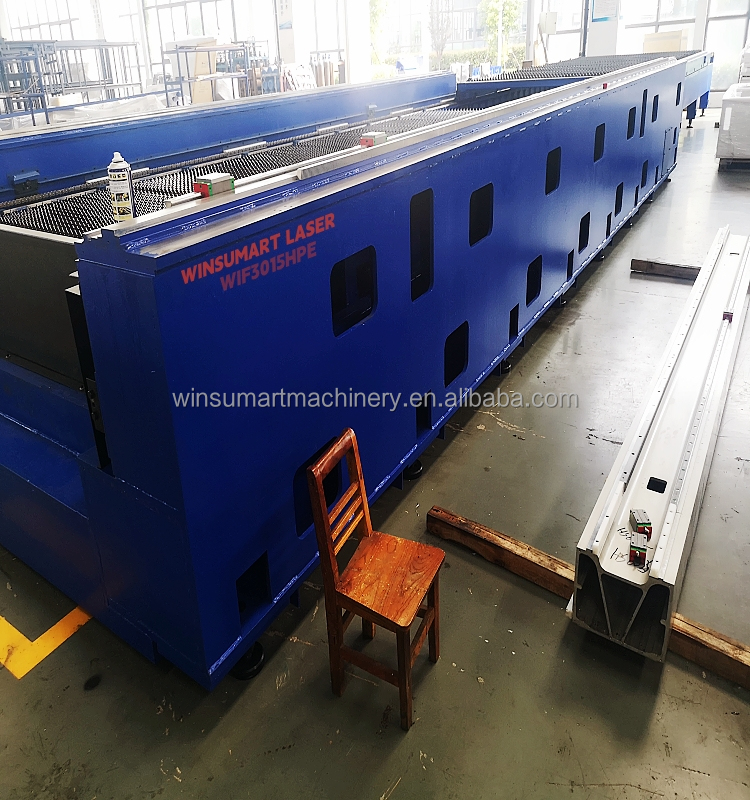

Honeycomb Structure Bed Welding with Heat Treatment

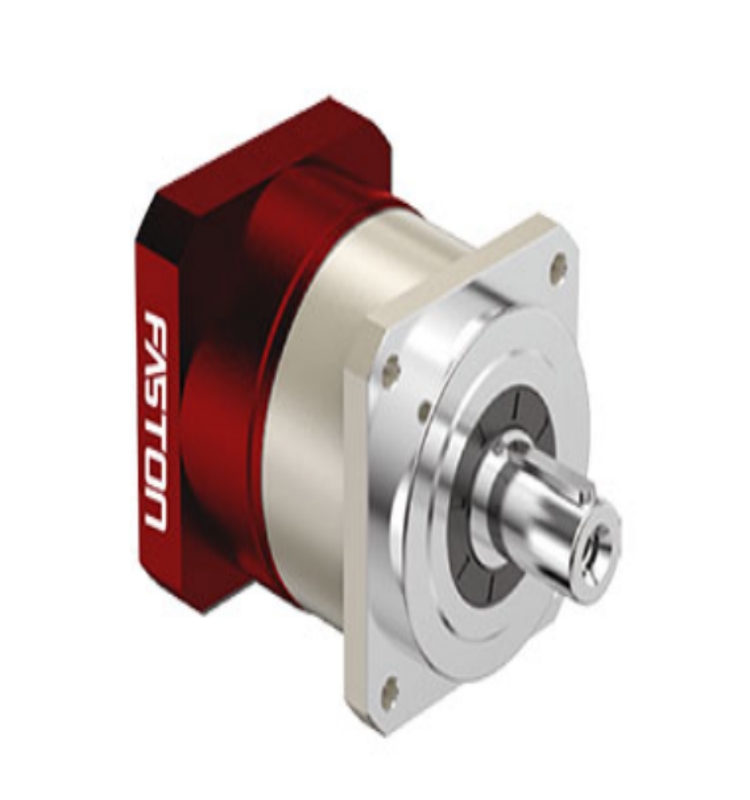

Japan Faston Reducer

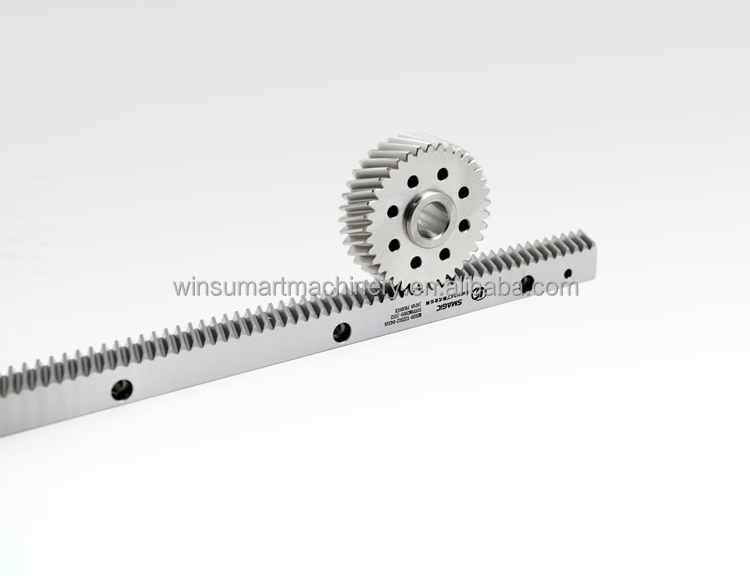

Japan Gear and Rack System

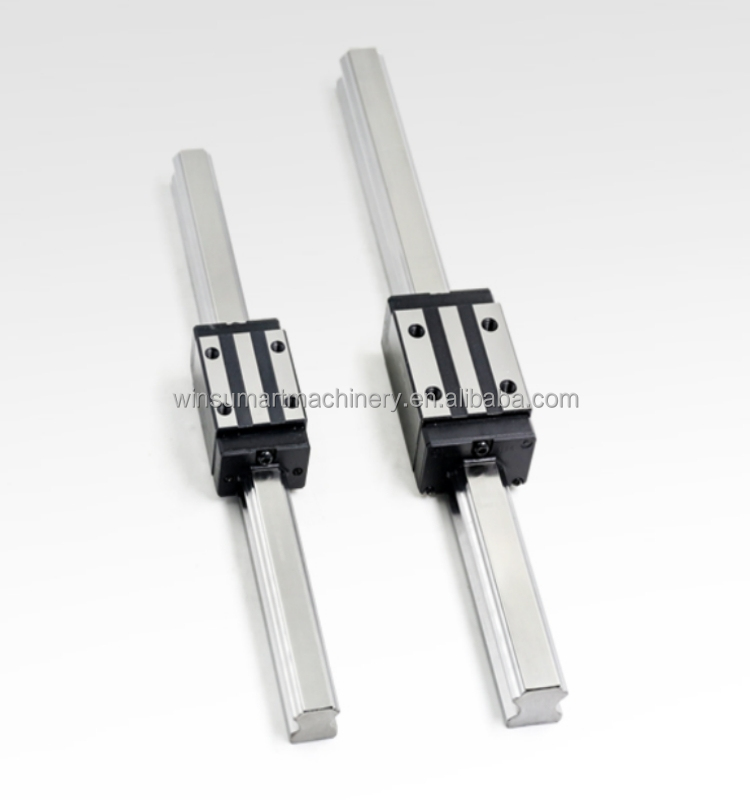

Japan Linear Rail

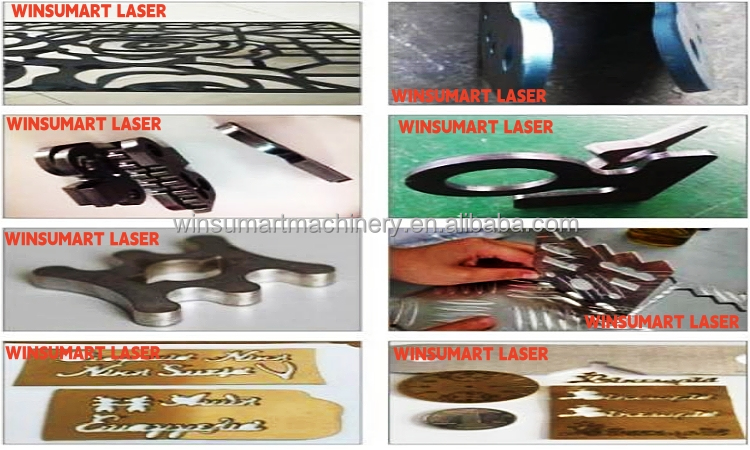

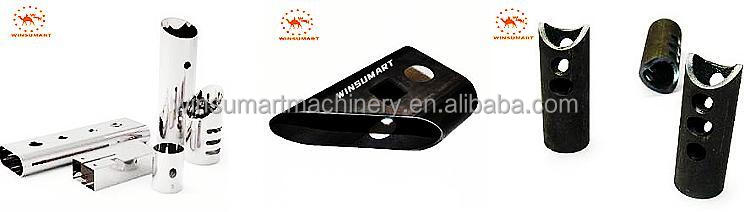

Laser Cutting Samples

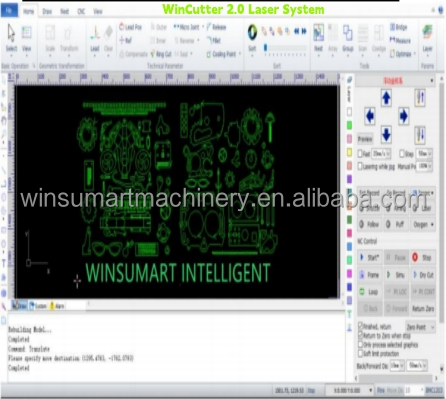

Laser System & Software

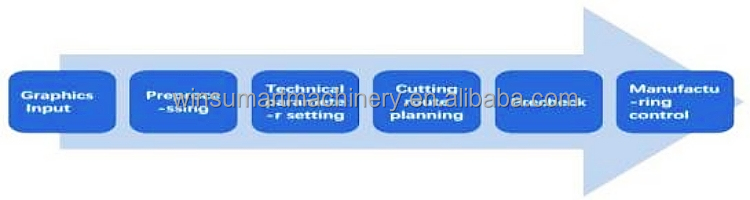

Graphic Form Rendering Processing View: Whether you are importing graphics or NC processing codes, the visualization renders directly in the software. Graphic processing, process editing, modification, and machining process simulation are completely visualized and intuitive.
Powerful, Professional & Practical Functions: Includes drawing functions to meet the requirements of conventional graphics drawing and direct processing. Supports advanced setups like frog jump, flight cutting, cutting gap compensation, automatic edge finding, film cutting, and marking.

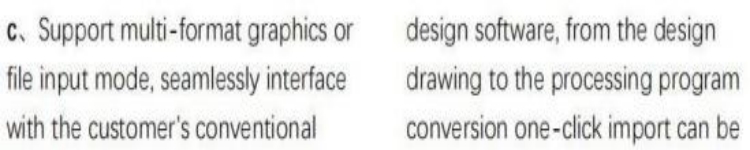

Integrated Nesting & Cutting: The software combines cutting applications and nesting into a single interface. Users can directly input and arrange workpieces for nesting typesetting and cut them immediately. This eliminates the need for external nesting software, optimizing pre-processing steps and reducing software purchase costs.
Frequently Asked Questions
I know nothing about this machine, what kind of machine should I choose?
It is very easy to choose. Just inform us of your intended application and details, including: (1) Your materials, (2) The size of the materials (length x width in mm), and (3) Whether you want to engrave or cut (and the cutting thickness). We will recommend the perfect solutions.
How long is the delivery time?
For standard machines, it takes 15-25 working days. For non-standard and custom-built machines customized according to specific client requirements, the delivery time is 25 to 40 working days.
Are you a factory or trading company?
We are a professional manufacturer with an export license, supplying machines directly to worldwide clients.
What is the difference between fiber laser and plasma cutting?
Plasma cutting does not have an arcing position and struggles with precision, while the fiber laser system easily achieves high-accuracy cutting for complex shapes.
What laser sources and system configurations do you support?
We support high-power configurations up to 40,000W and above. The laser sources include IPG, Raycus, MAX, RECI, or GW. Control systems include WinCutter, FSCUT, Beckhoff, PA, or other compatible controllers.
Can this machine support bevel cutting?
Yes. By adding an extra AB Axis, the machine can support a Bevel Laser Function, allowing you to achieve ±30° to ±45° angle cuts. The standard default configuration supports 90° straight cutting.
