1) Function: fine cleaning to remove impurities, broken and abortive grains; grading seeds according to sizes.

2) Application: cereal grains, beans and seeds.

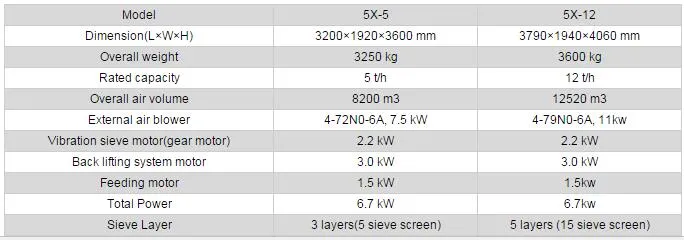

3) Capacity: up to 12t/h (wheat).

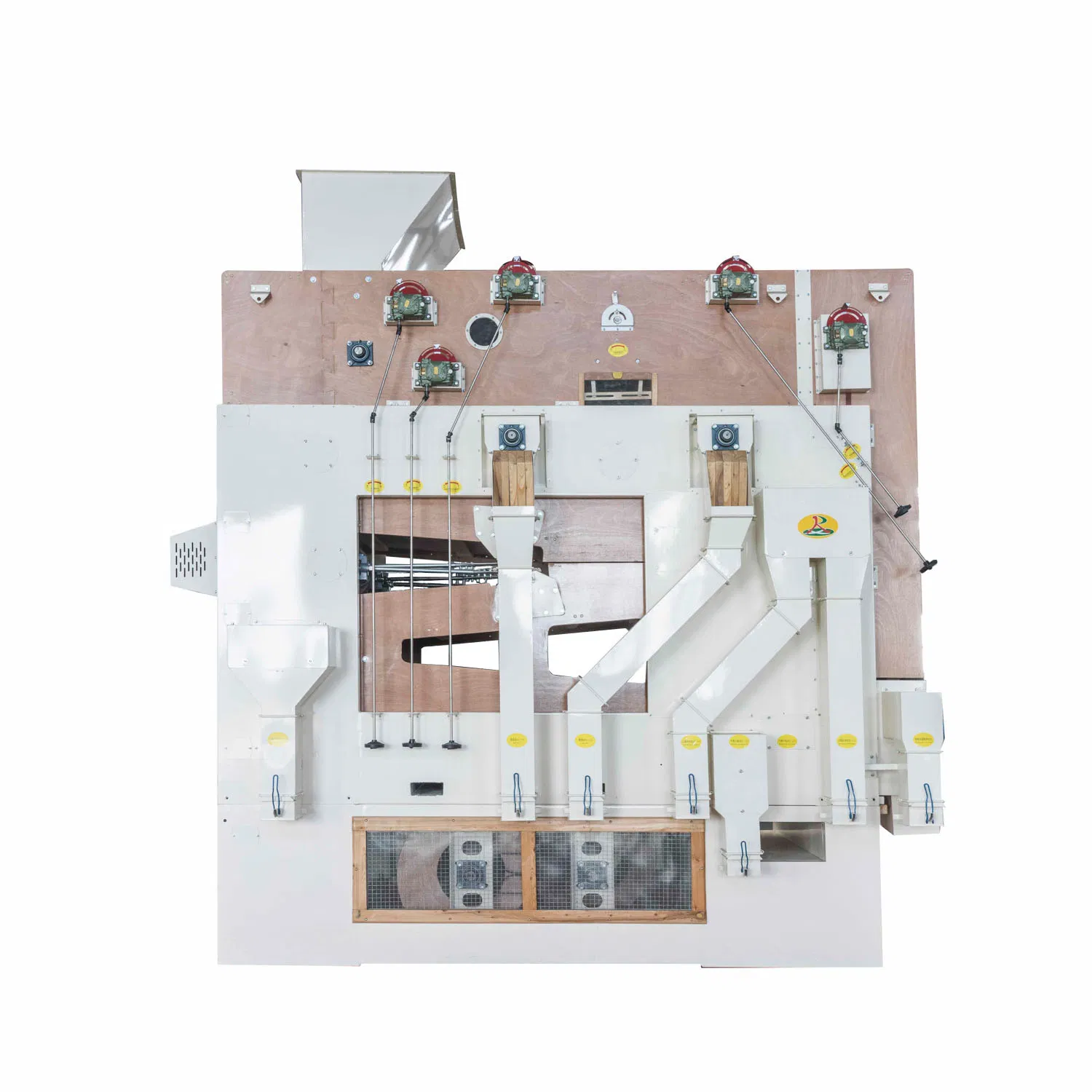

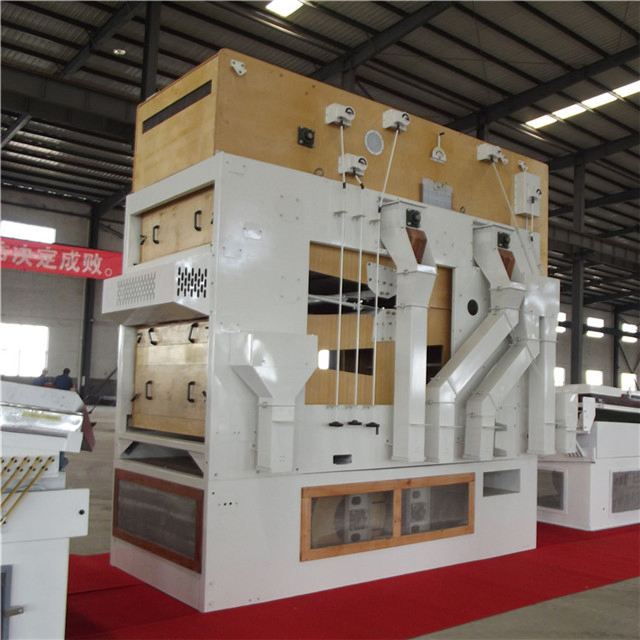

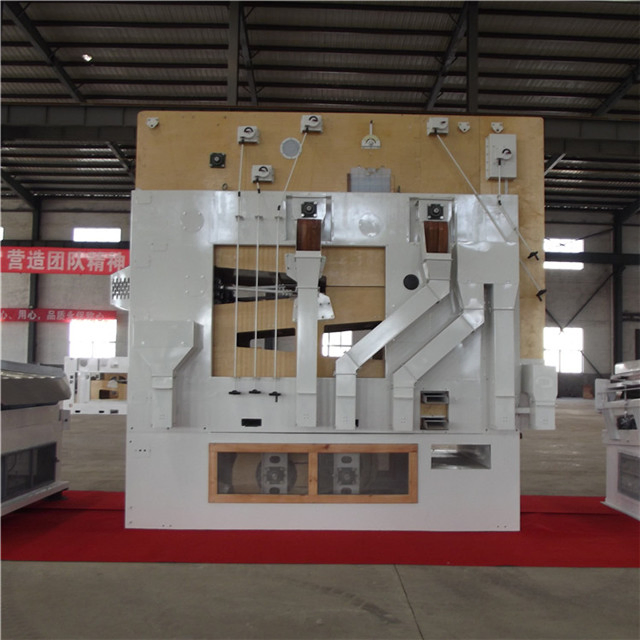

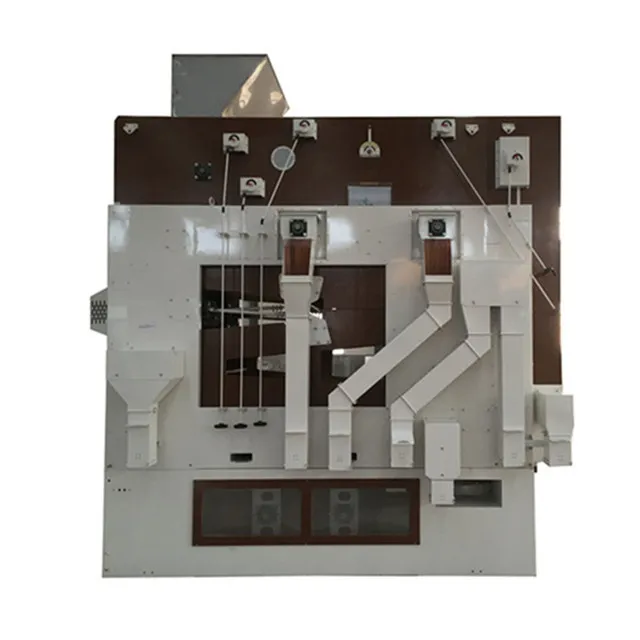

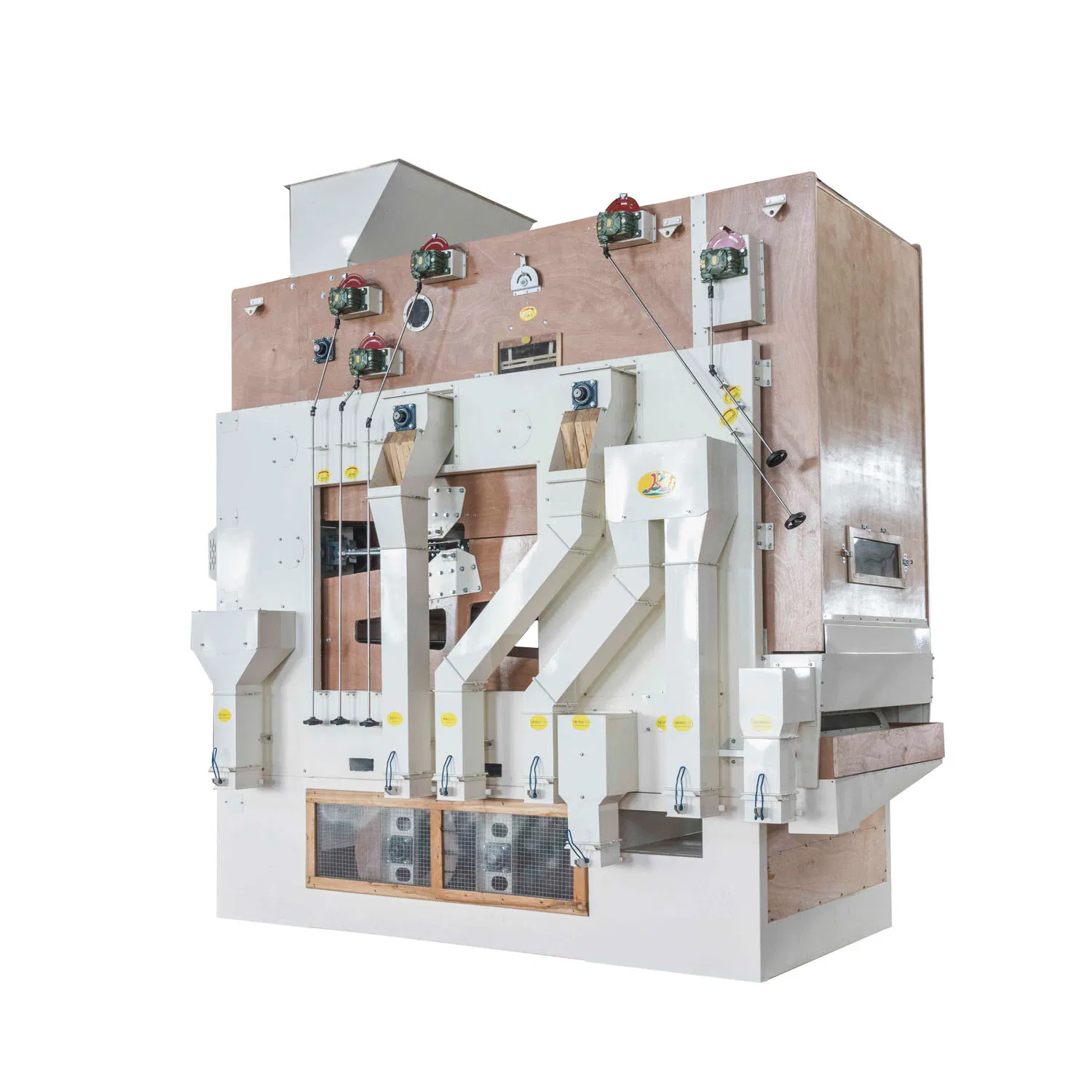

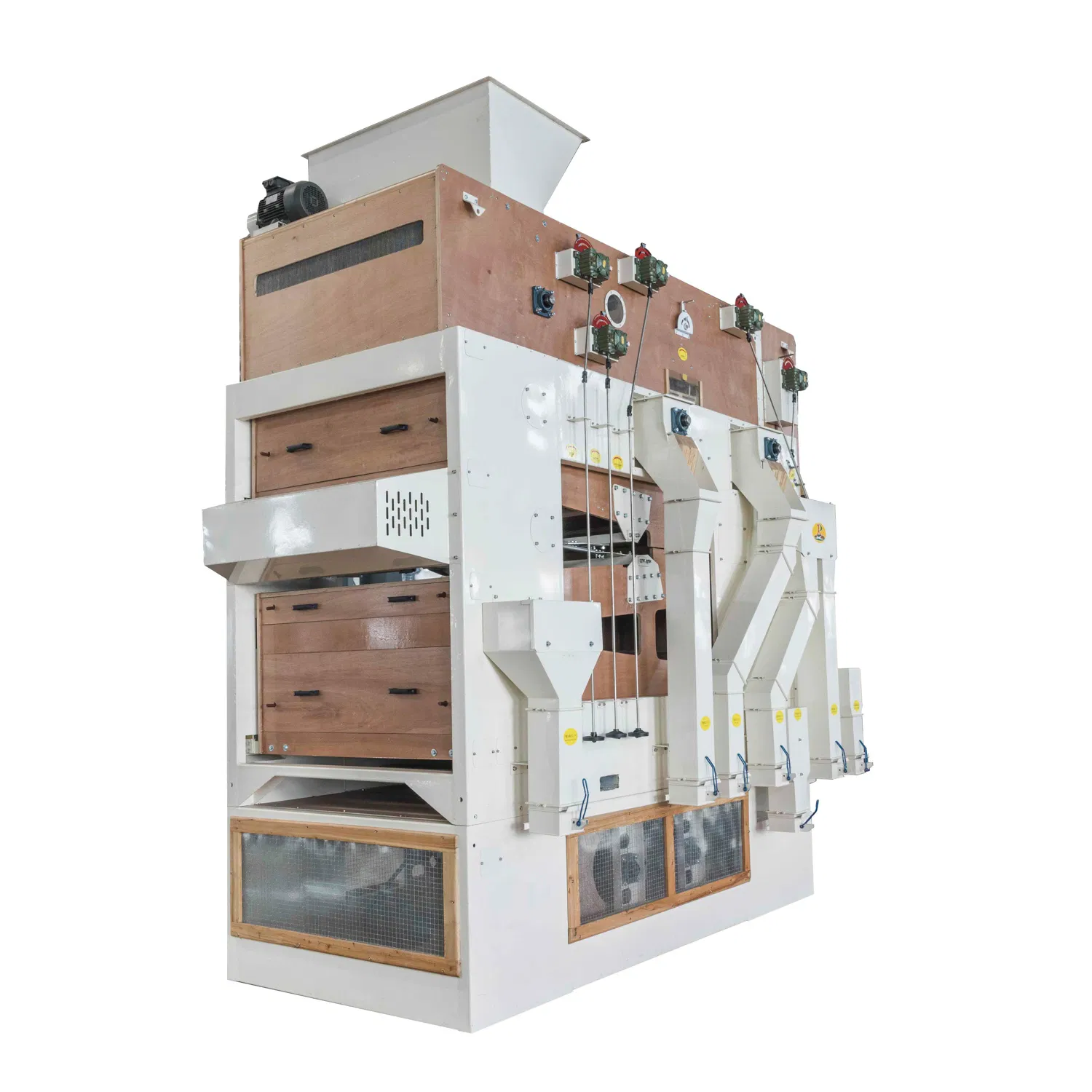

The 5X series air screen seed cleaner has been developed specially for flexible, high-quality cleaning for grains and seeds. It can be used for pre-cleaning and intensive cleaning, but mainly for seed cleaning.

5X series air screen cleaners are widely used for cleaning and grading of grains and seeds, such as wheat, malting barley, beans, rice, maize, spices, grass seeds, flower seeds and forestry seeds. The multi-layer cleaning screens are changeable easily for different processing requirements.

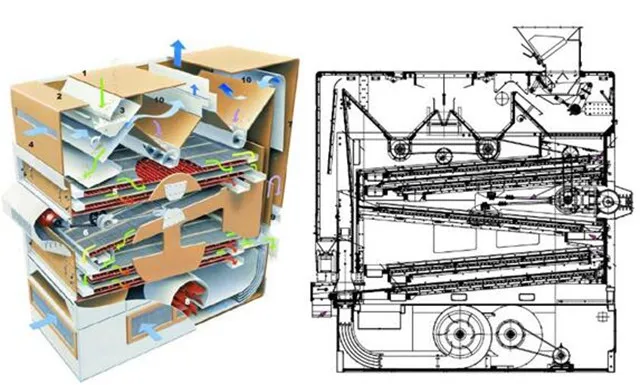

The seeds and grains can be separated from impurities for different physical and mechanical properties. The separation is completed by:

• Fans (air blowers): by different weight and aerodynamic characteristics.
• Screens: according to different width and thickness sizes of seeds.

Excellent cleaning and grading function is accomplished by variable screen configuration, pre and after suction system, and air lifting blowers at the bottom. Closed, bolted and painted steel construction ensures the long service life and safe operation.
