Industrial Laser Cutting Equipment for Efficient Metal Processing

Customization:	Available
After-sales Service:	24 Hours Online Service
Warranty:	3-Year Warranty

Send Inquiry

Product Description

📋 Basic Information

Model NO.	DA6024T
Application	Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Aerospace Industry, Automotive Industry, etc.
Cooling System	Water Cooling
Technical Class	Continuous Wave Laser
Applicable Material	Metal
Structure Type	Gantry Type
Power Range	1500W / 2000W / 3000W / 4000W / 6000W
Servo Motor	FUJI/Yaskawa, Japan
Max. Speed	140m/min
Positioning Accuracy	0.03mm

🔍 Product Description

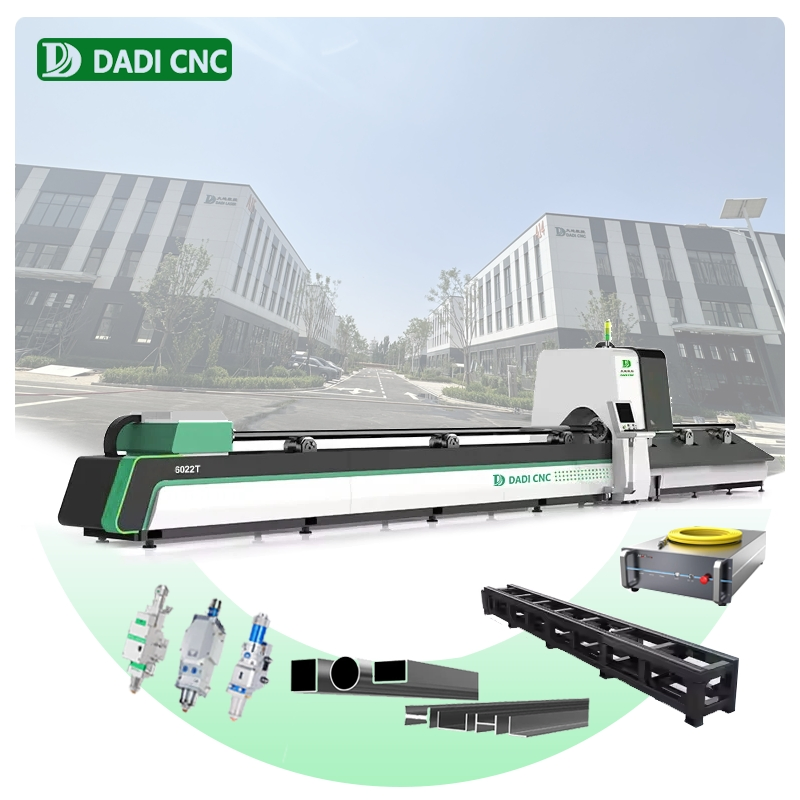

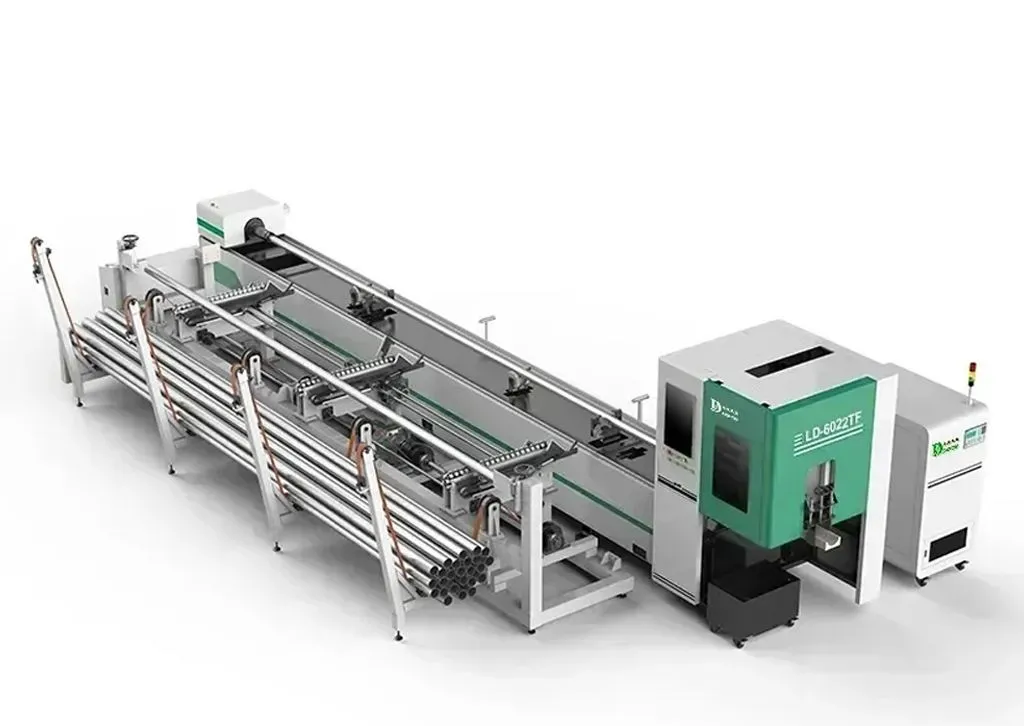

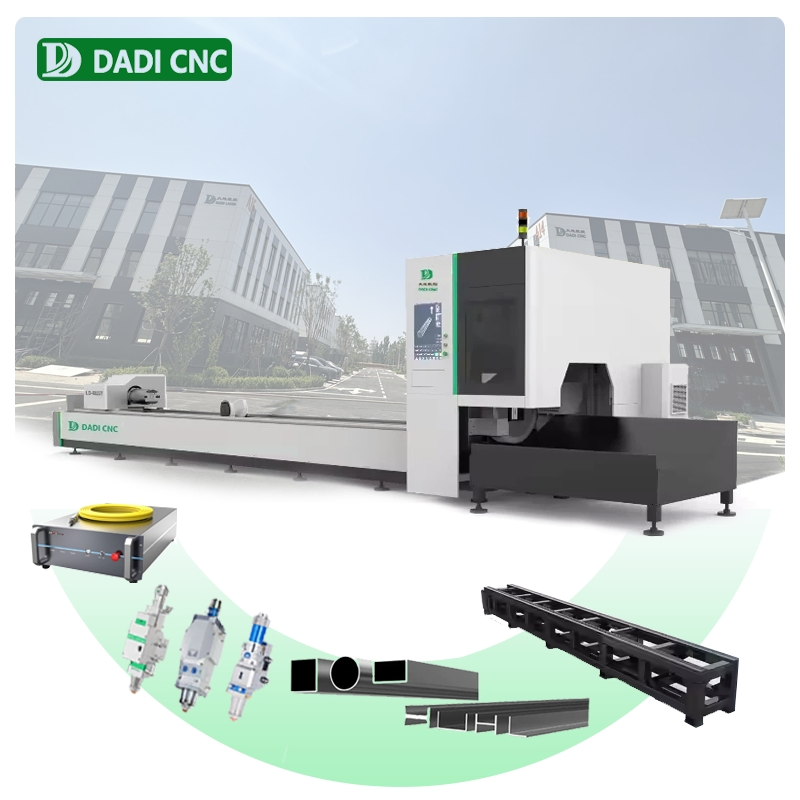

Metal Tube Fiber Laser Cutting Machine

Professional Laser Tube Cutting Machine designed for round pipes, square tubes, rectangle tubes, tubular elements, and H beam profiles. This system supports tube diameters from 10-500 mm with lengths of 6 meters or 12 meters, featuring automated feeding functions.

Fiber laser technology offers high beam quality, brightness, and conversion rates with maintenance-free operation. Particularly suitable for stainless steel, carbon steel, alloy, brass, copper, and titanium precision cutting.

⚙ Technical Parameters

Model	LD-6024T
Laser Power	1000W - 6000W
Tube Cutting Diameter	Round Tube: φ50-φ500mm Square Tube: 50-350mm U-Steel: 5#-40# I-Beam: 10#-40# Angle Iron: 250*250mm
Cutting Length	6m / 12m
Machine Dimensions	855023002000mm
Weight	4000kg
Max. Acceleration	1.5G

⭐ Machine Advantages

Shape Identification

Automatically recognizes standard and special-shaped pipes, including round, oval, and square, eliminating manual configuration.

Non-Inductive Detection

Employs continuous, high-efficiency detection without human intervention, streamlining operations and boosting productivity.

Exceptional Precision

Guarantees cutting accuracy with a position deviation within 0.15mm over the entire meter section, ensuring consistency.

🔧 Core Components

Machine Frame
Plate welding structure bed with aging treatment for long-term stability.

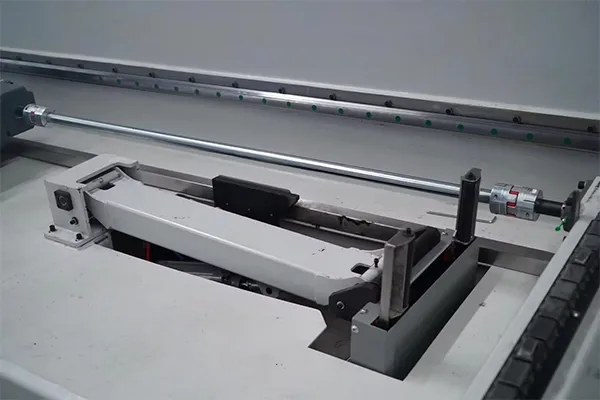

Automatic Support
Ensures stability and precision for pipes of varying lengths and diameters.

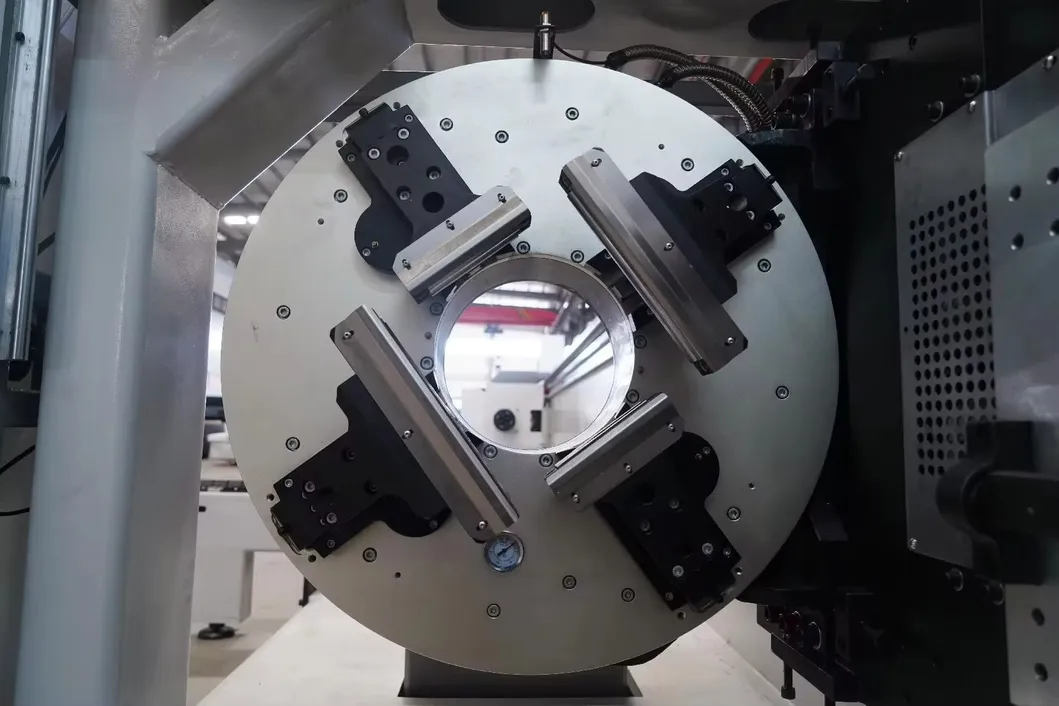

Front Chuck
Fully sealed dust-proof structure with aluminum alloy panel.

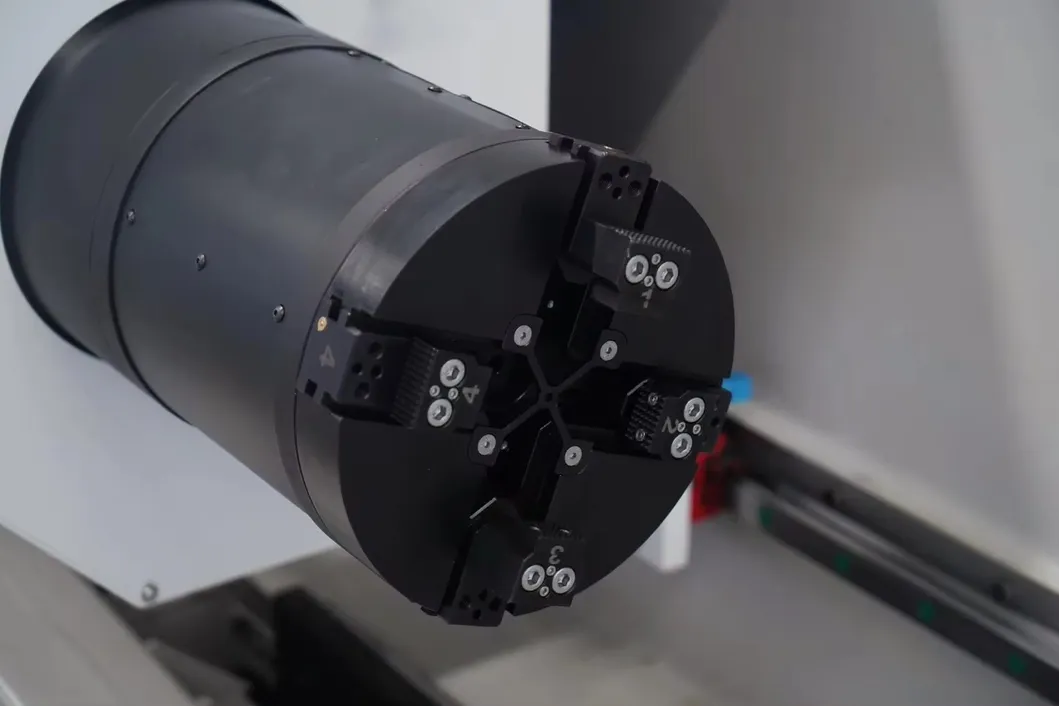

Rear Chuck
Strong clamping force for heavy pipe fitting processing.

Laser Source

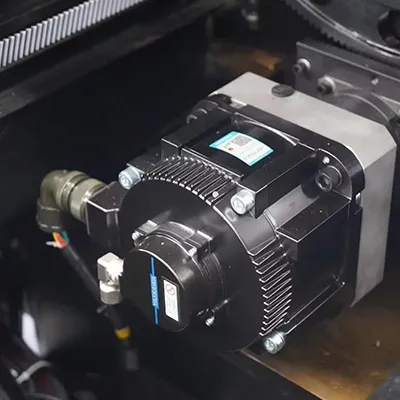

Servo Motor

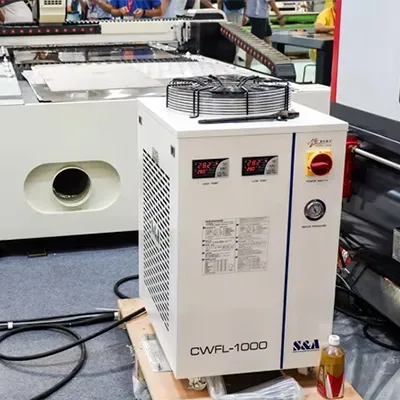

Water Chiller

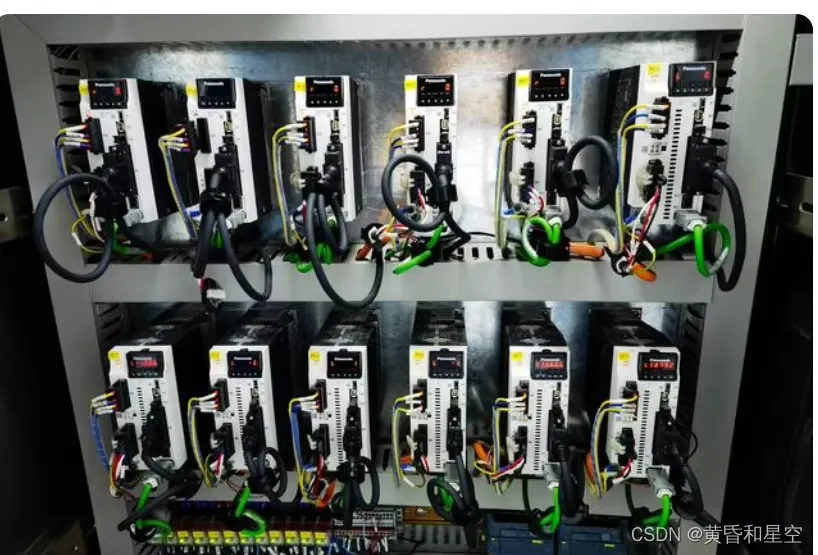

Servo Driver

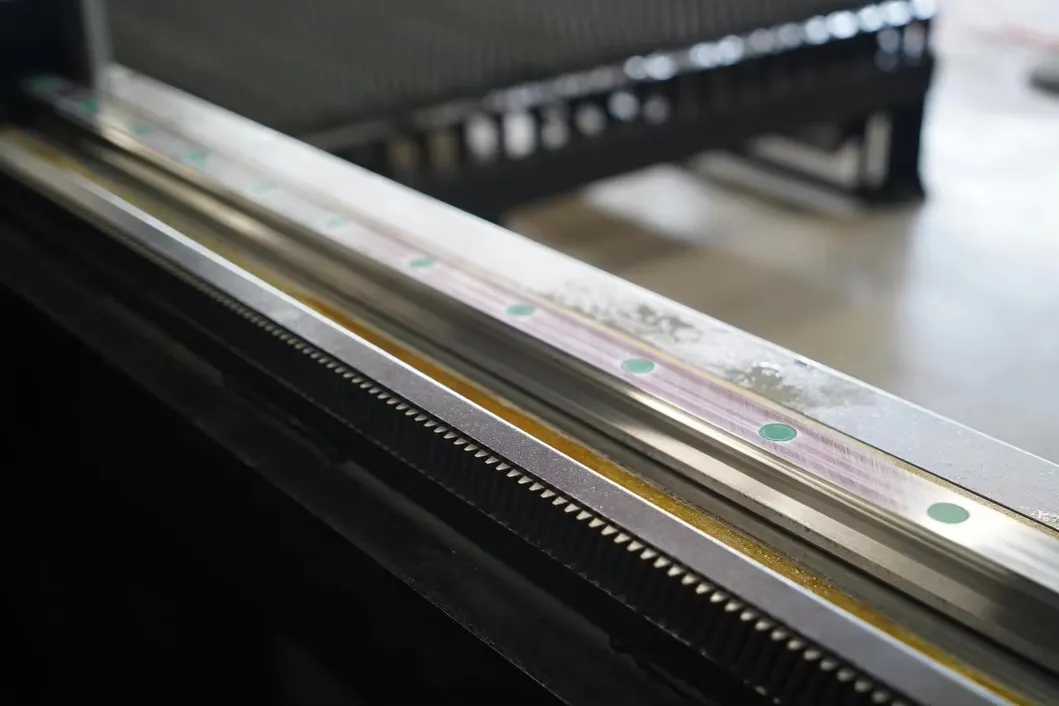

HIWIN Rail

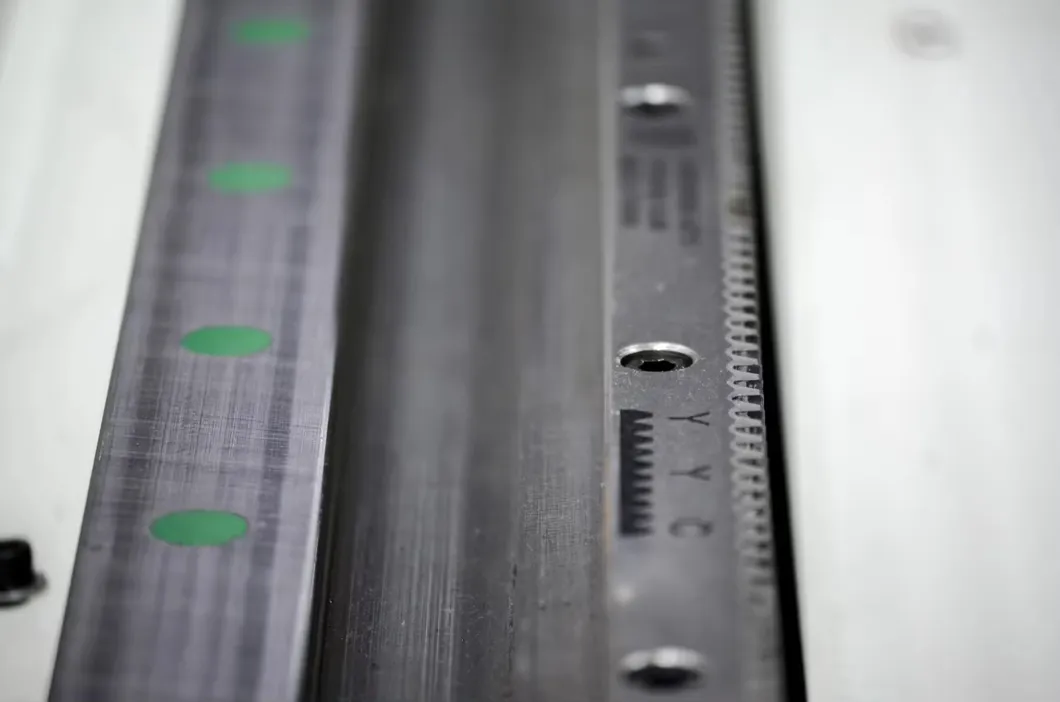

YYC Gear

💻 Control & Software

Pneumatic Chuck

Utilizes rack and pinion drive for enhanced accuracy. Designed for cutting small pipes with high rotation speed.

Cutting Software

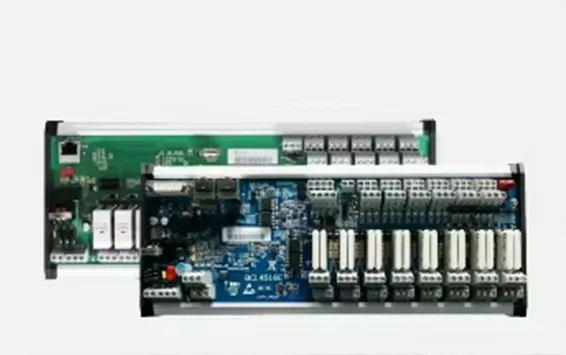

Control System

Height Adjuster

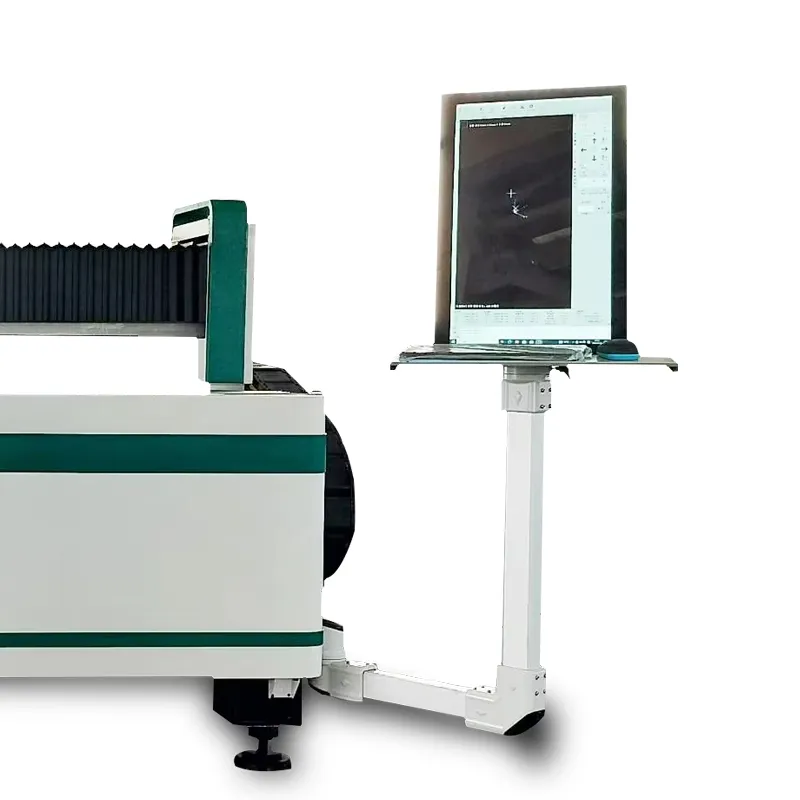

Control Panel

Wireless Controller

Frequently Asked Questions

Q: How do I obtain an accurate quotation?

A: Please provide details regarding your specific requirements, such as the type of metal, thickness, and preferred tube sizes.

Q: What are the shipping options from China?

A: Equipment can be sent via sea or air to your nearest port or specific door address. We use reliable shipping agents to ensure timely and safe delivery.

Q: What are the standard payment and warranty terms?

A: Typically, a 30% down payment is required via T/T, with the remaining 70% paid upon delivery. The warranty periods range from 12 to 36 months.

Q: Do you offer operator training?

A: Yes, we offer free training at our manufacturing facility. Training services in the client's country are also available upon request.

Q: How can I check import taxes for this equipment?

A: You may contact your local customs office using the HS code 84561100 to verify specific import charges.

Q: What is the policy for replacement parts?

A: During the warranty period, any components broken due to quality issues are offered free of charge. We provide 24-hour online support for troubleshooting.
