Handheld 3-in-1 Fiber Laser Machine (Welding, Cleaning, Cutting)
| Main Technical Specifications | ||
|---|---|---|
| Supply Power | V/Hz | 220V / 50/60Hz |
| Working Time | Hour | 24 Hours |
| Total Power | KW | 11KW |
| Cooling Method | - | Water Cooling |
| Cable Length | mm | 5000mm (Standard) |
| Machine Dimensions | mm | 1000 * 650 * 1250mm |
| Laser Power | W | 2000W |
| Weld Ability | mm | 5mm Mild Steel / Stainless Steel |
| Standard Configurations | |
|---|---|
| Laser Source | Raycus China |

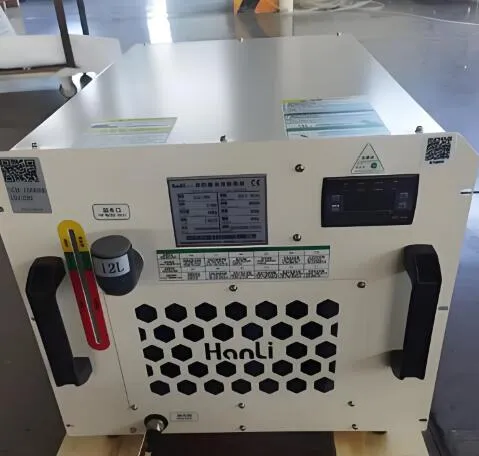

| Water Chiller | Hanli, China |
| Electronic Components | Schneider, Germany |
| Gas System | SMC, Japan |
| Control System | Industrial Grade |
System Highlights:

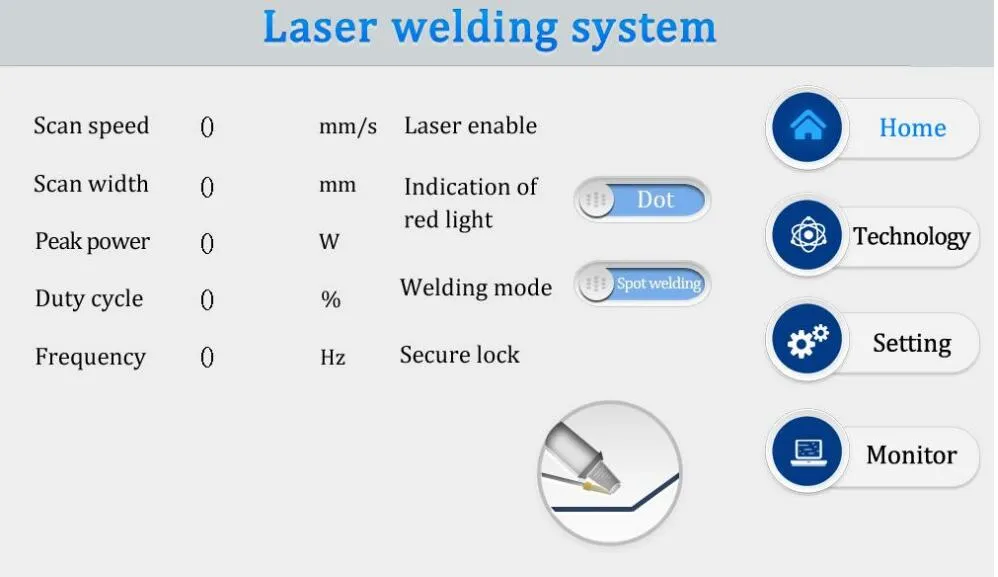

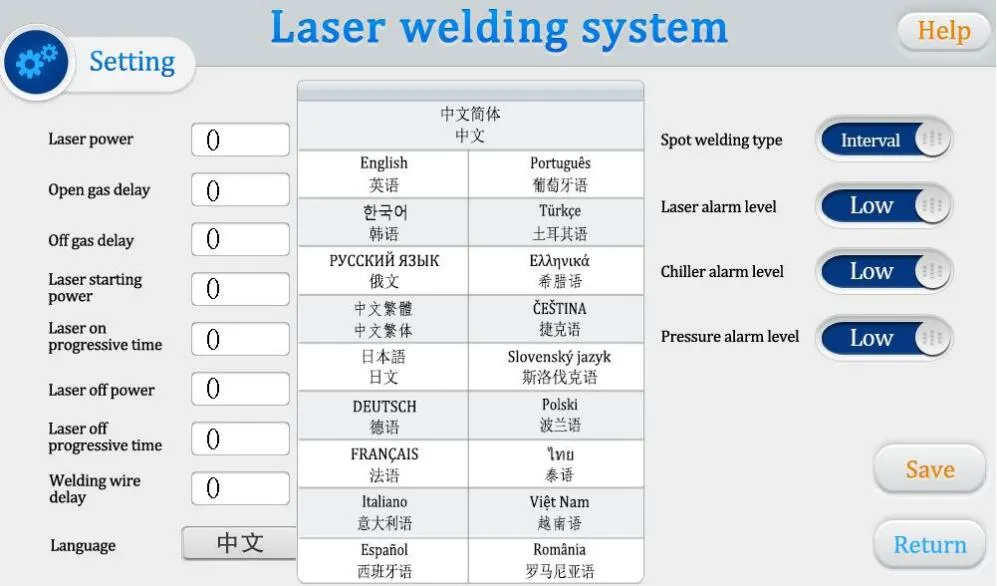

Preset 20 groups of welding parameters for different materials. Adjustable frequency (50Hz-20KHz) and power (10%-100%) to suit specific metal thickness.
Yes, we provide all necessary documents including the CE certificate, commercial invoice, packing list, and Bill of Lading for a smooth export process.
We accept multiple payment methods including TT, Western Union, Paypal, LC, and Cash.
Thickness depends on laser power. Generally, a 2000W source can weld up to 5mm Stainless Steel. Note that 1KW+ sources are required for high-reflection materials like Copper or Aluminum.

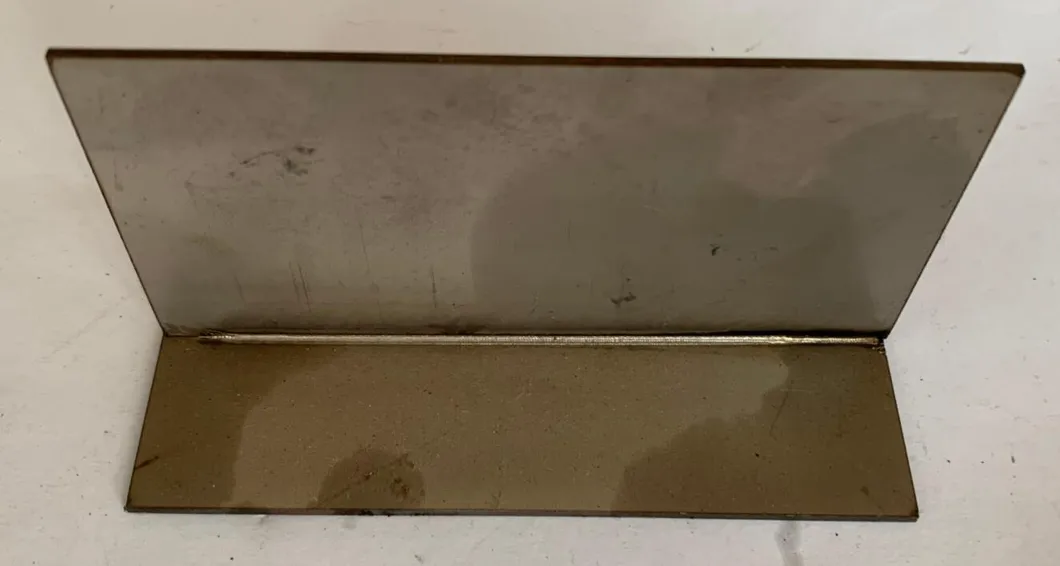

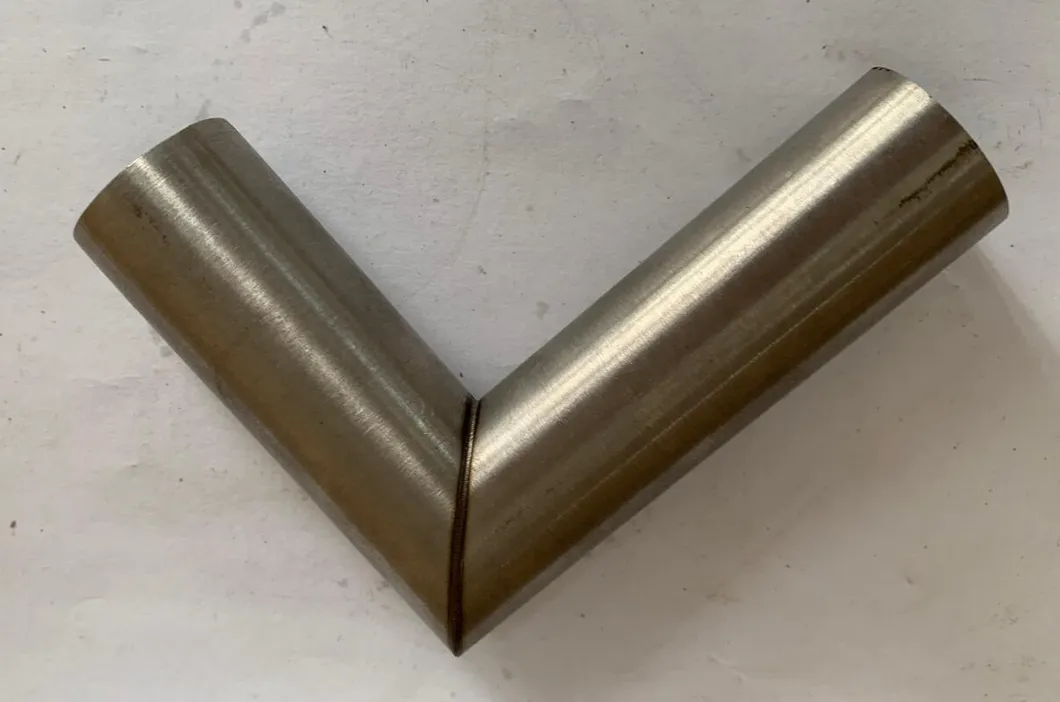

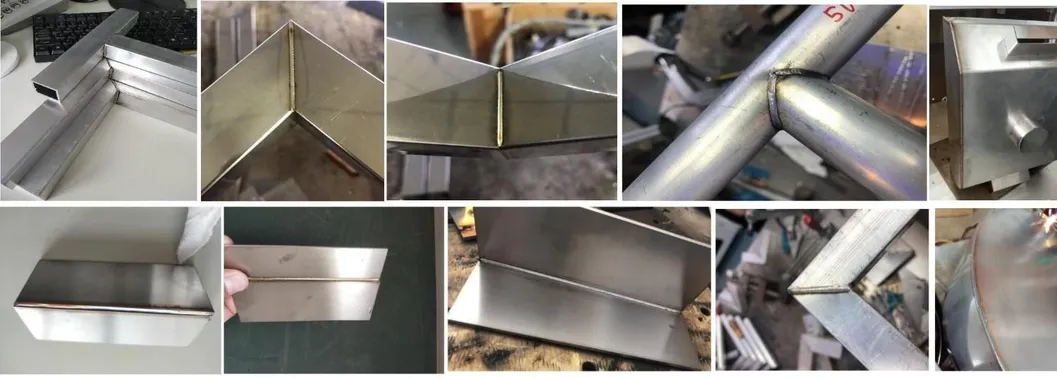

The fiber laser machine is highly effective for stainless steel, carbon steel, aluminium, and various other alloy metals.
Standard machines usually take 5-10 days. Non-standard or customized configurations typically require 15 to 30 days for production.
Yes, we offer customization options to adjust the fiber laser welding machine configurations based on your specific material and production requirements.
