| Model | LEA-DS4020-T |
| Machine bed | Square tube welding |
| Gantry structure | Aluminum |
| Working area | 4000*2000mm |
| Overall Dimensions | 8300*3900*2000mm |
| Overall weight | 4500kg |
| Guide rail | THK/PEK/HIWIN |
| Laser head | Raytools/Precitec |
| Laser source | IPG/Raycus/MAX |
| Servo motor and drive | YASKAWA/FUJI |
| Control system | Cypcut/WEIHONG |
| Chuck | Dysonbot |
| Clamping Range | 20-220mm (320/350mm optional) |
| Max linkage speed | 100m/min |
| Max acceleration | 1.5G |
| Positioning accuracy | 0.03mm |
| Repositioning accuracy | 0.02mm |
| Laser power | 1KW-6KW |

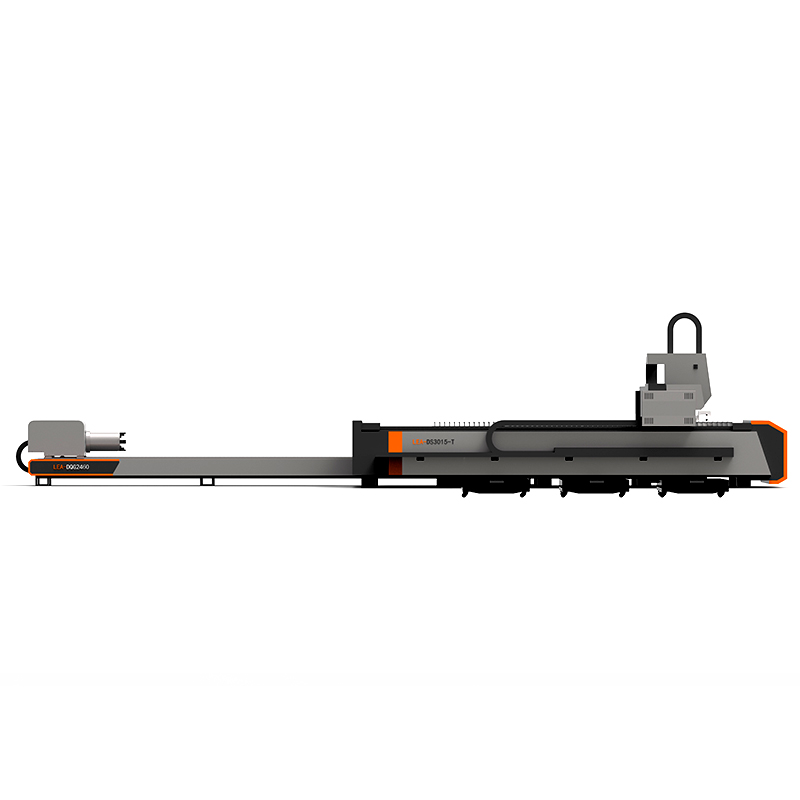

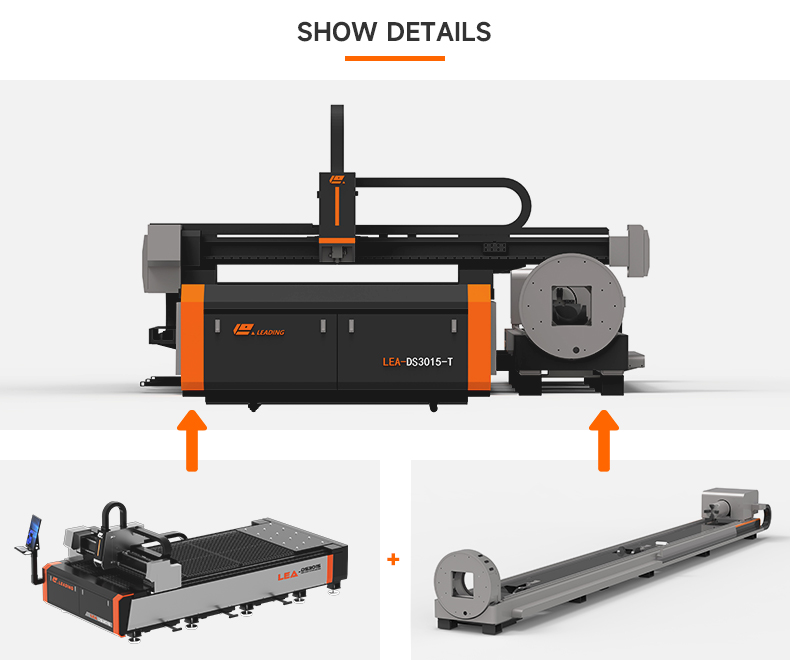

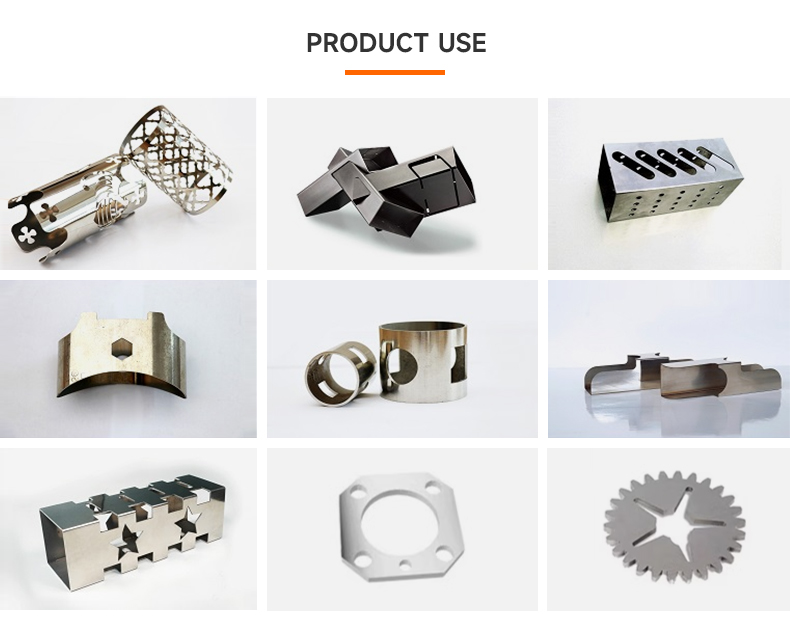

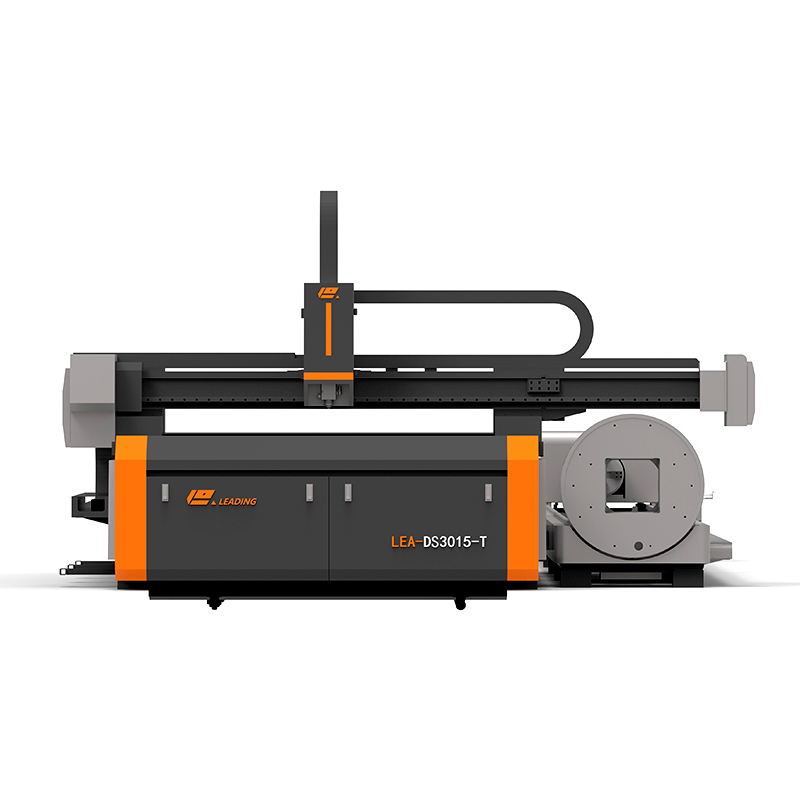

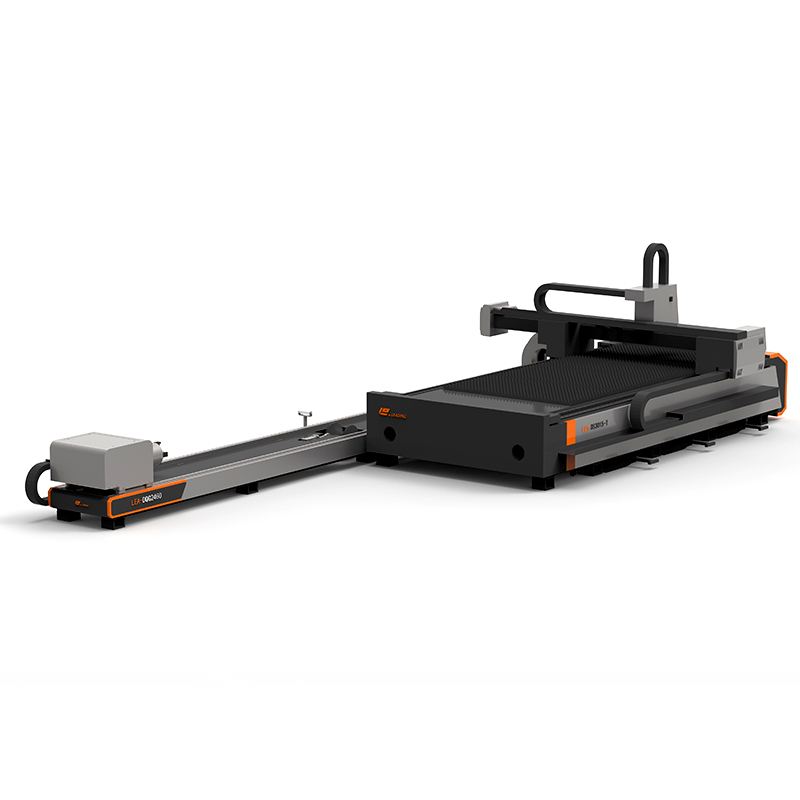

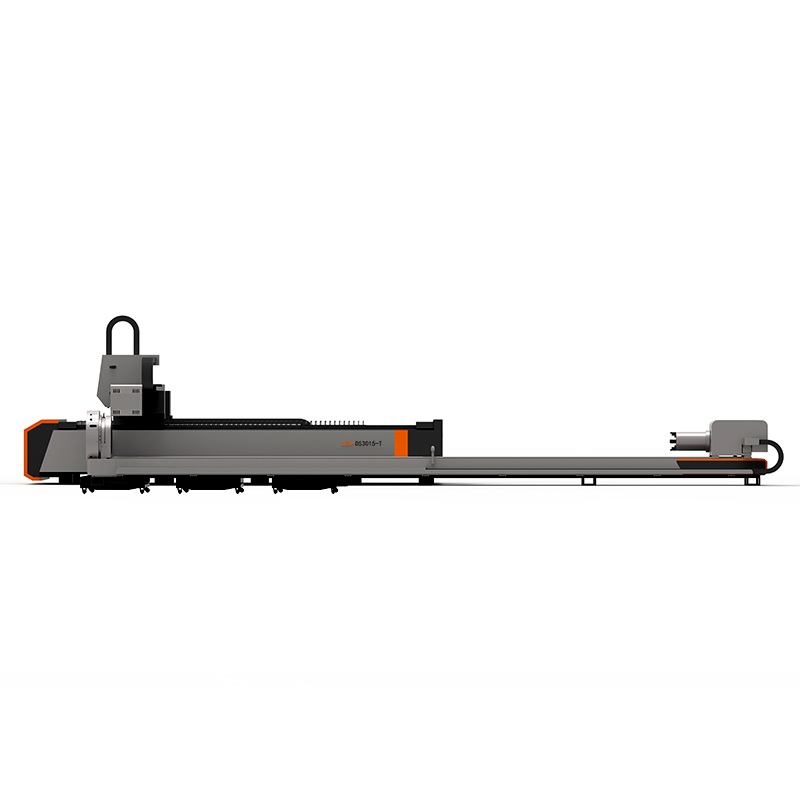

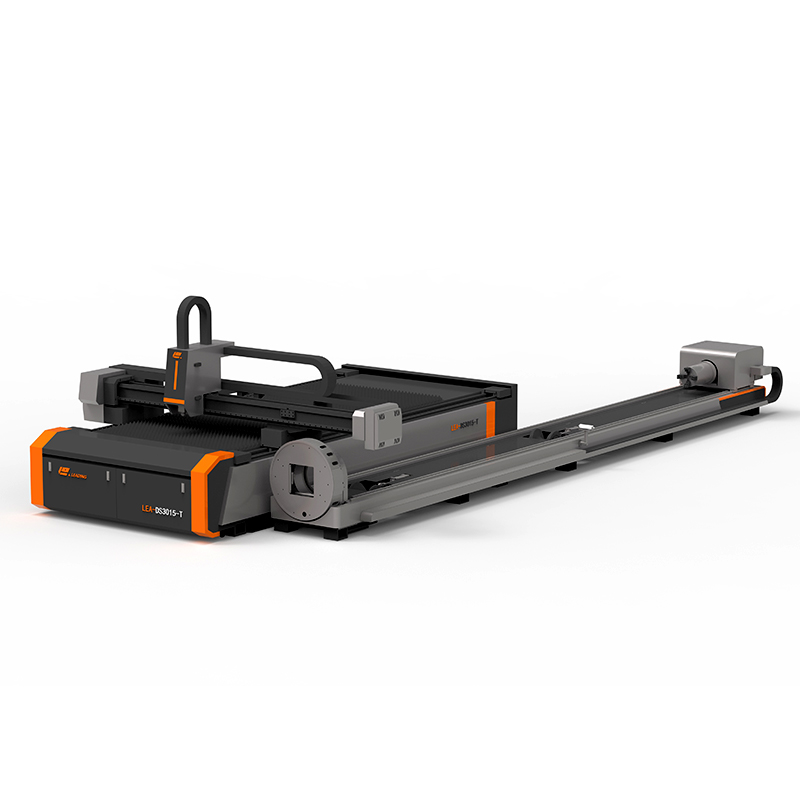

This double-use function saves both cost and space. It can process metal sheets and various metal tubes, significantly improving work efficiency for diverse projects.

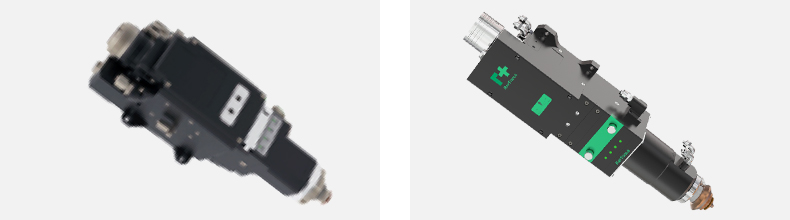

Adjusts the focus automatically without manual intervention. It shortens perforation time, improves quality, and increases cutting speed. Simple, convenient, and fast.

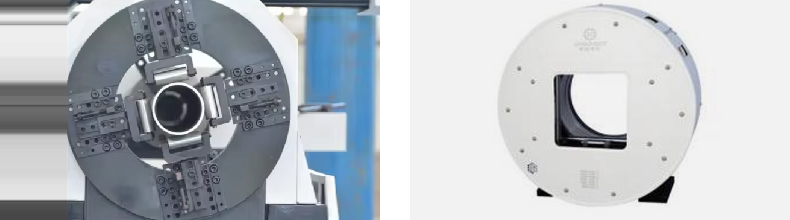

One-click chuck opening and automatic centering reduce waiting time. The special support frame avoids pipe sagging deformation, extending the service life of the chuck.

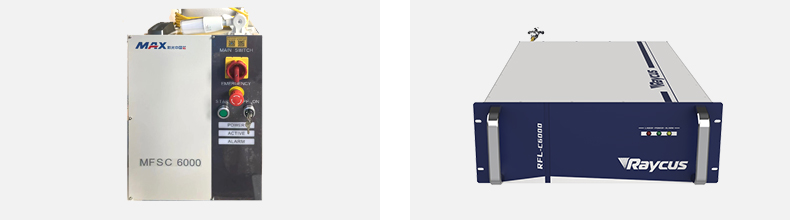

Customers can choose suitable laser sources based on actual needs:
Brand: IPG, Raycus, MAX, Reci
Power: 1000w, 2000w, 3000w, 4000w

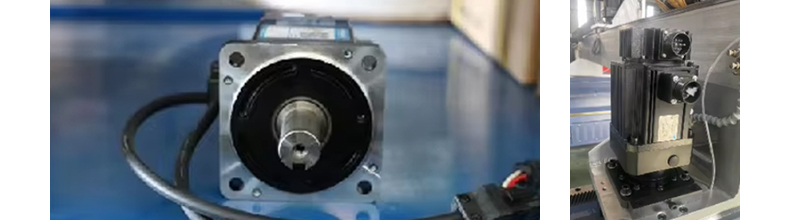

1. Excellent acceleration performance (from -3000r/min to 3000r/min in 6-7ms) using Fuji or Yaskawa motors.

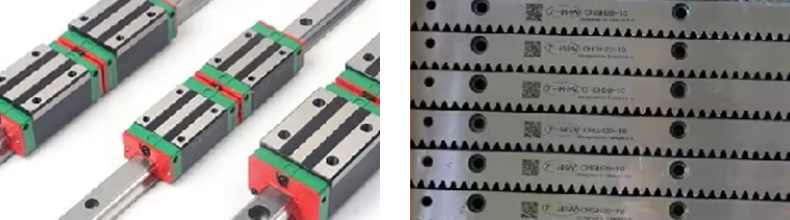

2. Guide rail installation accuracy controlled at 0.03mm. Brands include PEK/THK/HIWIN and T-WIN/YYC racks.

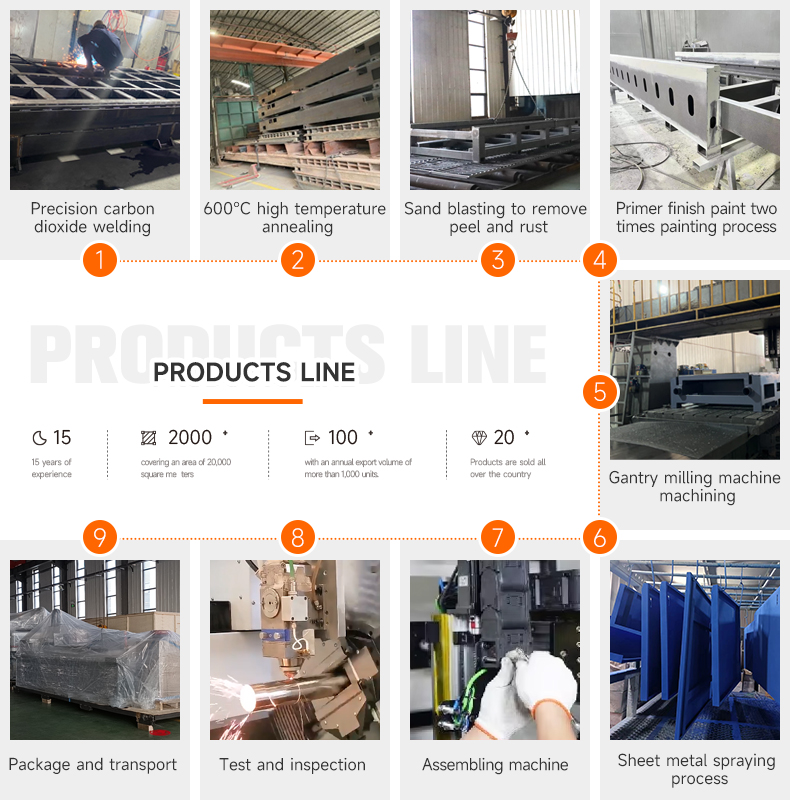

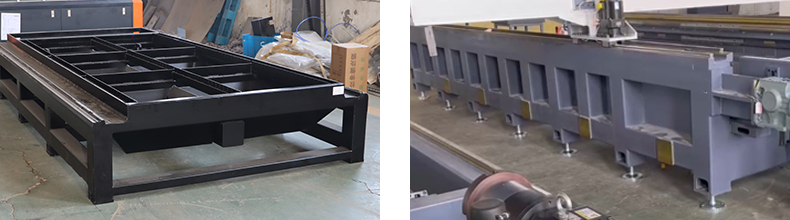

High-quality thick-walled steel pipe welding. The bed is annealed at 600° for stress relief, ensuring rigid structure, small deformation, and minimal vibration for peak accuracy.

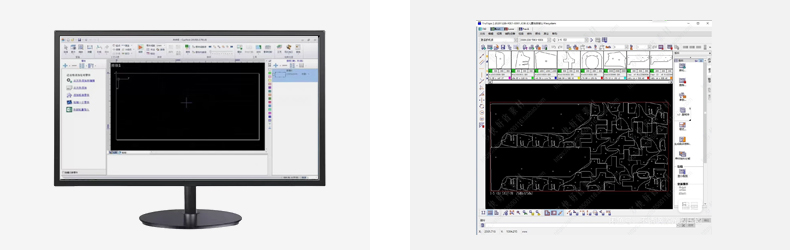

Stable and reliable intelligent system, easy to operate and rich in functions, suitable for various industrial processing occasions.
