Raytu 3015H Automated CNC Laser Cutting Machine Sheet Metal Price Cypcut Control System Hiwin Guideraill AI BMP PLT

🚀

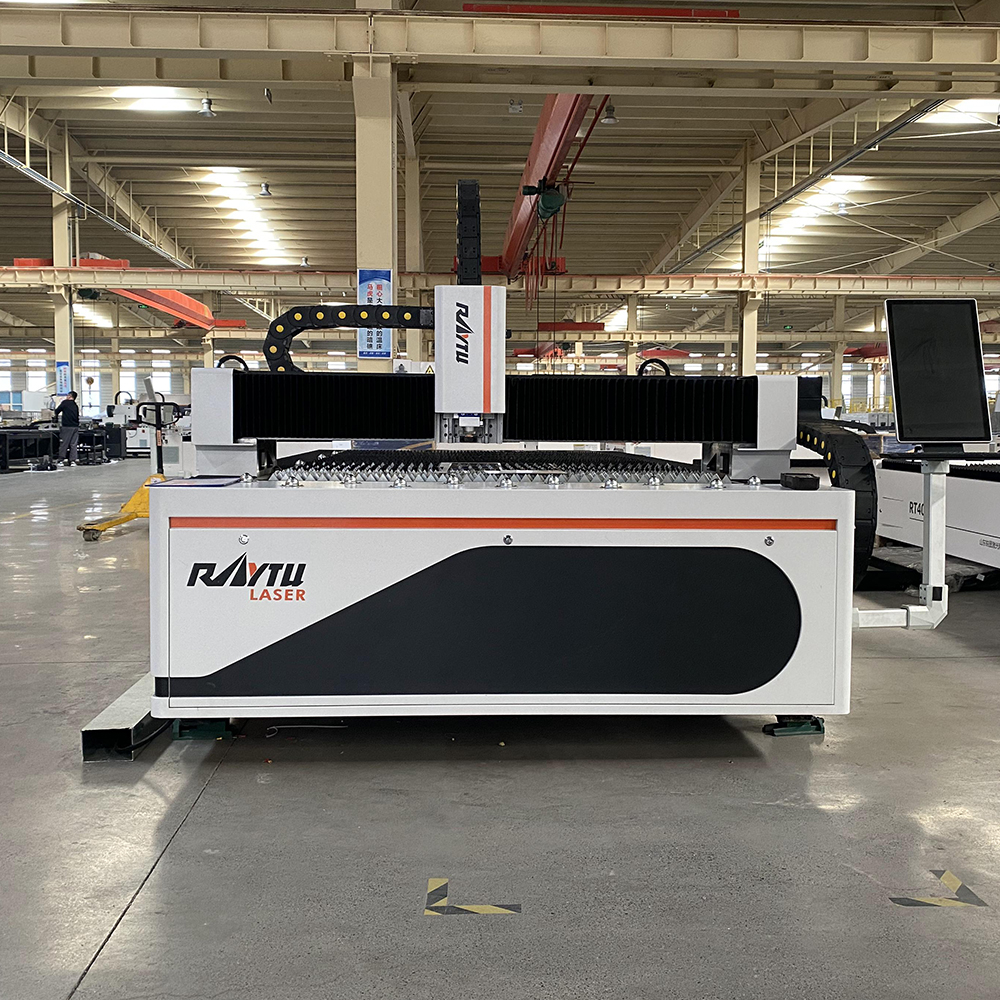

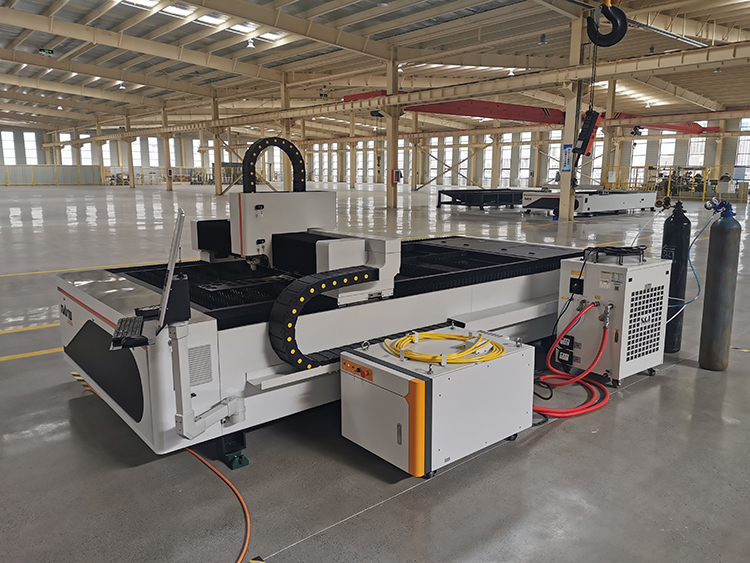

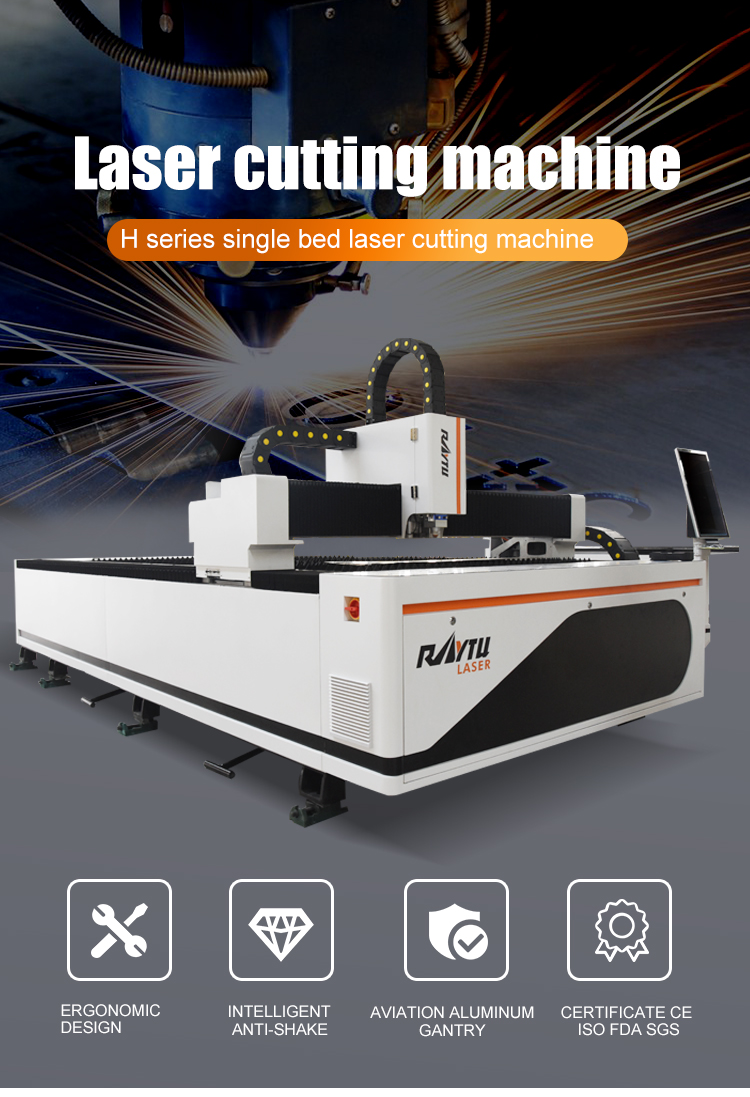

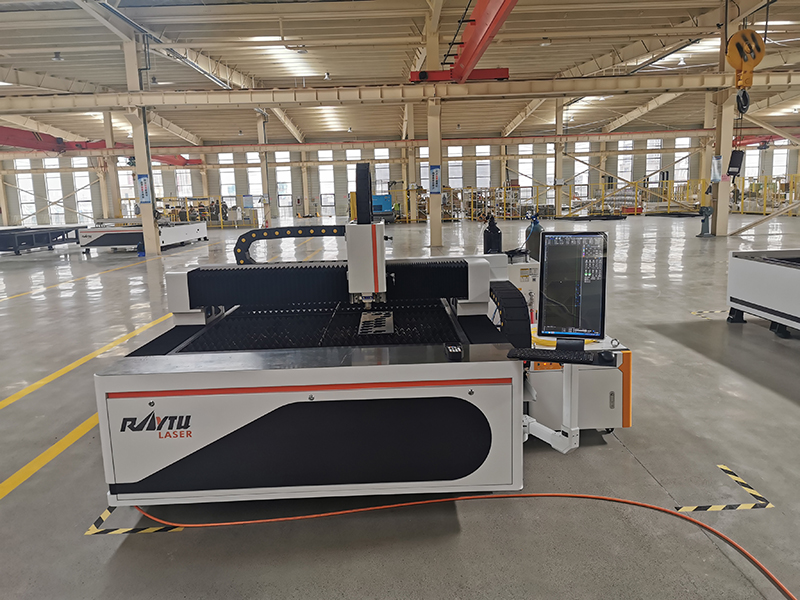

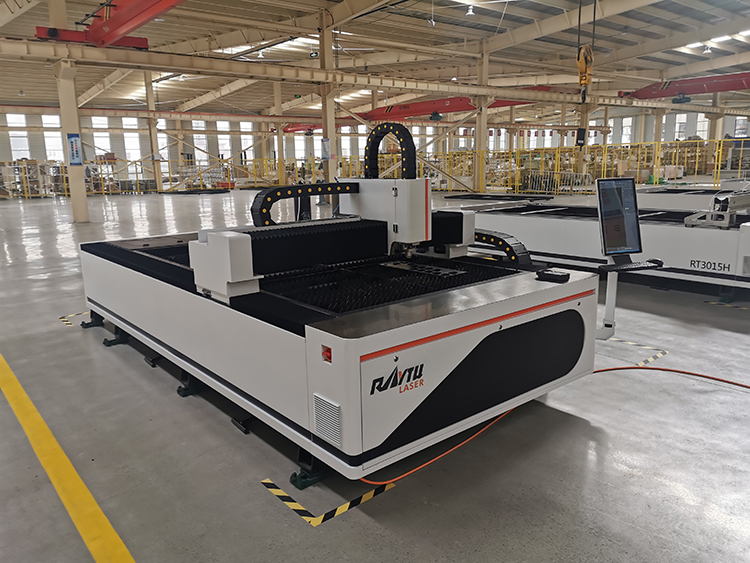

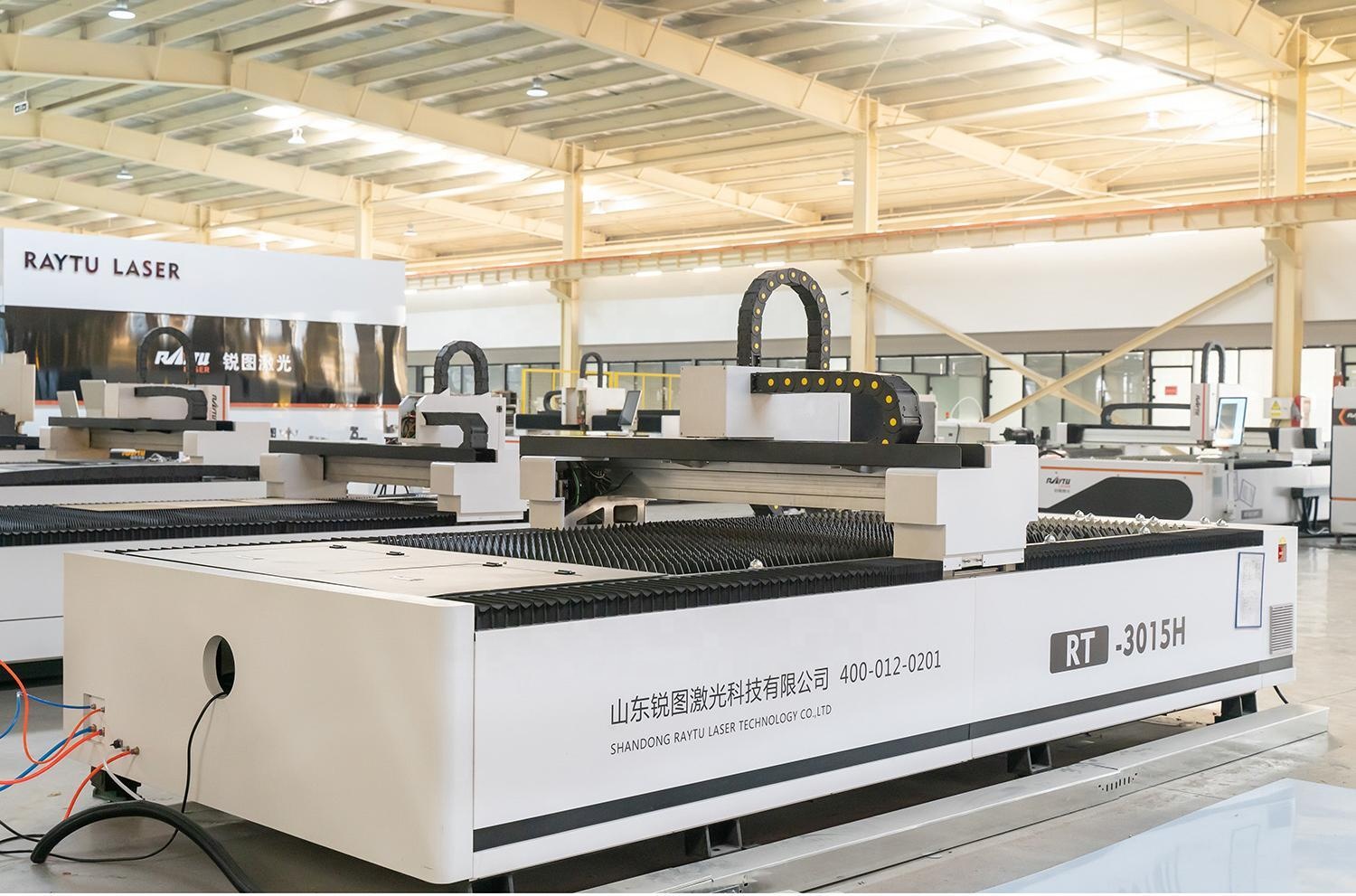

Automated CNC Laser Cutting Machine (1.5KW 3015H)

This high-performance automated CNC laser cutting machine is designed for precision sheet metal processing, offering exceptional speed and reliability for industrial manufacturing.

📋

Product Overview

⚙️

Equipment Specification

Model	RTC3015H	RTC4015H	RTC6015H	RTC4020H	RTC6020H
Cutting Area	3000*1500mm	4000*1500mm	6000*1500mm	4000*2000mm	6000*2000mm
Laser source	MAX	MAX	MAX	MAX	MAX
Max Moving Speed	100m/min, Acc=1.0G	100m/min, Acc=1.0G	100m/min, Acc=1.0G	100m/min, Acc=1.0G	100m/min, Acc=1.0G
Position Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Reposition Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Power	380V 50/60Hz	380V 50/60Hz	380V 50/60Hz	380V 50/60Hz	380V 50/60Hz
Max Loading(KG)	≤4000	≤5000	≤5500	≤6000	≤6000

🧩

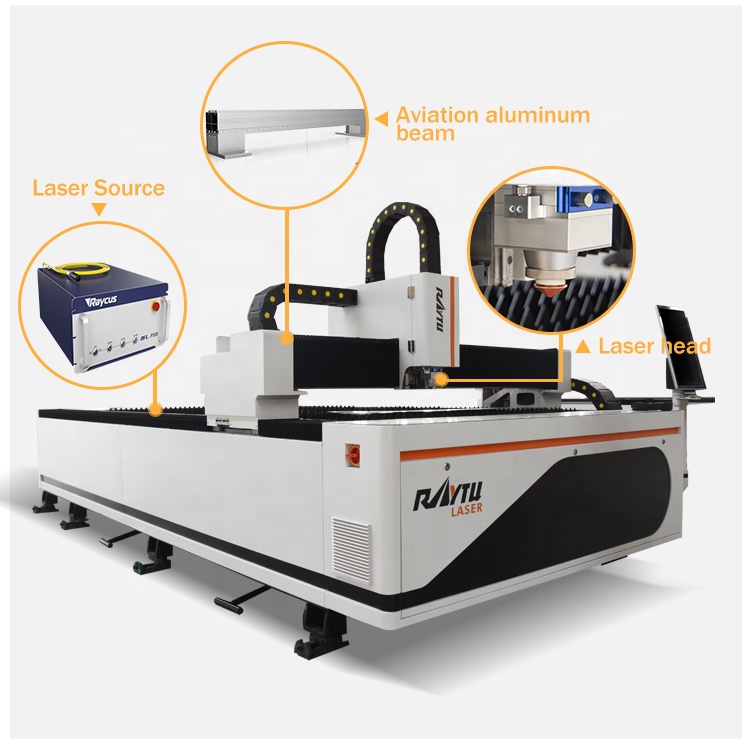

Core Machine Components

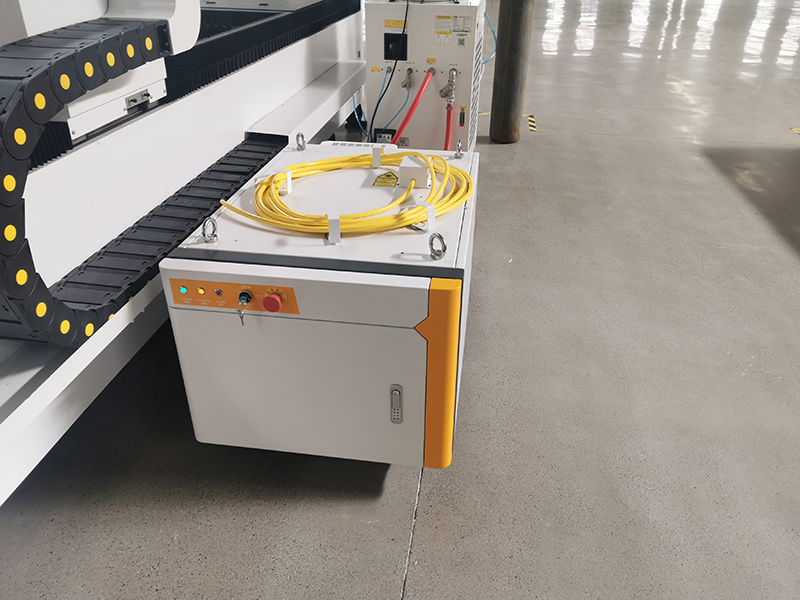

💎 1500W Fiber Laser

Electro-optical conversion efficiency up to 30%.
Excellent beam quality, high energy density, and high reliability.
100,000 hours of lifetime, maintenance-free operation.
Low energy consumption (20%-30% of traditional CO2 machines).

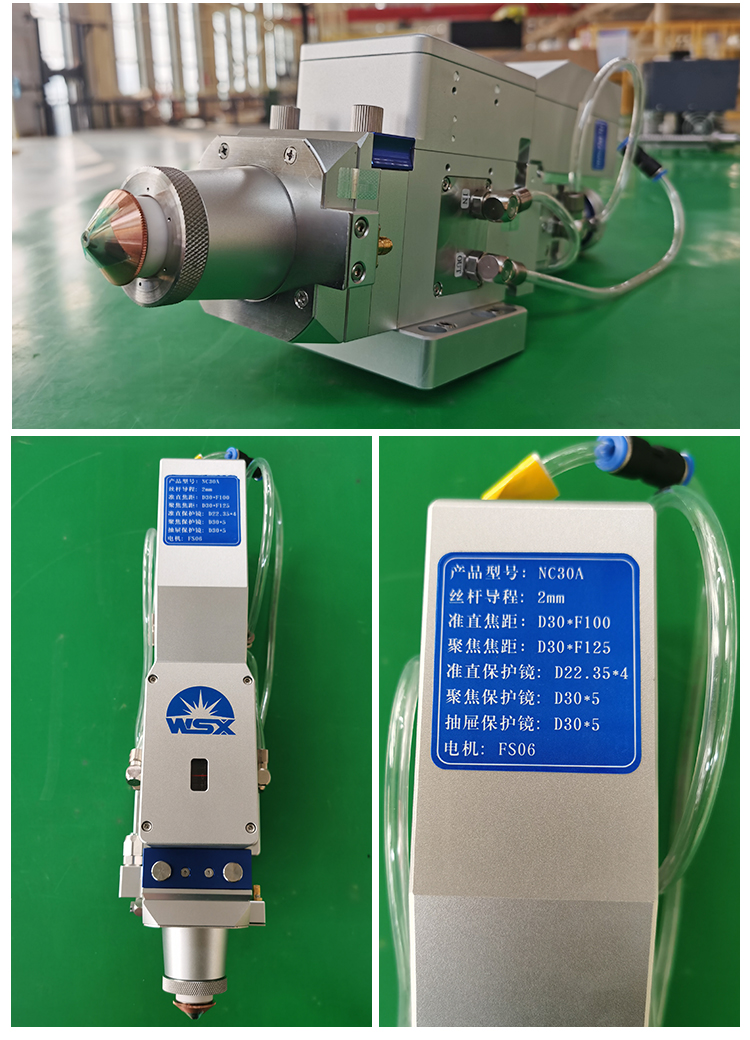

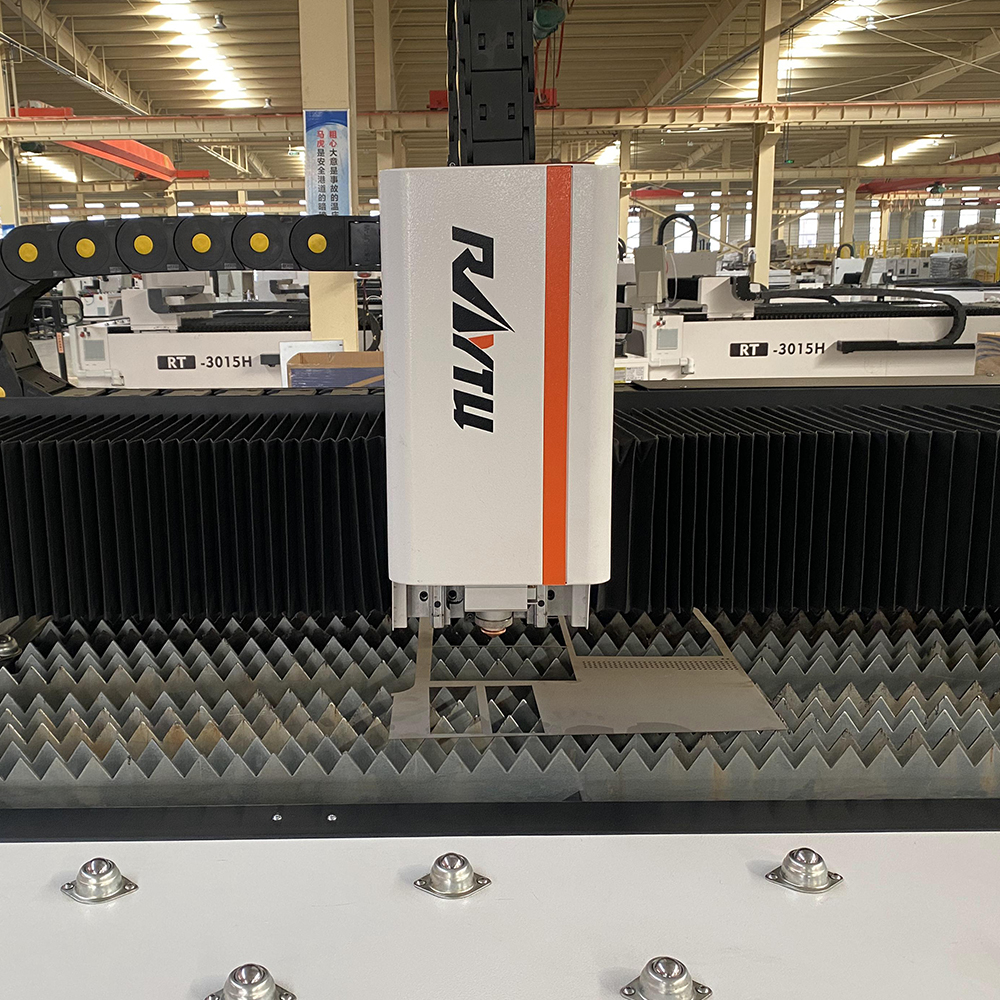

🎯 Precision Laser Head

Modular structure for easy maintenance and reduced downtime.
Triple protective lenses for efficient lens safety.
2-way optical water cooling for continuous working stability.
Closed-loop automatic focusing with 1μm repeatability.
Fast piercing: 16mm low carbon steel in <6 seconds.

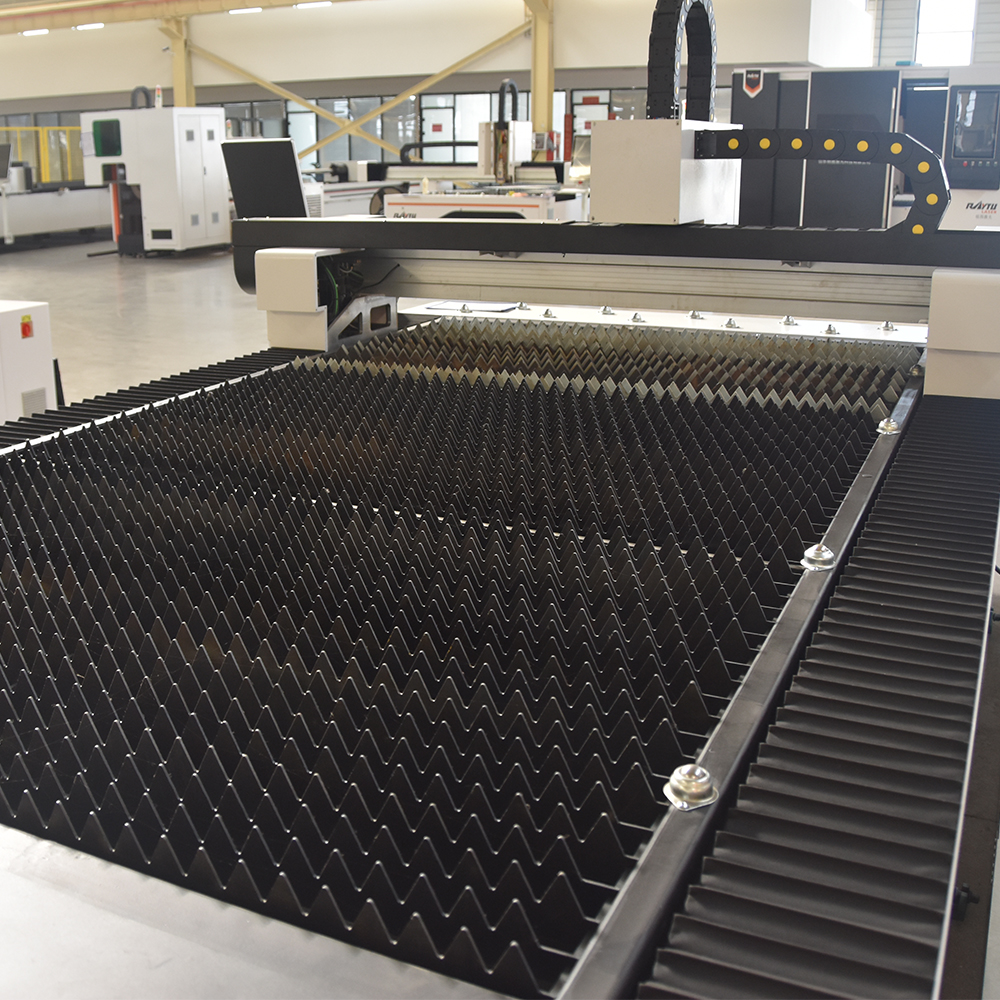

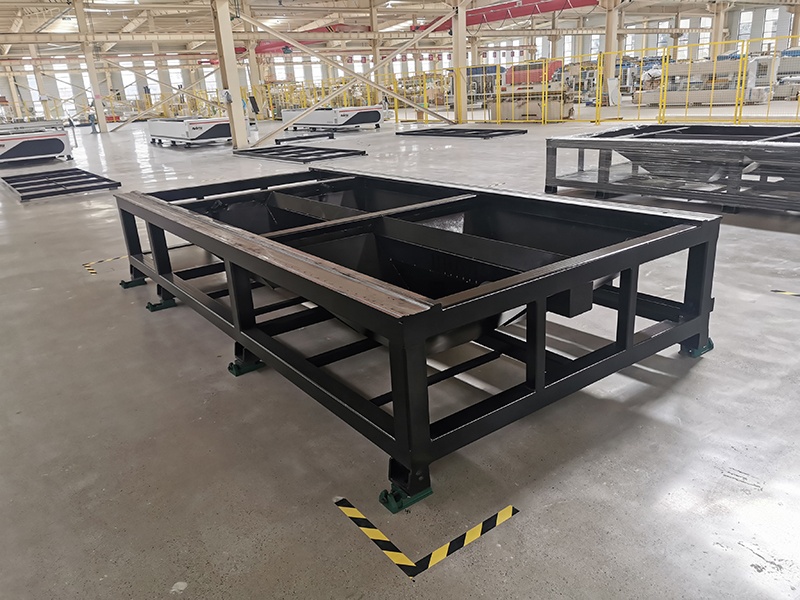

🏗️ High Precision Machine Bed

Independently developed welding lathe bed base.
Processed by large gantry milling machines.
Natural aging treatment for 30-45 days to release internal stress.
High strength and stability ensures 20 years of use without distortion.

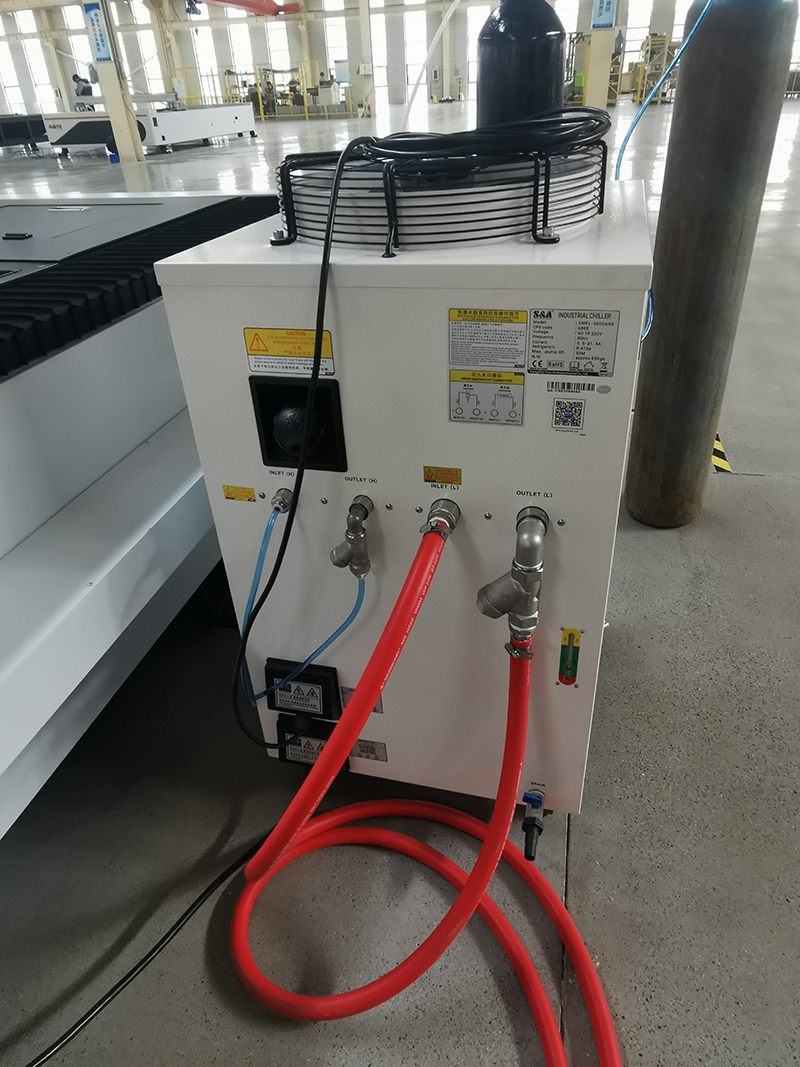

❄️ Intelligent Water Chiller

Automatic temperature adjustment based on the environment.
Dual circulation cooling for both laser source and head.
Safety protections: Water flow and temperature alarms.
Prevents laser generation if cooling is insufficient.

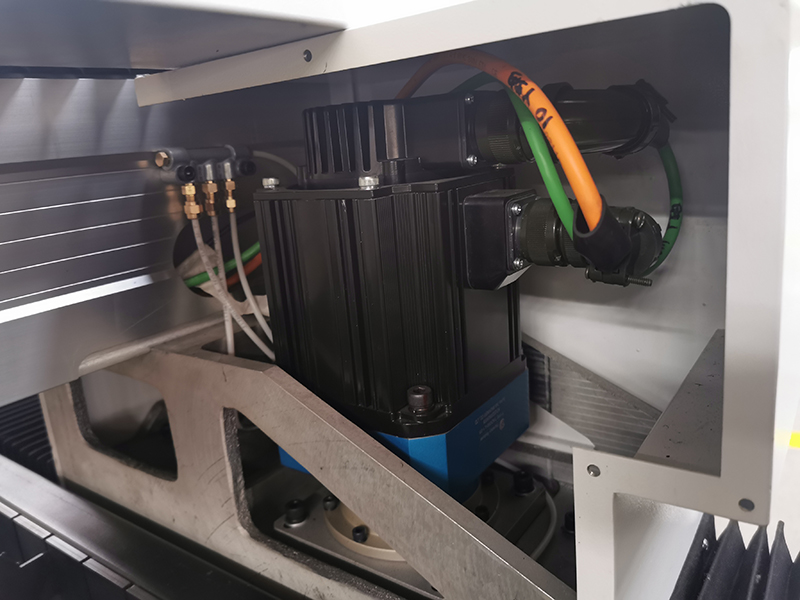

⚡ High-Performance Servo Motors

Y-axis: Double Japanese Servo motors and drivers.
X-axis: Japanese Servo motor for enhanced precision.
Z-axis: Reliable Japanese Servo system for height control.

📊

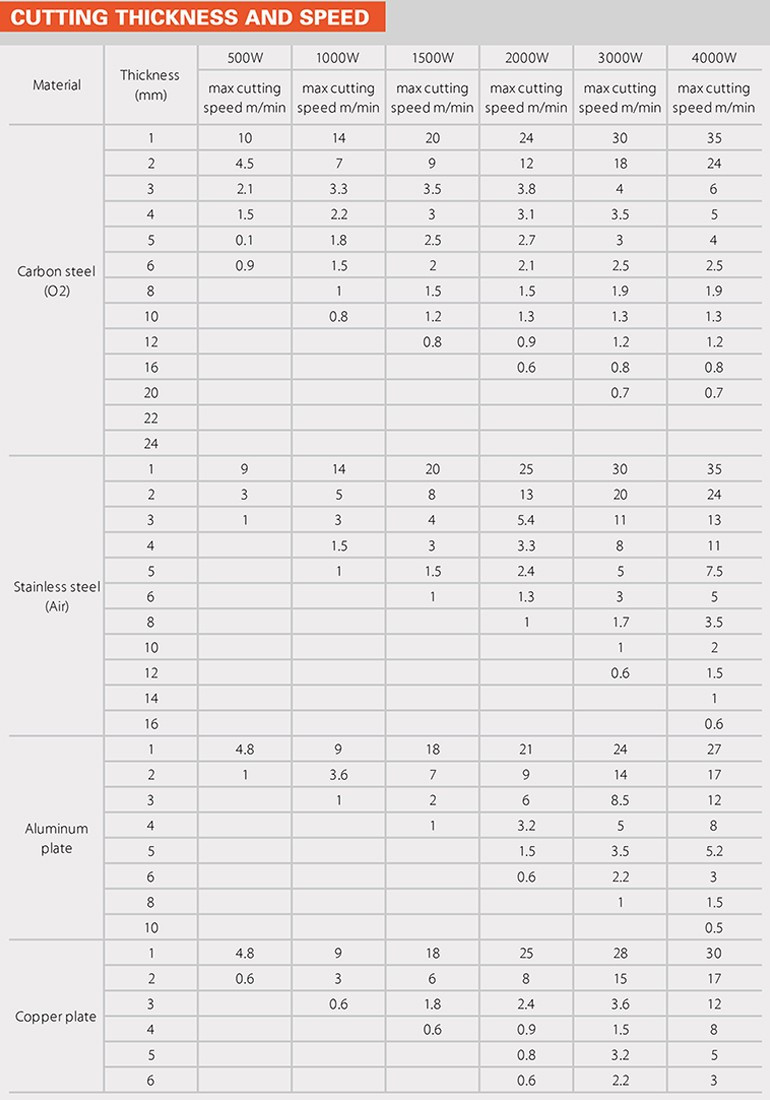

Cutting Parameters

🛠️

Industrial Applications

Common Industries: Sheet metal processing, aviation, electronics, electrical appliances, automotive parts, grain machinery, precision parts, metallurgical equipment, elevators, household appliances, and advertising.

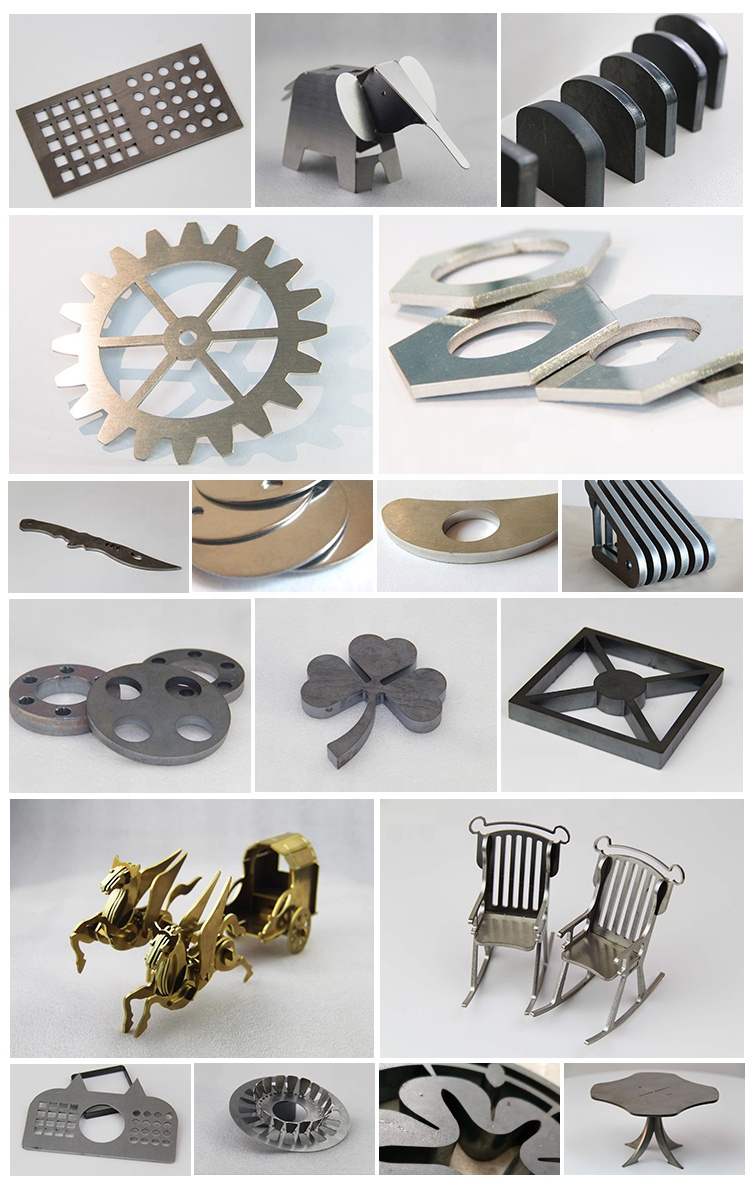

Supported Materials: Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, copper, silver, gold, titanium, and other metal sheets/pipes.

🌟

Our Comprehensive Service

Pre-sale Services: Technical advice, sample testing, equipment selection, and customized production technology proposals.

Sale Services: Safe delivery, professional installation, and technical training (operation, maintenance, control software, and hardware troubleshooting).

After-sale Services:

Three-year warranty for the machine.
Customer feedback within 12 hours.
Lifetime maintenance services.
Free software upgrades and technical support.

🏭

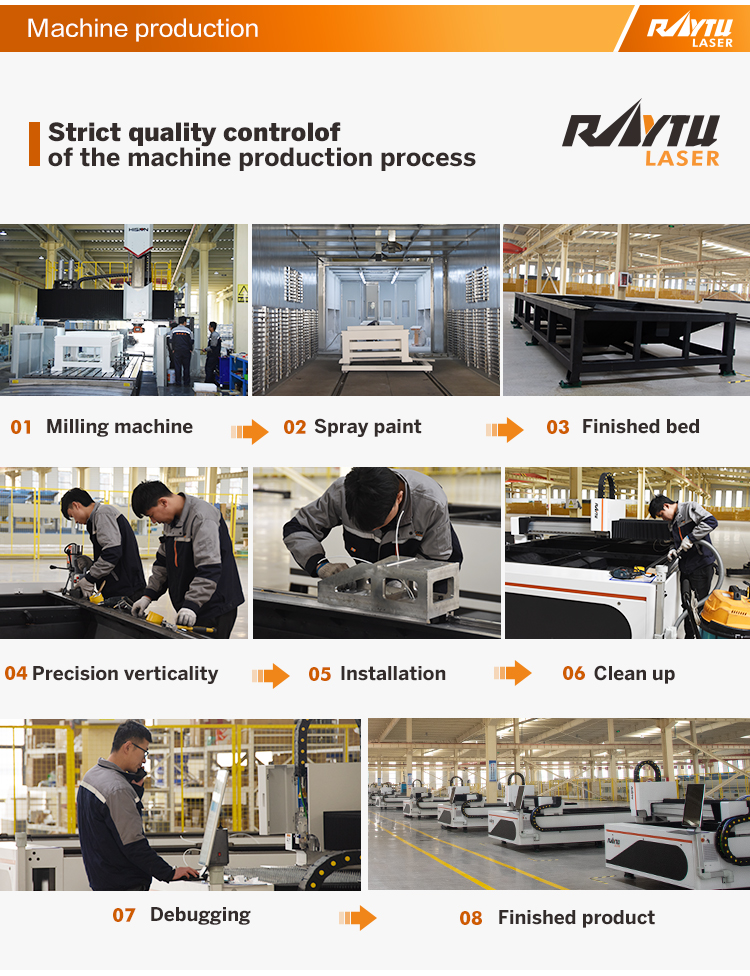

Manufacturing Excellence

❓ Frequently Asked Questions

Q1: What materials can this fiber laser cutting machine process?

It is designed for various metals including stainless steel, carbon steel, alloy steel, aluminum, copper, brass, and galvanized sheets.

Q2: What is the maintenance requirement for the fiber laser source?

The fiber laser source is virtually maintenance-free with a lifespan of up to 100,000 hours, significantly reducing operational costs compared to CO2 lasers.

Q3: How does the automatic focusing feature benefit the production?

Automatic focusing avoids manual adjustment errors, increases focusing speed to 100mm/s, and ensures consistent cutting quality even on uneven materials.

Q4: What kind of technical support do you provide after the sale?

We provide 24/7 technical support, a three-year warranty, and lifetime maintenance. Training includes machine operation, software usage, and basic hardware troubleshooting.

Q5: Is the machine bed durable enough for heavy-duty industrial use?

Yes, our beds undergo professional welding and heat treatment (stress release) for 30-45 days to ensure they remain distortion-free for over 20 years.

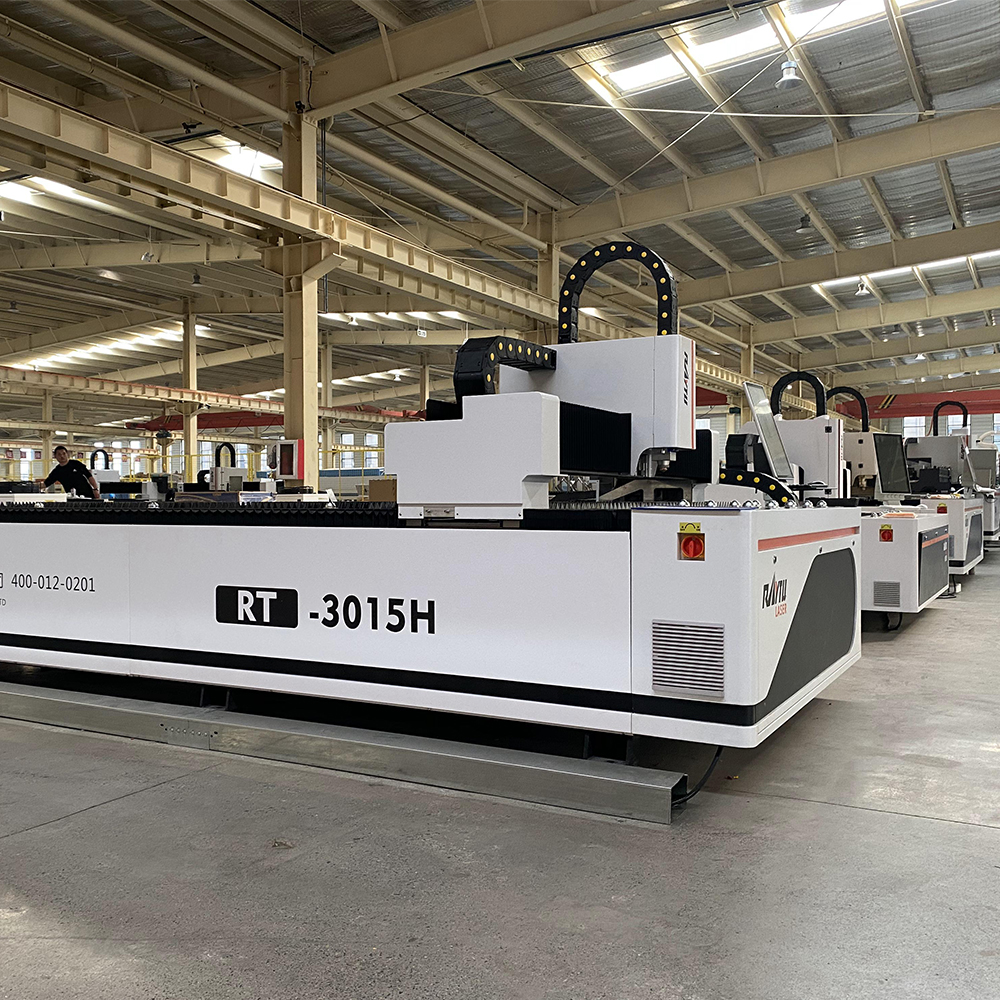

Q6: What is the positioning accuracy of the 3015H model?

The positioning accuracy is ±0.03mm with a repositioning accuracy of ±0.02mm, ensuring high-precision results for complex parts.
