PPR PIPE Extrusion line, PPR pipe extruding machinery
P-R/Fiberglass Reinforced Composite Pipe Extrusion Line PPR+GF+PPR pipe Extruding Equipment.

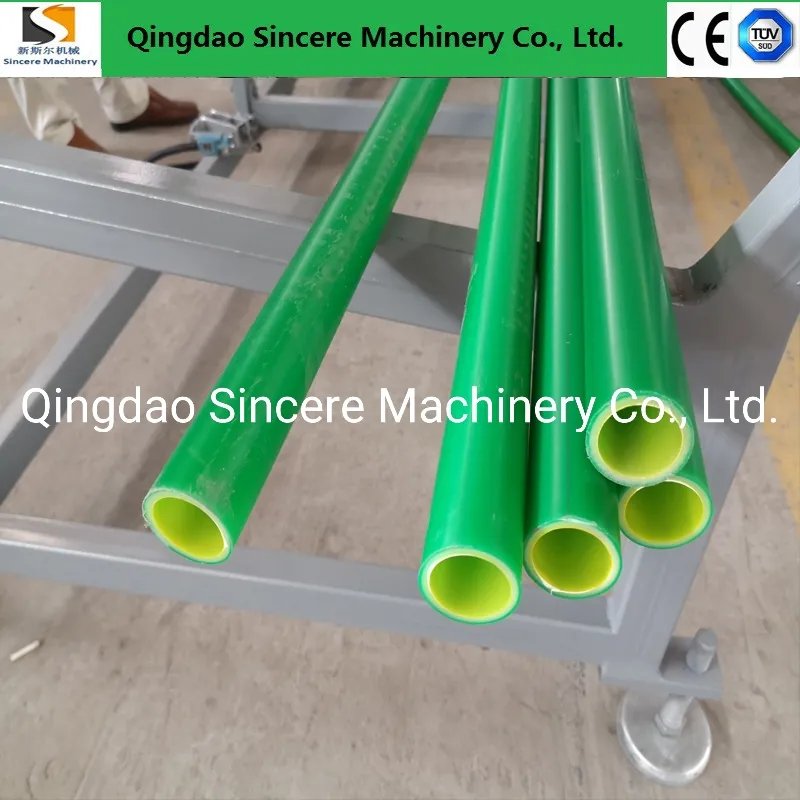

Three Layers glass fibre reinforced plastic pipe manufacturer ppr pipe machine / fiber pipe making machine line.

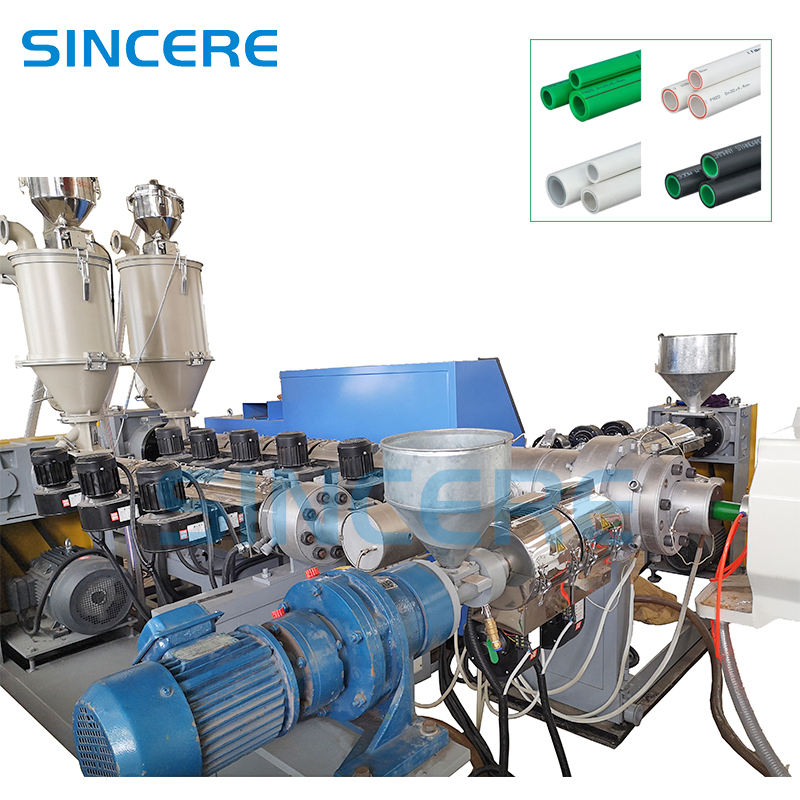

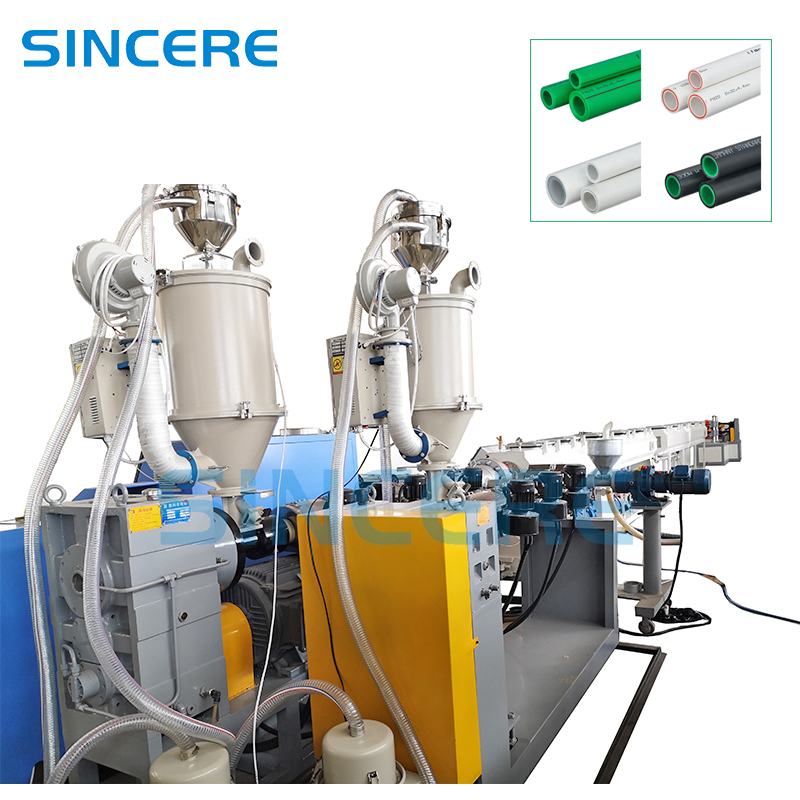

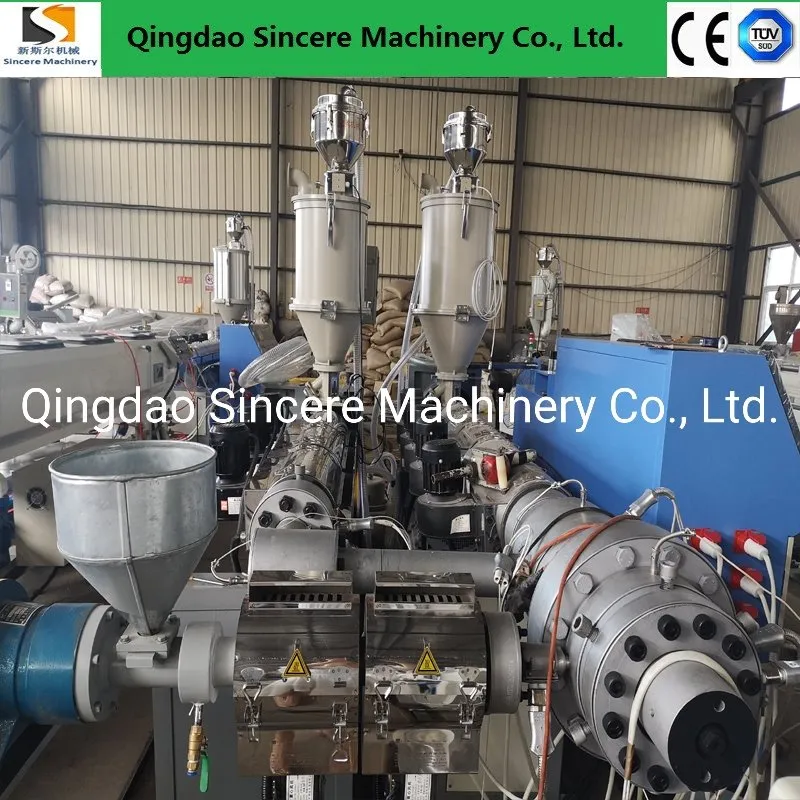

PPR pipe machine is designed to produce pipes for cold and hot water supply. The system integrates a vacuum feeding machine, hopper dryer, single screw extruder, specialized mould, mark line co-extruder, vacuum calibration and cooling tanks, haul off machine, printer, cutter, and stack bracket. For high-performance three-layer PPR fiber reinforced pipes, an additional extruder is incorporated for the middle fiber layer.
| Model | Pipe Diameter Range | Haul-Off Speed (m/min) | Length (m) | Output (kg/h) | Power (kw) |
|---|---|---|---|---|---|
| SJ-63 | Ф20-63mm | 1.2-12.0 | 35 | 100-150 | 140 |
| SJ-110 | Ф75-110mm | 0.8-8.0 | 40 | 150-180 | 180 |
| SJ-160 | Ф75-160mm | 0.35-3.5 | 52 | 150-240 | 200 |

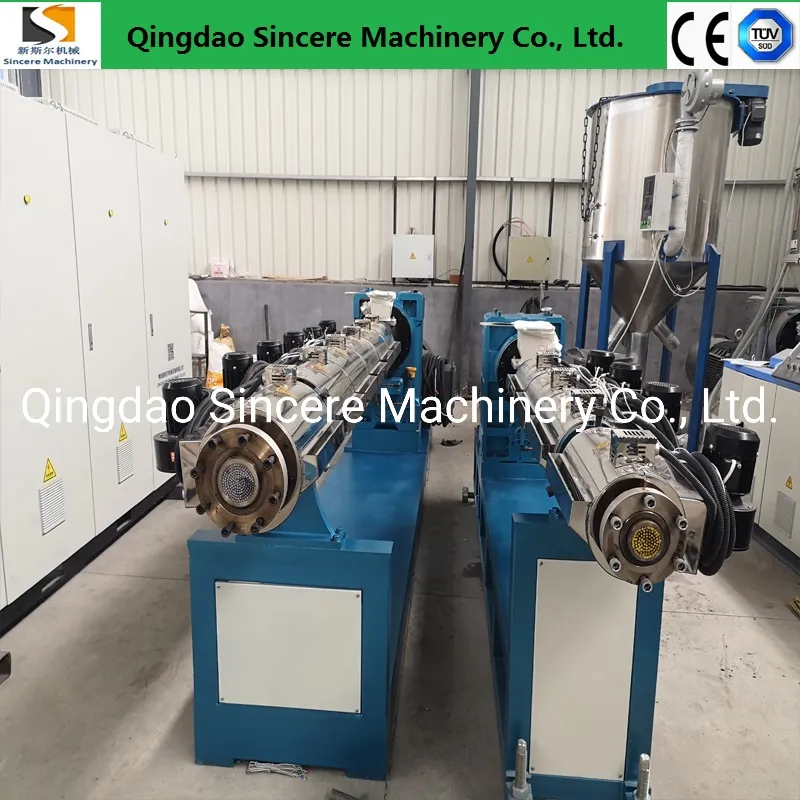

Extruders: L/D 33:1 or 38:1, capacity up to 1500kg/h.

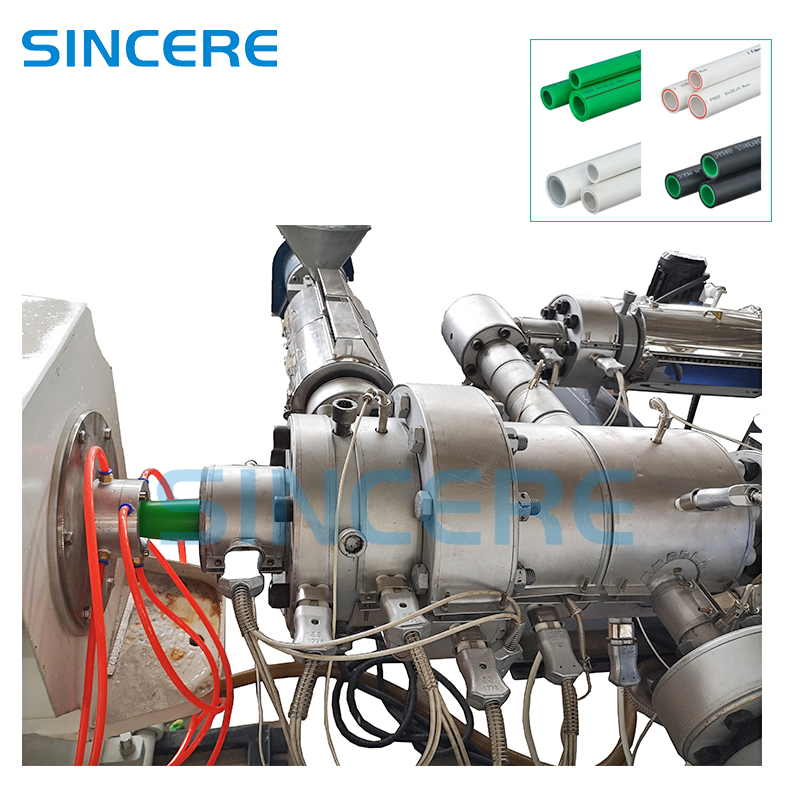

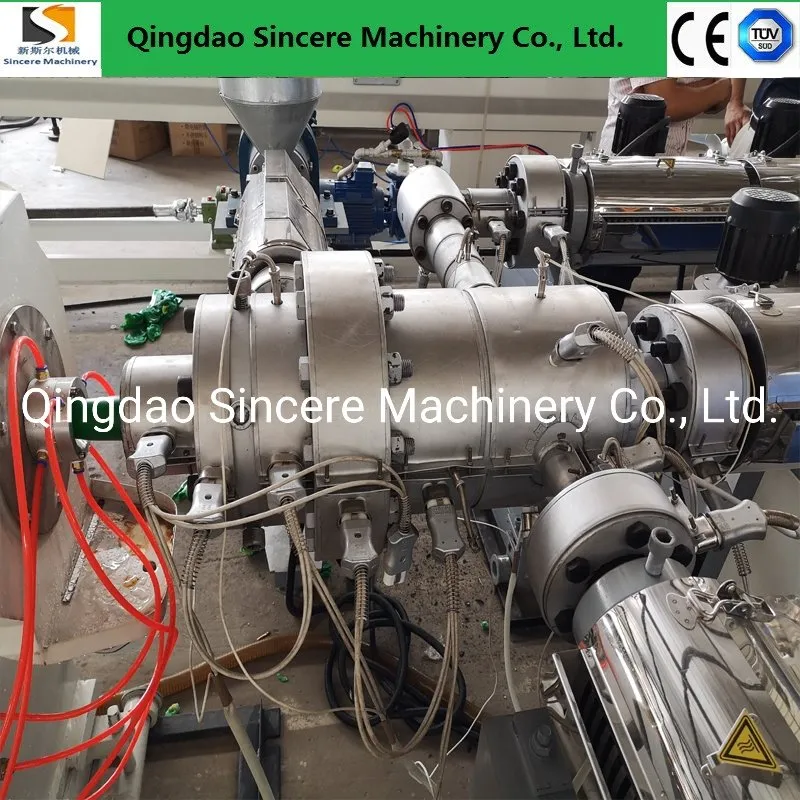

Die-head: Spiral composite design for stable melting pressure.

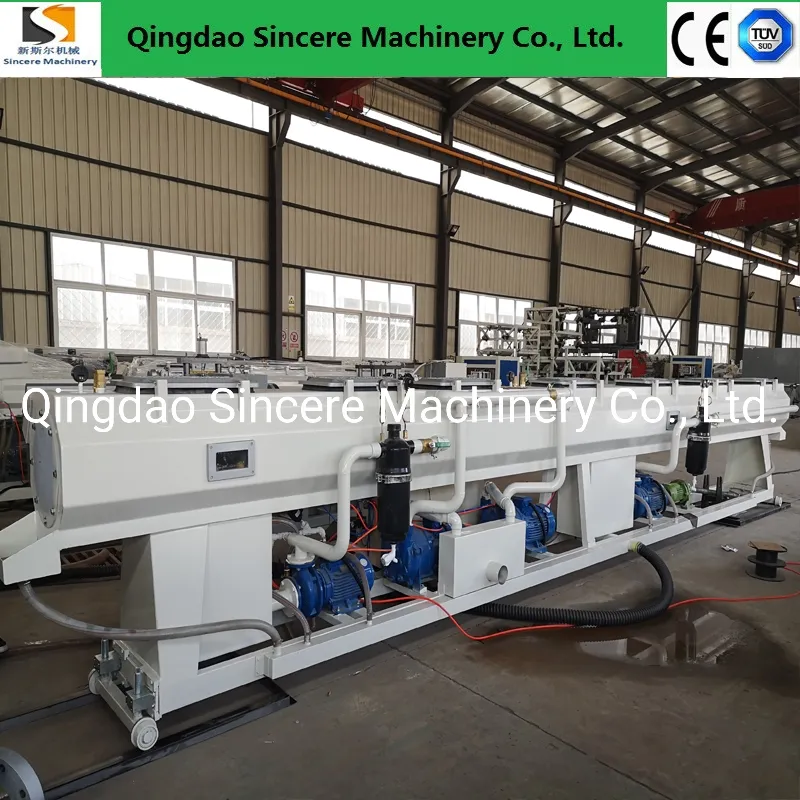

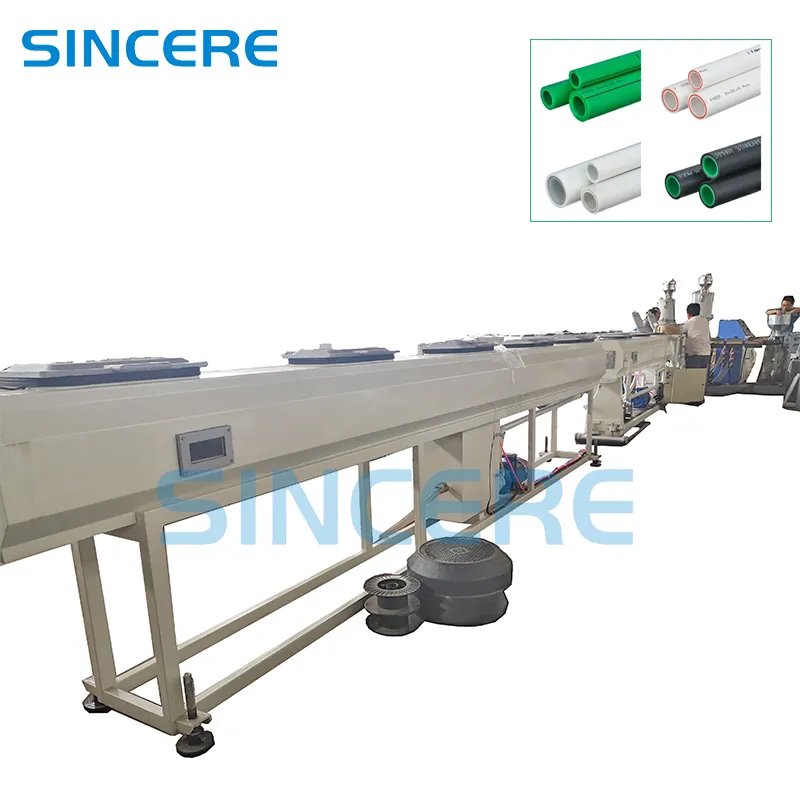

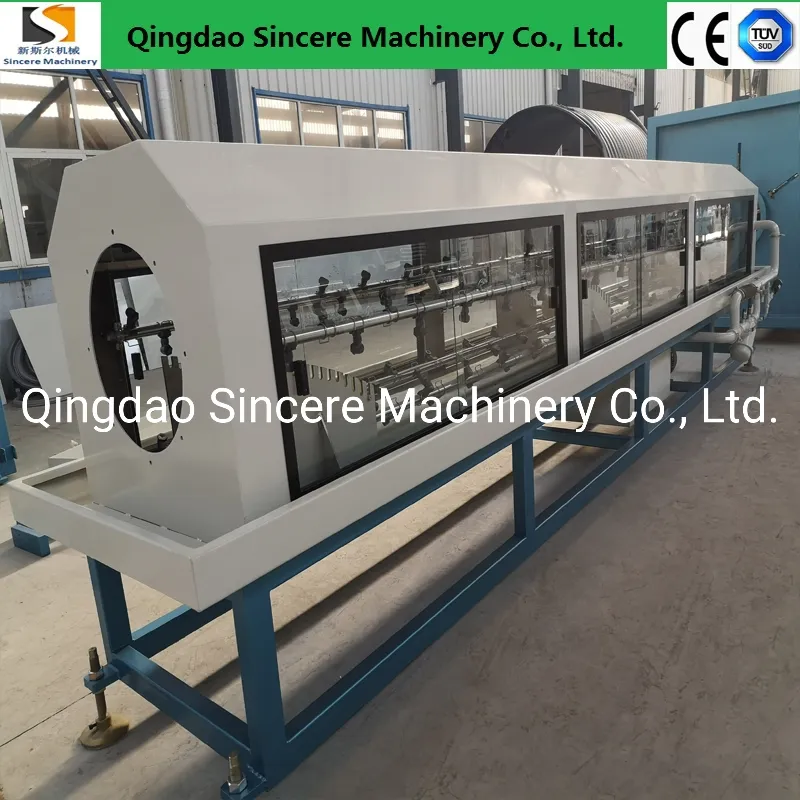

Cooling Tanks: Stainless steel vacuum calibration units.

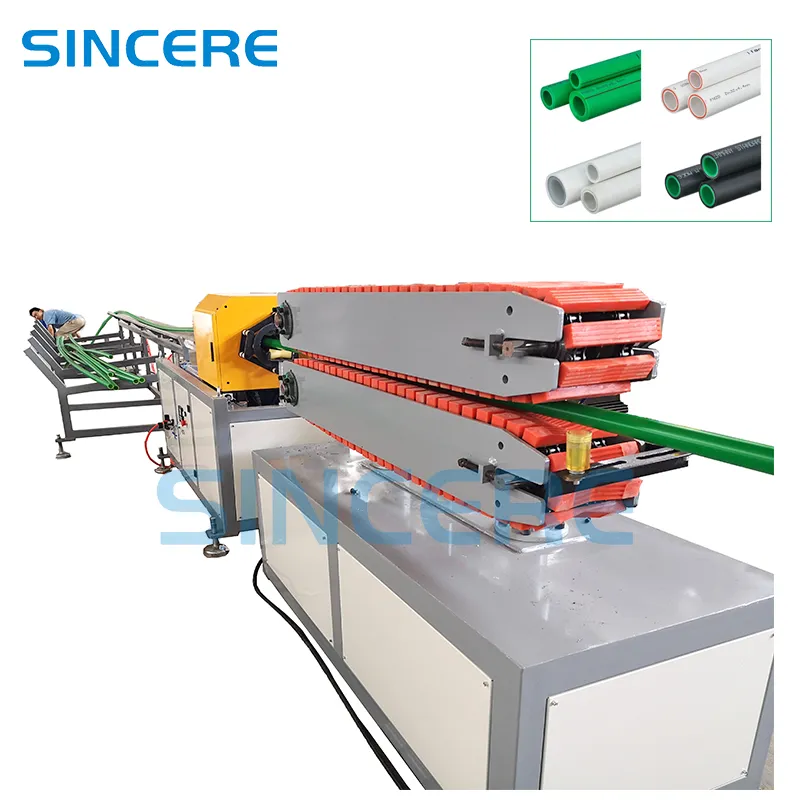

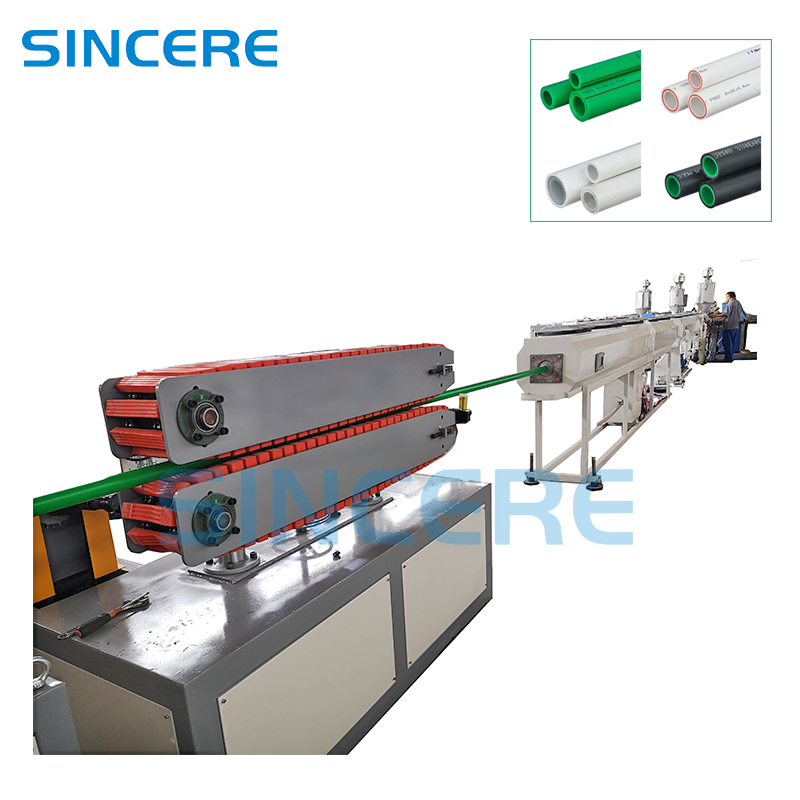

Haul-off: Pneumatic clamping with Siemens transducers.

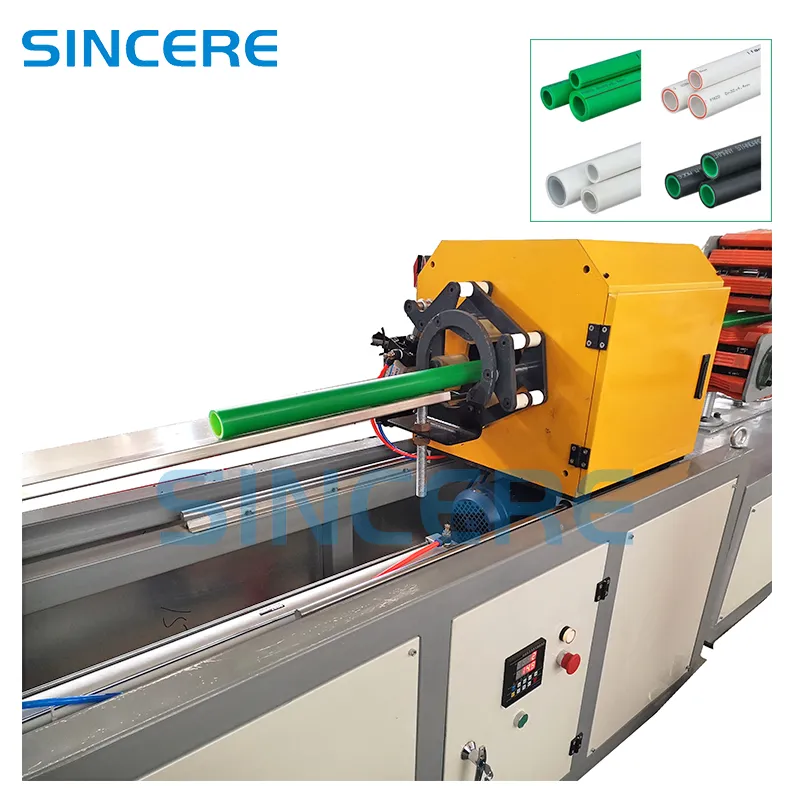

Cutter: No-dust chip-free cutting for clean environment.
✅ Professional installation and commissioning services.
✅ Customized product solutions based on specific needs.
✅ Continuous technical support and problem-solving.
✅ One-year warranty (excluding manual damage).
