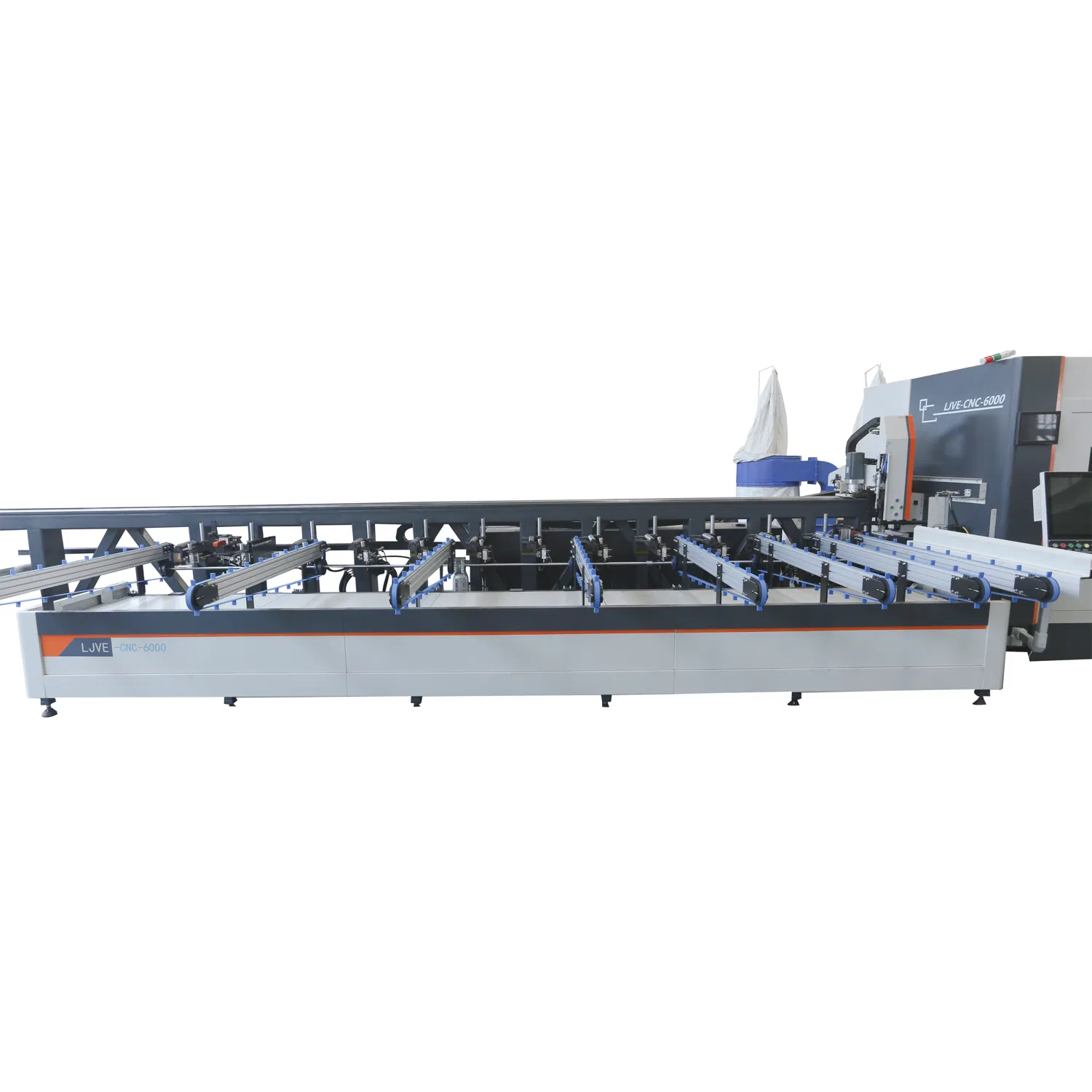

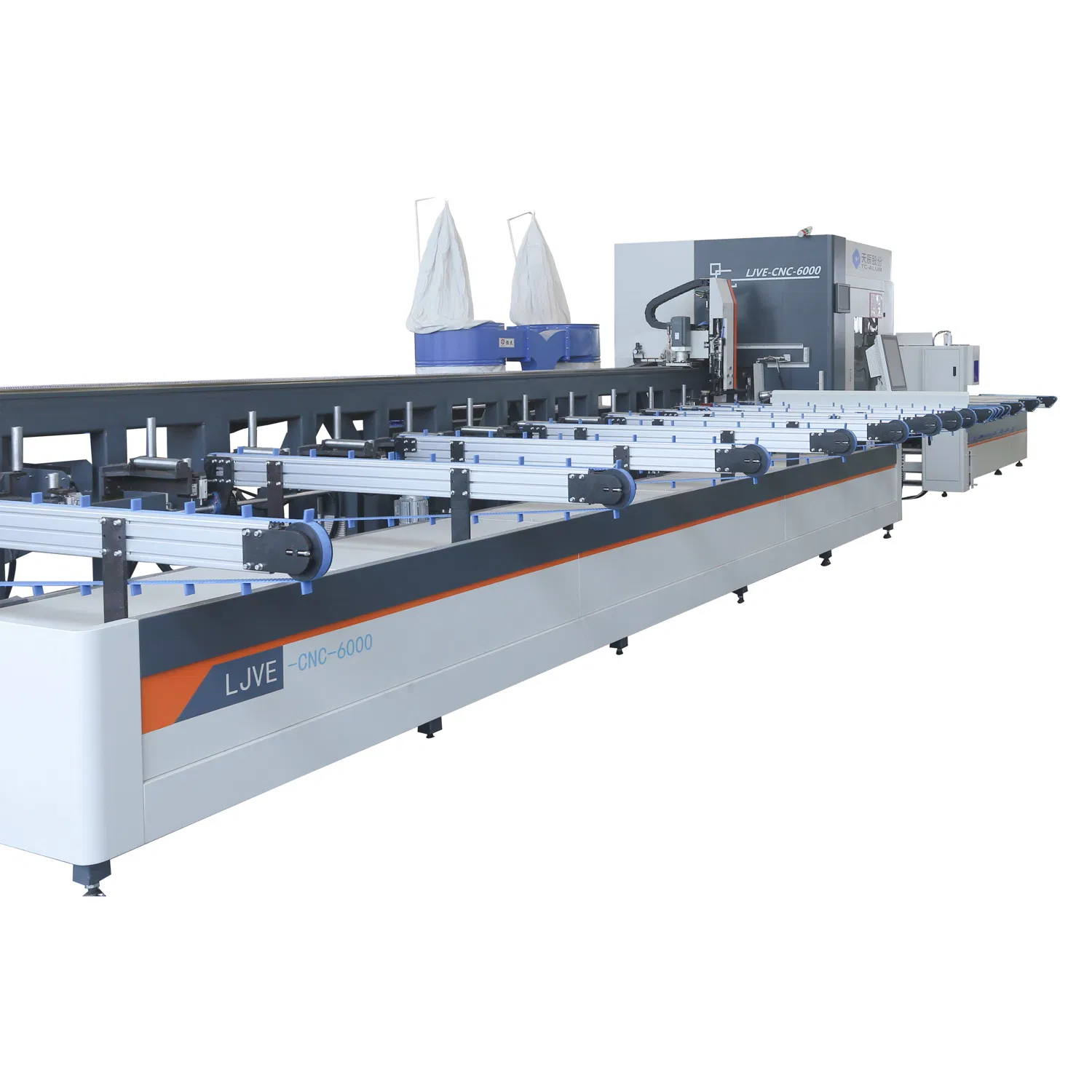

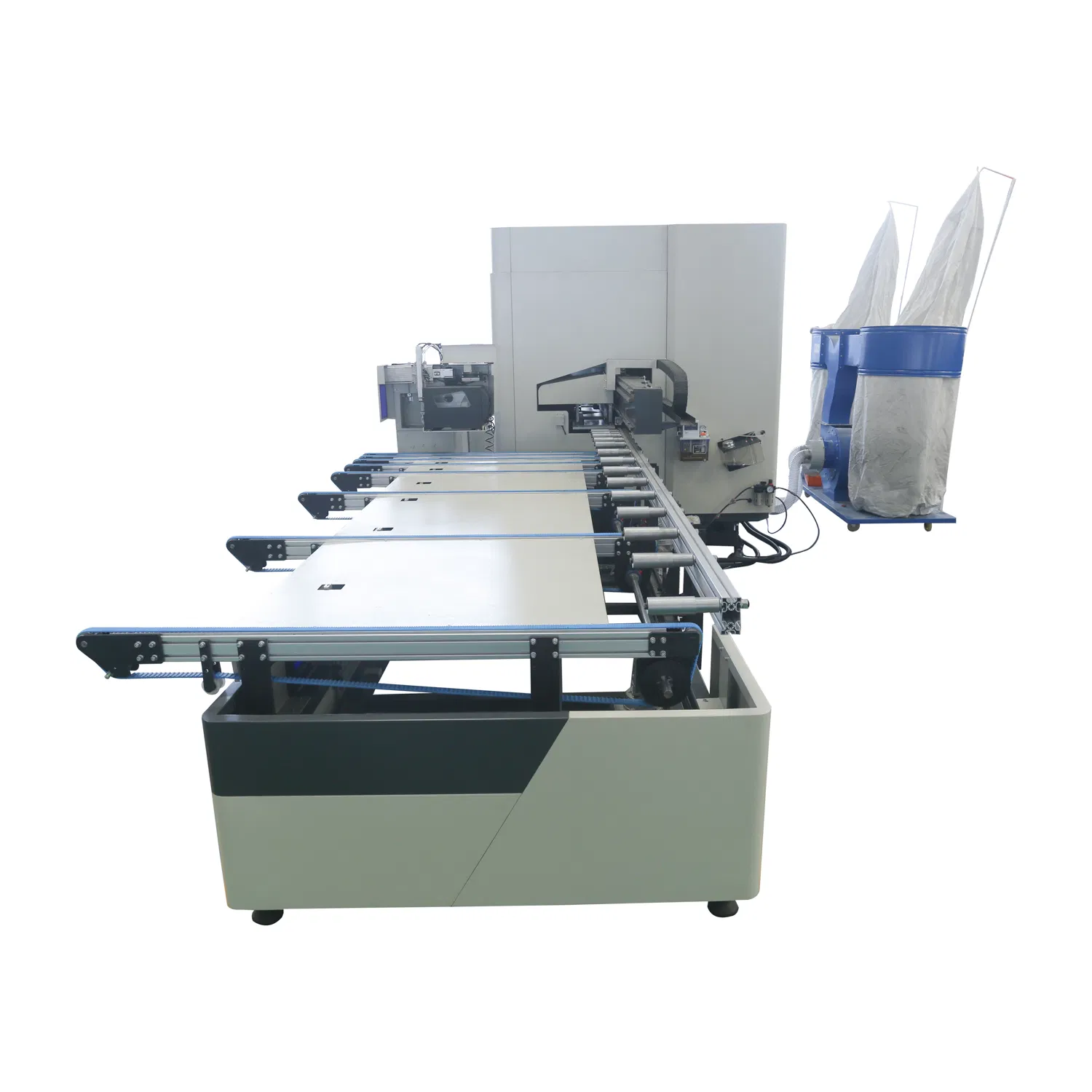

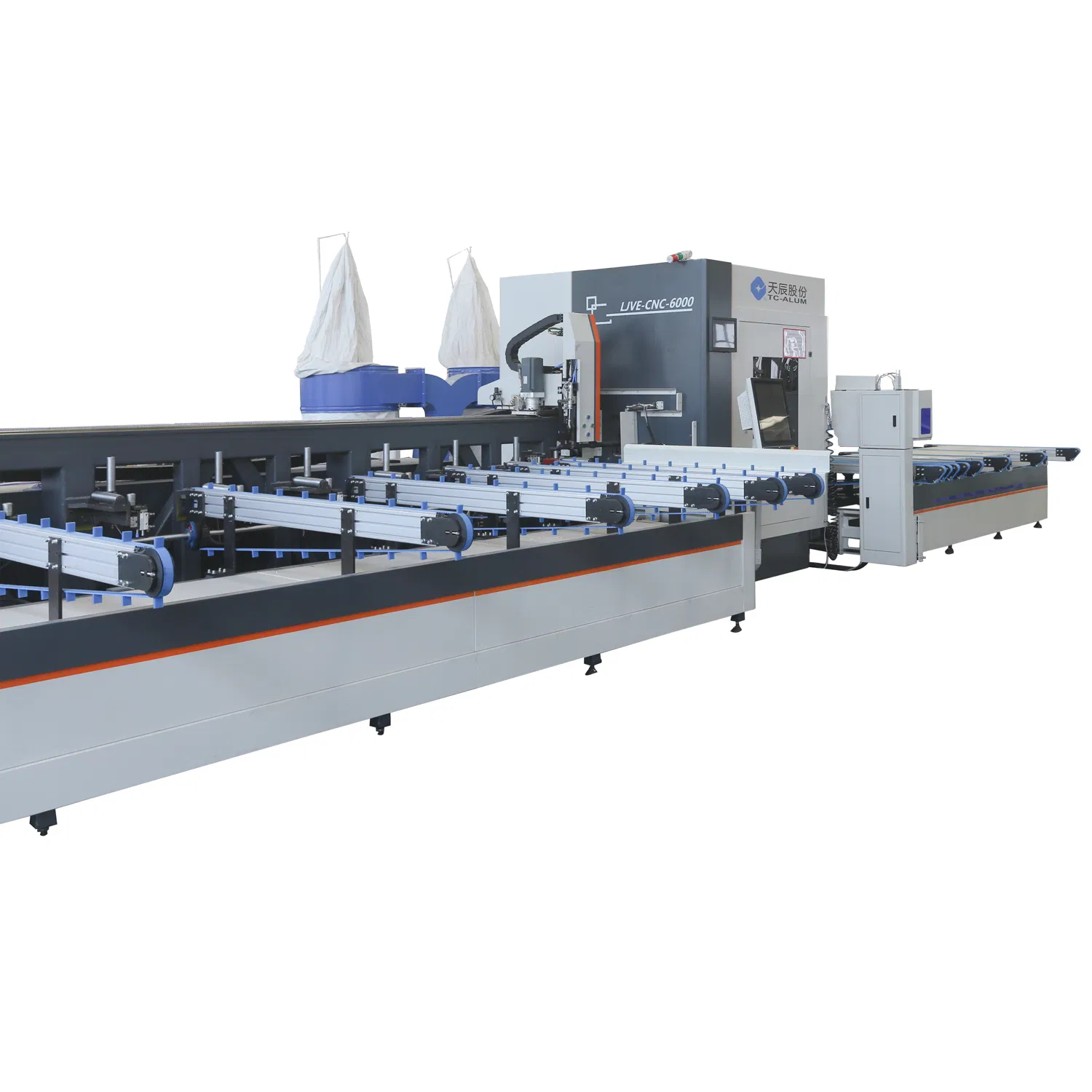

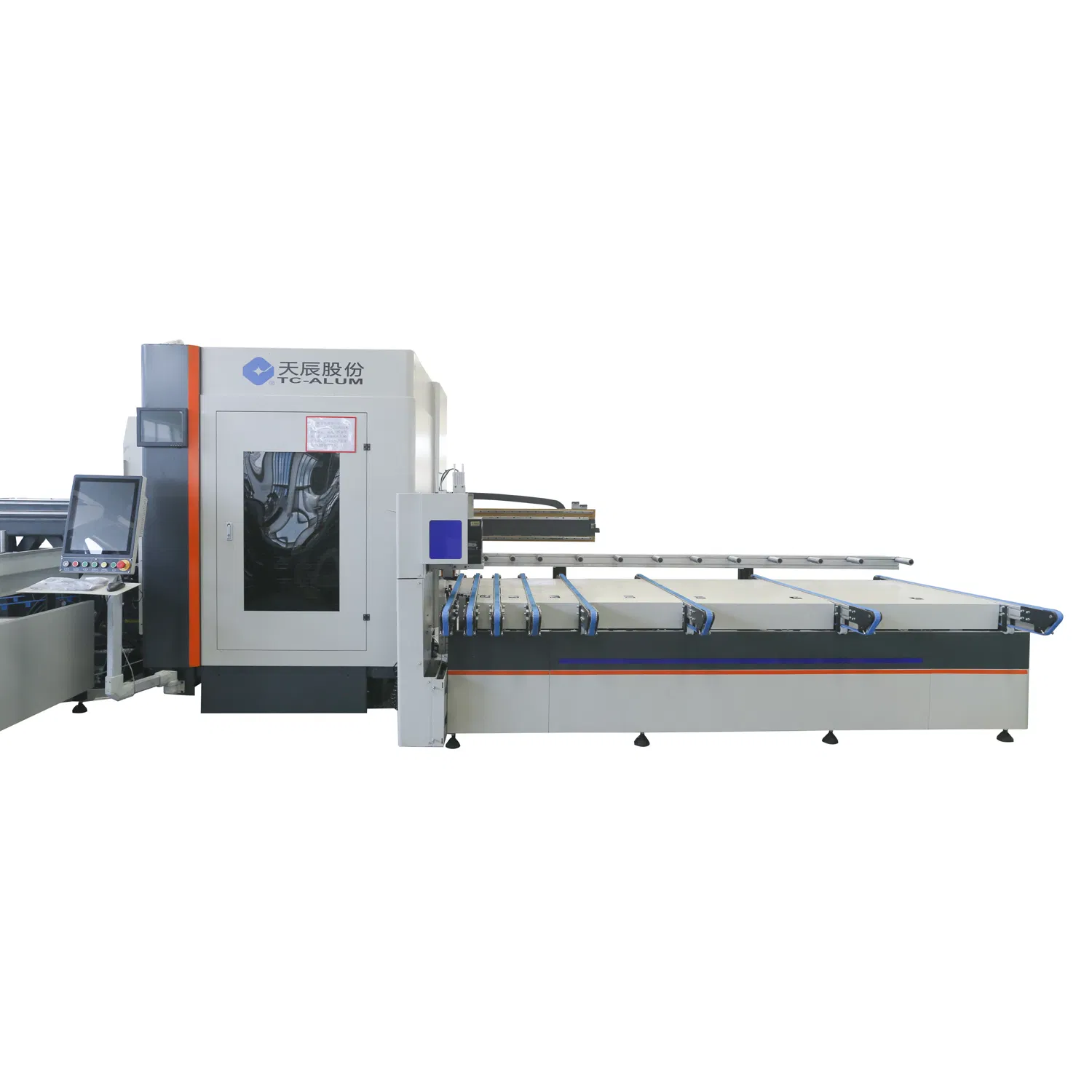

Intelligent Automatic CNC Cutting Production Line Laser Drilling Milling for Aluminum Profile Window and Door Fabrication Plant
Intelligent Automatic CNC Cutting Production Line Laser Drilling Milling for Aluminum Profile Window and Door Fabrication Plant
Intelligent Automatic CNC Cutting Production Line Laser Drilling Milling for Aluminum Profile Window and Door Fabrication Plant
Intelligent Automatic CNC Cutting Production Line Laser Drilling Milling for Aluminum Profile Window and Door Fabrication Plant
Intelligent Automatic CNC Cutting Production Line Laser Drilling Milling for Aluminum Profile Window and Door Fabrication Plant
1 / 5
Intelligent Automatic CNC Cutting Production Line Laser Drilling Milling for Aluminum Profile Window and Door Fabrication Plant
Intelligent Automatic CNC Cutting Production Line Laser Drilling Milling for Aluminum Profile Window and Door Fabrication Plant
Intelligent Automatic CNC Cutting Production Line Laser Drilling Milling for Aluminum Profile Window and Door Fabrication Plant
Intelligent Automatic CNC Cutting Production Line Laser Drilling Milling for Aluminum Profile Window and Door Fabrication Plant
Intelligent Automatic CNC Cutting Production Line Laser Drilling Milling for Aluminum Profile Window and Door Fabrication Plant

Intelligent Automatic CNC Cutting Production Line Laser Drilling Milling for Aluminum Profile Window and Door Fabrication Plant

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
LJVHA-CNC-6500
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
Customized Value
Name
Automatic Cutting Saw Center
Function
Cutting Milling Profile to Certain Length
Average Productivity
2200 Finished Pieces / 8 Hours
Control System
CNC System
Application
Window Door Fabrication
Cutting Angle
Arbitrary Angle
Cutting Material
Aluminum Profile
Cut Profile Size
30-150mm (H) x 30-150mm (W)
Cutting Length
240 ~ 6500 mm
Production Capacity
30 Sets Per Month
★

Product Description

CNC Cutting Production Line

LJVHA-CNC-6500 Automatic Cutting Saw Center

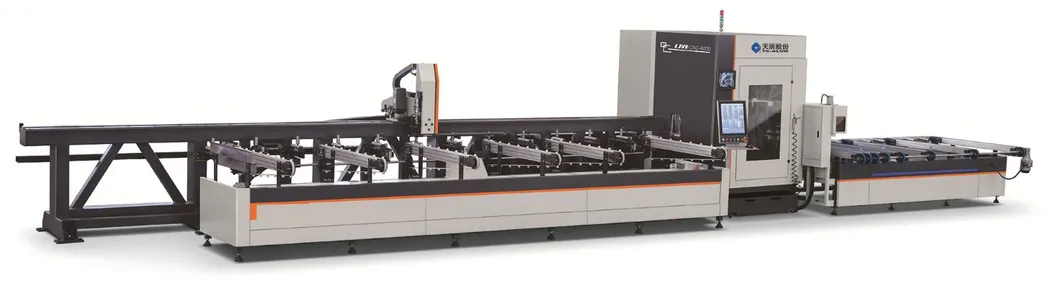

Machine Overview

1. Machine Features

  • Efficient continuous 45°, 90° or arbitrary angle machining within the range of 45° to -45°.
  • Automatic feeding table for continuous automatic clamping and profile cutting processing.
  • High precision linear guide pair ensures smooth operation and processing accuracy.
  • Servo-driven feeding manipulator for automatic control of X, Y, and Z axes.
  • Equipped with strengthening muntin positioning clamping mechanism and servo drive.
  • Four high-speed motorized spindles for multi-axis automatic control and five-sided processing.
  • Laser cutting motion with four-axis automatic control for corner clearing and hole processing.
  • Front-side laser engraving head for mullion and frame material identification.
  • Motor direct connection saw blade for stable cutting and high processing accuracy.
  • High precision CNC system ensures stable and reliable equipment operation.
  • Equipped with chain chip conveyor for automatic waste and aluminum chip transport.
  • Fully enclosed shell design to ensure maximum operator safety.
  • Real-time sawing operation monitoring via high-resolution camera and LCD screen.
  • Includes specialized air compressor and water cooler for laser systems.

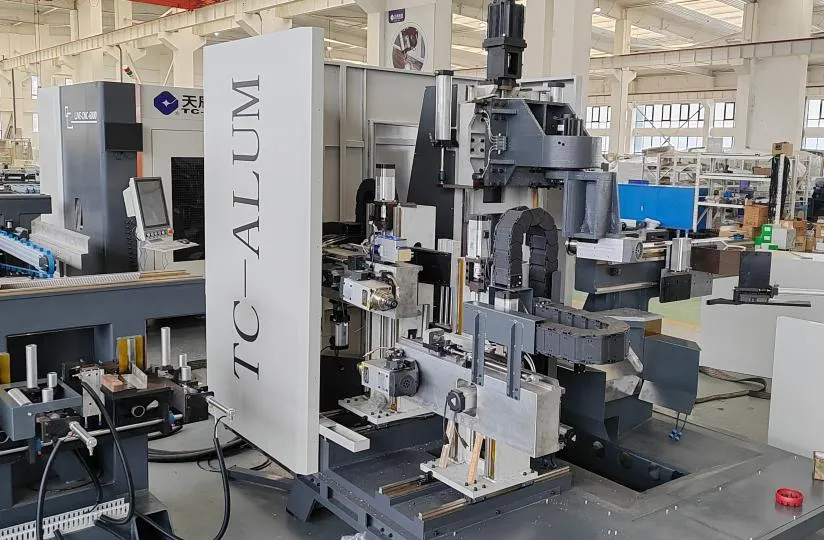

Machine Details
⚙

Machine Parameters

Item Specification
Sawing motor power3.0 Kw
Machine power48 Kw
Motorized spindle power3Kw × 4
Laser power1.5kw
Laser head processing height150mm
Saw blade specificationΦ550 × 30 × 4.4 × 144T
Cut profile height/width30 ~ 150 mm
Cutting length240 ~ 6500 mm
Angle error±5'
Sawing length accuracy±0.15mm
Repeated positioning error±0.05mm
Input voltage380V 50Hz
Working pressure0.5 ~ 0.8MPa
Dimension15000 × 5000 × 2500 mm
Weight8900 kg

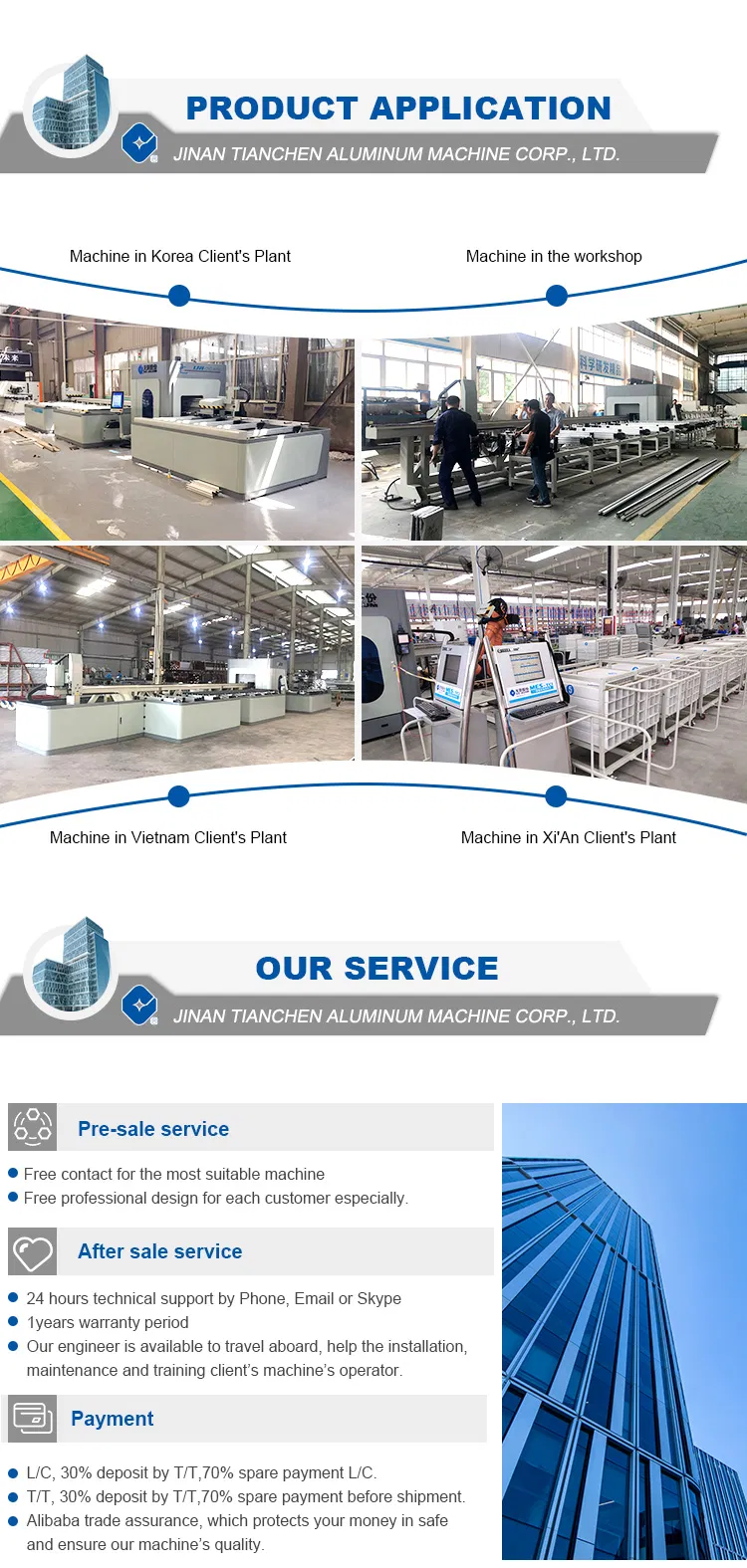

Process 1
Process 2
Process 3
Process 4
Process 5
Process 6
?

Frequently Asked Questions

What types of angles can the LJVHA-CNC-6500 process?
The machine can perform efficient continuous sawing at 45°, 90°, or any arbitrary angle within the range of 45° to minus 45°.
What is the average productivity of this cutting saw center?
It can achieve an average productivity of approximately 2200 finished cutting pieces within an 8-hour shift.
Does the machine support both laser cutting and engraving?
Yes, it is equipped with a laser cutting head for corner clearing and holes, as well as a laser engraving head for marking mullion and frame materials.
What are the profile size limitations for cutting?
The machine handles aluminum profiles with a height of 30 to 150 mm and a width of 30 to 150 mm, with cutting lengths ranging from 240 to 6500 mm.
How is the processing accuracy maintained?
Accuracy is ensured through high-precision CNC systems, servo-driven movements, linear guide pairs, and high-precision lead screw pair drives.
Is the machine safe for operators?
Yes, the machine features a fully enclosed shell to ensure operator safety and includes a high-resolution camera for real-time monitoring.
