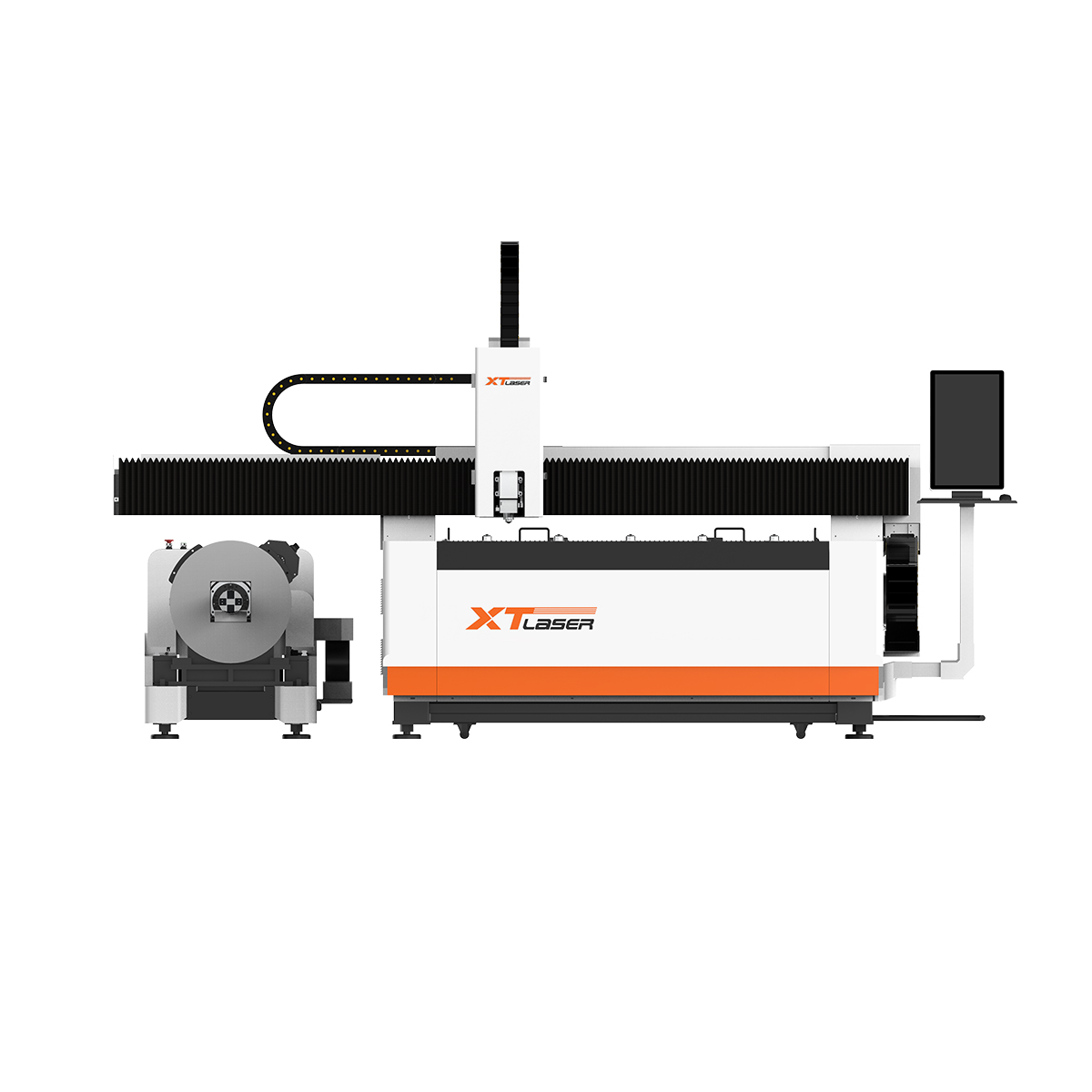

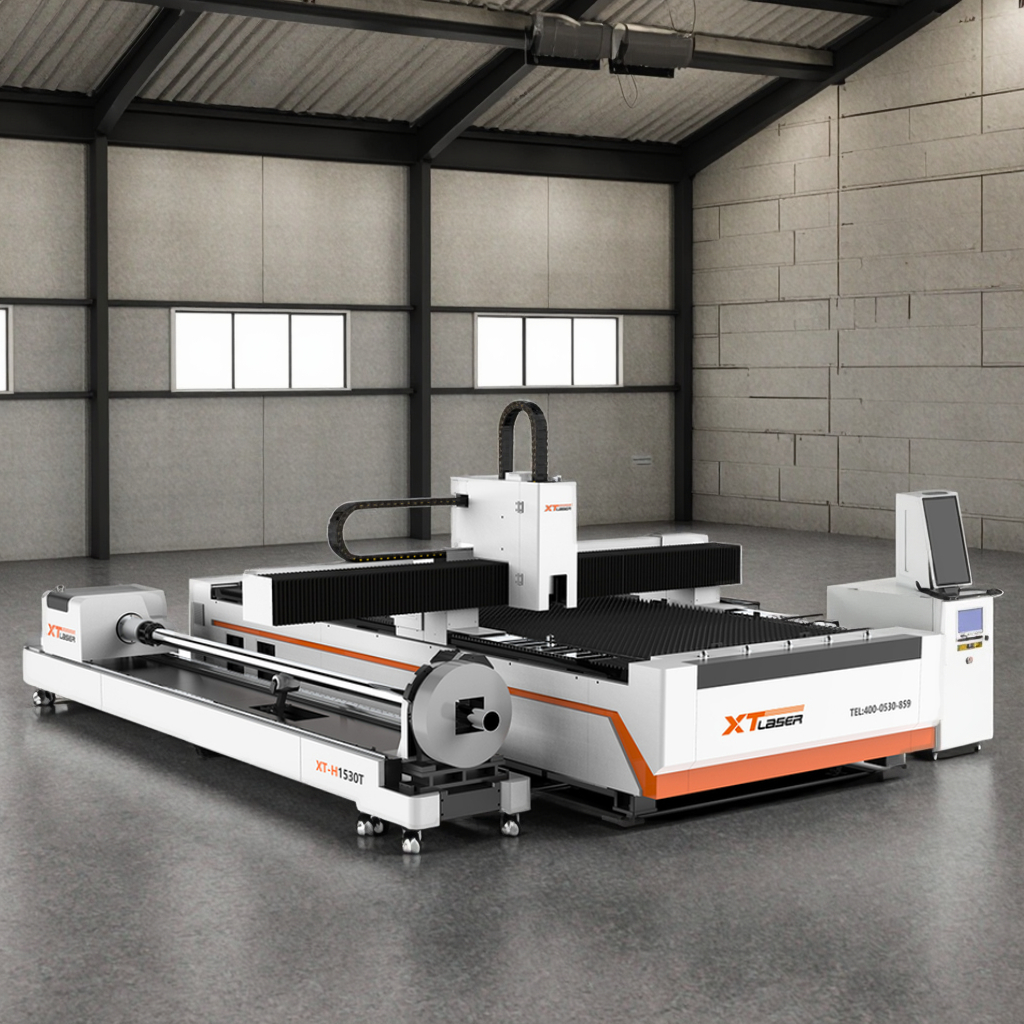

HT Series 1500w 3000W 6000w High Speed Fiber Laser Cutting Machines
Open Fiber Laser Cutting Machines - Plate Tube Integrated Machine
High-Efficiency Performance

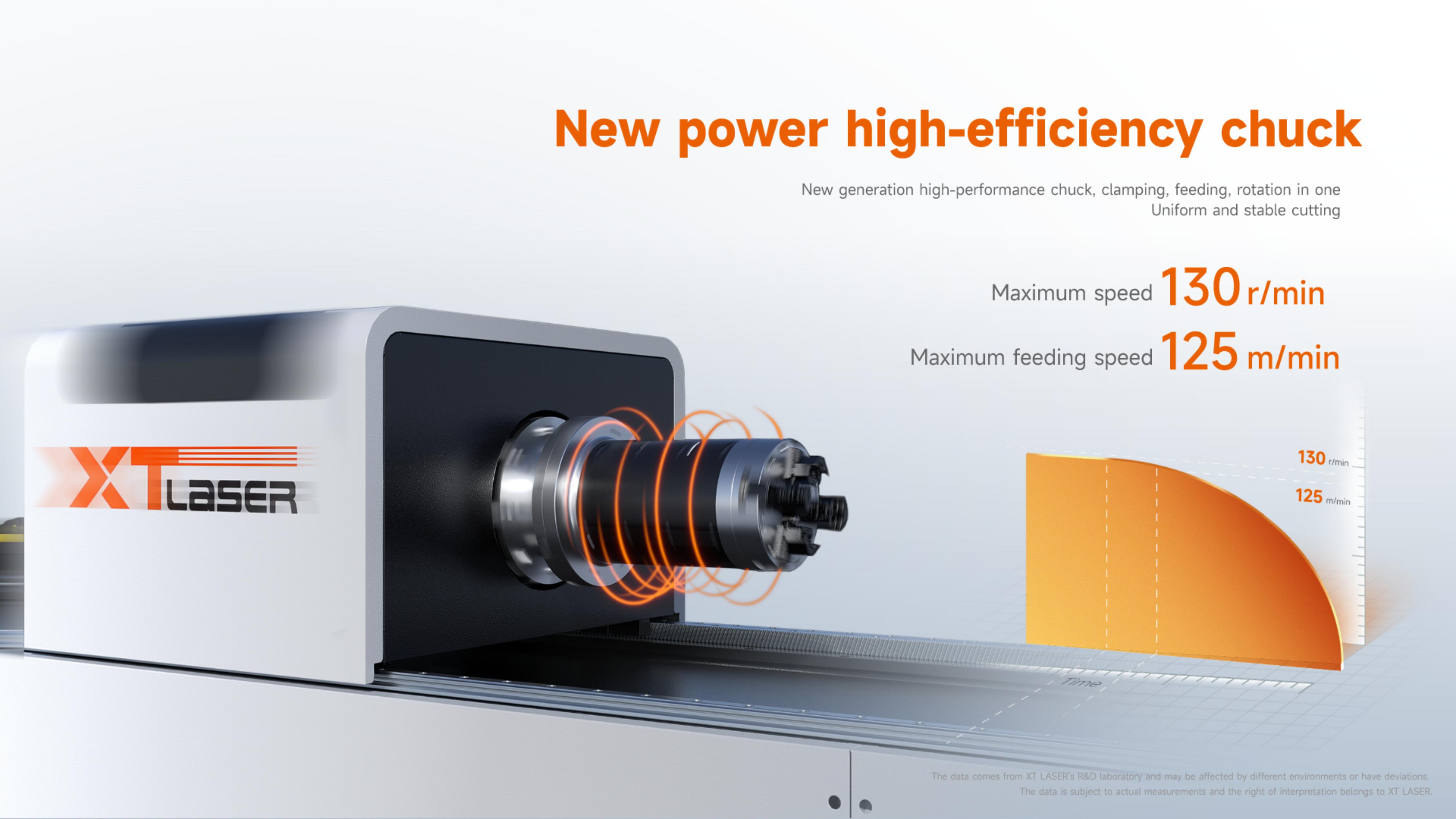

New Power High-efficiency Chuck: New generation high-performance chuck, clamping, feeding, rotation in one. Uniform and stable cutting.
Maximum speed: 130r/min | Maximum feeding speed: 125m/min

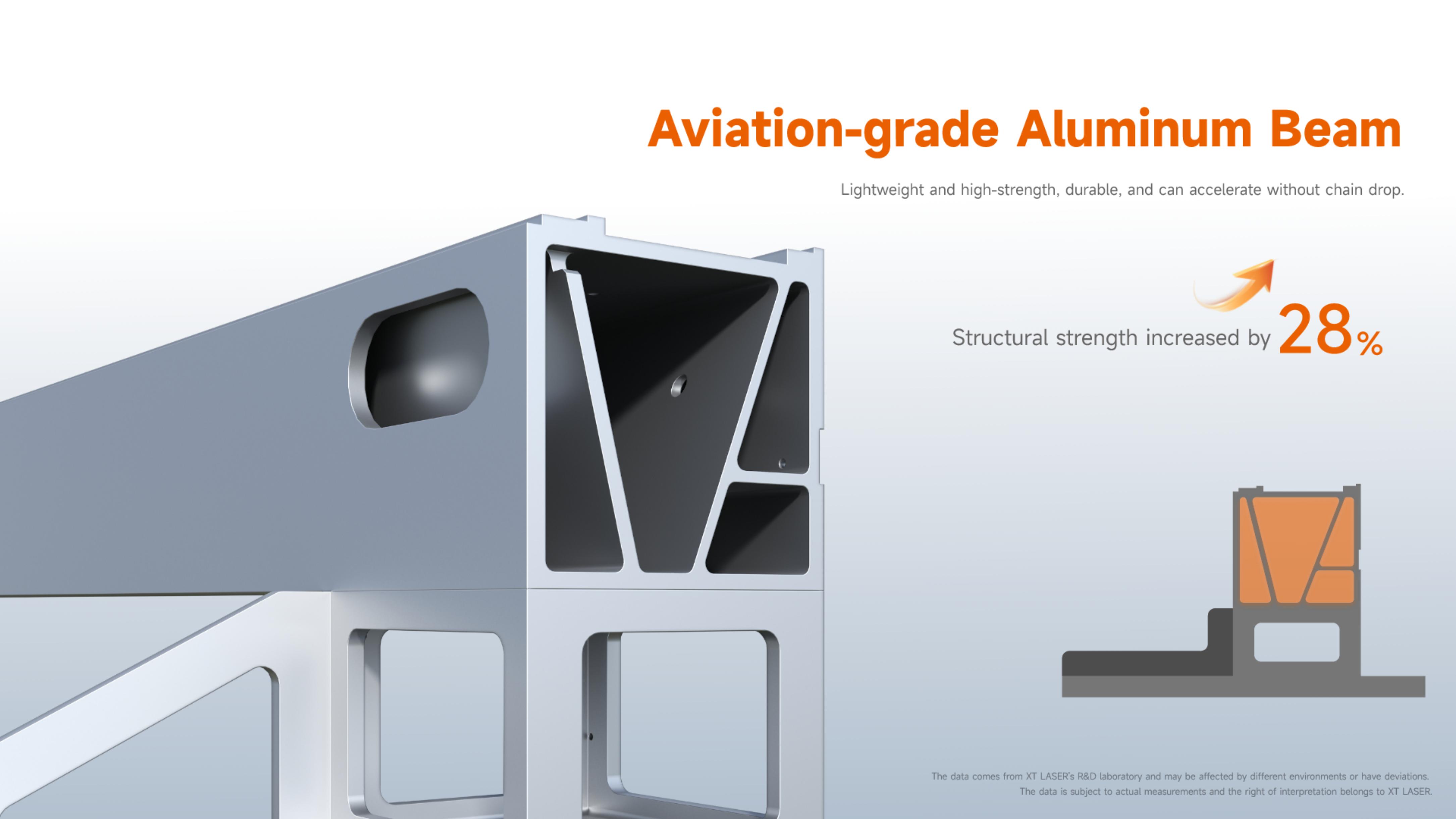

Aviation-grade Aluminum Beam: Lightweight and high-strength, durable, and can accelerate without chain drop. Structural strength increased by 28%.
Fireproof & Intelligent Technology
Fireproof and Heat Insulation Technology: Uses high-aluminum composite refractory materials, which do not receive heat or transfer heat, ensuring equipment has a long service life and resistance to deformation.

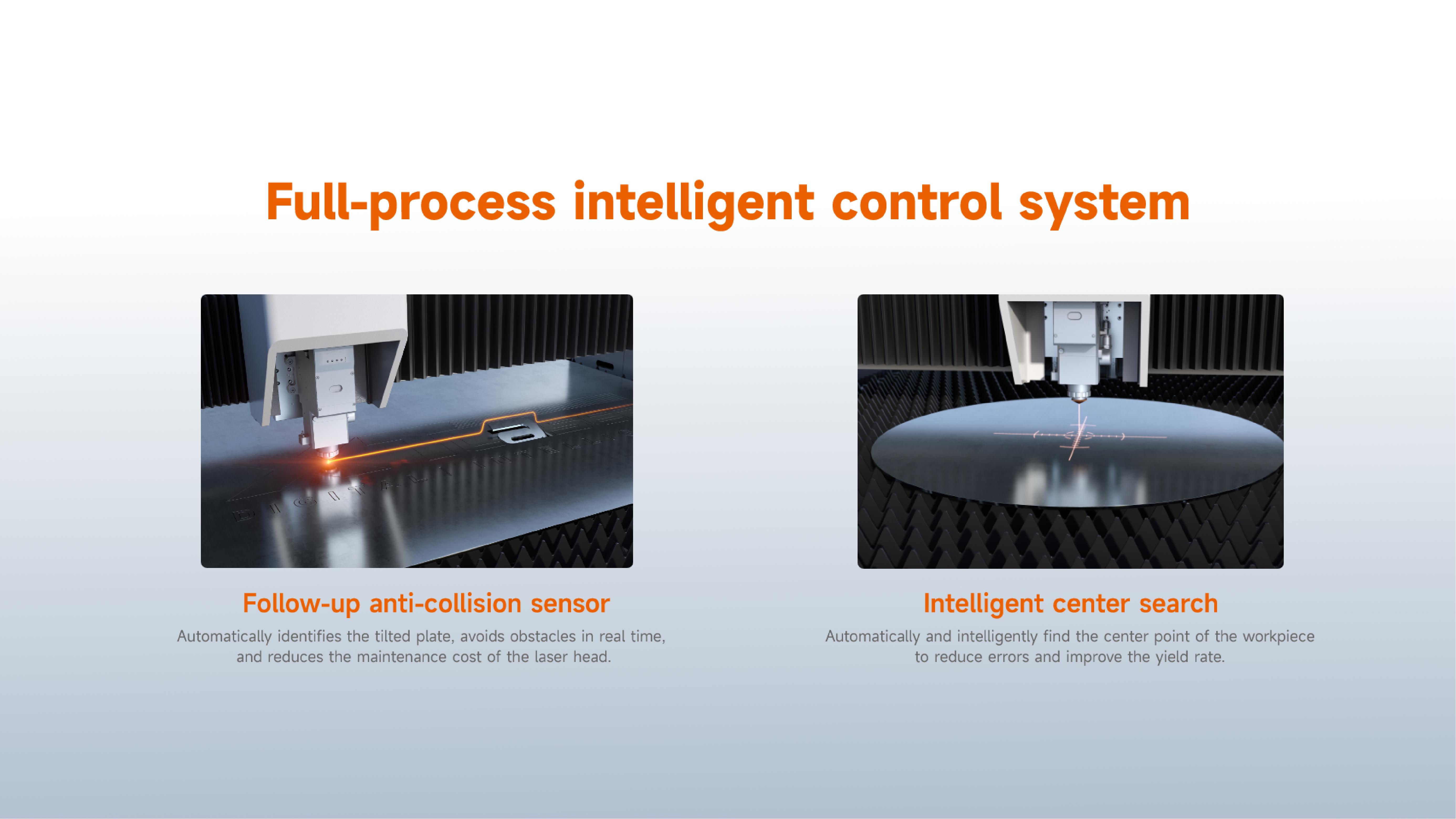

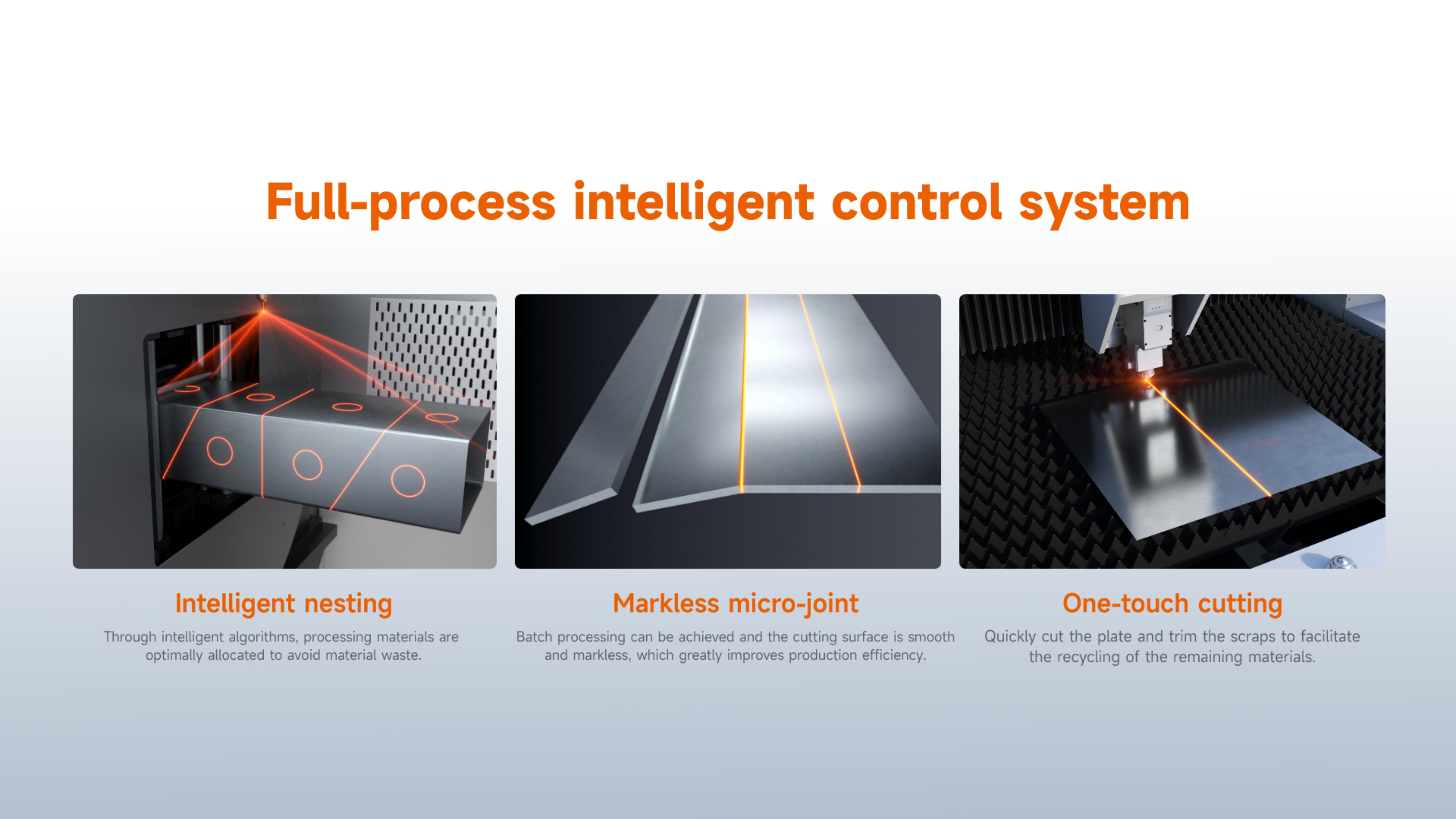

Full-process Intelligent Control System: Features intelligent nesting, markless micro-joint, and one-touch cutting for maximum efficiency.
Technical Specifications
| Model |
XT-H1530T |
XT-H1560T |
XT-H2040T |
XT-H2060T |
| Working Area |
1530×3050mm |
1530×6050mm |
2030×4050mm |
2030×6050mm |
| Linkage Speed |
100m/min |
100m/min |
100m/min |
100m/min |
| Max Acceleration |
1G |
1G |
1G |
1G |
| Positional Accuracy |
±0.03mm |
±0.03mm |
±0.03mm |
±0.03mm |
| Re-positional Accuracy |
±0.02mm |
±0.02mm |
±0.02mm |
±0.02mm |
| Pipe Section Shape |
Round / Square Tube / Rectangular |

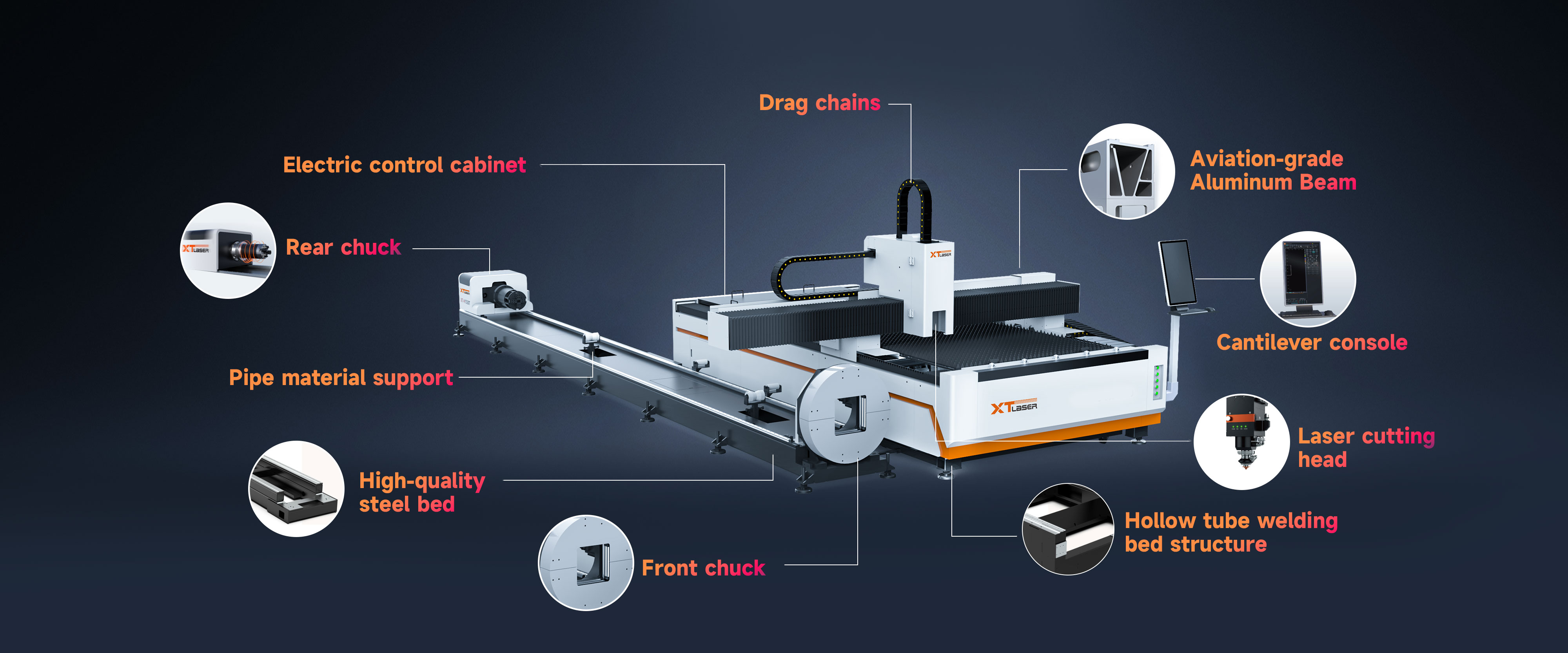

Machine Features

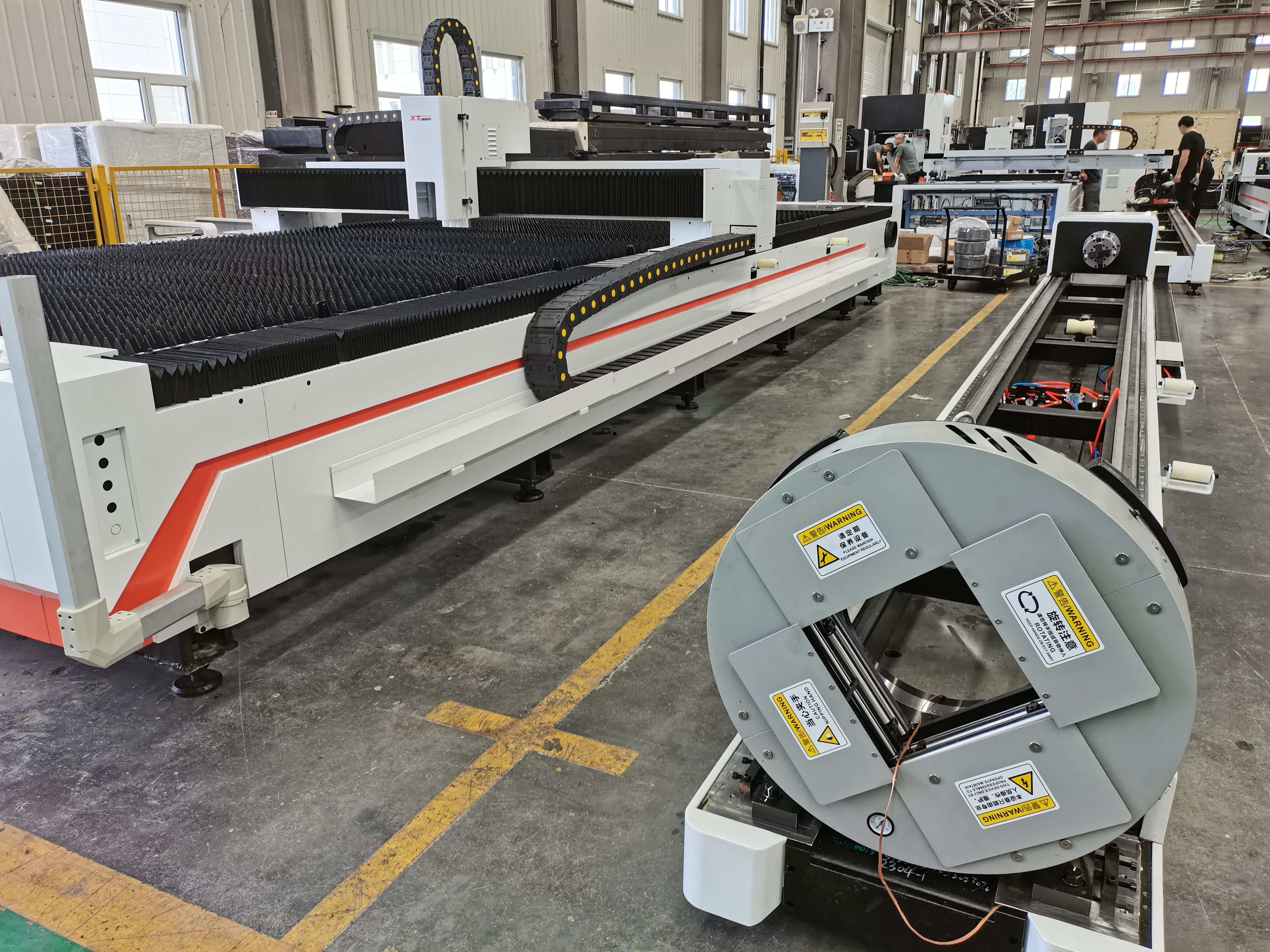

HT series can cut both tube and plate metals, combining a tube laser cutting machine and plate laser cutting machine.
- Integrated design saving cost and floor space.
- Automatic centering chuck with pneumatic clamping for high accuracy.

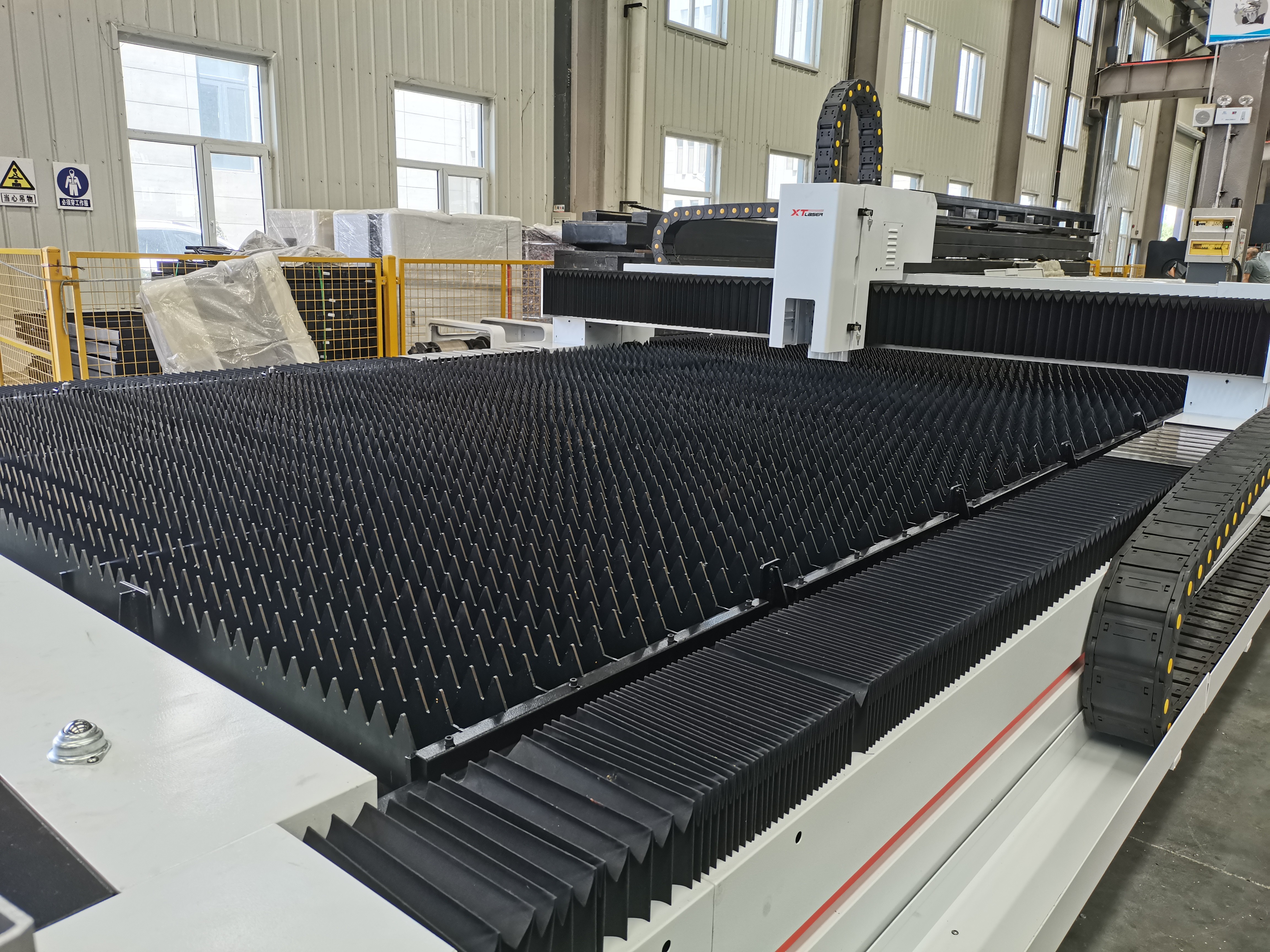

- High strength workbench, easy to disassemble and replace.
Autofocus Laser Cutting Head
Software automatically adjusts the focusing lens for different thicknesses. 10x faster than manual adjustment.

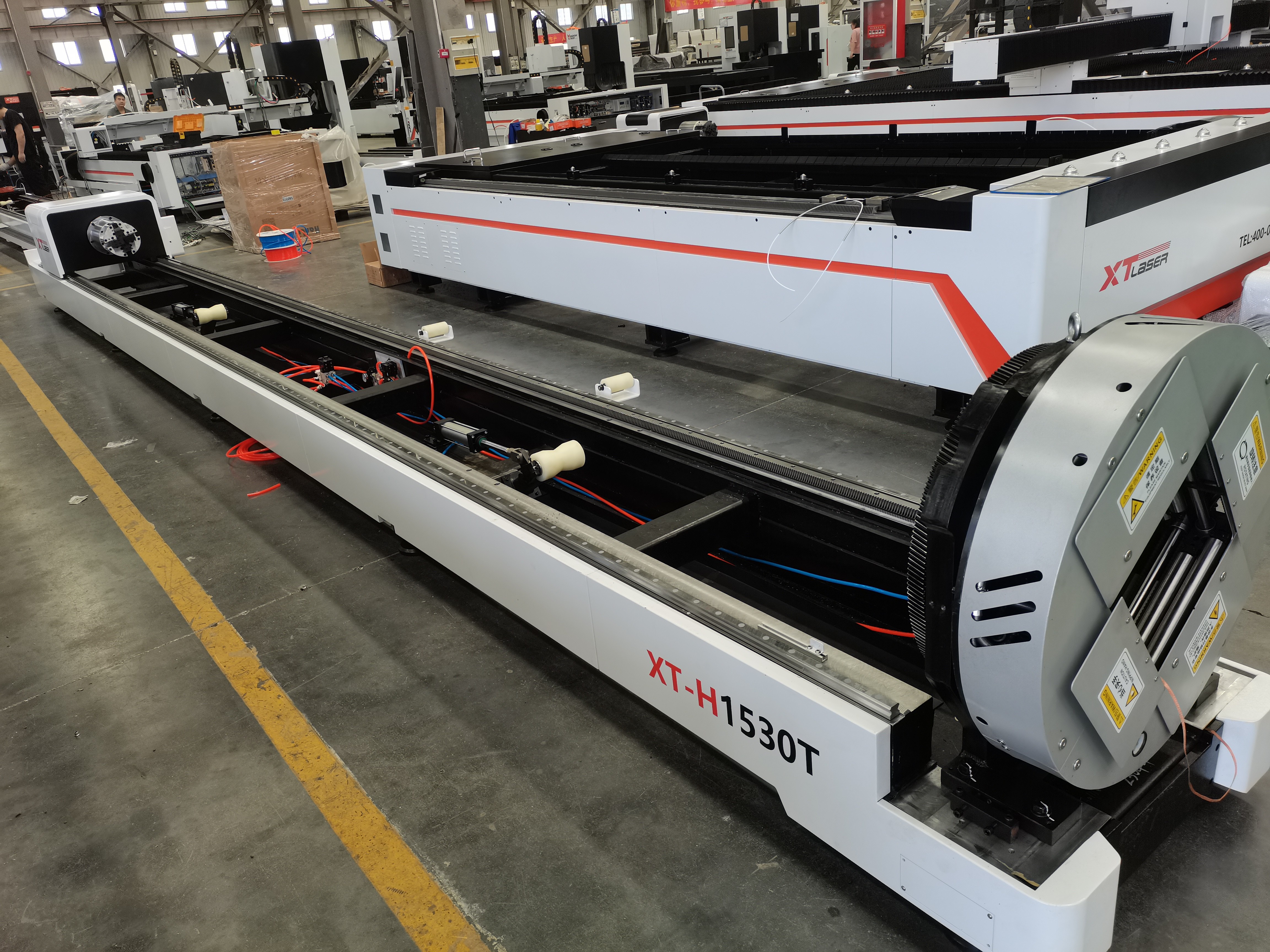

Double Pneumatic Chucks
2~3 times faster than electric chucks. Dual support frame for 6m tubes. High cutting precision.

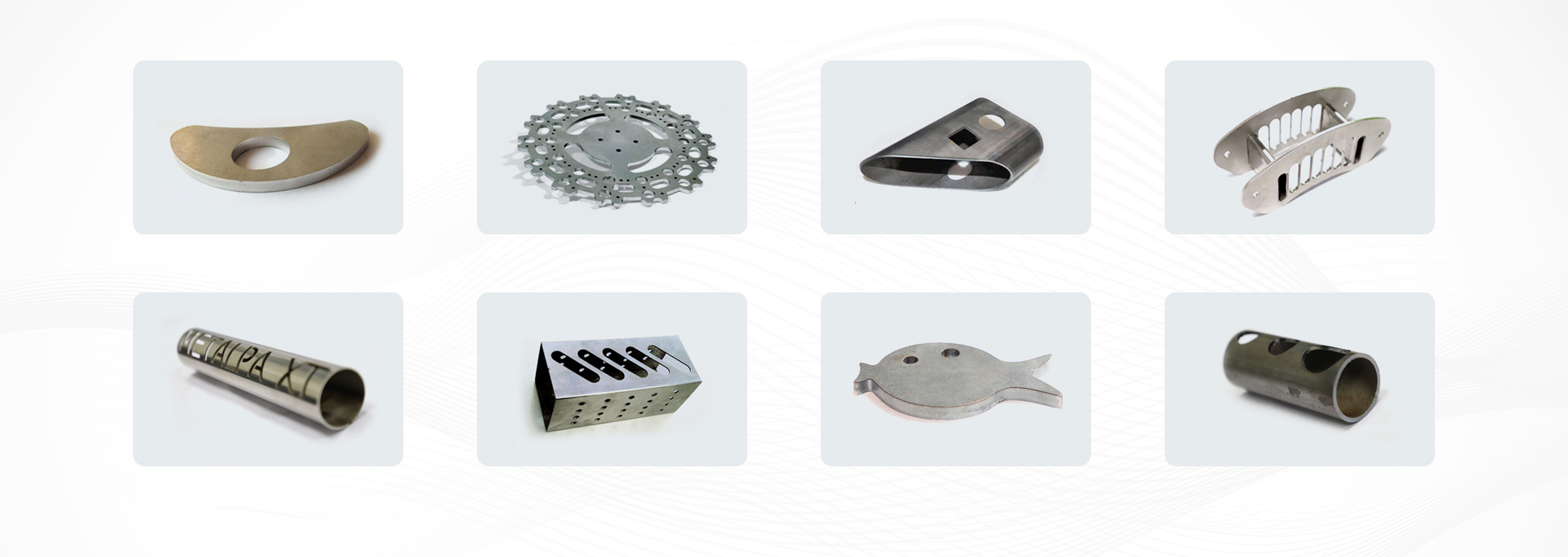

Applications & Samples
Suitable for metal cutting with Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron Plate, Galvanized Sheet, Aluminum, Copper, Brass, Bronze, Gold, Silver, Titanium, and various tubes and pipes.
Global Service & Certificates
We provide a "30 minute quick response, 3 hour service" after-sales chain. With over 40 service outlets worldwide, we ensure worry-free production.
Machines come with CE and ISO certificates to ensure compliance and quality.
