Product Description

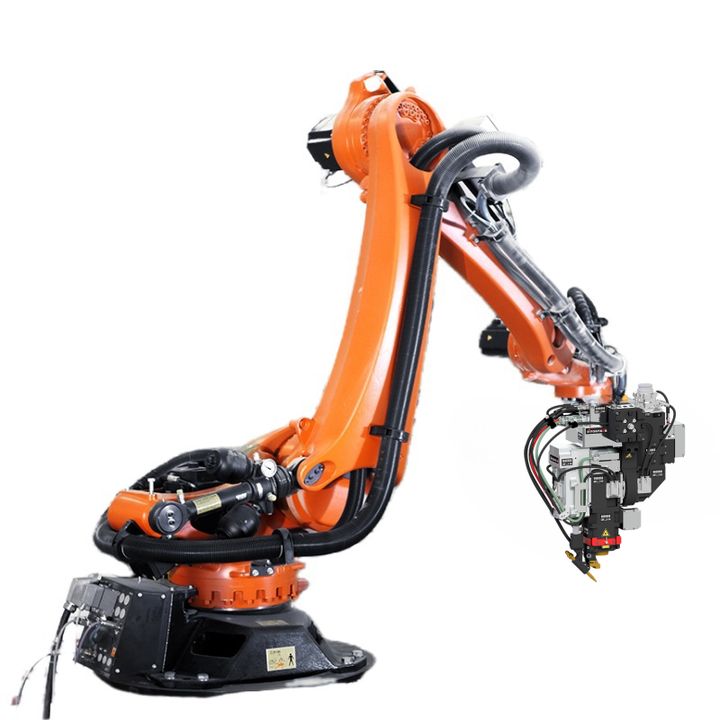

KUKA robot arm 6 axis industrial robots
  • ⚡
    Fast and accurate The industrial robots of the KR CYBERTECH series reach exceptionally high speeds, allowing them to work even faster - without any loss of precision.
  • ⚙
    Extensive portfolio The KR CYBERTECH series is suitable for handling large components, machining, assembly, palletizing and ARC welding.
  • ⚓
    Flexible installation For planning security and low costs in the design of cells: the robots can be flexibly floor-, wall- or ceiling-mounted or even installed at a certain angle.
KUKA robot arm 6 axis industrial robots
Product Parameter
Parameter Specification Details
Model KR 22 R 1610-2
Type 6 axis (J1, J2, J3, J4, J5, J6)
Reach 1612mm
Installation Note Floor, Upside-down, Angle mount
Motion range (J1 axis) 180°/s
Motion range (J2 axis) 180°/s
Motion range (J3 axis) 180°/s
Motion range (J4 axis) 180°/s
Motion range (J5 axis) 180°/s
Motion range (J6 axis) 180°/s
Max load capacity at wrist 22kg
Repeatability Precision ±0.04mm
Robot Weight 255kg
Product Advantages
Product Advantages
Working Range
Working Range

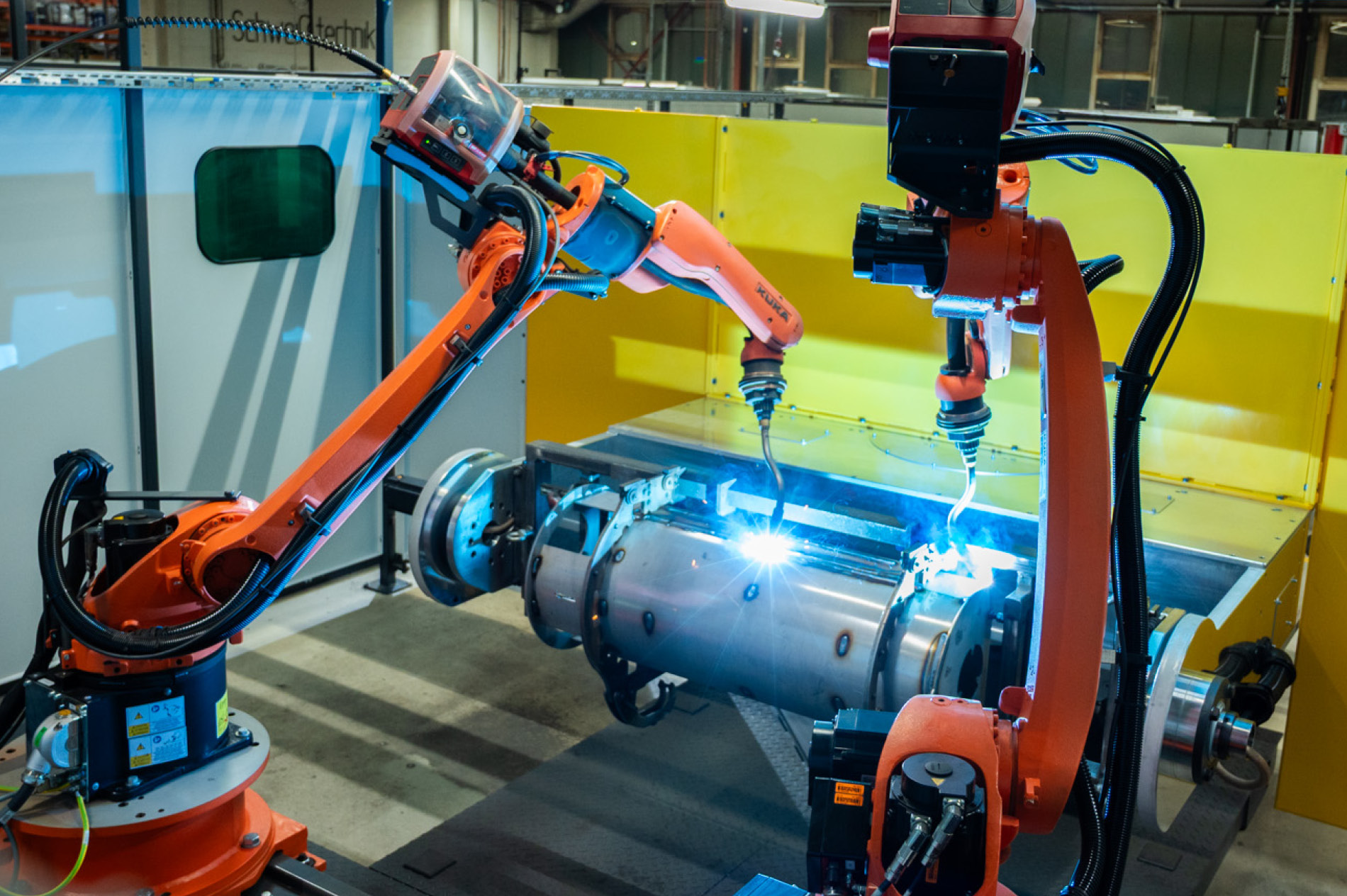

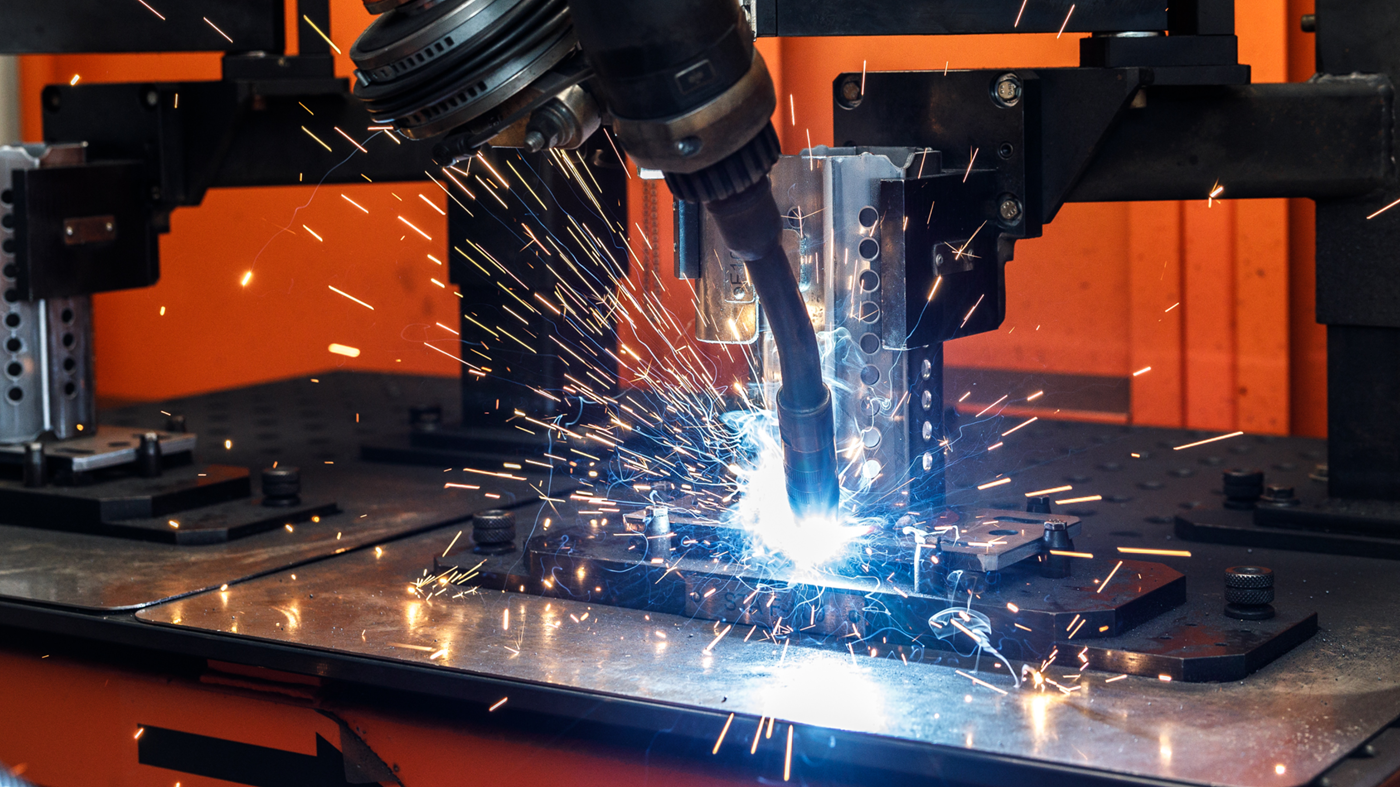

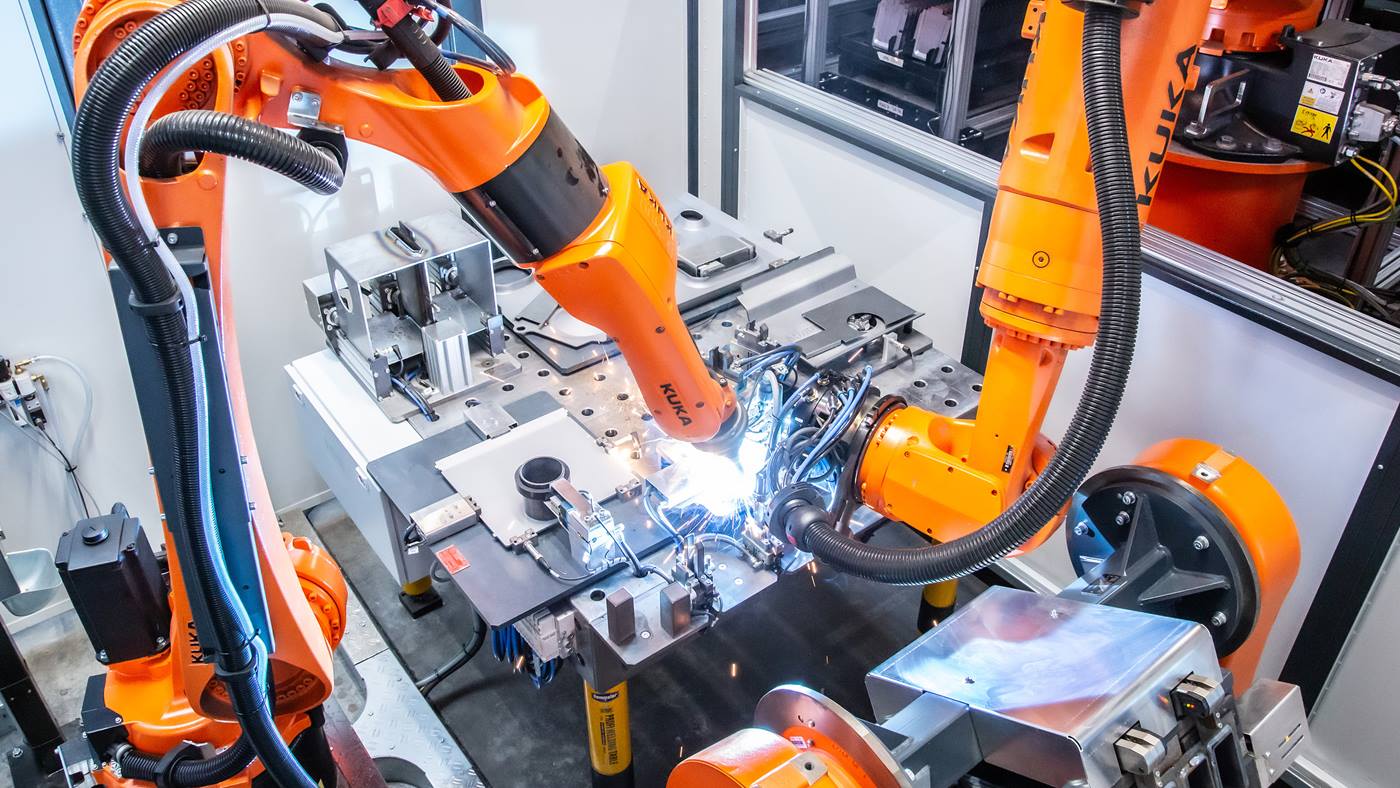

Welding Sample
Welding Sample
Product Real Shot
Product Real Shot 1
Product Real Shot 2
Product Real Shot 3
Product Real Shot 4
Product Real Shot 5
Product Real Shot 6
Product Details
Our Factory
Factory Area 1
Factory Area 2
Factory Area 3
Factory Area 4
Factory Area 5
Factory Area 6
Customer Visit
Customer Visit 1
Customer Visit 2
Customer Visit 3
Customer Visit 4
Certification
Certification Documents
Package
Packaging Setup
Frequently Asked Questions (FAQ)
Q What is the maximum payload capacity of the KR 22 R 1610-2 robot arm?
The KR 22 R 1610-2 has a maximum payload capacity of 22 kg at the wrist.
Q What is the reach and repeatability of this industrial robot?
This robot offers a maximum reach of 1612 mm with a high repeatability precision of ±0.04 mm, ensuring stable and consistent performance.
Q How can the KR 22 R 1610-2 robot be installed?
It features flexible installation options, allowing it to be floor-mounted, ceiling-mounted (upside-down), or mounted at an angle to fit various cell layouts.
Q What applications is the KR CYBERTECH series suitable for?
The series is designed for handling large components, machining, assembly tasks, palletizing, and precise ARC welding applications.
Q What is the motion speed across all axes?
All six axes (J1 through J6) are capable of high-speed operation reaching up to 180°/s for fast cycle times without loss of precision.
Q How much does the robot weight, and how many axes does it operate on?
The robot operates on 6 axes and has a total weight of 255 kg, making it a robust yet highly dynamic unit.
