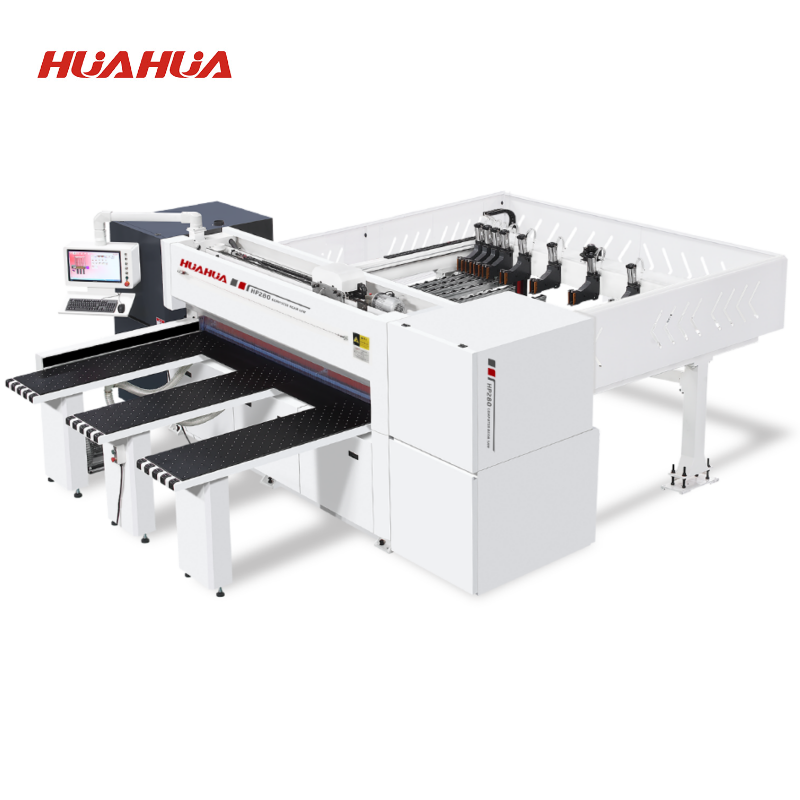

Datum Machine
Datum Machine
Easy operation, safety & reliable.
Complete operating hints and troubleshooting guide.
Cutting plan can be edited manually; simulates or executes cutting plans.
Compatible with bar code management or factory automation software.
Automatic calculation and layout system.
Remains management system.
Enhances productivity, reduces costs, and improves panel utilization rate.

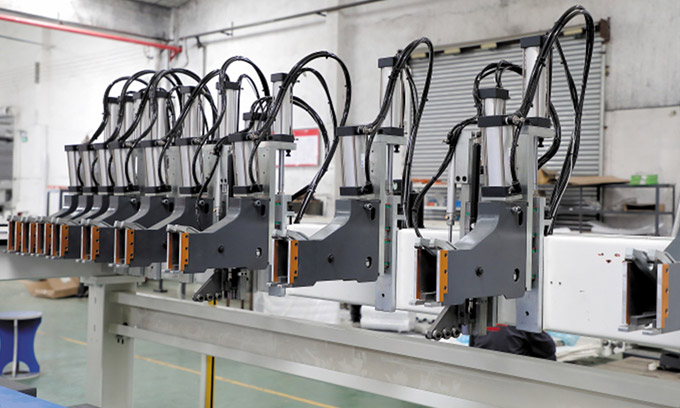

Industry-leading two-finger clamping structure.
Panel clamped by air cylinder with roller conveyor to ensure accuracy and protect surfaces.
Equipped with 2kw servo motor and precision gear reducer.
Ensures high efficiency and stable cutting performance.
Main saw and scoring saw lift independently.

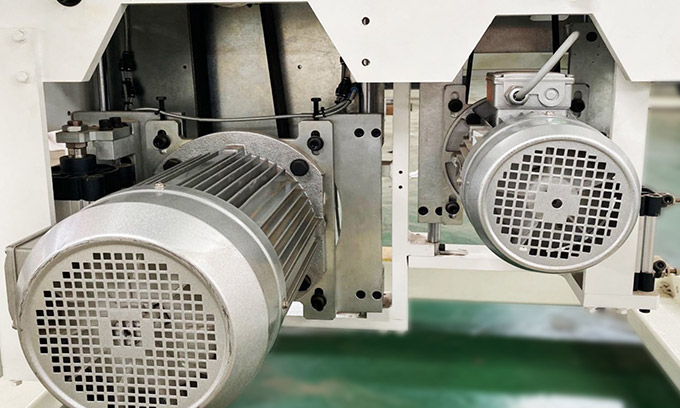

18.5kw main saw motor for fast blade replacement and reduced workload.

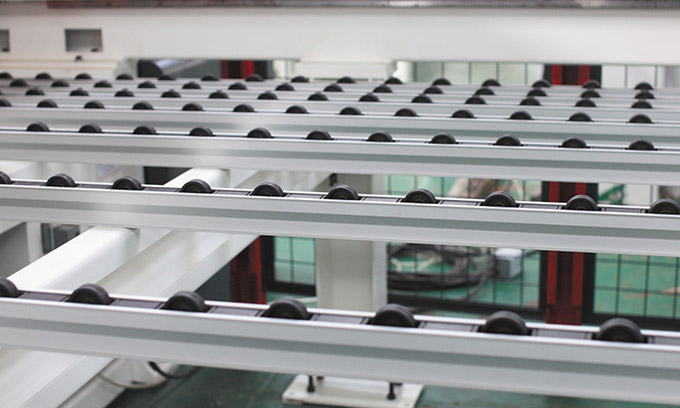

Assists panel movement and prevents surface scratching.
Heavy panels are moved with ease.

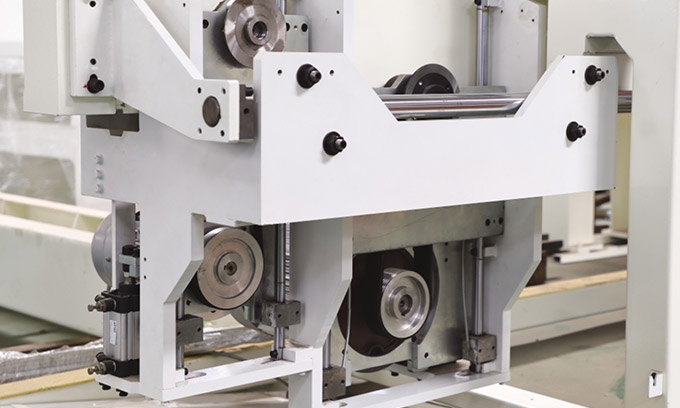

Saw Carriage Lifting Mechanism
Cutting Bench
Fixes cutting panel width side, controlling panels to prevent movement or shaking during sawing. Pressure is adjustable based on material thickness and weight.
| Max. cutting length | 2800mm | Saw carrier driving motor | 2kw (AC Servo) |
| Max. cutting thickness | 120mm | Automatic feeding motor | 2kw (AC Servo) |
| Main saw blade | Φ380mm (option 450mm) | High-pressure blower | 3kw + 2.2kw |
| Main saw shaft diameter | Φ75mm | Side aligner motor | 0.25kw |
| Main saw rotation speed | 4000rpm | Total power | 30.15kw |
| Scoring saw blade | Φ200mm | Automatic Feeding speed | 85m/min |
| Scoring saw rotation | 5200rpm | Air pressure | 5-7kg/cm² |
| Saw carriage forward speed | 0-100m/min | Net weight | 5300kg |
| Main saw motor power | 18.5kw | Machine size | 6060*5240*2060mm |
