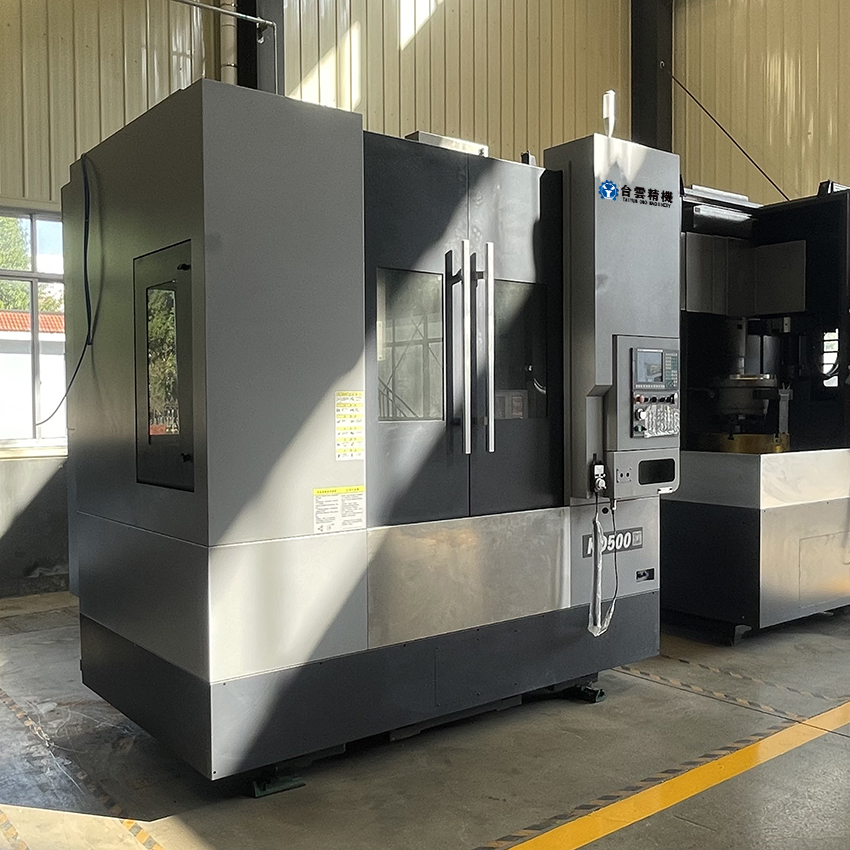

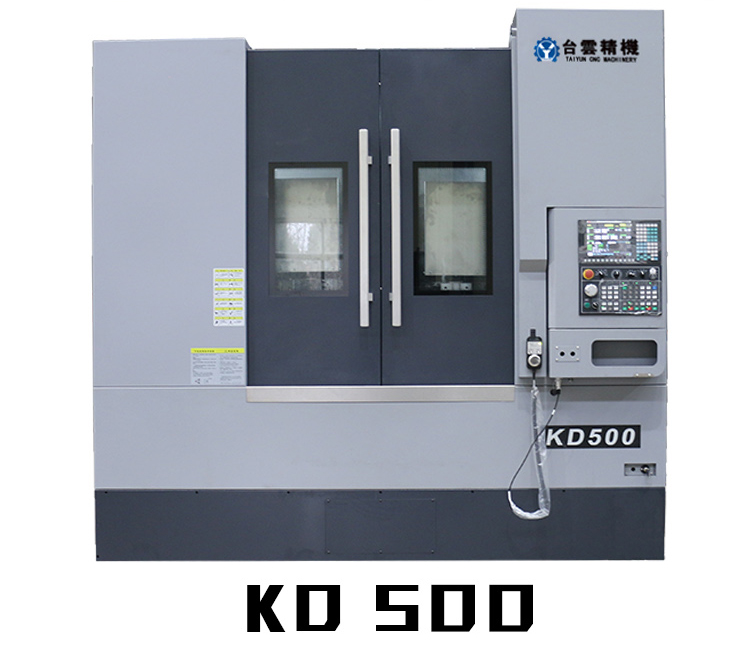

| Specification | Unit | CK525 | KD500 | KD800 |
|---|---|---|---|---|
| X axis | mm | 280 | 300 | 450 |
| Z axis | mm | 500 | 500 | 500 |
| Maximum turning diameter | mm | Φ750 | Φ650 | Φ950 |
| Turning diameter | mm | Φ550 | Φ500 | Φ850 |
| Turning height | mm | 500 | 500 | 500 |
| Spindle speed | rpm | 100-1000 | 100-1000 | 50-300 |
| Spindle motor power | Kw | 18.5 | 30 | 22 |
| Spindle diameter | mm | Φ140 | Φ160 | Φ180 |
| Chuck model | - | Hydraulic chuck | Hydraulic chuck | Hydraulic chuck |
| Diameter | inch | 15″ | 15″ | 32″ |
| Turret station | - | 8 stations + gang knife | 8+8 stations | 8+8 workstations |
| X-axis rolling linear guide | - | 4 pieces, 45mm | 3 pieces, 55mm | Hard track |
| Z-axis rolling linear guide | - | 4 pieces, 45mm | 4 pieces, 55mm | Hard track |
| Cooling motor | W | 450+750 | 450+750 | 450+750 |
| Pump output | m³/h | 4m³/h | 4m³/h | 4m³/h |
| Repeatability | mm | ±0.003 | ±0.003 | ±0.012 |
| Positioning accuracy | mm | ±0.006 | ±0.006 | ±0.02 |
| Smallest positioning unit | mm | 0.001 | 0.001 | 0.001 |
| Dimensions (approx.) | mm | 2900*2400*2800 | 2800*2400*2910 | 3450*2550*3250 |
| Gross weight (approx.) | kg | 7000 | 10000 | 12000 |
SIEMENS, KND, FANUC, MITSUBISHI, GSK and other operating systems can be selected according to customer requirements.

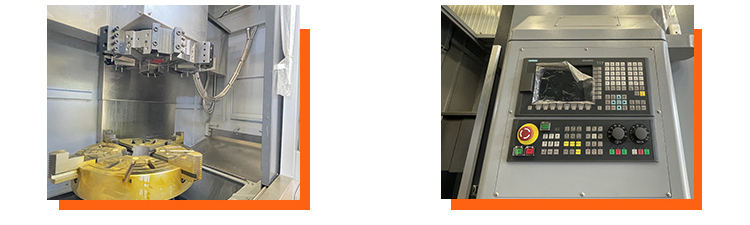

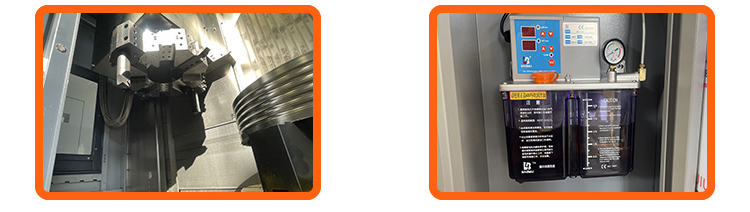

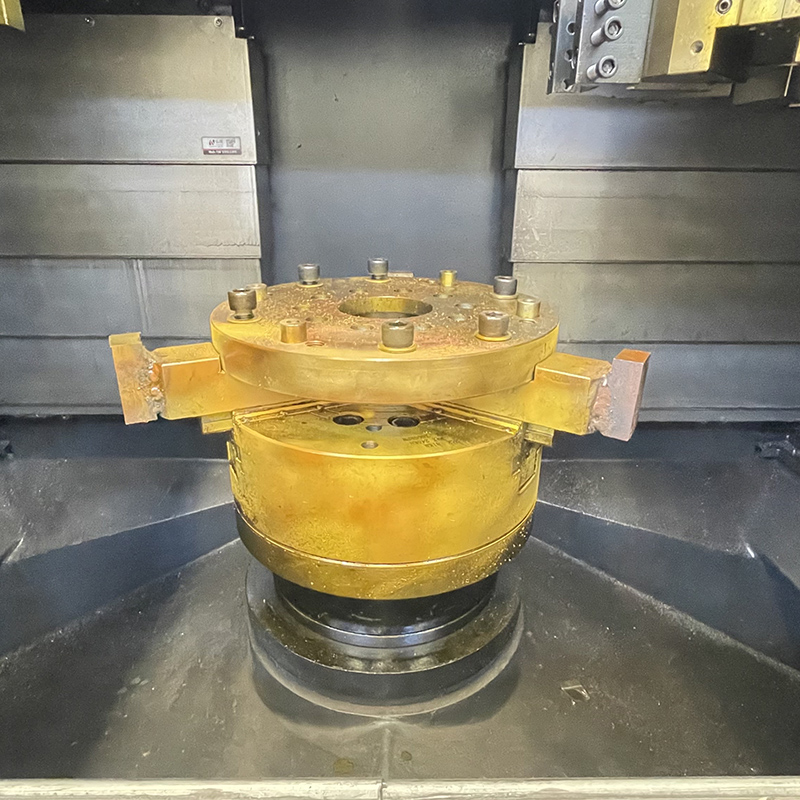

Equipped with a standard hydraulic chuck for easy workpiece clamping, ensuring secure and efficient setup.
The 8-station hydraulic turret is standard; electric turret and row tool options are also available.
Regular and quantitative lubrication to reduce machine wear and extend tool service life.

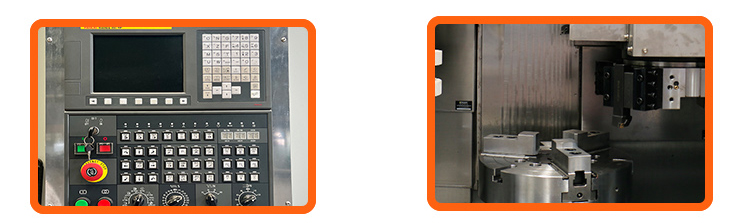

Equipped with advanced CNC systems for precise control, ensuring consistency and accuracy of parts.
Facilitates maintenance and upgrades, reduces costs, and extends equipment reliability.
Capable of turning, milling, and drilling to meet multi-process machining needs of complex parts.
Stable temperature control during cutting reduces thermal deformation and extends tool life.
High-speed spindle and powerful cutting force achieve rapid machining for large-scale tasks.
All-steel structure design reduces vibration and enhances long-term stability under high loads.

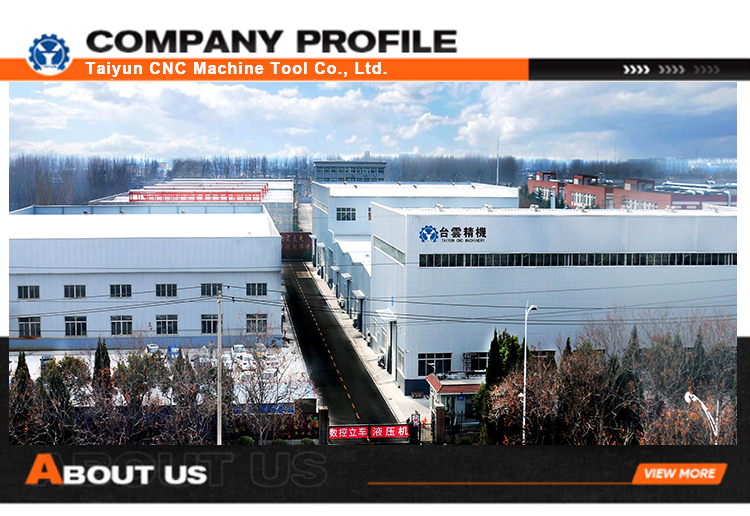

A 26-year-old source manufacturer with an independent factory area of over 60,000 square meters and more than 130 employees. The company manages product quality through quantitative performance assessments, focusing on every process detail and adopting a bidding mechanism for supply components to ensure international quality. With a strong investment in R&D and a cohesive management team, the products have been exported to various international regions with favorable feedback.
