High Quality Fiber Laser Cutting Machine for Metal Cut

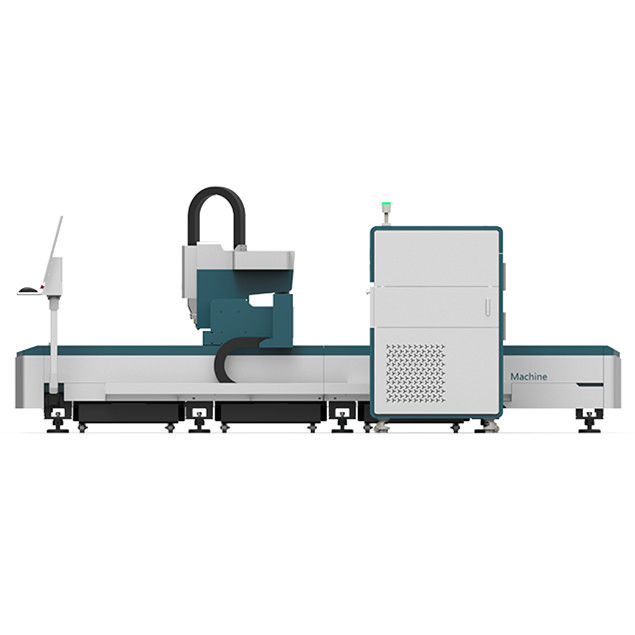

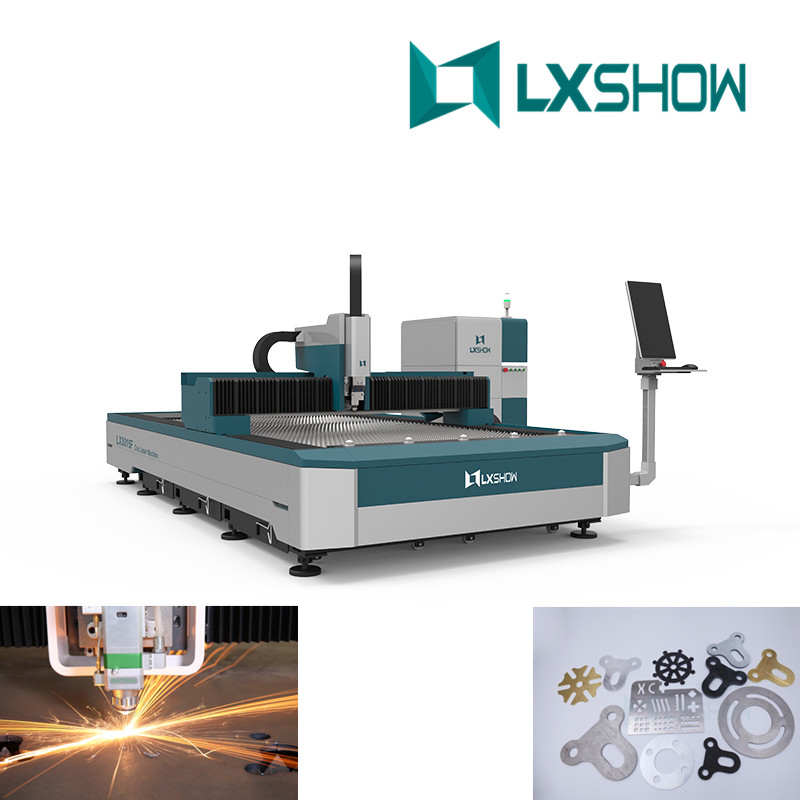

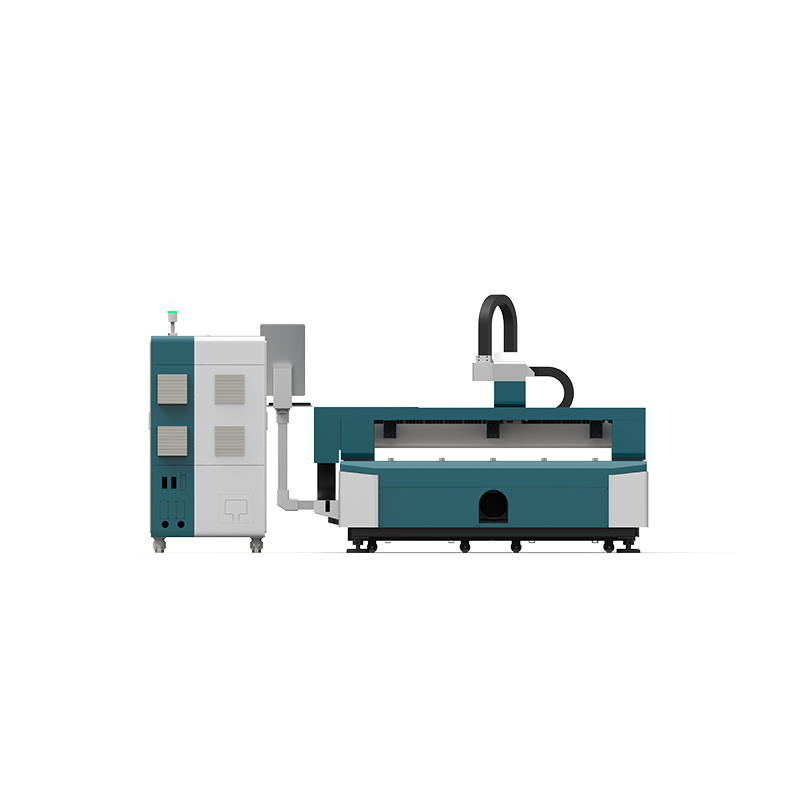

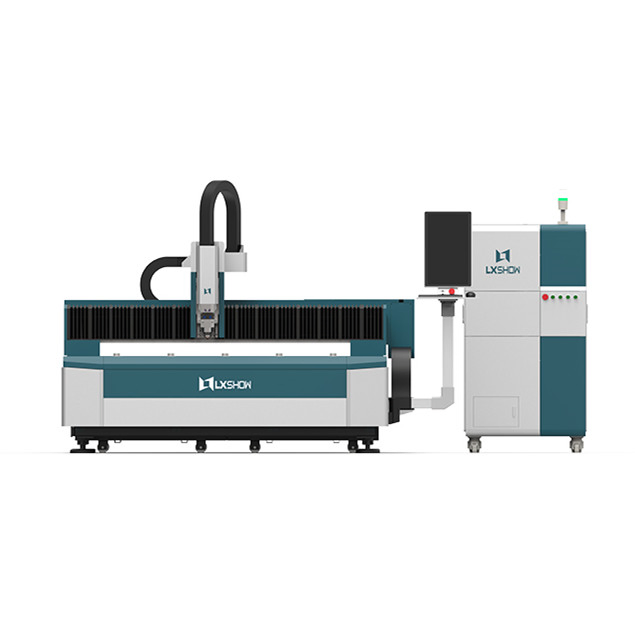

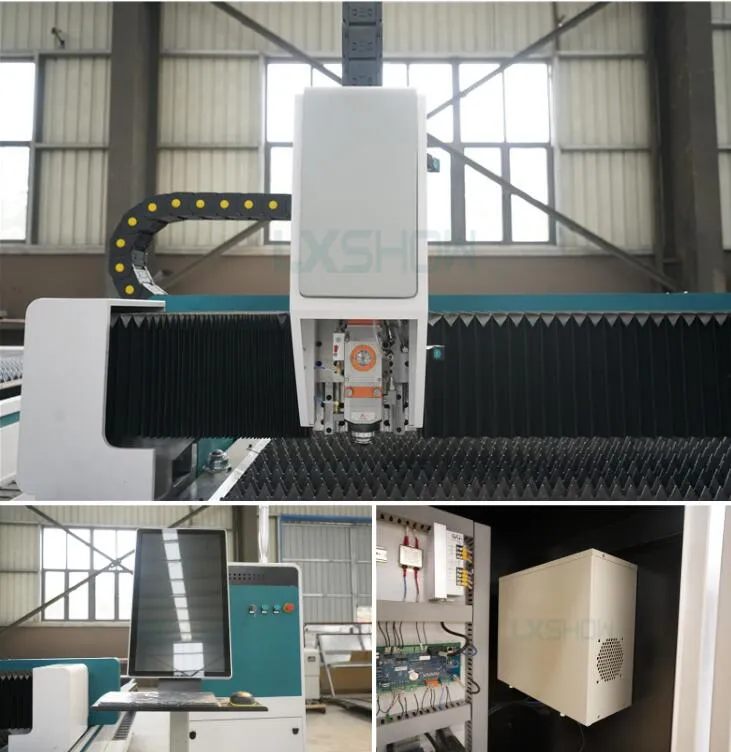

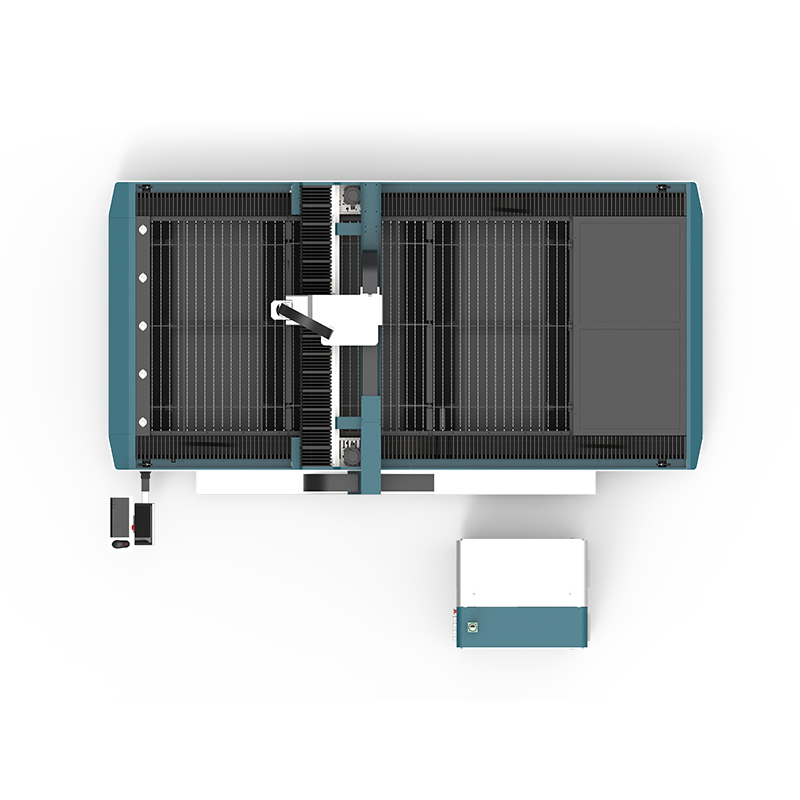

LX3015F is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool, motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Our Advantage

• (1). High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
• (2). Gantry double-drive structure, with imported Germany rack & gear transmission system, which improves the production efficiency.
• (3). High-performance cast aluminium guide rail, after infinite analysis, which accelerates the circular arc cutting speed.
• (4). High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
• (5). The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
• (6). The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
• (7). It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.

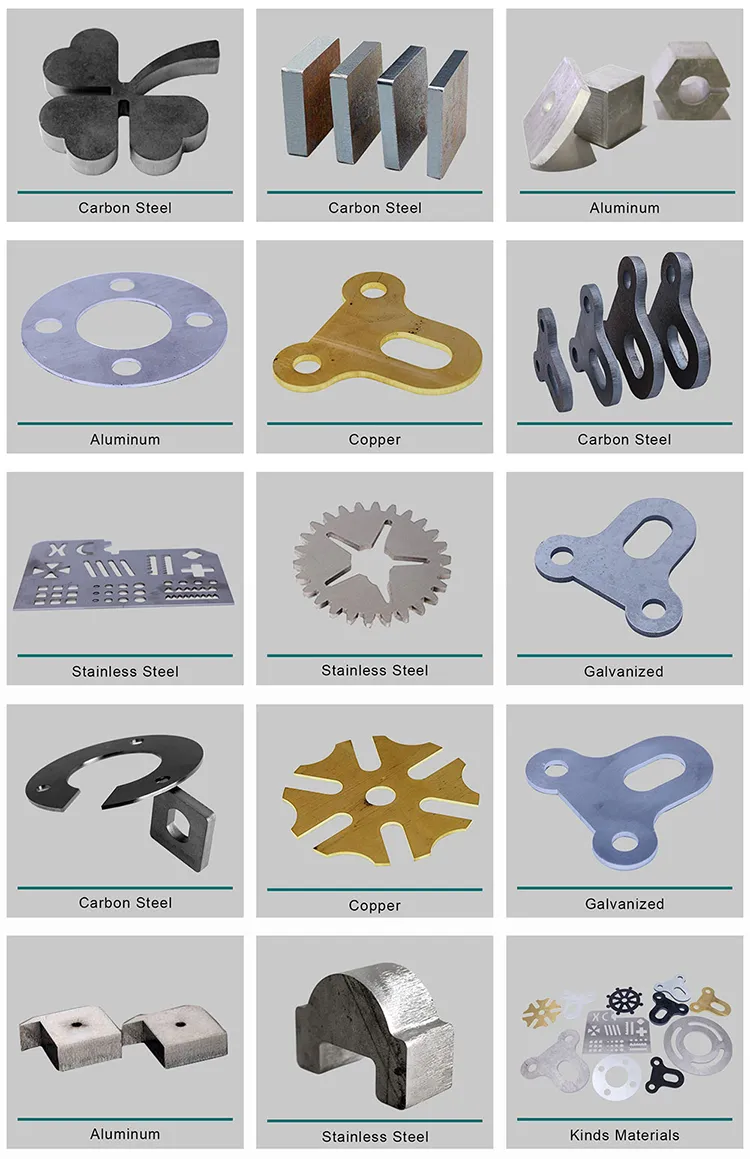

• (8). Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.

Equipment Specification

Fiber Laser Cutting Machine Configurations Advantage

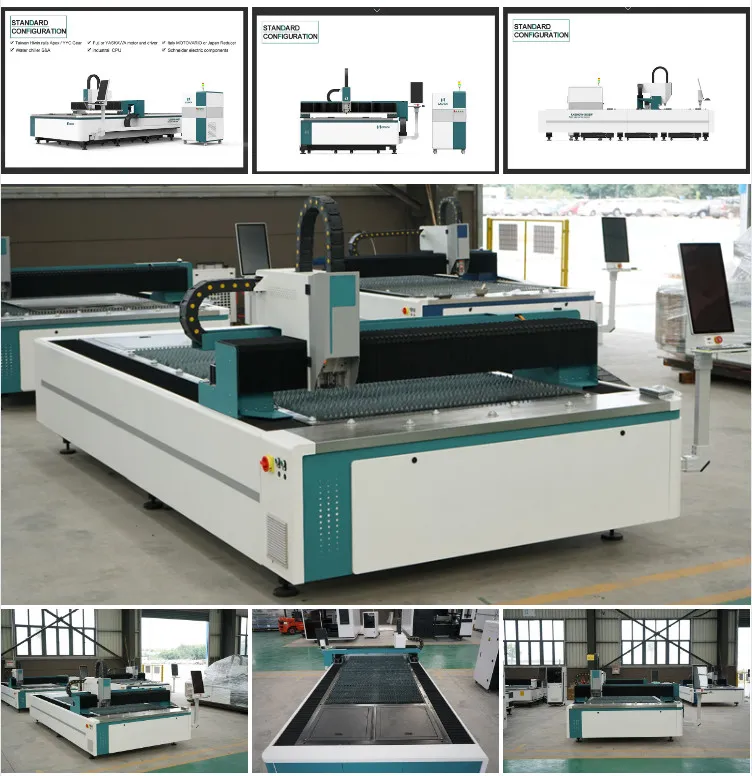

• 1. Moved crossbeam with imported high precision racks and linear guide rail, transmission stable, working with high precision.
• 2. Machine tool, crossbeam and worktable adopt integral welding structure in accordance with the standard large machine. Stress annealing after precision finishing and subsequent vibration aging treatment completely eliminates welding and processing stress, ensuring high-strength, high precision, and standard operation without deformation for over 20 years.
• 3. X, Y, and Z axes utilize imported Japan servo motors providing high precision, high speed, large torque, and stable performance to ensure the high-speed operation of the entire system.
• 4. Operating on a Windows-based system, it uses a professional Cypcut numerical control system specifically for fiber laser cutting, integrated with laser cutting control special function modules offering an excellent man-machine interface.
