Datum Machine
Datum Machine
| ITEMS | VALUE |
|---|---|

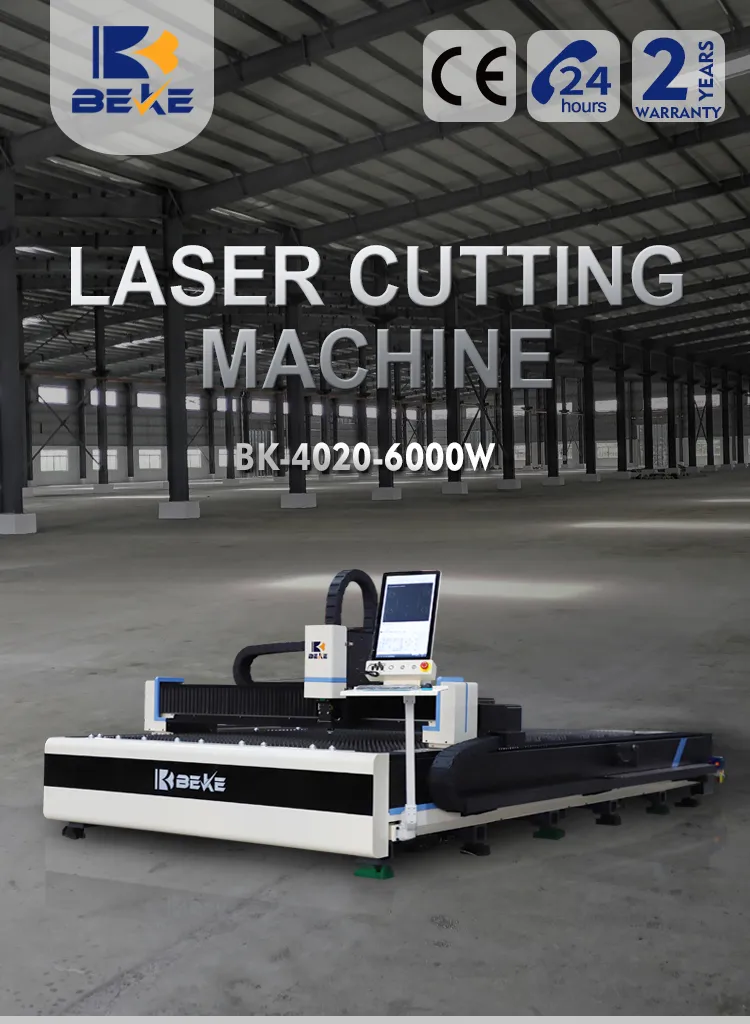

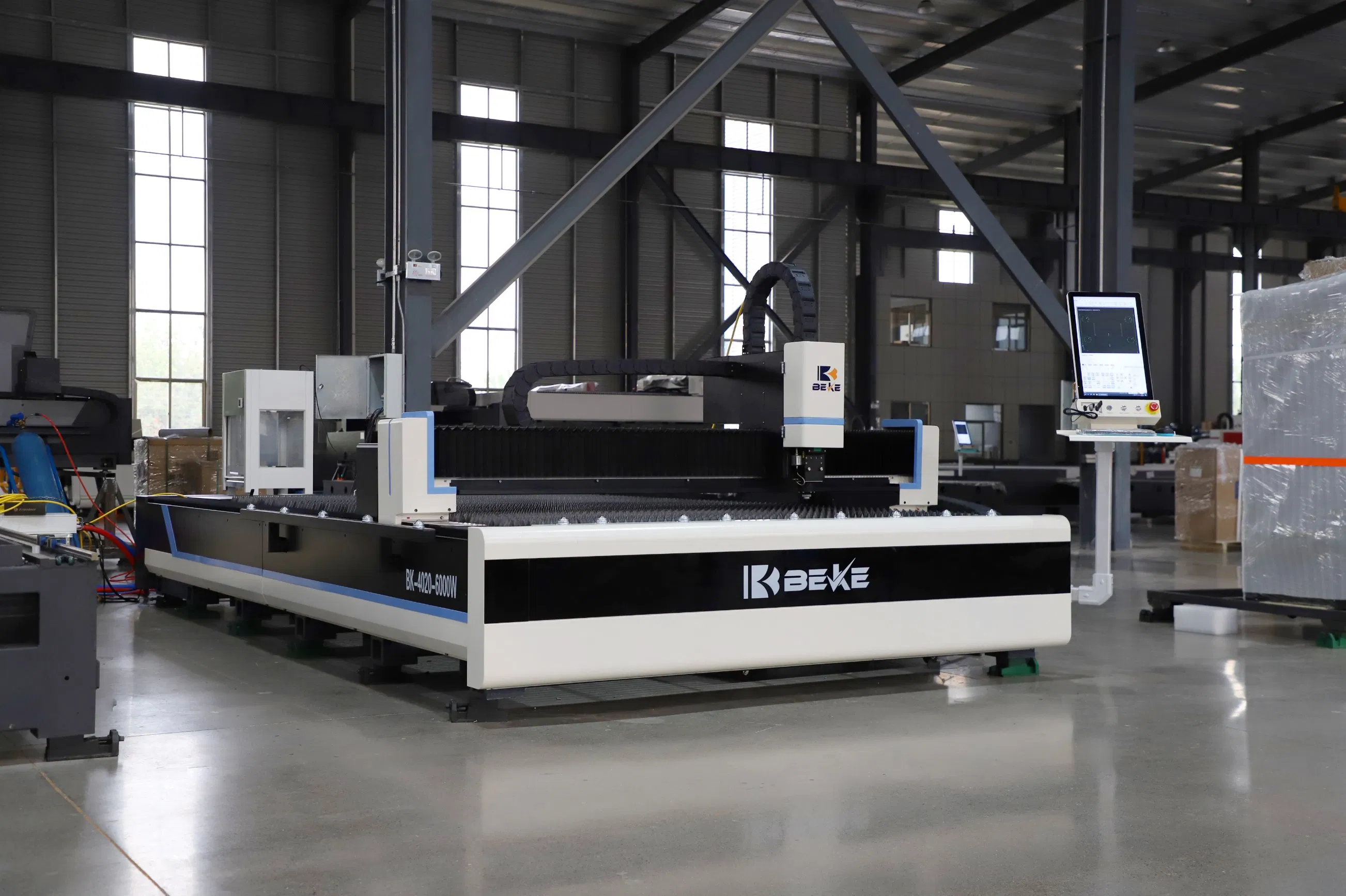

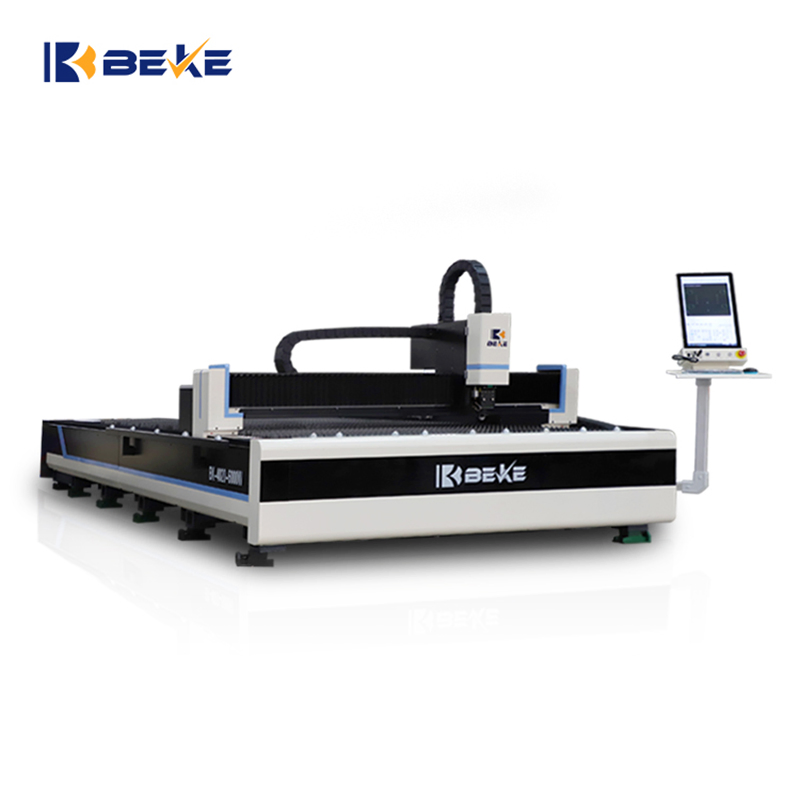

| Model | BK-6000W-4020 |
| Laser Type | Fiber Laser |
| Laser working medium | YVO4 |
| Laser wavelength | 6000nm |
| Rated output power | 6000W |
| Beam quality | <0.373mrad |
| Effective cutting range | 4000×2000mm |
| Axial positioning accuracy of workbench | ≤±0.03mm/m |
| Table repeat positioning accuracy | ±0.02mm |
| Maximum positioning speed | 120m/min |

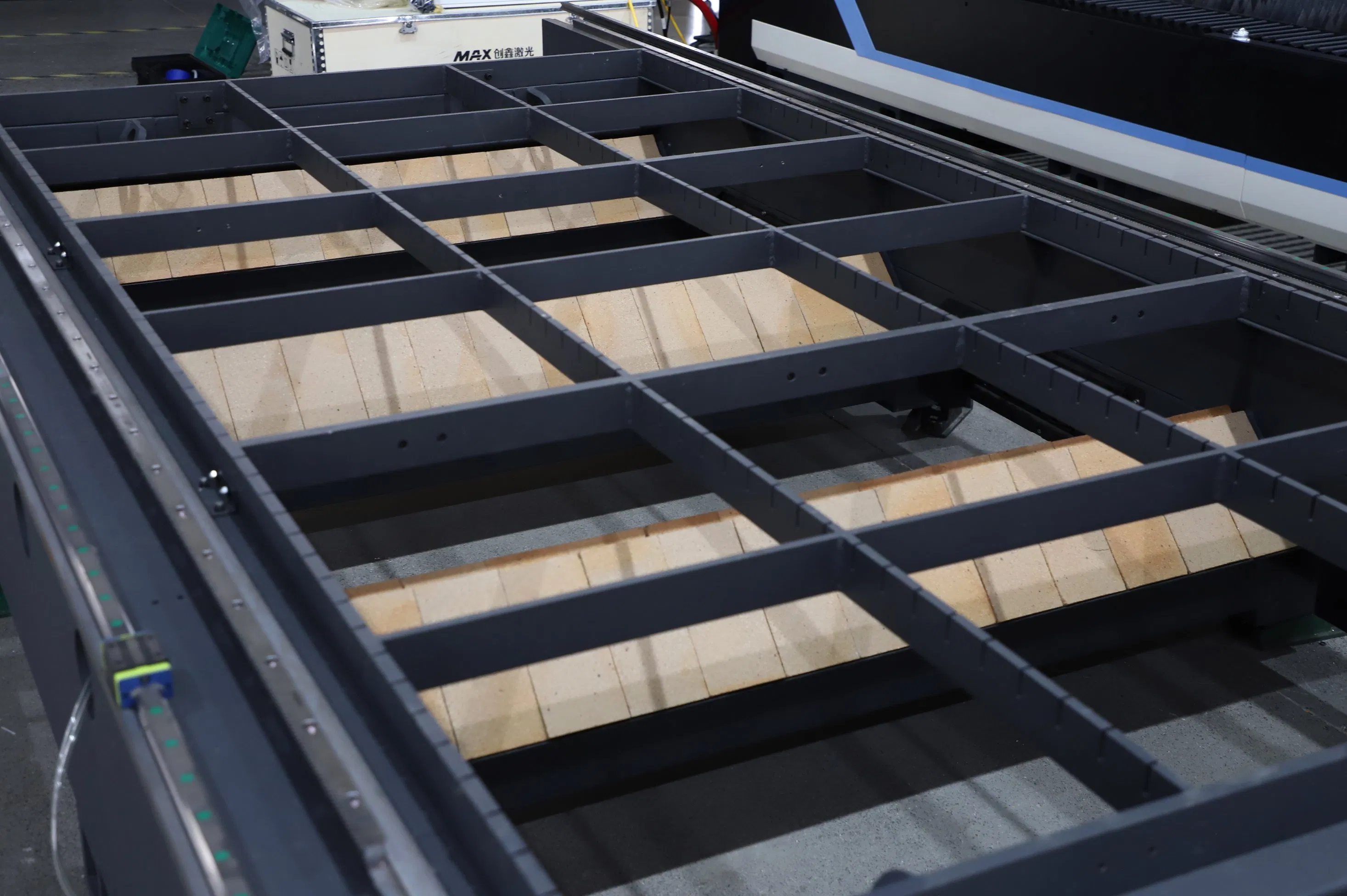

| The maximum load of the workbench | ≥1500KG |
| Number of phases | 3 |
| Power supply rated voltage | 380V |
| Frequency | 50Hz |
| Overall power protection level | IP54 |

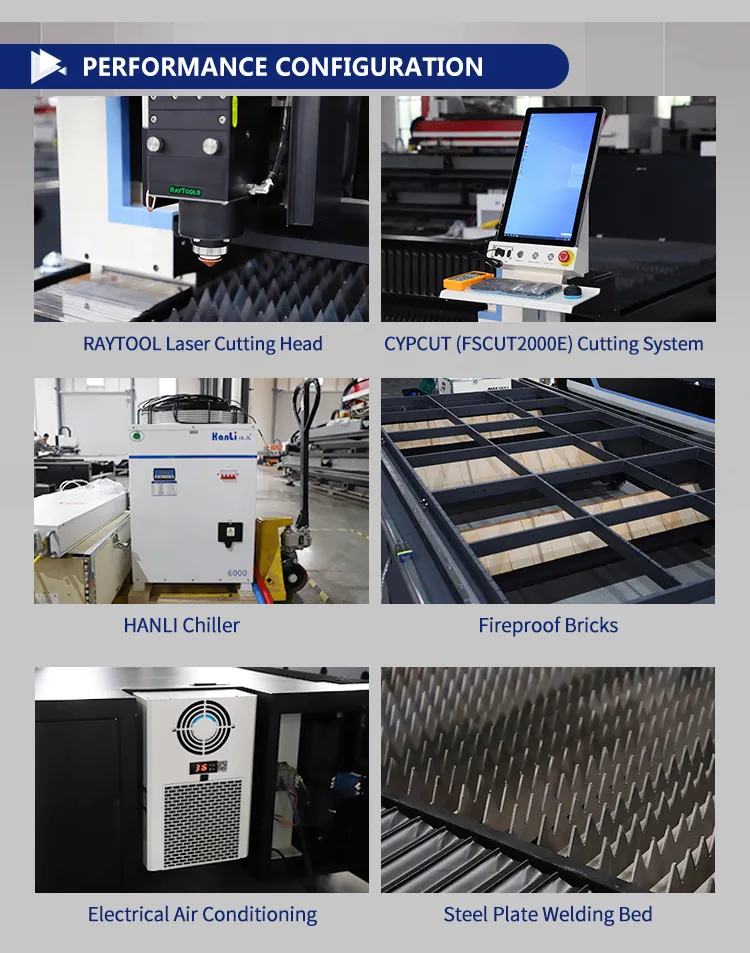

| No. | Item | Model | Brand |
|---|---|---|---|
| 1 | Fiber laser cutting machine | BK-4020/6000W | Standard Brand |

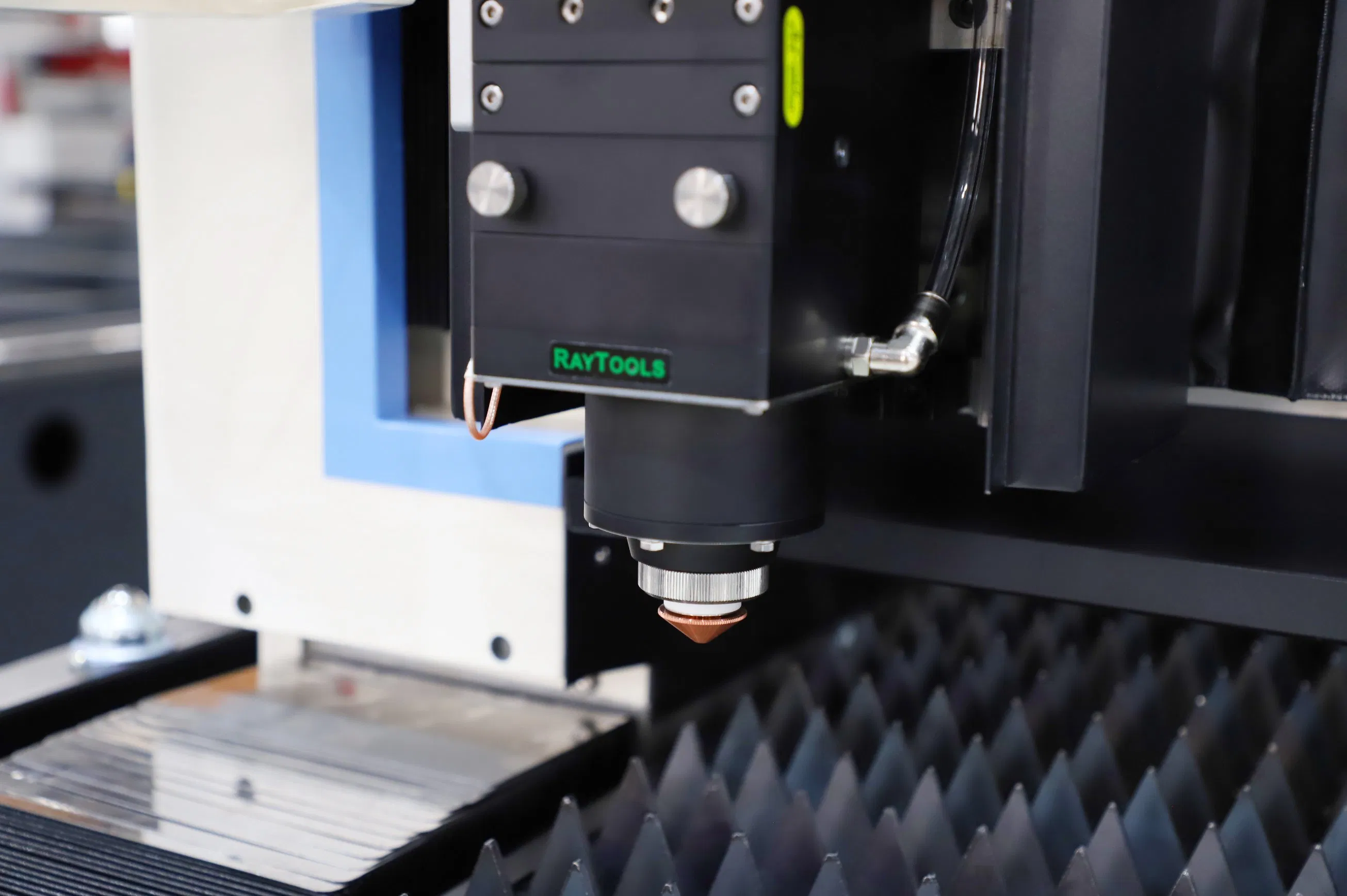

| 2 | Cutting head | OSPR | China |
| 3 | Laser | MAX | Shenzhen, China |
| 4 | Servo drive and motor | Fuji | Taiwan/Shenzhen |
| 5 | Special CNC cutting system | Customized | China |
| 6 | Laser specific chiller | Hanli/Tongfei | China |
| 7 | Pneumatic components | SMC | Taiwan, Japan, etc |
| 8 | Proximity switch, etc | Schneider | France/Japan/China |

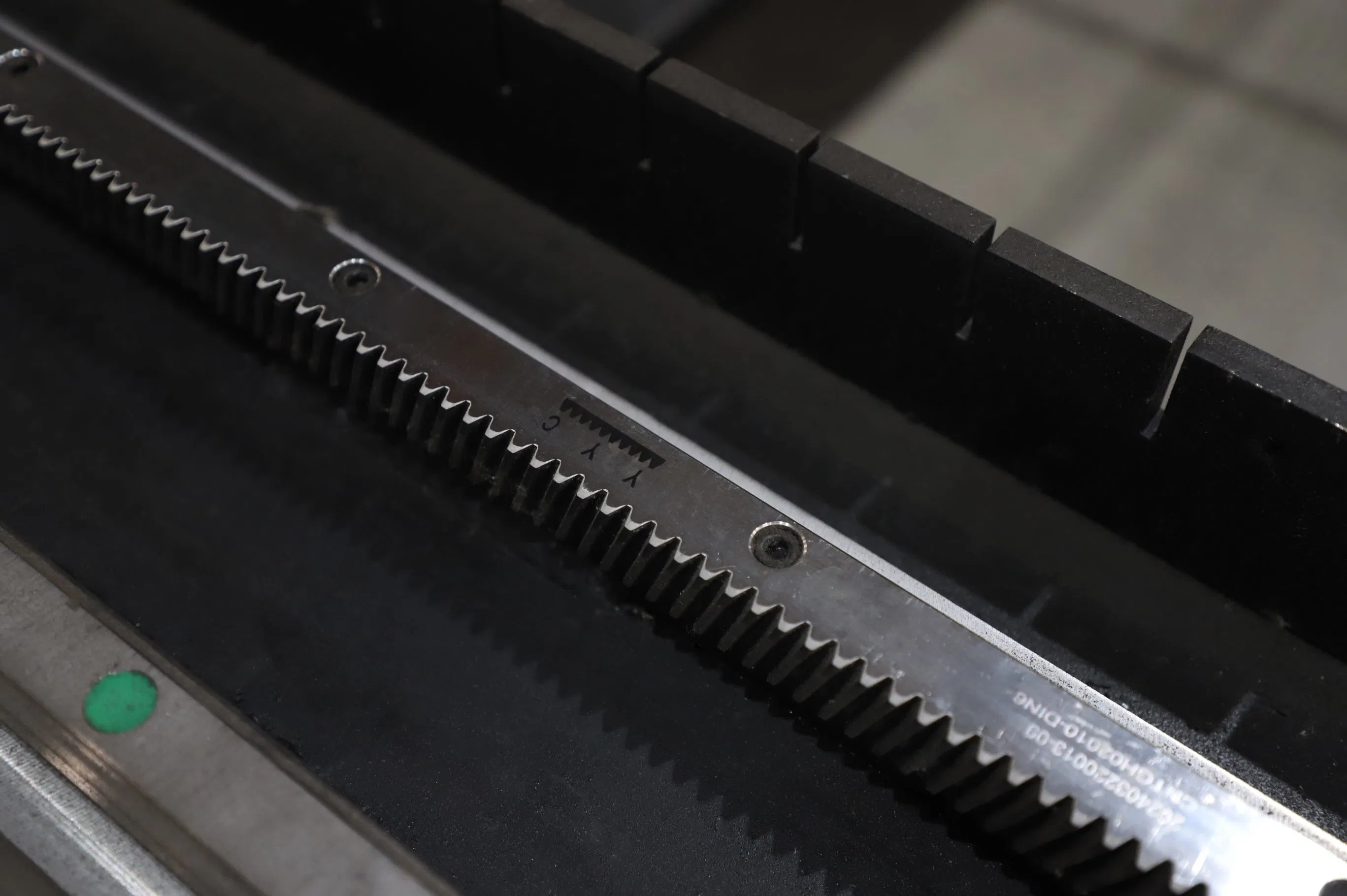

| 9 | Precision rack | ROR | Germany |
| 10 | Reducer | Modori | France |
| Requirement Type | Specification Details |
|---|---|
| Power requirement |
Power supply capacity: 60KVA Power supply requirements: (It is recommended to use a stabilized power supply) Rated output voltage: 380V/50Hz Three-phase voltage stability ±10% Output voltage adjustment rate: <2% |
| Working air requirement |
Compressed air supply device (it is recommended to configure an air tank) Volume: 1.0 m³ Rated pressure: 20 bar |
| Auxiliary Gas Requirements |
Purity requirements: Oxygen (O2) ≥99.995 % Nitrogen (N2) ≥99.99 % |
QWhat materials can this high power fiber laser cutting machine cut?
This 6000W fiber laser cutting machine is designed to cut various metal sheets, including stainless steel, carbon steel, alloy steel, brass, copper, and aluminum sheets.
QWhat is the maximum cutting range of the workbench?
The effective cutting range of the workbench is 4000mm in length and 2000mm in width (BK-6000W-4020 model), providing ample space for large metal sheets.
QWhat are the power supply requirements for this machine?
It requires a three-phase power supply rated at 380V/50Hz with a minimum capacity of 60KVA. Using a stabilized power supply is highly recommended to protect the laser source.
QWhat auxiliary gases are needed for laser cutting?
The machine requires high-purity auxiliary gases: Oxygen (O2) with a purity of ≥99.995% or Nitrogen (N2) with a purity of ≥99.99%, depending on the type of metal being cut.
QWhat are the positioning and repeat positioning accuracies?
The machine offers an axial positioning accuracy of ≤±0.03mm/m and a table repeat positioning accuracy of ±0.02mm, ensuring highly precise and consistent cuts.
QDoes the machine package include a cooling system?
Yes, the configuration includes a specialized high-performance laser chiller (Hanli/Tongfei brand) designed to maintain the optimal operating temperature for the fiber laser.
