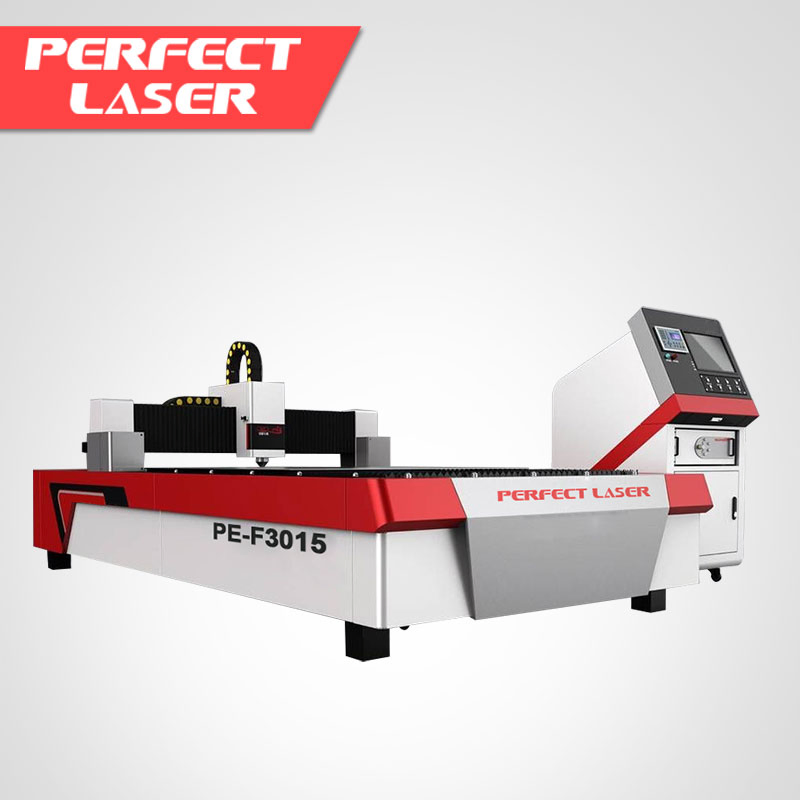

High Precision Stainless Steel / Brass / Aluminum / Iron / Copper Plate Fiber Laser Cutting System
Fiber Laser Cutting System

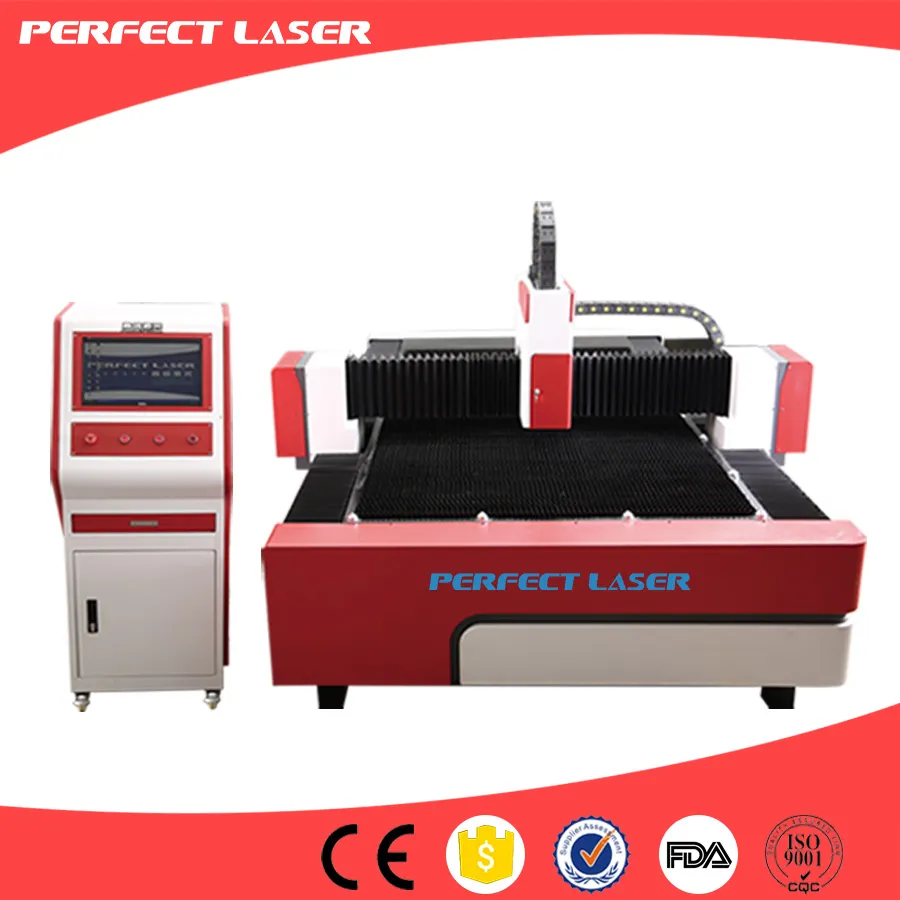

Fiber Laser Cutting System Details
Product Features
  • 1 Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
  • 2 Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machine's fault rate and prolongs the working life.
  • 3 Large format cutting area meets the demands of various kinds of metal processing.
Applicable Materials
Carbon Steel Silicon Steel Stainless Steel Aluminum Alloy Titanium Alloy Galvanized Steel Sheet Pickling Board Aluminium Zinc Plate Copper
Applications

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing, and various manufacturing processing industries.

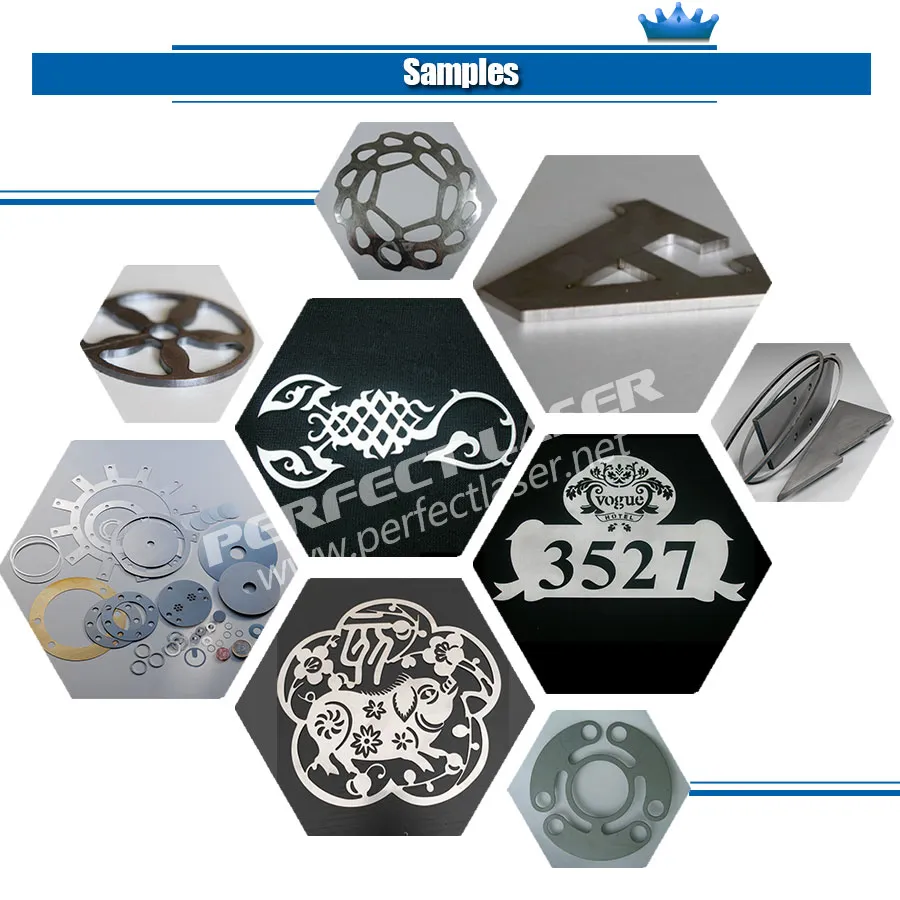

Fiber Laser Cutting Machine Application
Advantages of Fiber Laser Cutting Machine
  • ★ Excellent Laser Beam Quality: Fiber laser has smaller focus diameter and high work efficiency, high accuracy and cutting quality.
  • ★ High Cutting Speed: Cutting speed is more than 20m/min.
  • ★ Stable Running: Adopting imported fiber lasers, stable performance, key parts can reach 100,000 hours.
  • ★ High Efficiency for Photoelectric Conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has 3 times photoelectric conversion efficiency.
  • ★ Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
  • ★ Free of Maintenance: Fiber optical transmission, fiber line transmission, no need reflect lens, without optical adjustment, save maintenance cost.
  • ★ Easy Operations: Fiber line transmission, no adjustment of optical path.
  • ★ Super Flexible Optical Effects: Compact design, compact and easy to flexible manufacturing requirements.
Technical Specifications
Model PE-F500-3015
Laser Power 1000W
Laser Source World Famous Germany Dlaser Fiber laser source
Laser Type Imported Fiber Laser
Laser Technology Germany Technology
XYZ Working area 1500*3000 mm*150mm
Max. Cutting Thickness (Carbon Steel) 1-5 mm
Max. Cutting Speed 0-12 Meters / Min (up to materials)
Max. Location speed 60m/min
Laser wavelength 1070nm
Minimum line width ≤0.1mm
Location precision ≤±0.05mm
Re-location precision ±0.02mm
Max. moving speed 100m/min
Supporting Format PLT, DXF, BMP, AI
Power demand 380V/50Hz

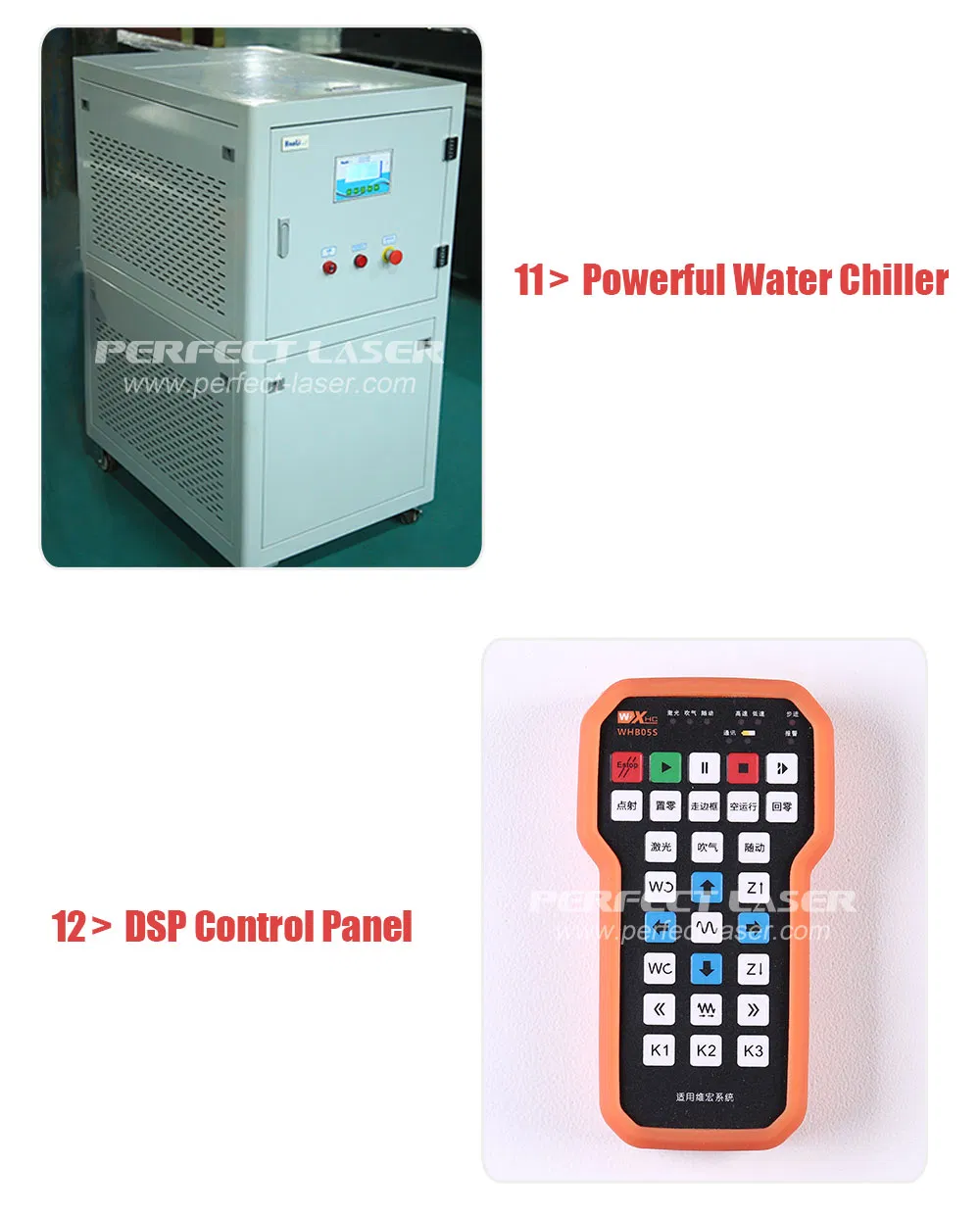

Cooling Way Water Cooling
Worktable max. load 1000KGS
Transmission Method Ball Screw Transmission
Table-driven system Japanese Imported Servo Motor & Driving System
Focus Method Following and Automatic Adjust Focus
Control Method Offline Movement Control
Control software Professional Laser Cutting Software
Product Gallery & Details

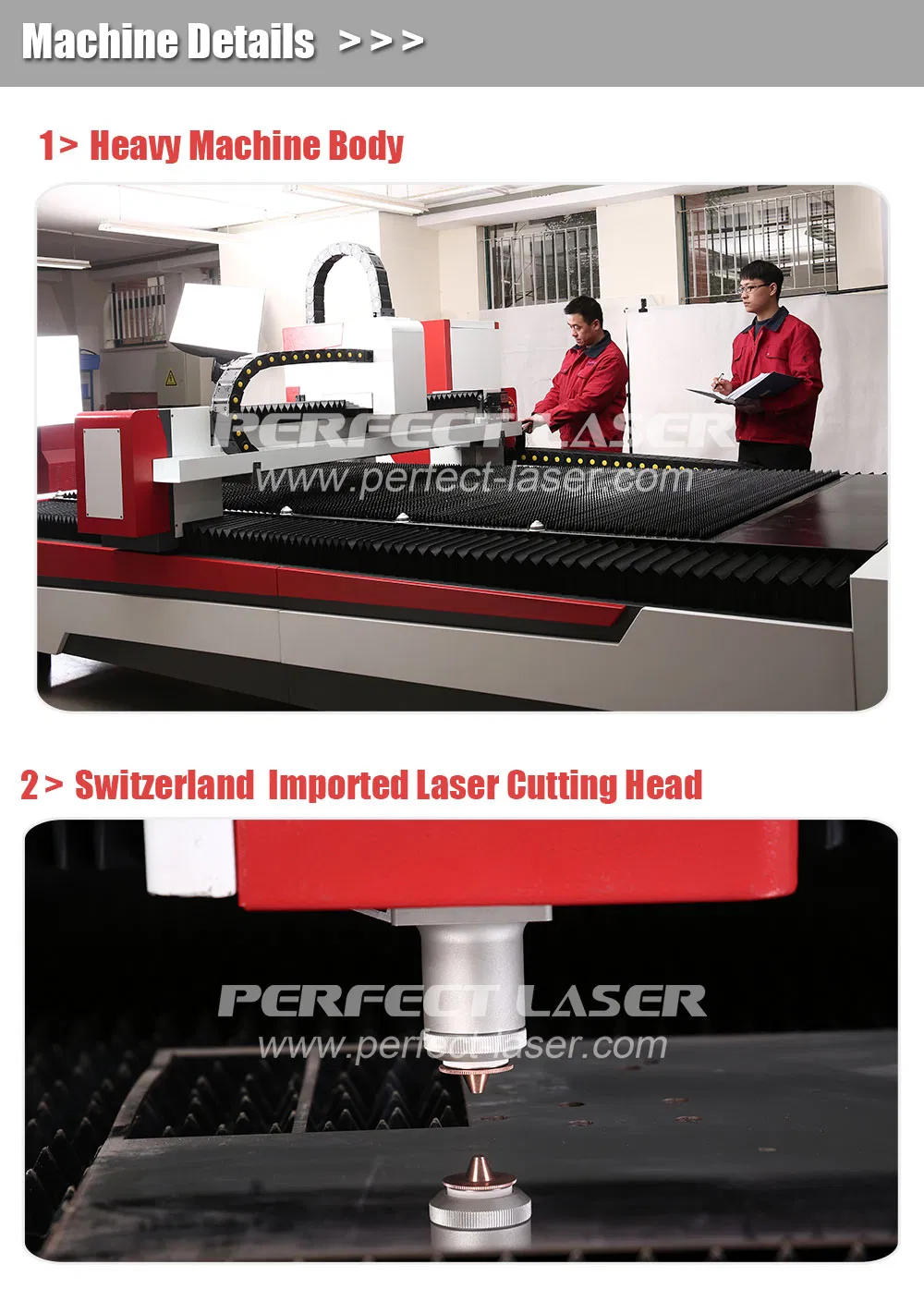

Technical Layout Cutting Details Hardware Configuration

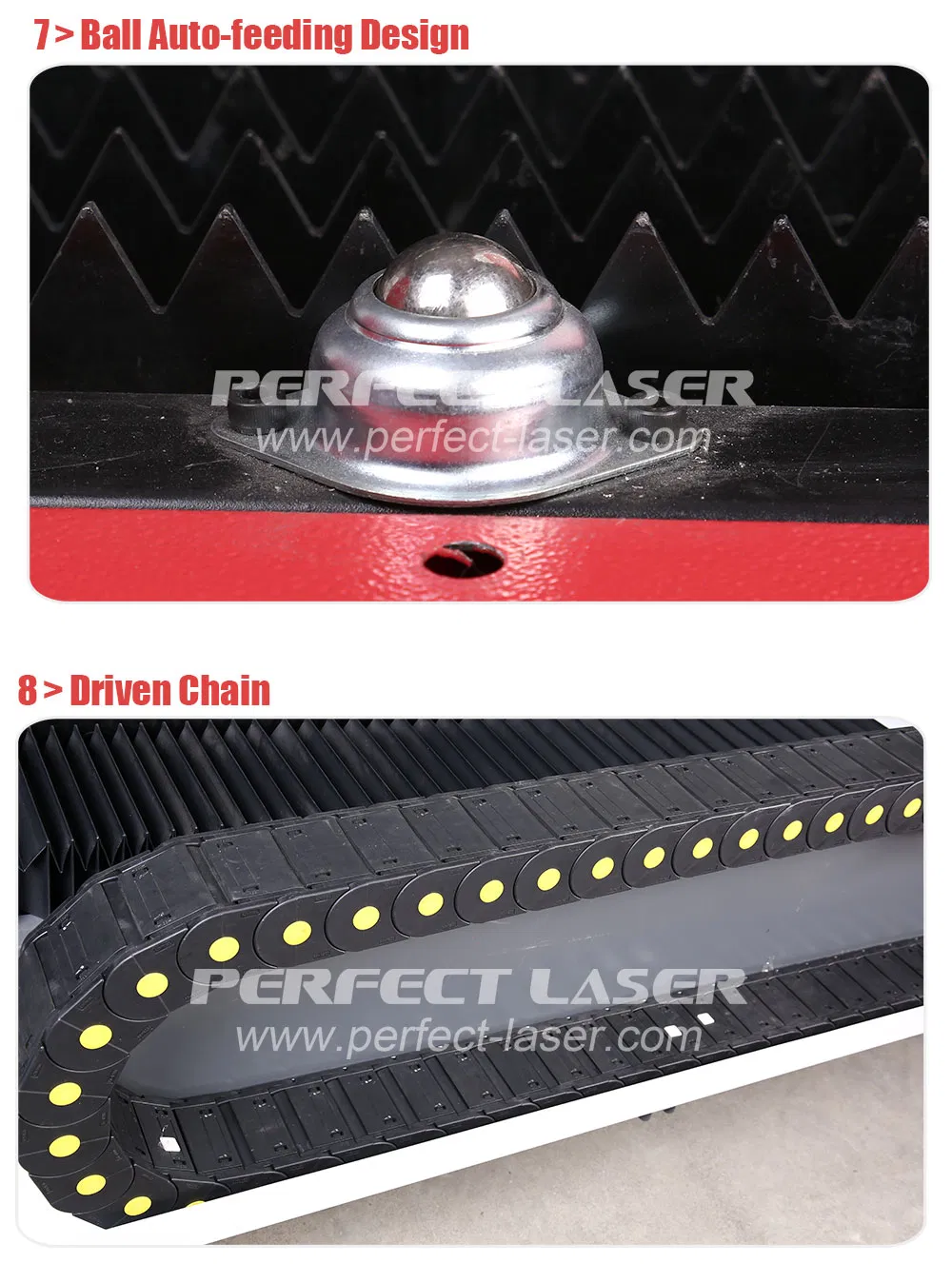

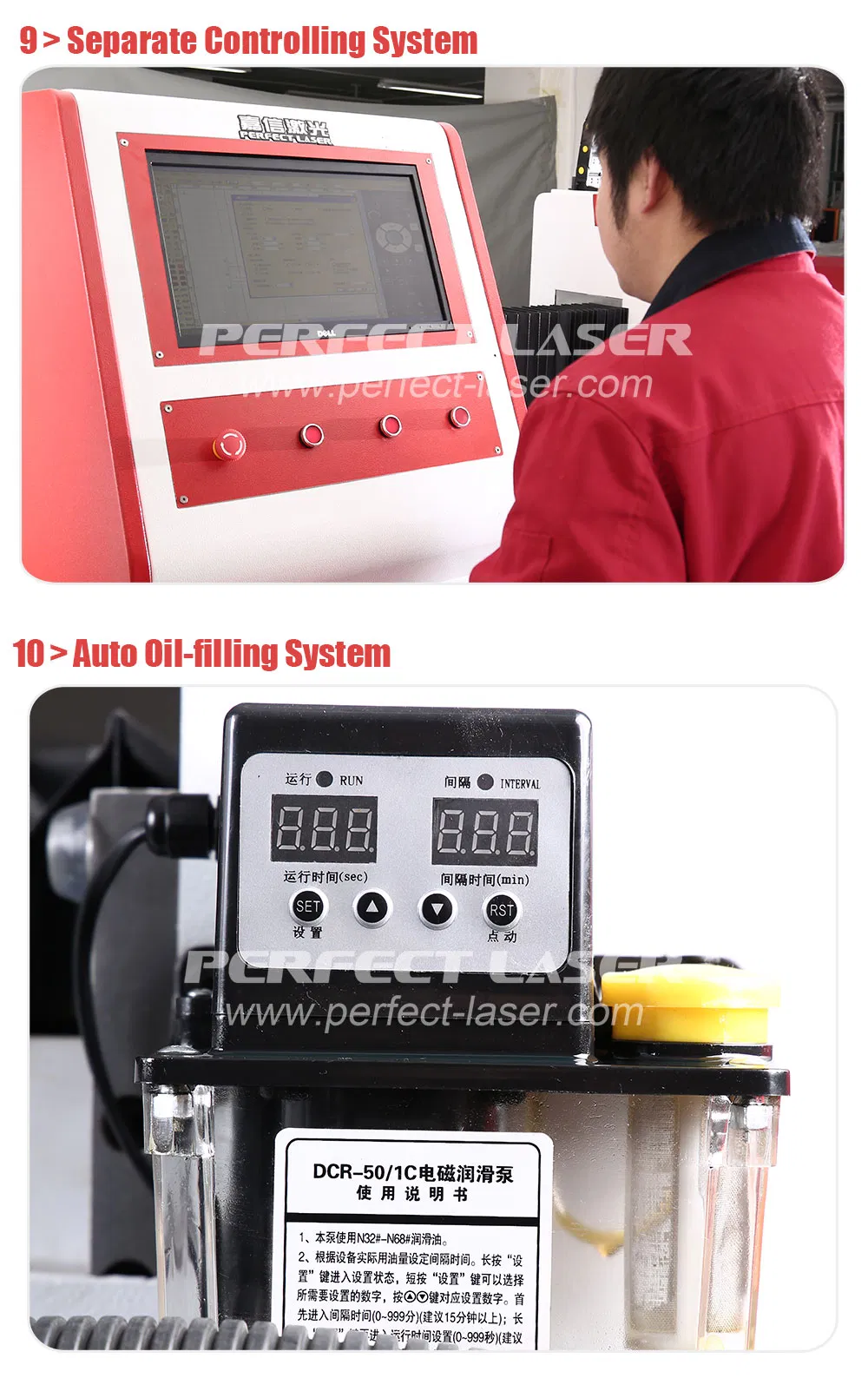

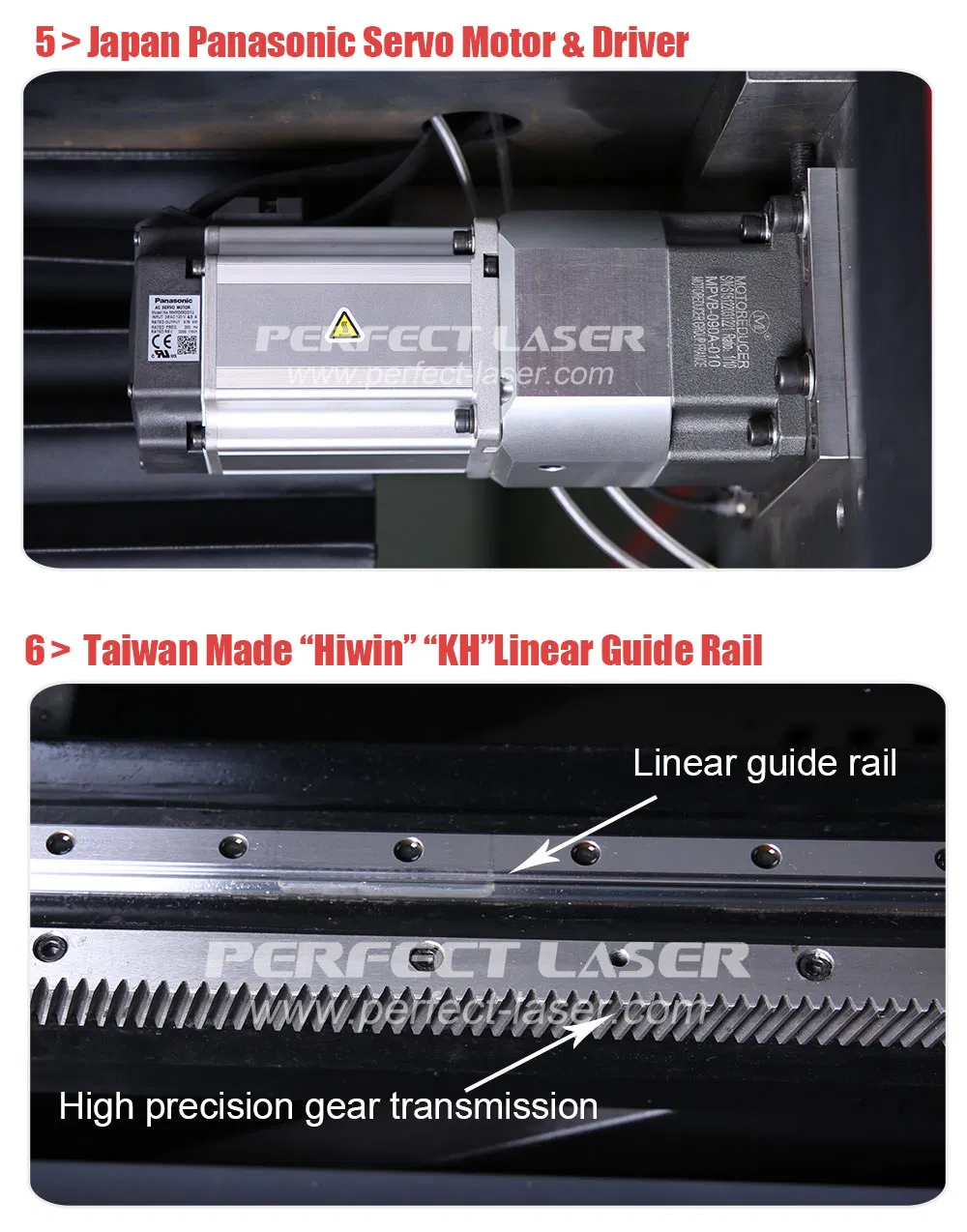

Laser Head Components Bed Frame Quality Laser Cutting Accuracy

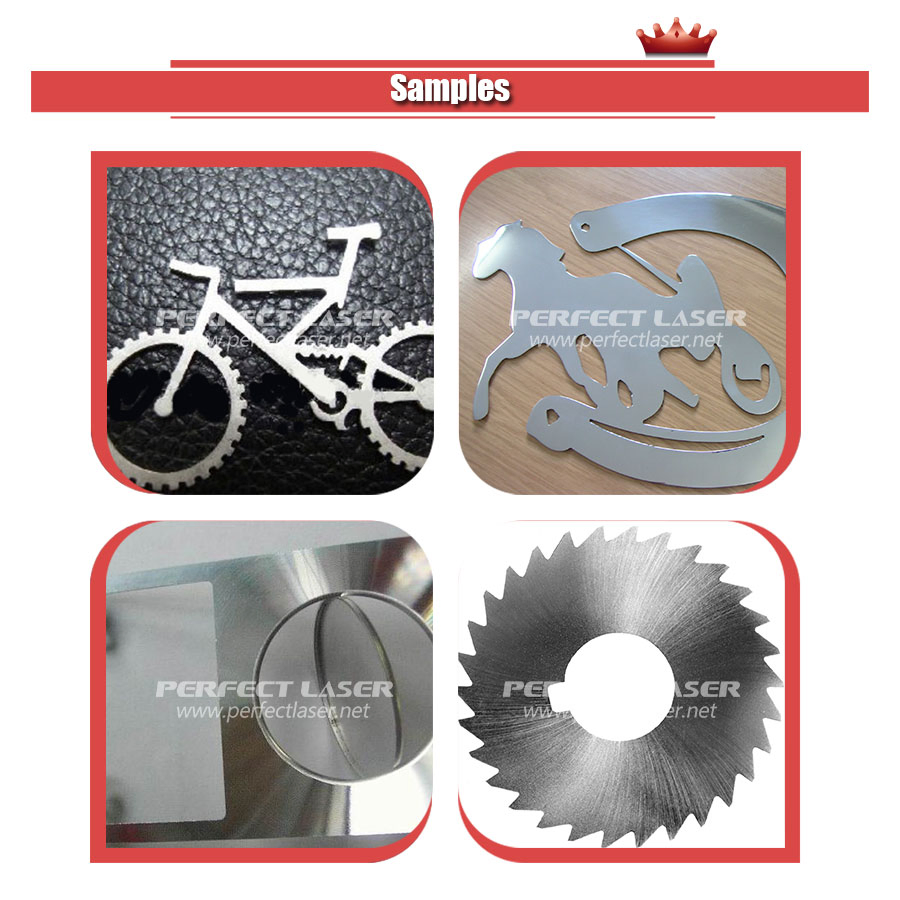

Finished Metal Samples Full Equipment Details
Frequently Asked Questions (FAQ)
What kinds of materials can this fiber laser cutting system process?
This system is designed primarily for cutting and processing carbon steel, silicon steel, stainless steel, aluminum alloy, titanium, galvanized steel sheet, pickling board, aluminium zinc plate, copper, and various other metal materials.
What are the primary industries where this machine is used?
It is widely applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway components, automobile assembly, machinery manufacturing, precision components, shipbuilding, elevator production, household appliances, advertising signs, and many other manufacturing environments.
How does the cutting speed and precision perform on standard metals?
The system achieves a maximum cutting speed of 0-12 meters per minute depending on the material thickness. It maintains a location precision of ≤±0.05mm and a re-location precision of ±0.02mm for high accuracy output.
What are the main advantages of choosing a fiber laser over CO2 laser machines?
Fiber lasers offer smaller focus diameters, up to 3 times the photoelectric conversion efficiency, and a significantly lower energy consumption (only 20%-30% of traditional CO2 lasers). Furthermore, they feature an optical transmission path which requires no mirror adjustments, making them completely maintenance-free.
What file formats are supported by the control software?
The built-in professional laser cutting software supports multiple standard industry formats including PLT, DXF, BMP, and AI, allowing easy integration with common design applications.
What cooling method does the system use, and what is the maximum load capacity?
The system is equipped with an efficient water-cooling unit to regulate optimal operational temperatures. The heavy-duty worktable is designed to support a maximum load capacity of 1000 KGS.
