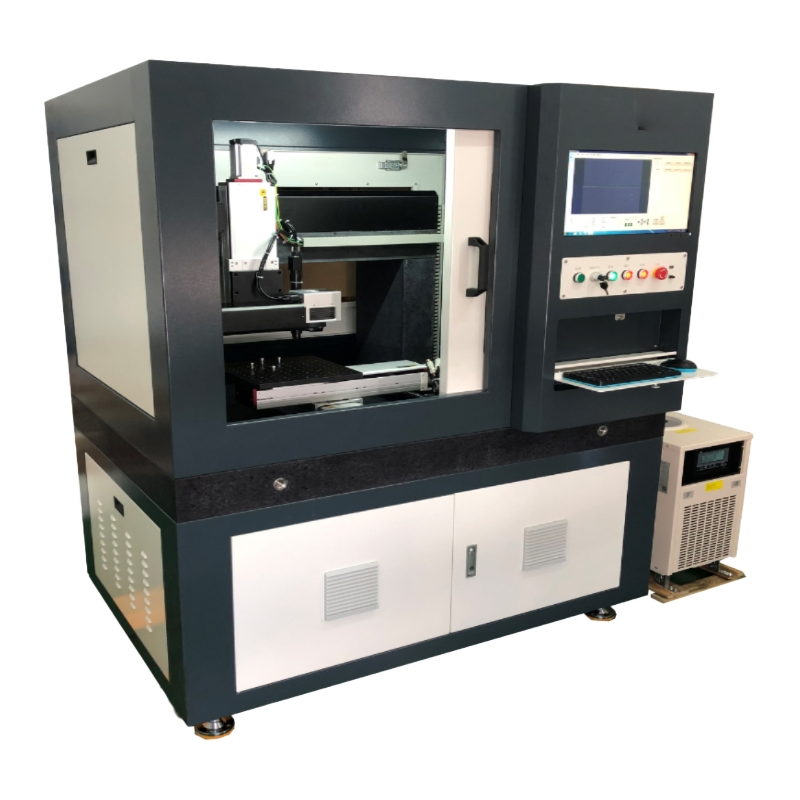

Advanced Technology High-Power Fiber Laser Cutting System

Customization:	Available
After-sales Service:	Video Support for Free
Warranty:	1year

⚙️ Basic Information

Structure

Vertical Drilling Machine

Layout

Vertical

Controlling Mode

CNC

Number of Shaft

3

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Transport Package

Polywood Box

Origin

China

Production Capacity

1000/ Year

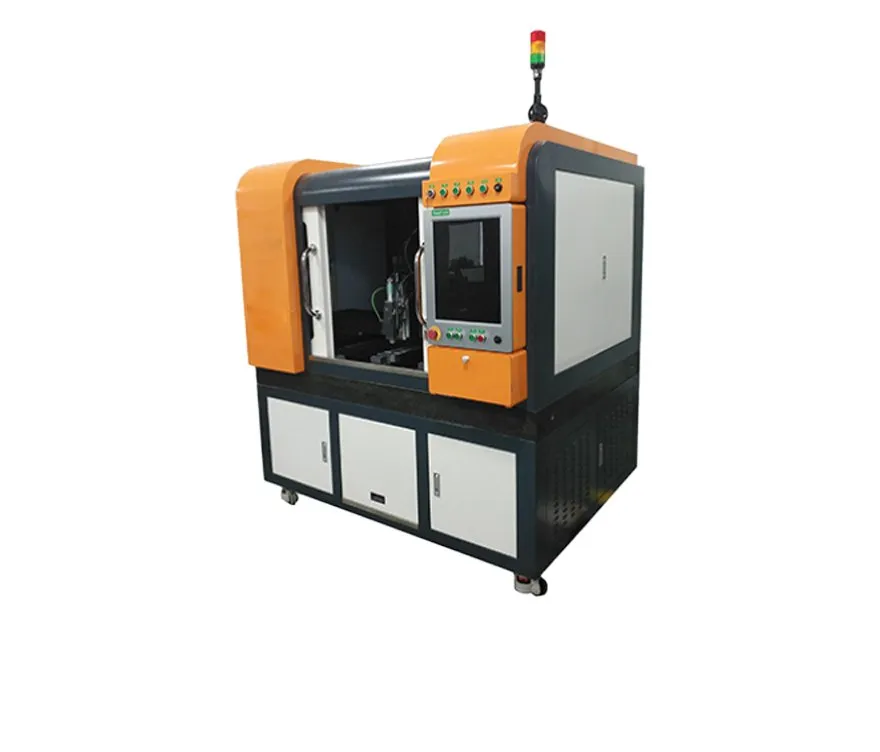

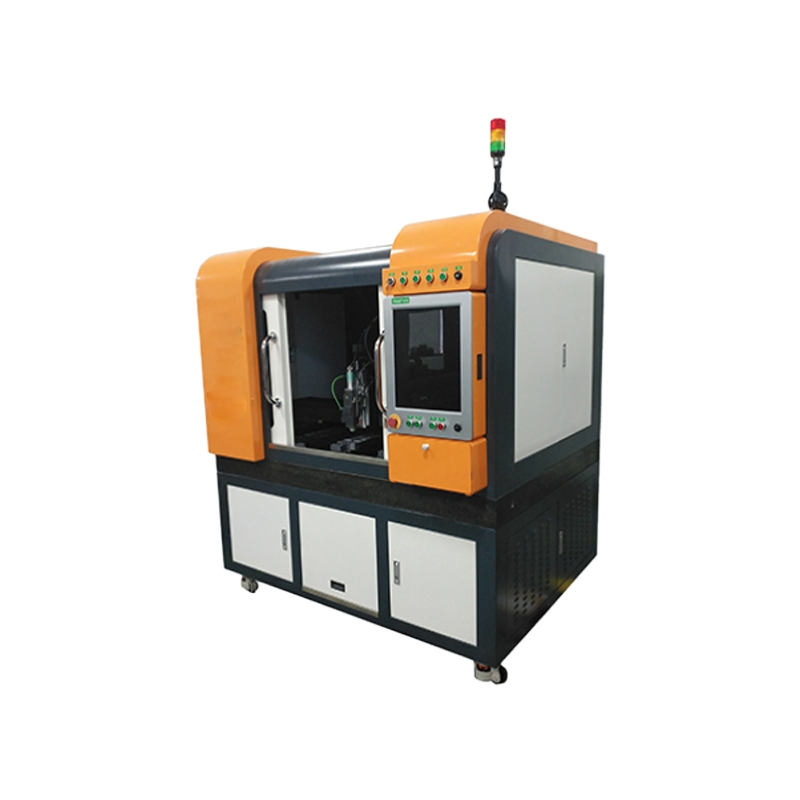

🚀 Advanced Fiber Laser Cutting System

✔ Utilizing a single-mode fiber laser, offering excellent reflection isolation and diffraction-limited beam quality.
✔ High-precision follow-up cutting head with automatic focusing and fast response speed.
✔ Precision optical path and beam control structure for superior spot control.
✔ Micron-level linear dual-drive platform with high stability and acceleration exceeding 1G.
✔ High-precision 4-axis control system with path optimization and nesting capabilities.
✔ High-precision off-axis vision positioning system supporting secondary positioning.
✔ High-flatness marble platform with a fully enclosed structure for long-term stability.
✔ Excellent cable management and dust removal design for low maintenance.
✔ Minimum kerf depth to 0.05mm, machining accuracy ±0.01mm, smooth cut, and no slag buildup.

📊 Technical Specifications

Category	Parameter	FM-LPCD150/300
Laser	Wavelength	1070±10nm
	Power	150W/300W
	Modulation Frequency	1~100kHz
	Beam Quality M2	<1.3
XY Workbench	Journey	600*600mm
	Repeatability	≤±0.002mm
	Positioning Accuracy	≤±0.01mm
Z-axis	Journey	150mm
Z-axis	Repeatability	≤±3μm
Processing	Minimum Kerf	0.05mm
	Thickness	≤5mm
	Dimensional Accuracy	≤±0.01mm
	Materials	Metals, Alloys, Ceramics
Cooling Method		Water Cooling
Electricity		380V 50~60Hz 15A
Weight		1200Kg

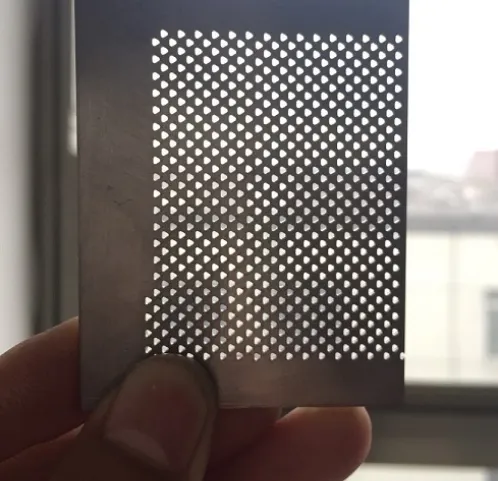

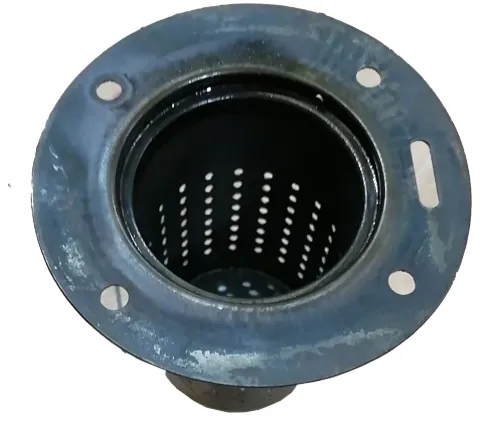

💡 Equipment Application & Samples

📦 Packing & Global Support

Standard Warranty: 12 months after shipping.

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and professional service group.

Training: Comprehensive on-site or remote operation and maintenance training provided free of charge.

🏭 Manufacturing Excellence

Our facility is a technology-driven enterprise specializing in the R&D, production, and sales of industrial and scientific research laser application systems. We provide precision solutions for micro-hole, micro-groove, micro-welding, scribing, cutting, and feature forming.

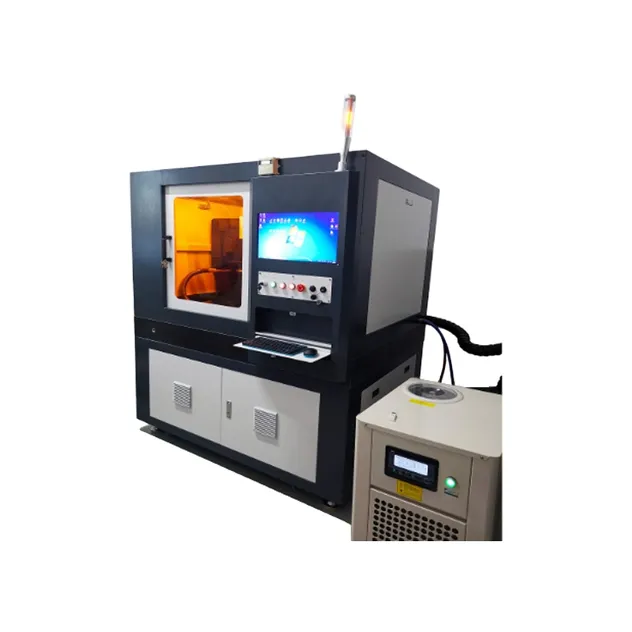

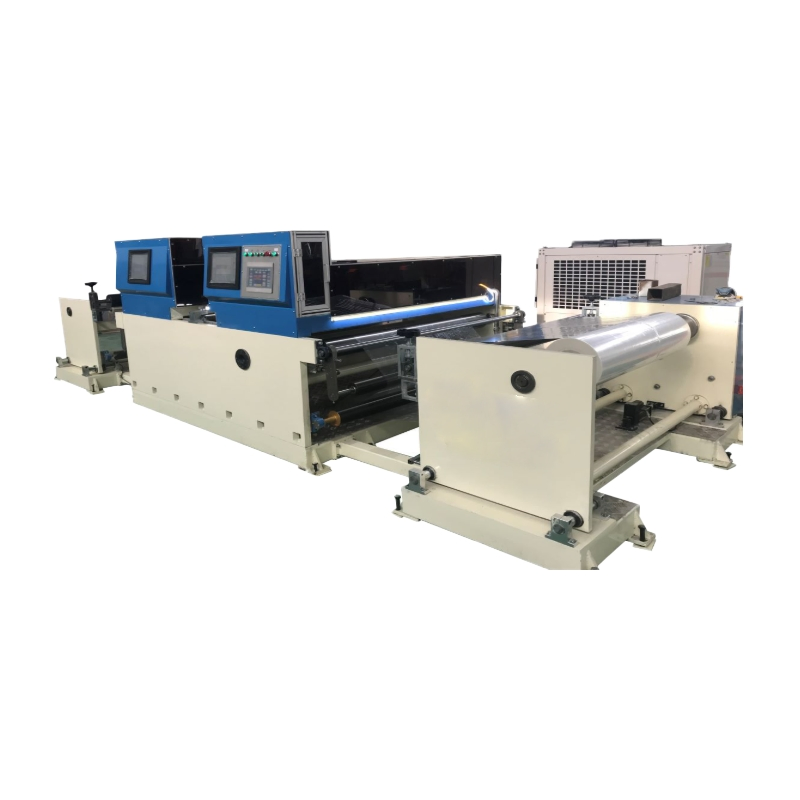

With processing linewidths ranging from 1 to 500 μm, we have successfully developed systems including Femtosecond Laser Precision Processing, Picosecond Ultra-Fine Processing, and Roll-to-Roll Thin Film Micro-Hole systems, serving industries such as biomedicine, semiconductors, and new energy.

❓ Frequently Asked Questions

Are you a direct manufacturer?

Yes, we are a specialized factory for drilling and laser machines. We provide integrated solutions by cooperating with top-tier suppliers to meet diverse client needs.

What is the typical delivery time?

We maintain stock for popular items. Standard models typically require 1-3 months for production, while specialized custom projects may take longer depending on technical complexity.

What payment methods do you accept?

As an experienced international trade entity, we accept T/T and L/C for equipment purchases. Different payment terms can be discussed for tools and accessories.

How can I request a quotation?

You can send an inquiry directly through our platform. We typically respond to messages within 1 hour during business hours.

How fast is your technical response?

For machine business, we analyze your technical requirements and provide a detailed quotation within 3 days for standard machines and within 1 week for special projects.

Do you provide international installation and training?

Yes, we provide both on-site and remote training for operation and maintenance to ensure your team can operate the system efficiently.
