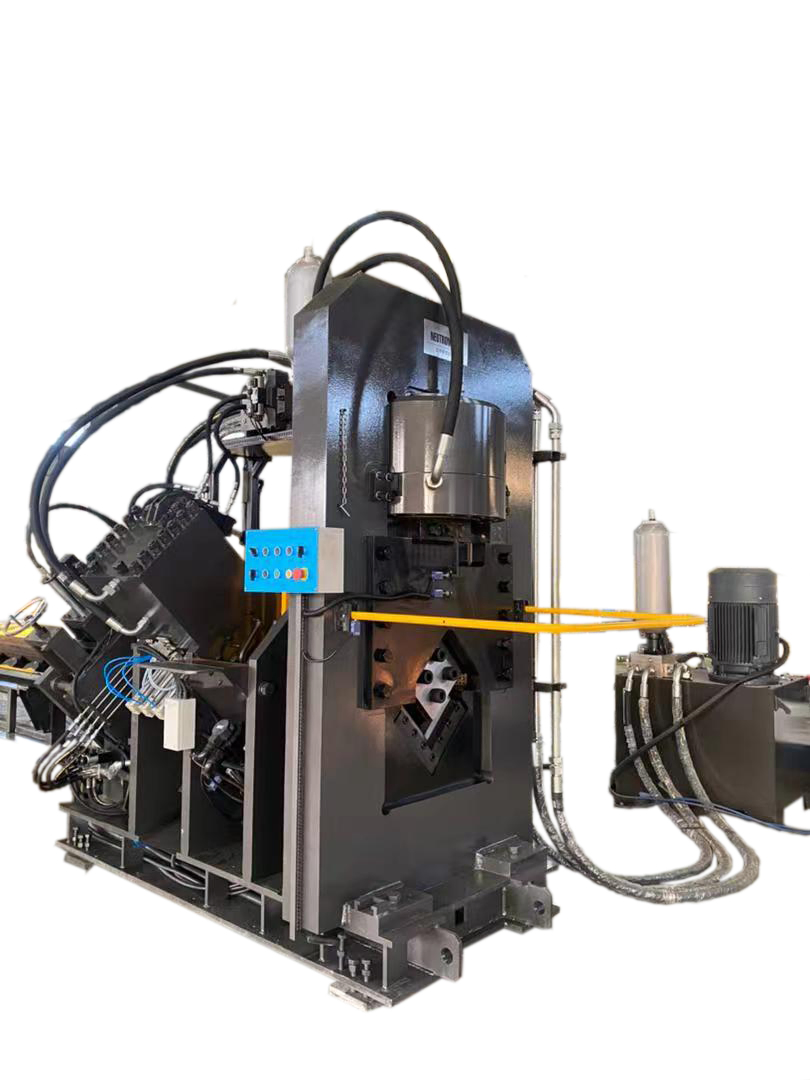

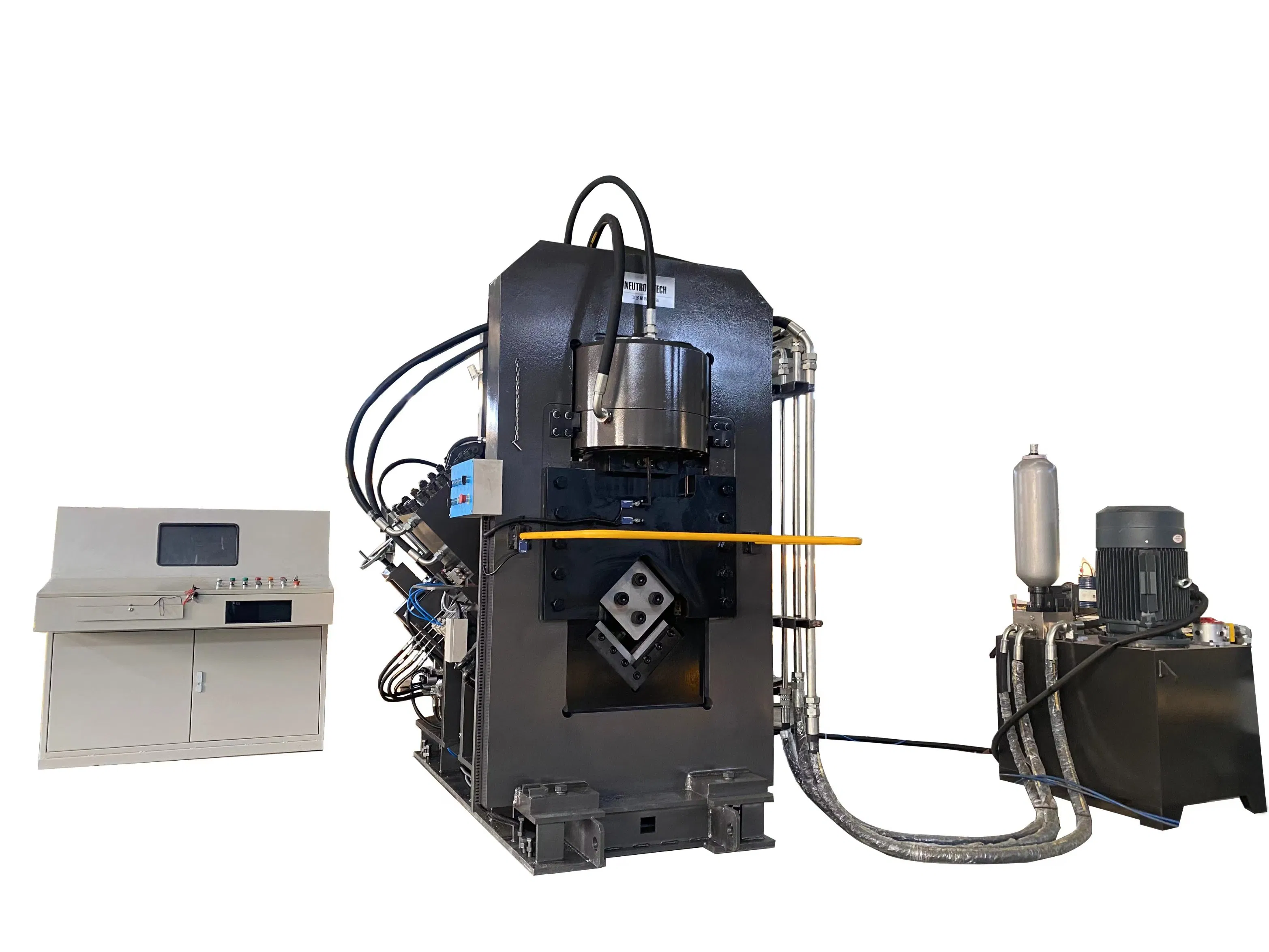

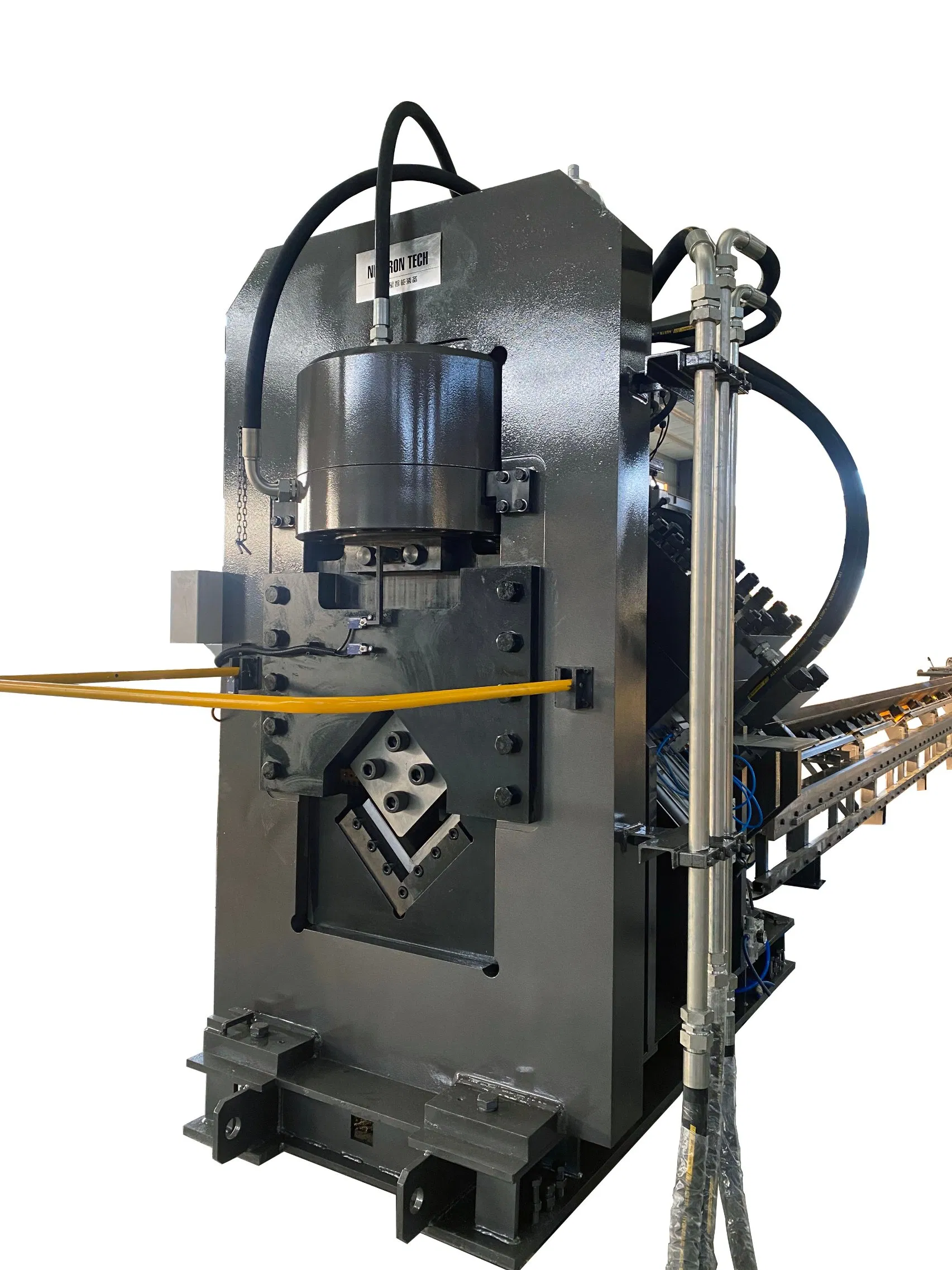

CNC Tower Angle Punching Marking and Cutting Production Line
CNC Tower Angle Punching Marking and Cutting Production Line
CNC Tower Angle Punching Marking and Cutting Production Line
CNC Tower Angle Punching Marking and Cutting Production Line
CNC Tower Angle Punching Marking and Cutting Production Line
1 / 5
CNC Tower Angle Punching Marking and Cutting Production Line
CNC Tower Angle Punching Marking and Cutting Production Line
CNC Tower Angle Punching Marking and Cutting Production Line
CNC Tower Angle Punching Marking and Cutting Production Line
CNC Tower Angle Punching Marking and Cutting Production Line

CNC Tower Angle Punching Marking and Cutting Production Line

Type: High-Speed Punching Machine
Punch Shape: Semi-Open Punch
Slider Movement: Double Action
Send Inquiry

Product Description

🔹 Basic Info.
Model NO.
APM2020
Slider Drive
Screw Press
Controlling Mode
CNC
Automatic Grade
Automatic
Power Source
Hydraulic Pressure
Precision
High Precision
Laser Technology
Laser Flame Cutting
Application
Industry
Cooling System
Air/Water Cooling
Technical Class
Laser
Structure Type
Complete Set
Standard Color
Yellow, Black, Grey
HS Code
8464909000
Production Capacity
300 Sets Per Year
CNC Production Line
⚙️ Technical Specifications
✔ Angle size: ∠63×63×4 ~ ∠200×200×20
✔ Max. punching diameter: φ25.5mm (20mm thickness, Q345)
✔ Nominal punching force: 1100KN
✔ Punching heads per side: 3
✔ Character groups: 4 groups (Nominal Marking force: 1030KN)
✔ Max. raw angle length: 14m
✔ Cutting mode: Double-blade cutting (Nominal force 1800kN)
✔ Angle feeding Speed: 40m/min (Efficiency approx. 1000 holes/hour)

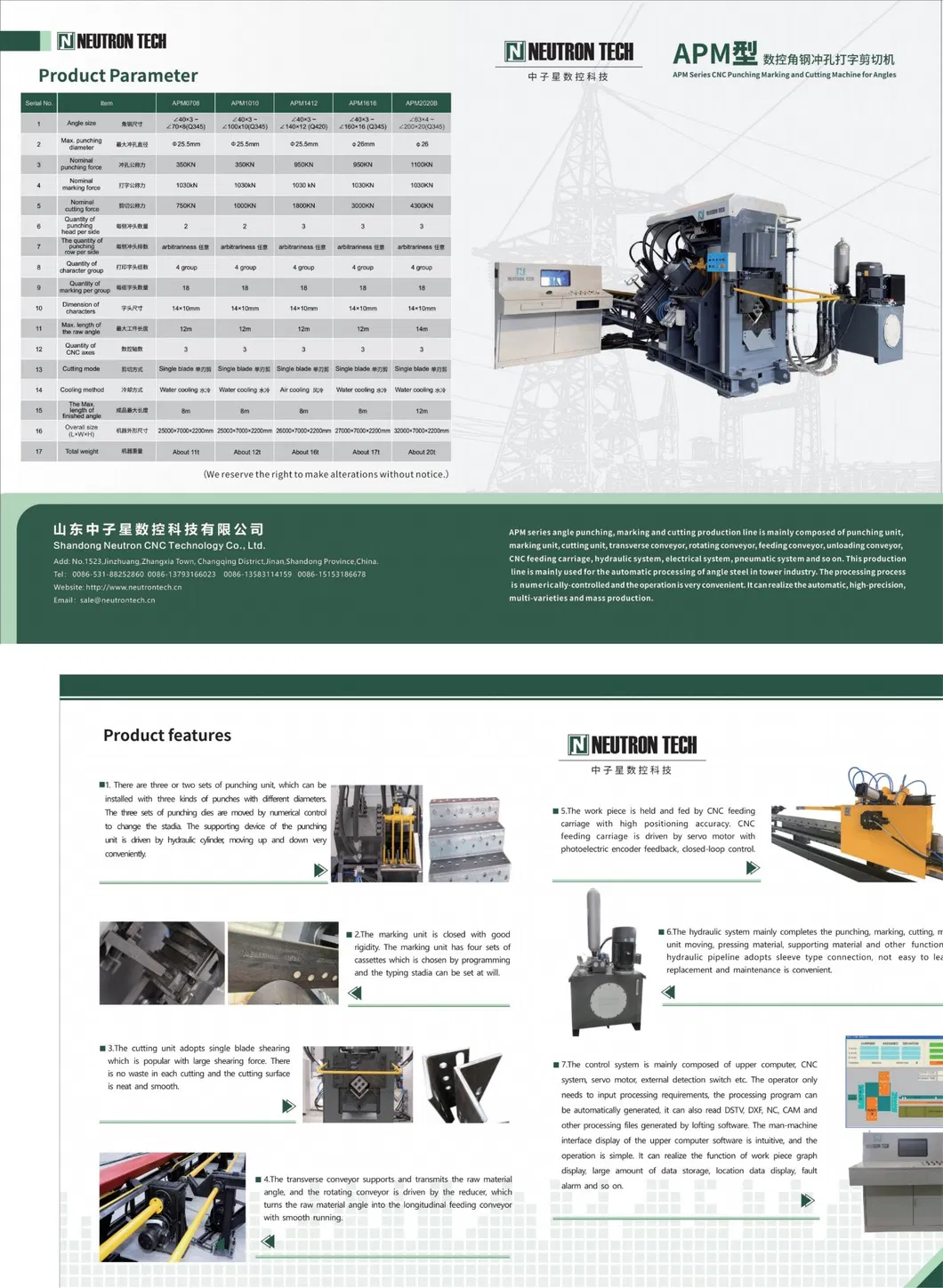

📸 Product Display
Product Display
Customer Visit
🚀 Main Features

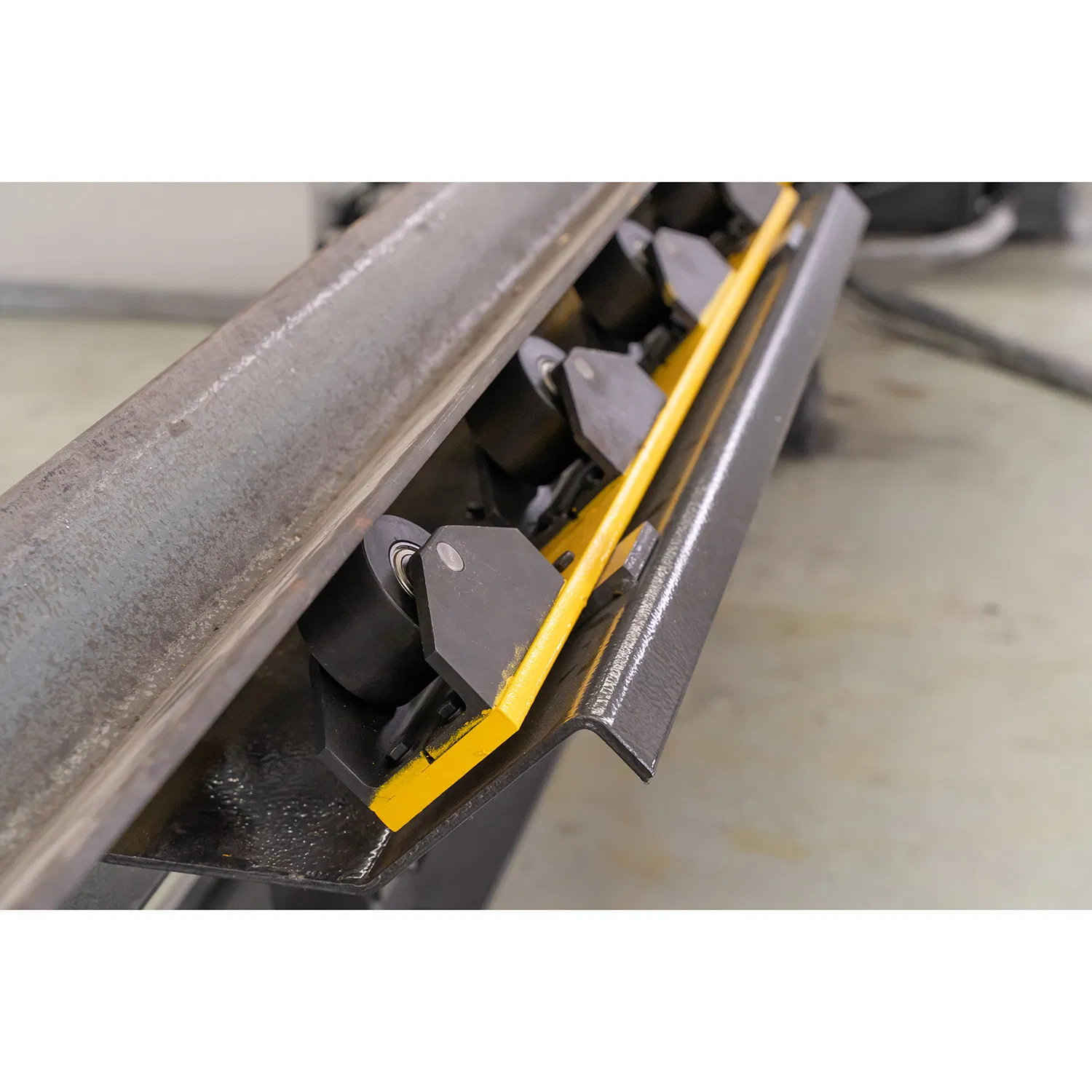

1. Infeed Conveyor & Carriage - Fast & Precise
2. Auto Loading System - High Efficiency

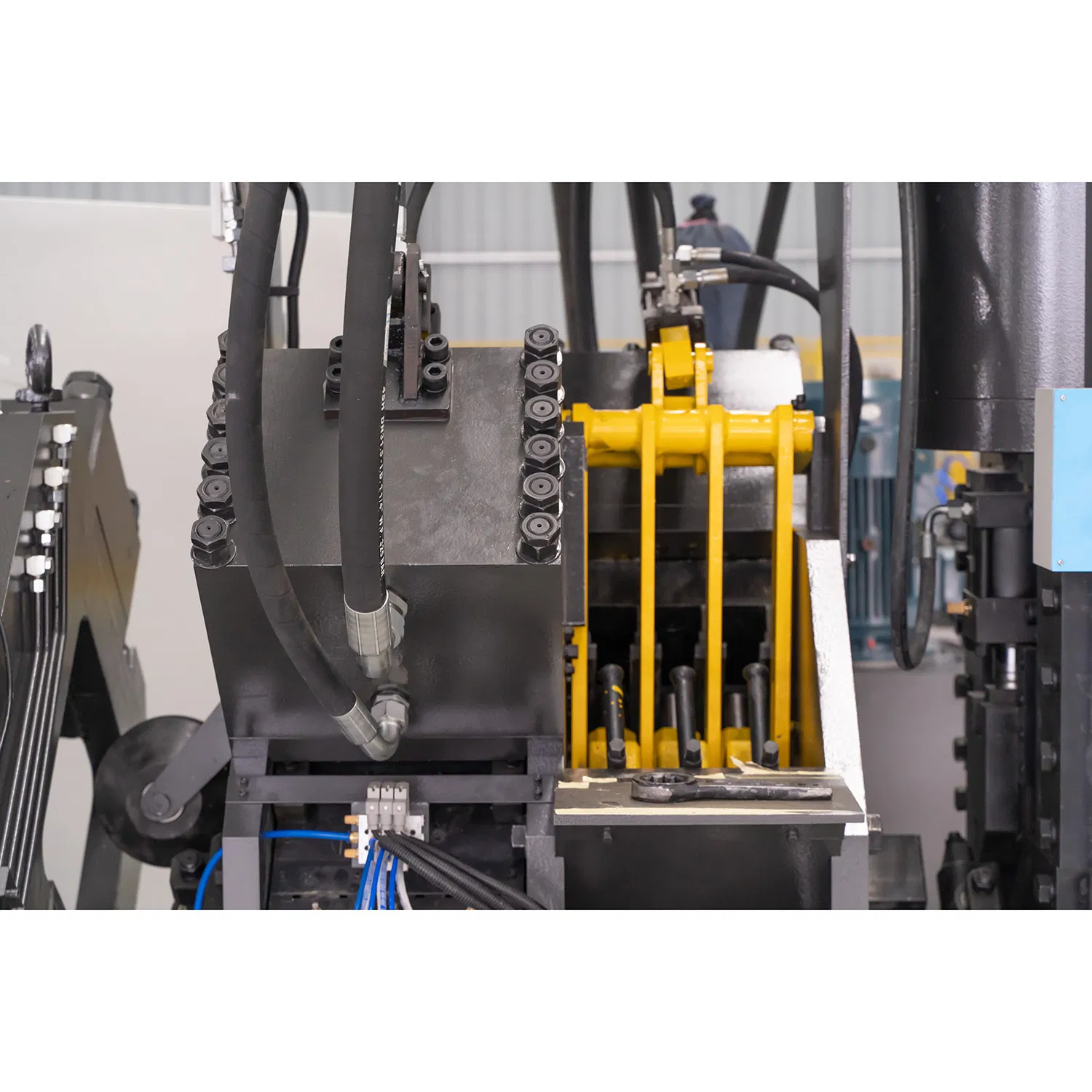

3. Marking Unit - 4 Group Auto Chosen
4. Punching Unit - 3 Different Diameters
5. Cutting Unit - No Material Wasted
6. Outfeed System - Auto Unloading
7. Electric System - Read NC1, DXF, DSTV
8. Hydraulic & Cooling - Powerful Air Cooling
🏭 Factory & Quality Assurance
Certifications

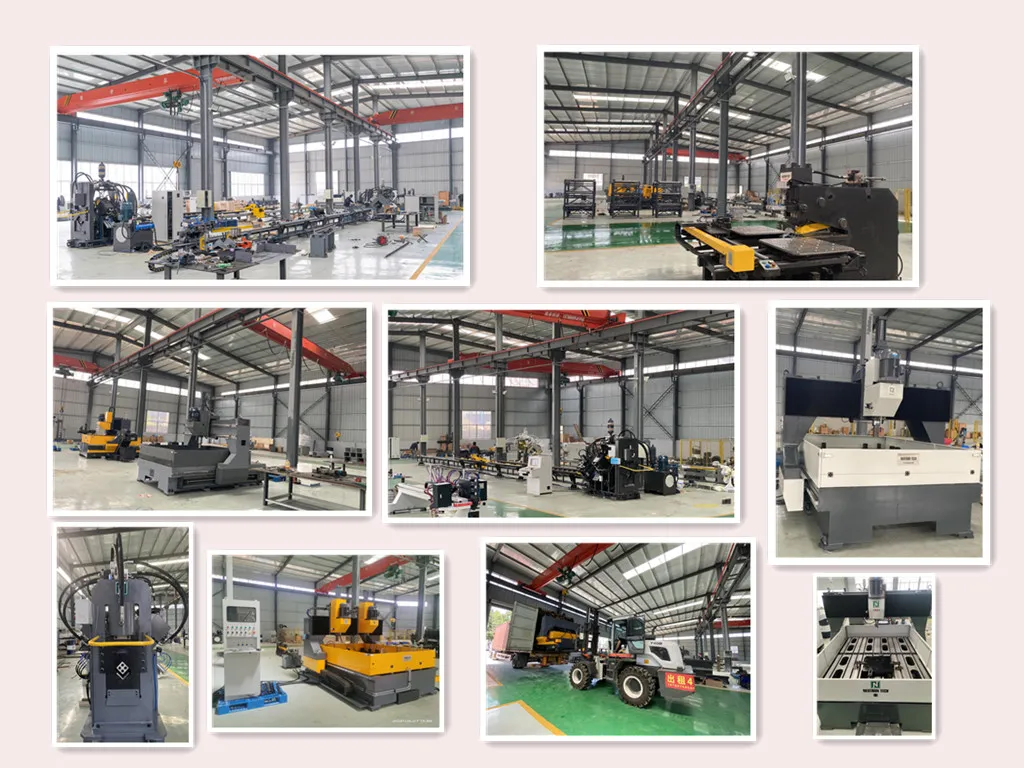

Facility

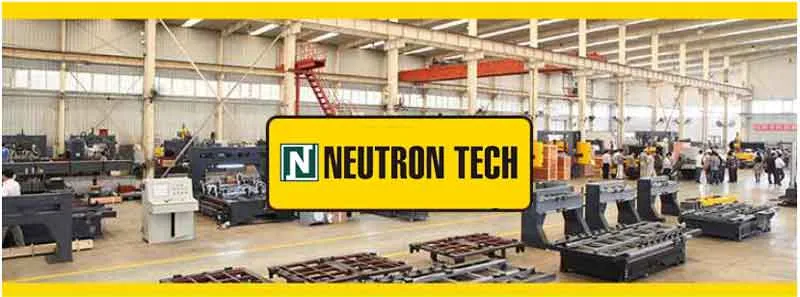

Our Factory

Our company specializes in high-speed railing molding equipment, iron tower processing machinery, and steel structure processing solutions. We adhere to the principle of "quality first, service first," focusing on continuous innovation to meet global industrial standards. Our products are widely utilized in road and bridge construction, electric power towers, automobile manufacturing, and furniture production industries.

📦 Packaging & Shipping
Packaging and Shipping
Frequently Asked Questions
Q: How can I get a quotation?
A: Please provide your specific purchase requirements and we will reply as soon as possible via our professional management team.
Q: What is the typical lead time for shipment?
A: We usually arrange shipment within 10 to 30 days depending on the specific machine configuration.
Q: Do you provide operational training for CNC machines?
A: Yes, we offer comprehensive training sessions at our facility to ensure your team can operate the machinery safely and efficiently.
Q: How do you handle technical problems or repairs?
A: During the warranty period, we provide free replacement components. We can also dispatch engineers for on-site repairs and technical support.
Q: What are your standard warranty terms?
A: We provide an 18-month warranty for defective parts starting from the bill of lading date. Extended warranty options are also available upon request.
Q: What type of packaging is used for international delivery?
A: All CNC machinery is packed using sea-worthy, reinforced wooden boxes to ensure safety during long-distance transit.
