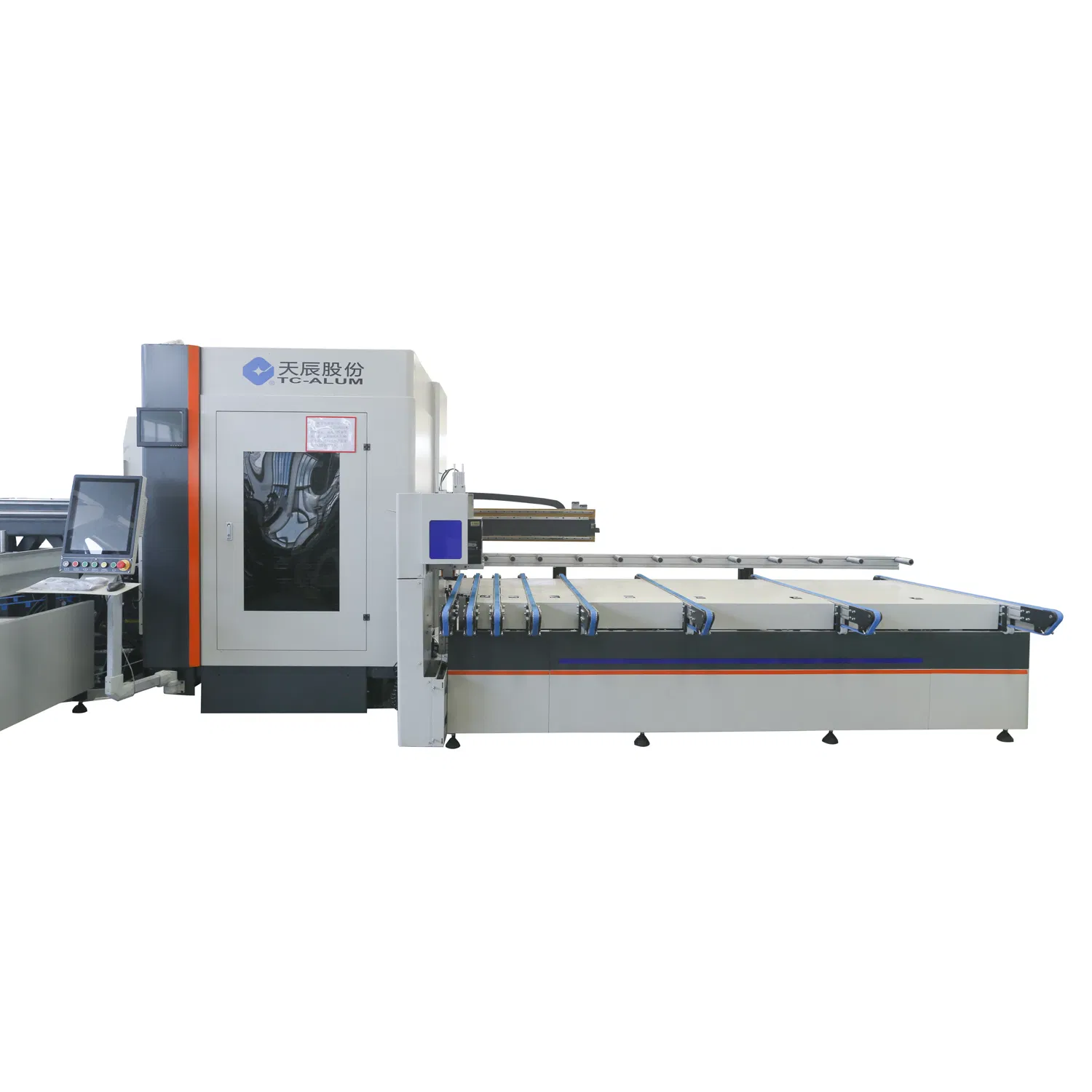

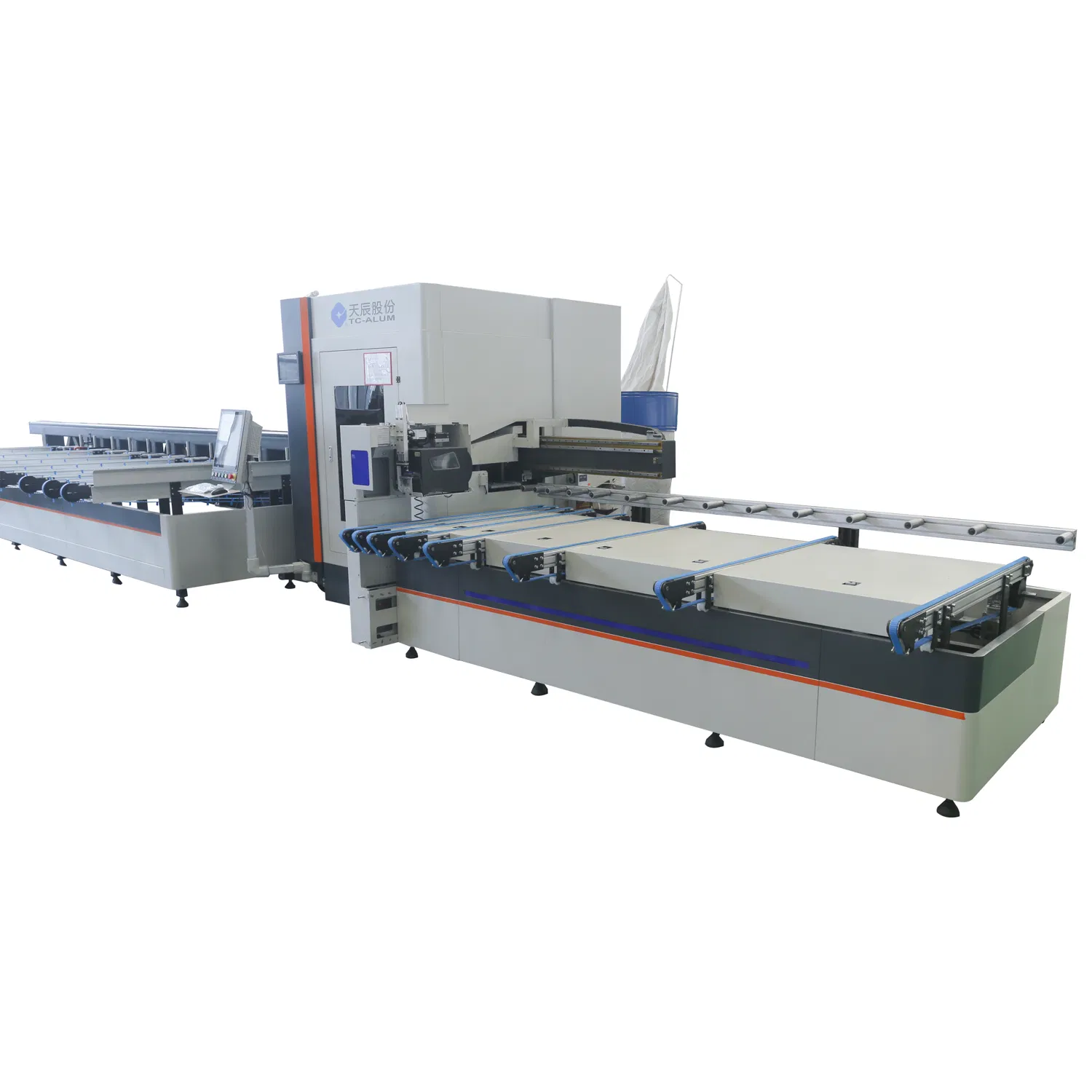

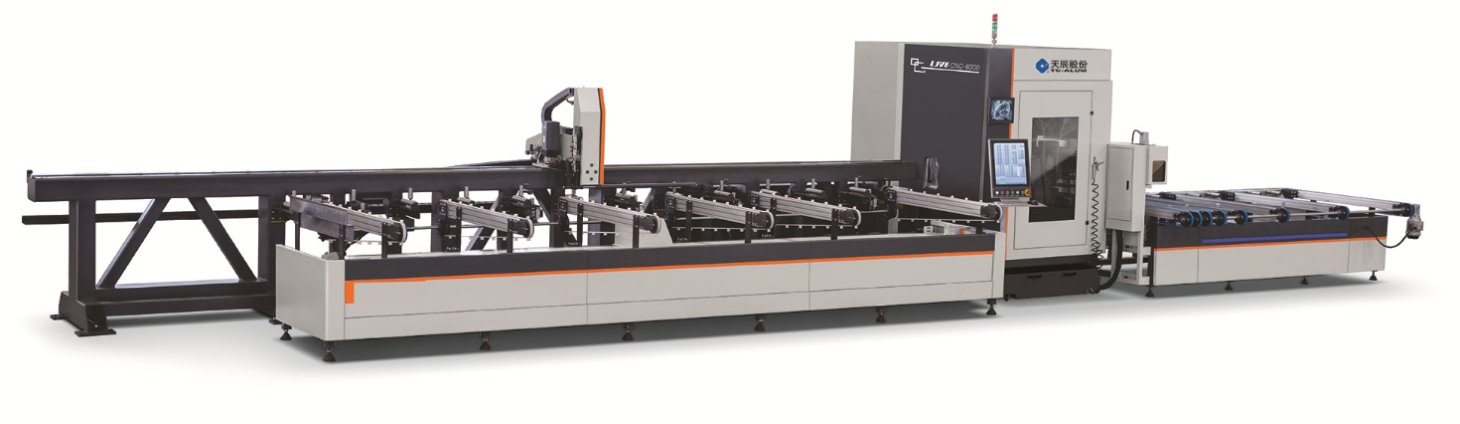

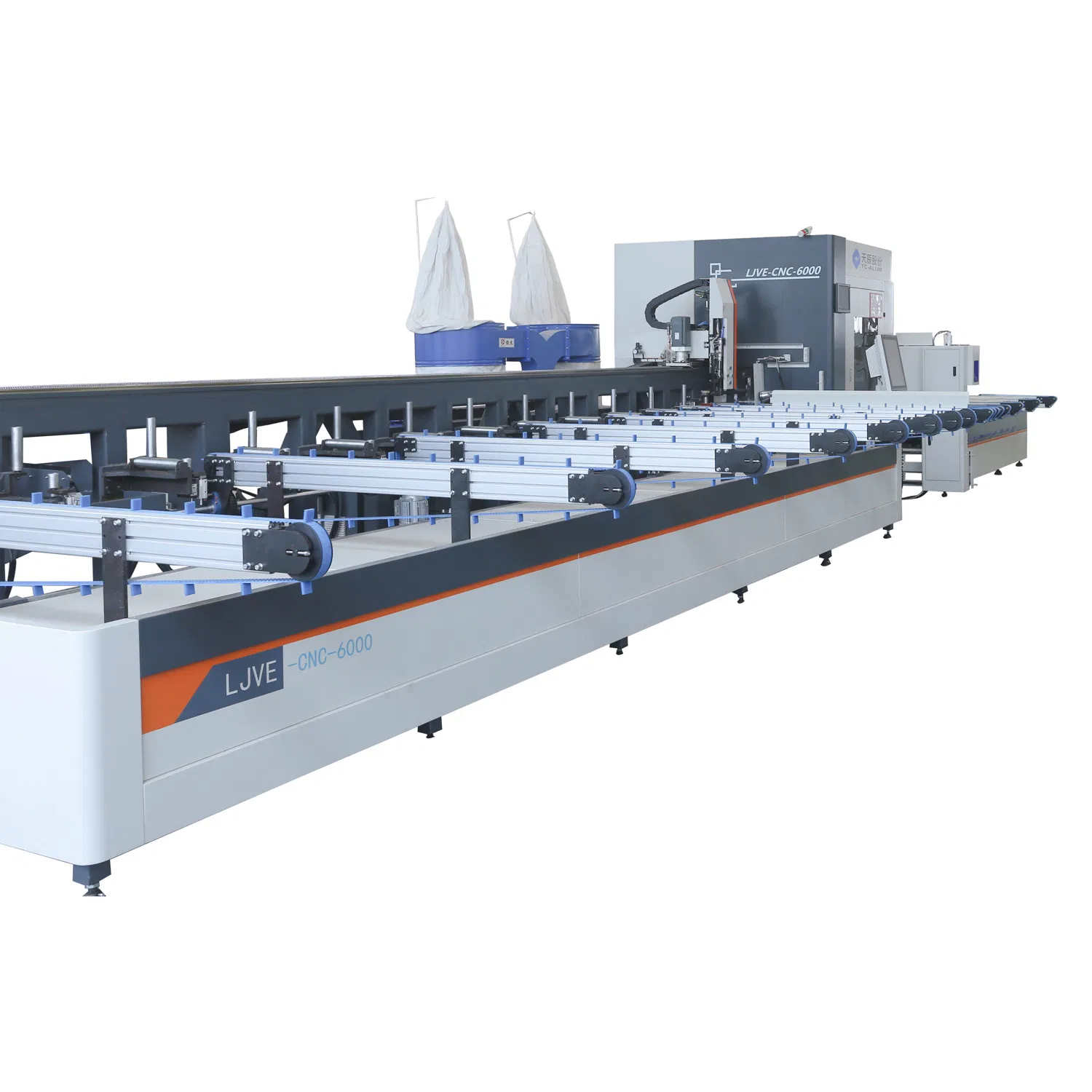

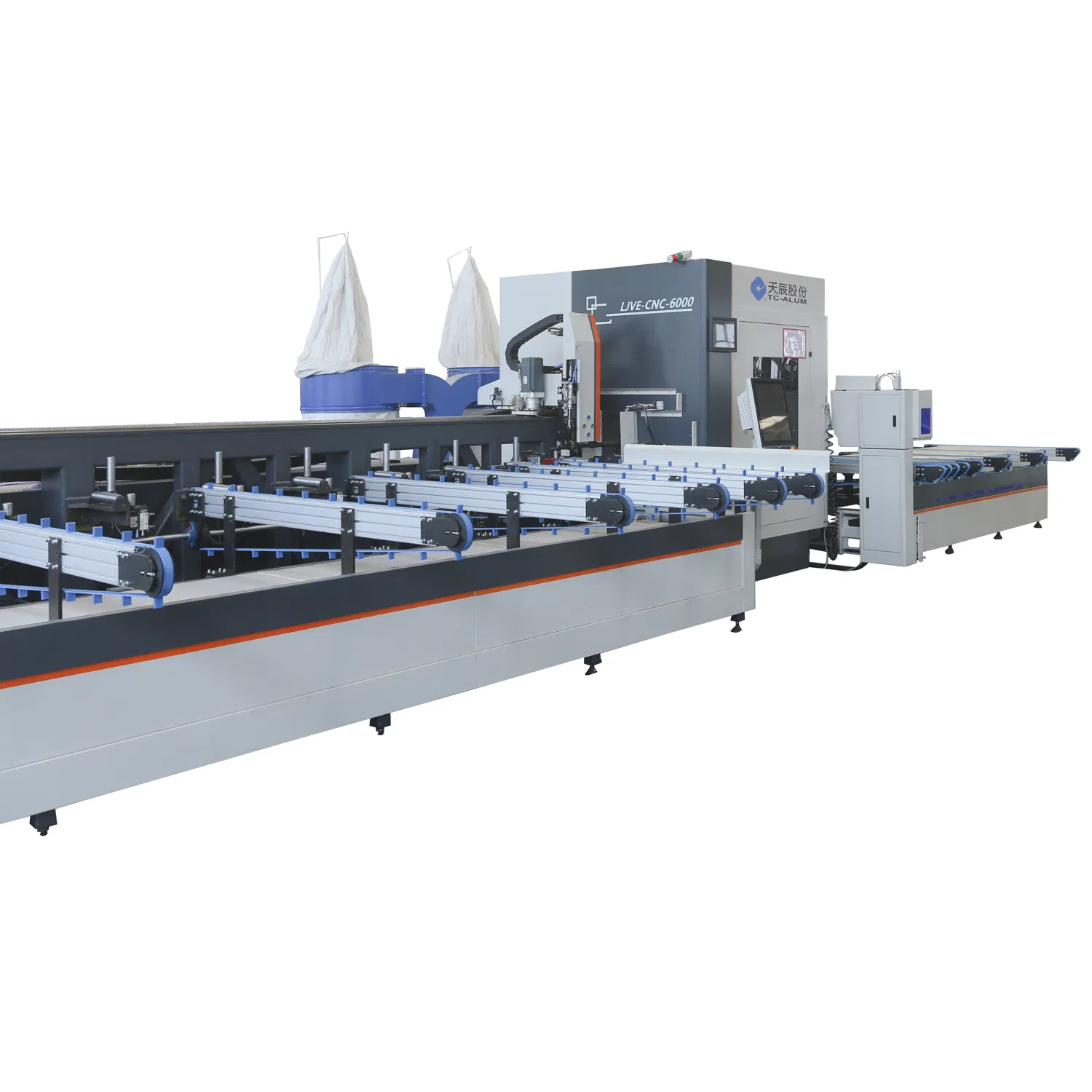

CNC Laser Drilling Milling Cutting Production Line for Window and Door Aluminum Profile
CNC Laser Drilling Milling Cutting Production Line for Window and Door Aluminum Profile
CNC Laser Drilling Milling Cutting Production Line for Window and Door Aluminum Profile
CNC Laser Drilling Milling Cutting Production Line for Window and Door Aluminum Profile
CNC Laser Drilling Milling Cutting Production Line for Window and Door Aluminum Profile
1 / 5
CNC Laser Drilling Milling Cutting Production Line for Window and Door Aluminum Profile
CNC Laser Drilling Milling Cutting Production Line for Window and Door Aluminum Profile
CNC Laser Drilling Milling Cutting Production Line for Window and Door Aluminum Profile
CNC Laser Drilling Milling Cutting Production Line for Window and Door Aluminum Profile
CNC Laser Drilling Milling Cutting Production Line for Window and Door Aluminum Profile

CNC Laser Drilling Milling Cutting Production Line for Window and Door Aluminum Profile

Customization: Available
After-sales Service: Online Support
Warranty: 12 Months
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
LJVHA-CNC-6500
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
Customized Value
Product Name
Automatic Cutting Saw Center
Average Productivity
2200 Pieces / 8 Hours
Control System
CNC System
Application
Window Door Fabrication
Cutting Angle
Arbitrary Angle
Cutting Material
Aluminum Profile
Production Capacity
30 Sets Per Month
HS Code
8461409000
Automatic Cutting Saw Center
LJVHA-CNC-6500 Automatic Cutting Saw Center
★

Key Machine Features

CNC Production Line
  • Efficient continuous 45°, 90° or arbitrary angle machining within 45° to -45° range.
  • Automatic feeding table for continuous clamping and profile cutting processing.
  • Servo-driven feeding manipulator for precise automatic control of X, Y, and Z axes.
  • Equipped with four high-speed motorized spindles for multi-axis five-sided processing.
  • Advanced laser cutting motion with four-axis automatic control for corner clearing and hole processing.
  • Motor direct connection saw blade ensures stable cutting and high processing accuracy.
  • Servo-driven discharge manipulator allows for short material output as low as 240mm.
  • Automatic lubrication system for linear guide pairs and ball screws.
  • Chain chip conveyor automatically transports aluminum chips to the waste collection bin.
  • Fully enclosed shell design to ensure maximum operator safety.
  • High-resolution camera and LCD screen for real-time monitoring of sawing operations.

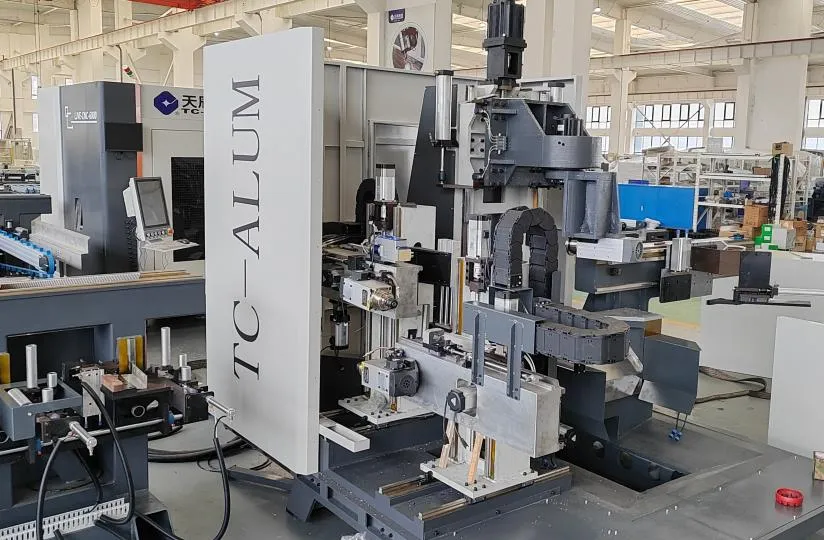

Machine Internal Details
⚙

Technical Parameters

Item Specification
Sawing motor power3.0 Kw
Machine power48 Kw
Motorized spindle power3Kw × 4
Laser power1.5kw
Laser head processing height150mm
Saw blade specificationΦ550 × 30 × 4.4 × 144T
Cut profile height/width30 ~ 150 mm
Cutting length240 ~ 6500 mm
Angle error±5'
Sawing length accuracy±0.15mm
Repeated positioning error±0.05mm
Input voltage380V 50Hz
Dimension15000 × 5000 × 2500 mm
Weight8900 kg
▦

Product Gallery

Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
?

Frequently Asked Questions

What types of angles can this machine cut?
The LJVHA-CNC-6500 supports efficient continuous sawing at 45° and 90°, and is capable of processing any arbitrary angle within the range of 45° to -45°.
What is the daily production capacity?
The machine is highly efficient, capable of producing approximately 2200 finished cutting pieces within a standard 8-hour shift.
How is the cutting accuracy maintained?
Accuracy is ensured through a high-precision CNC system, servo-driven movements, and motor direct-connection saw blades, achieving a length accuracy of ±0.15mm.
Can the machine handle short profiles?
Yes, the servo-driven discharge manipulator is designed to handle and automatically output short materials as small as 240mm.
What safety features are included for the operator?
The equipment features a fully enclosed shell to protect operators. Additionally, a high-resolution camera and LCD screen allow for real-time monitoring without opening the casing.
Does the machine require manual lubrication?
No, the machine is equipped with an automatic lubrication system for the linear guide pairs and ball screws, which helps extend the service life and maintain precision.
