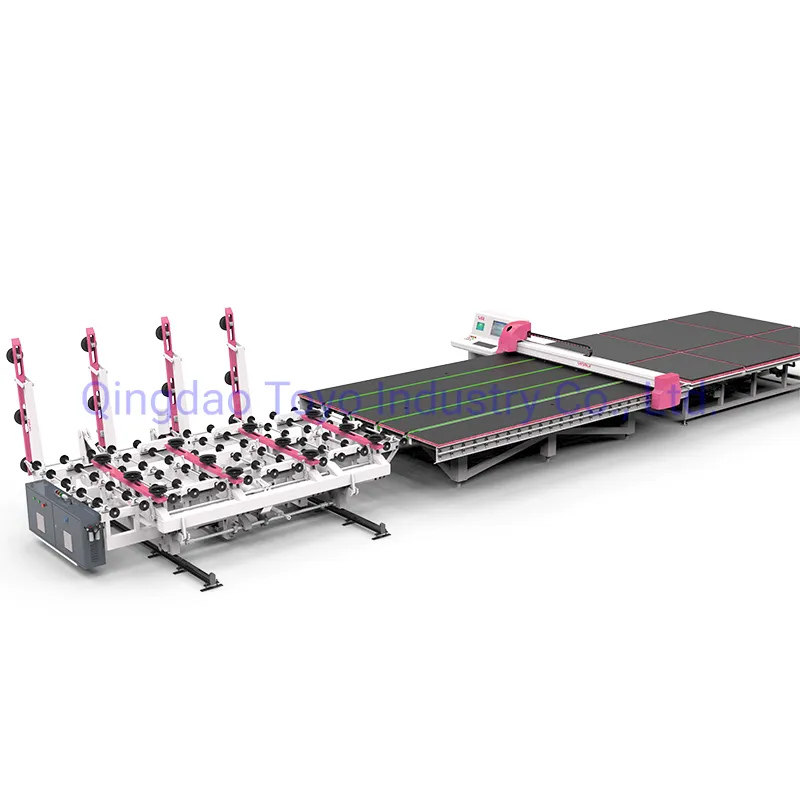

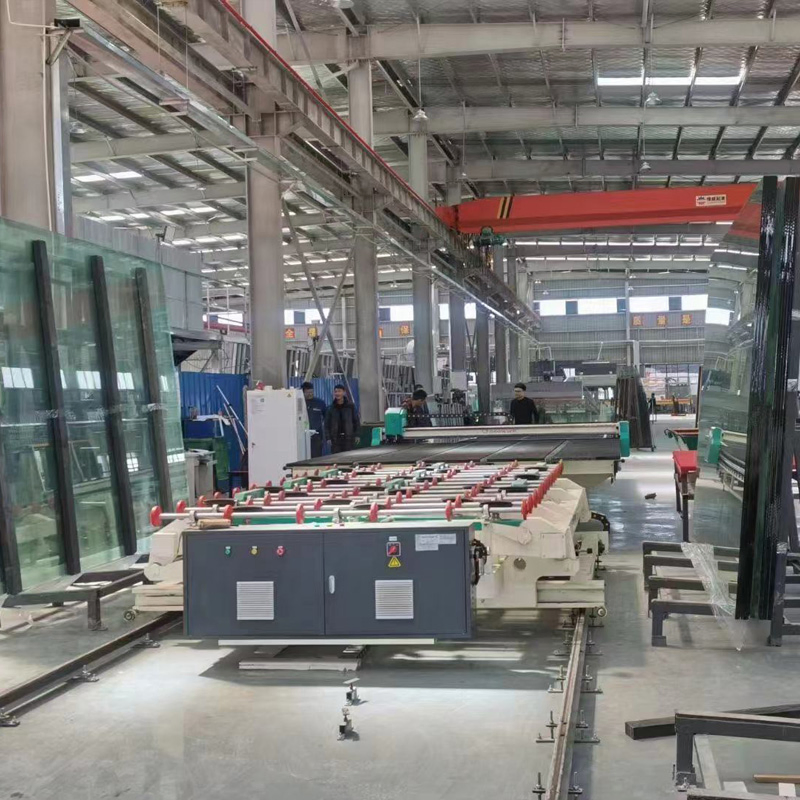

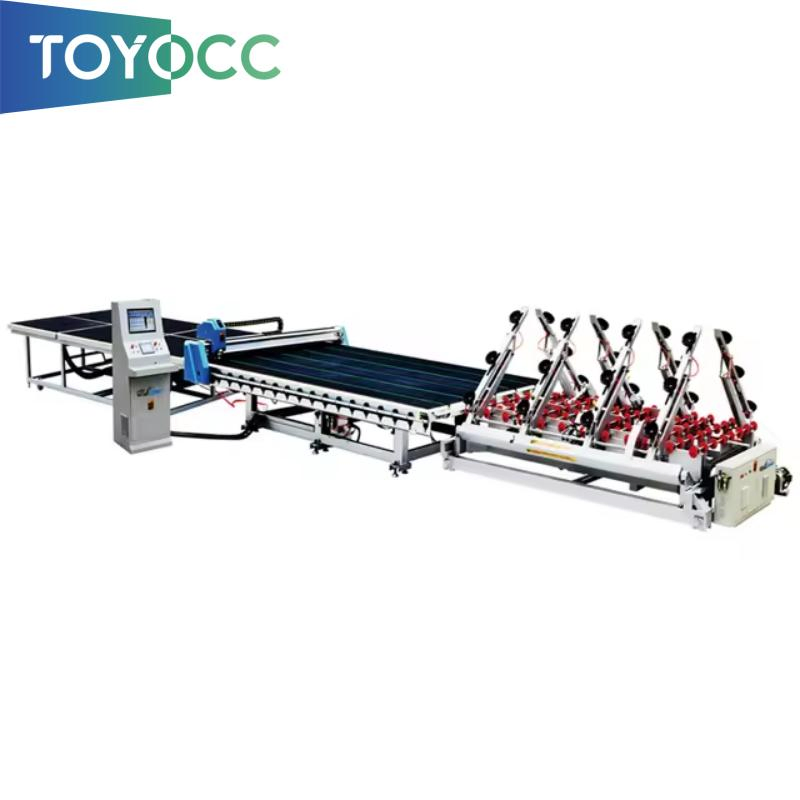

Fully Automatic Glass Cutting Machine Production Line (6100*3300)
I. Full-Automatic Glass Cutting Machine Production Line
II. Machinery Configuration:
- Full-automatic Glass Loading Machine
- Full-automatic CNC Glass Cutting Machine
- Air-cushion Glass Breakout Machine
III. Machinery Specification:

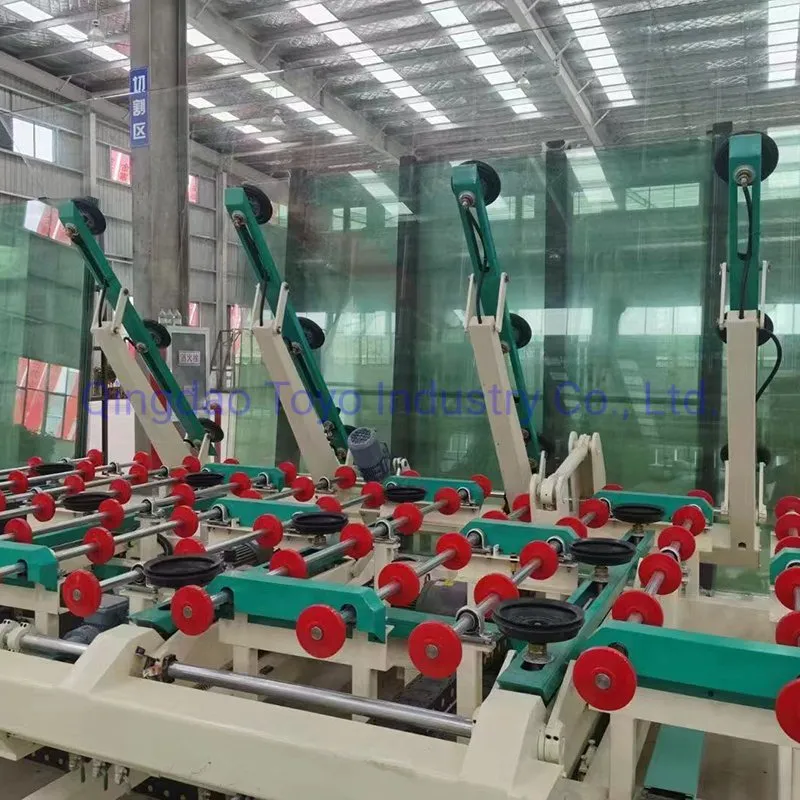

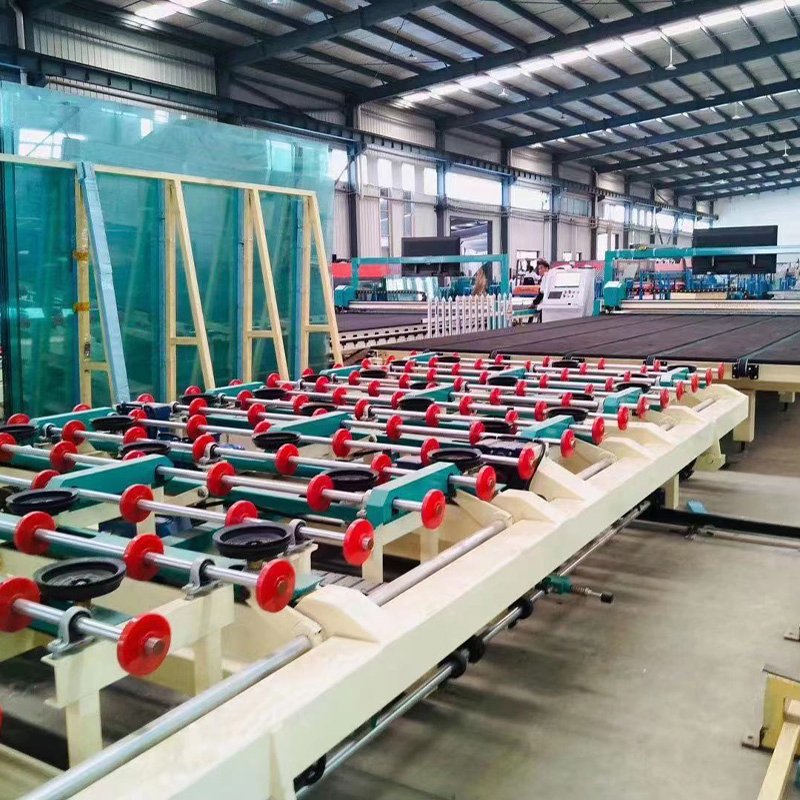

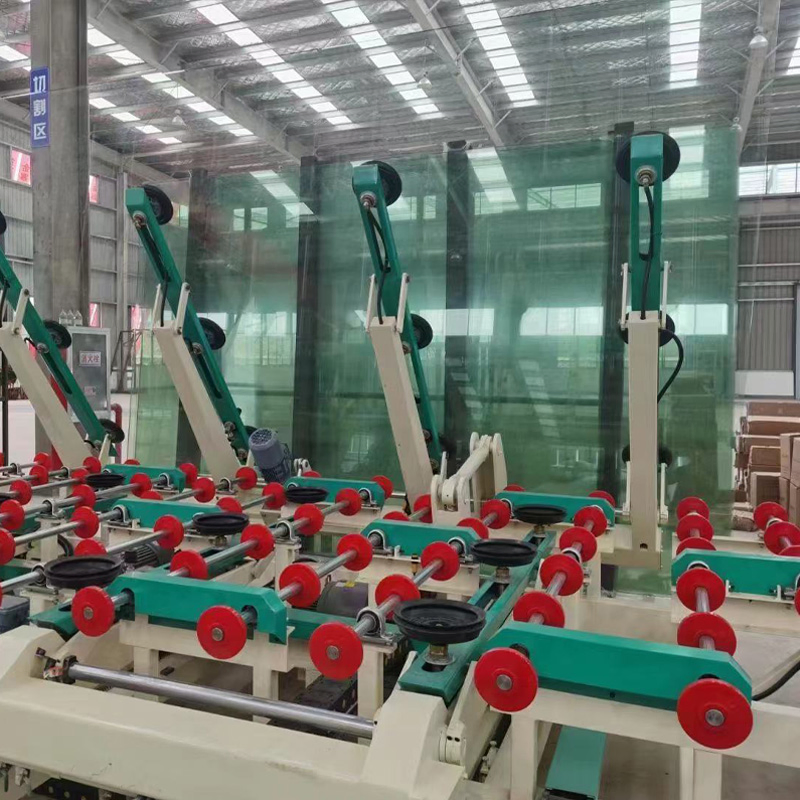

III-1. Full-automatic glass double-arm loading machine
- System: main frame, running system, transfer system, vacuum adsorption, mechanical turning, control system.
- Mechanical: High precision reinforced chain, PU idler wheel, double absorption structure suction cups.
- Components: Delta PLC & Transducer, Swiss ELCO Proximity switch, Taiwan Airtac Pneumatic parts.
- Parameters: Max glass 4200*2800mm, Thickness 3-19mm, Cycle 40-90s, Loading weight 900KG.
III-2. Full-automatic glass cutting machine
- Technical: Max size 6100*3300mm, Linear parallelism ≤±0.25mm/m, Diagonal accuracy ≤±0.30mm/m.
- Speed: Bridge speed 0-160m/min, Acceleration ≥ 3.0m/s².
- Hardware: 360° rotating tool apron, imported waterproof HDF board, anti-static felt.
- Electrical: Japan YASKAWA servo motor, Italy TECNOS control card, OPTIMA software.
- Software: ERP compatible, 2000+ shape database, AutoCAD support.

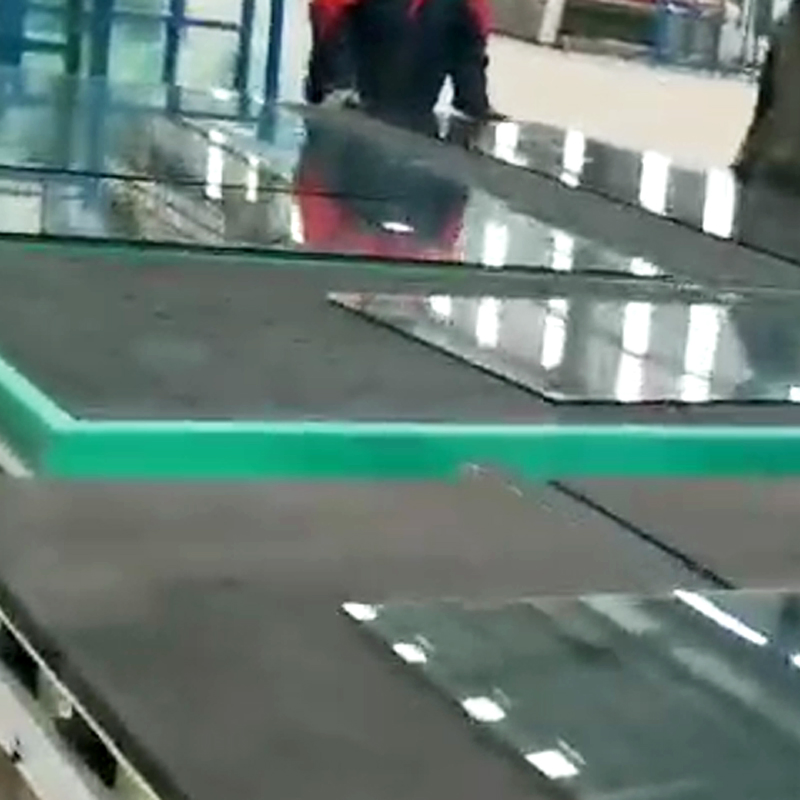

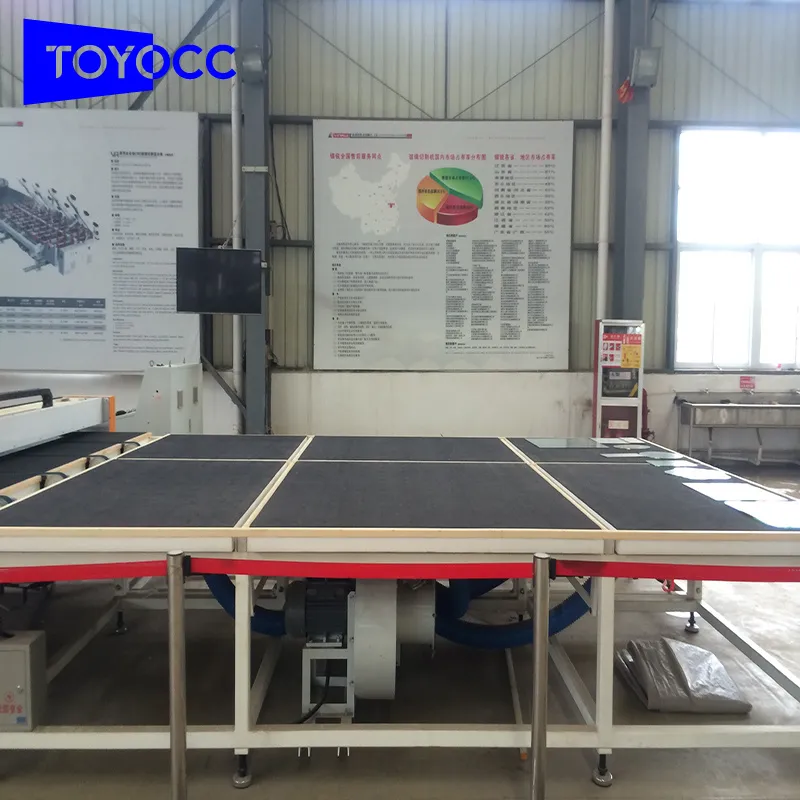

III-3. Glass breaking machine
- Table size: 6100×3300mm, Height 900±30mm.
- Surface: Fiber and woolen felt on HDF board.
- Bars: 2pcs horizontal and 1pcs vertical level bars.
