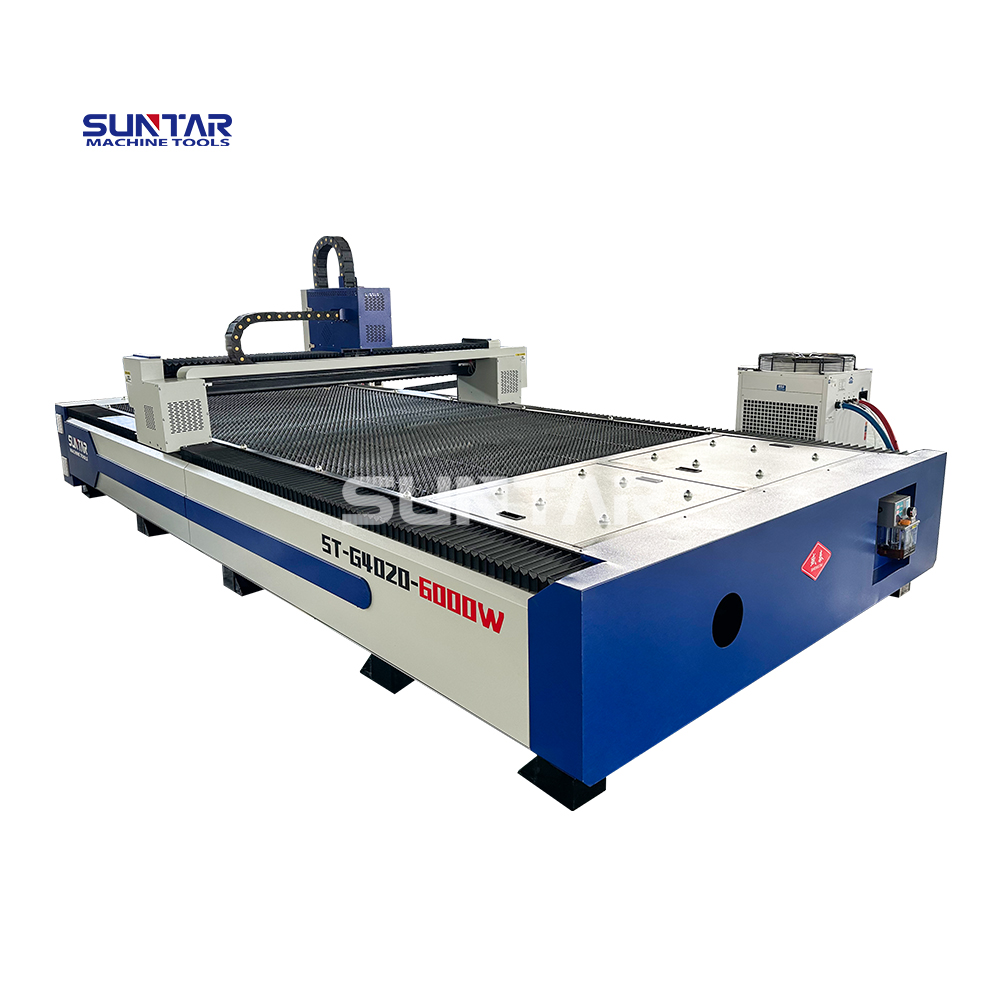

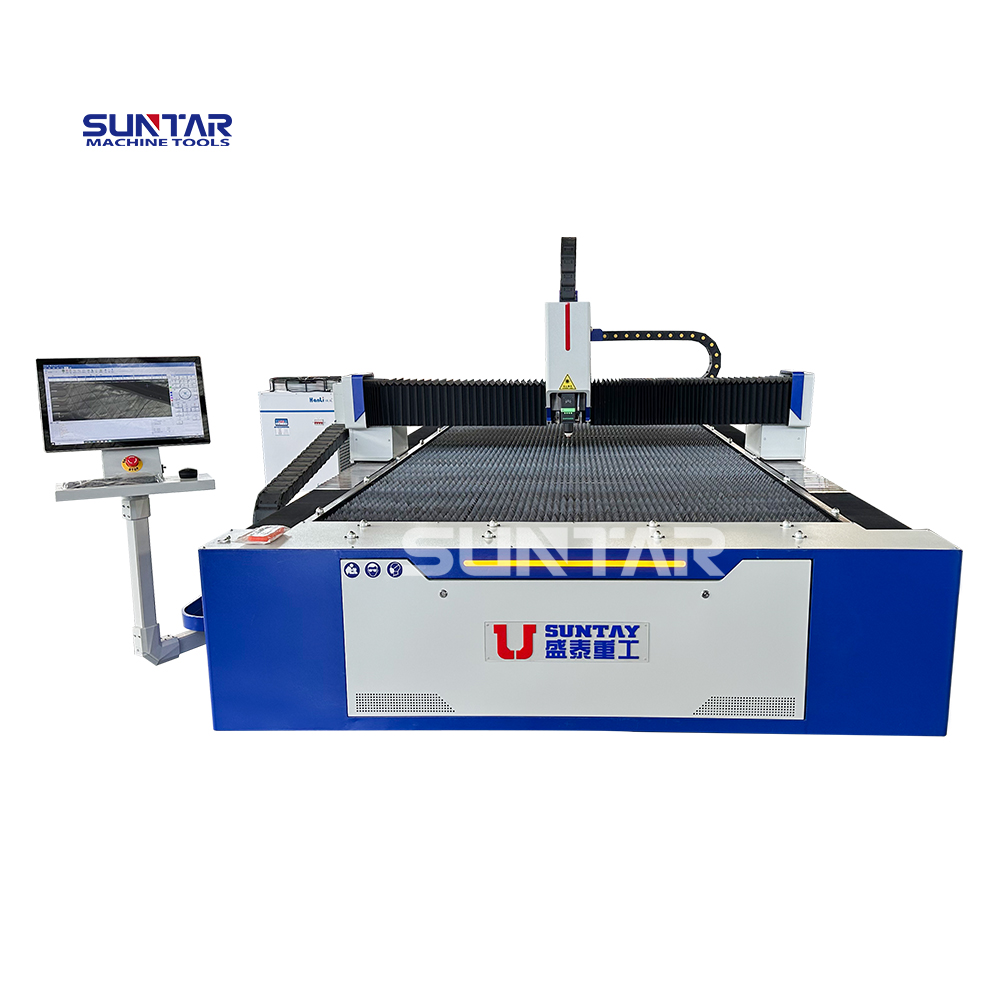

Professional Best Selling Hot Fiber Metal Laser Cutting Machine for Metal Plates and Tubes

Send Inquiry

Product Description

⚙️

Main Technical Parameters

Model	3015	4015	4020	6015	6020	6025
Processing Scope	3000*1500	4000*1500	4000*2000	6000*1500	6000*2000	6000*2500
X axis travel	1500mm	1500mm	2000mm	1500mm	2000mm	2500mm
Y axis travel	3000mm	4000mm	4000mm	6000mm	6000mm	6000mm
Z axis travel	120mm	120mm	120mm	120mm	120mm	120mm
Rated output power	1500W / 3000W / 6000W / 12000W / Other
Workbench axial positioning accuracy	≤±0.03mm/m
Workbench repeated positioning accuracy	≤±0.02mm/m
Maximum positioning speed	120m/min
Voltage	220V/50Hz, 380V/50Hz
Control system	Raytools / Bochu

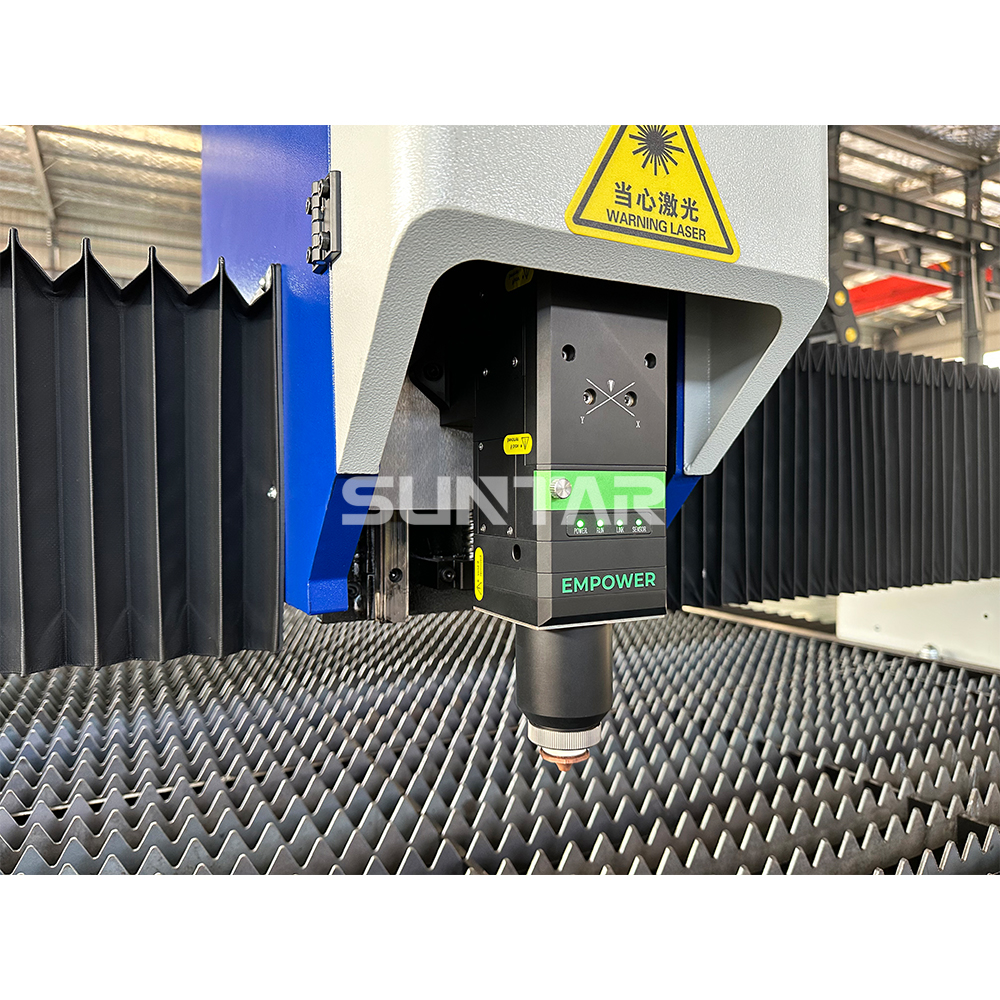

Cutting head	Raytools / Bochu
Laser power source	MAX

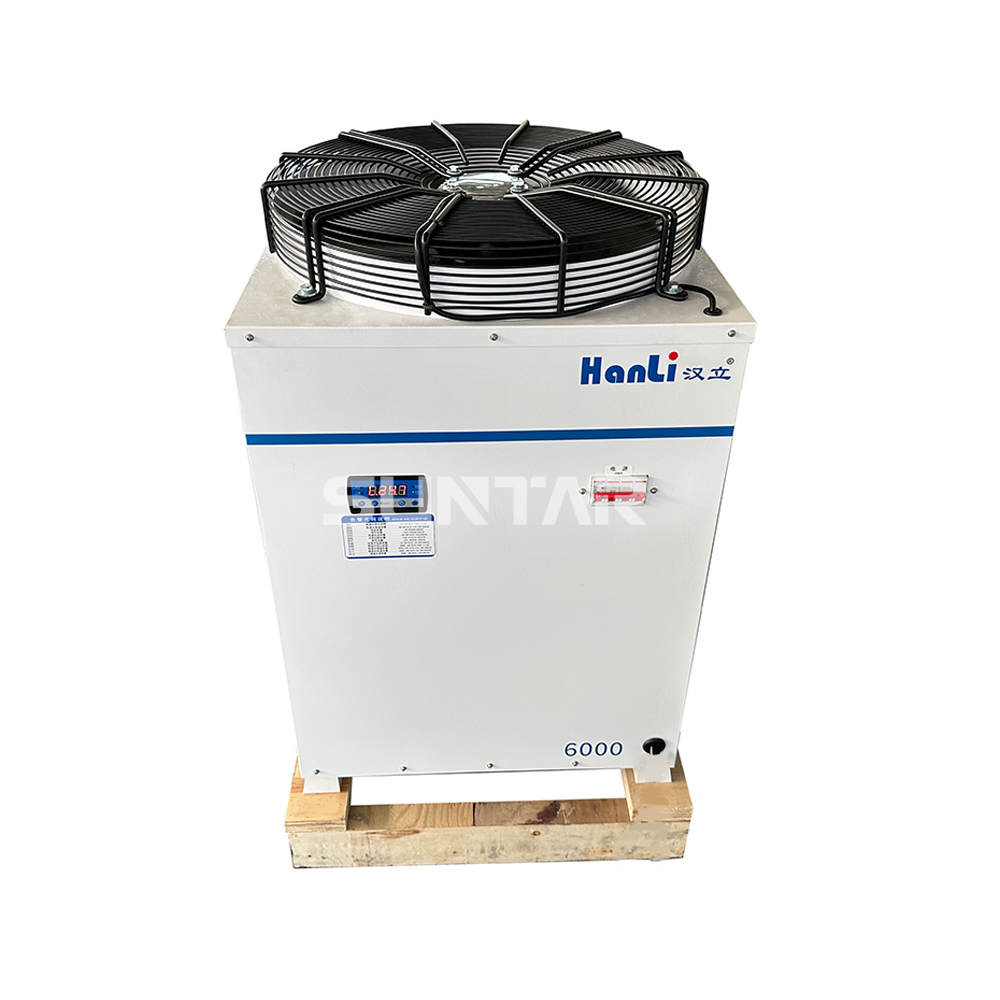

Water chiller	Hanli
Motor	Raynen
Reducer	Japan SHIMPO

🖼️

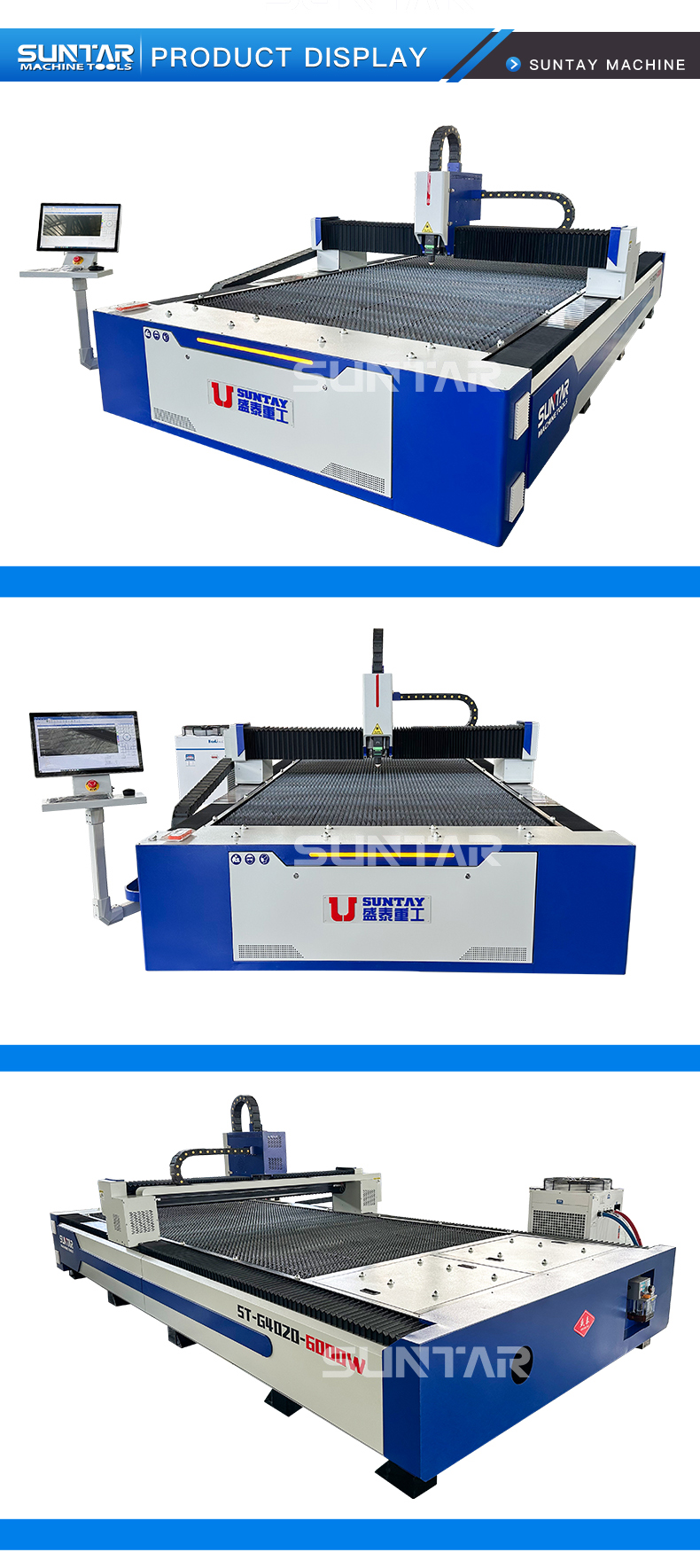

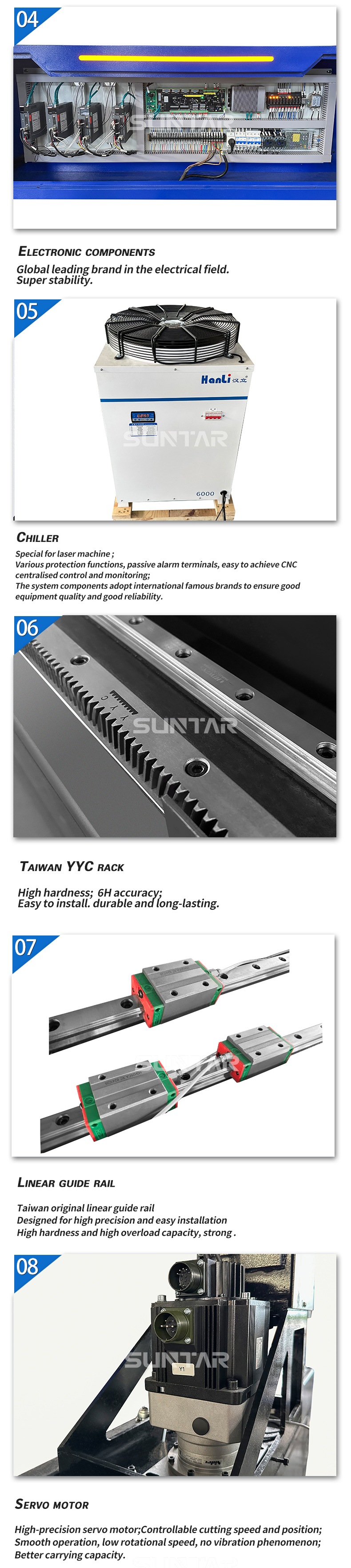

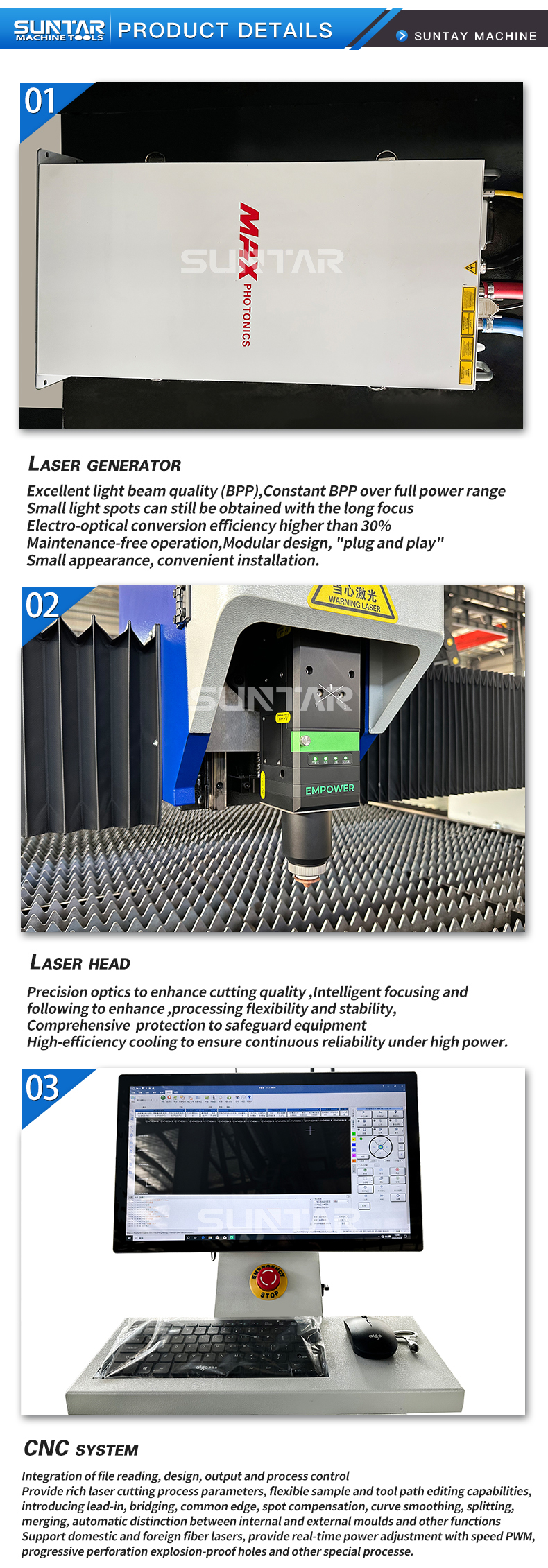

Product Details Display

Frequently Asked Questions

What is the maximum positioning speed of the machine?

The maximum positioning speed reaches up to 120m/min, ensuring high efficiency for industrial processing.

What laser power options are available for these models?

We offer a range of power options including 1500W, 3000W, 6000W, and 12000W to meet different cutting thickness requirements.

Which control systems are used in the machines?

The machines are equipped with industry-leading Raytools or Bochu control systems for precise and stable operation.

What is the positioning accuracy of the workbench?

The axial positioning accuracy is ≤±0.03mm/m, and the repeated positioning accuracy is ≤±0.02mm/m.

Can the processing scope be customized?

Yes, we provide various standard sizes from 3000*1500mm up to 6000*2500mm to accommodate different workpiece dimensions.

What key components are used for the drive system?

The system utilizes high-quality Raynen motors and Japan SHIMPO reducers for superior durability and performance.
