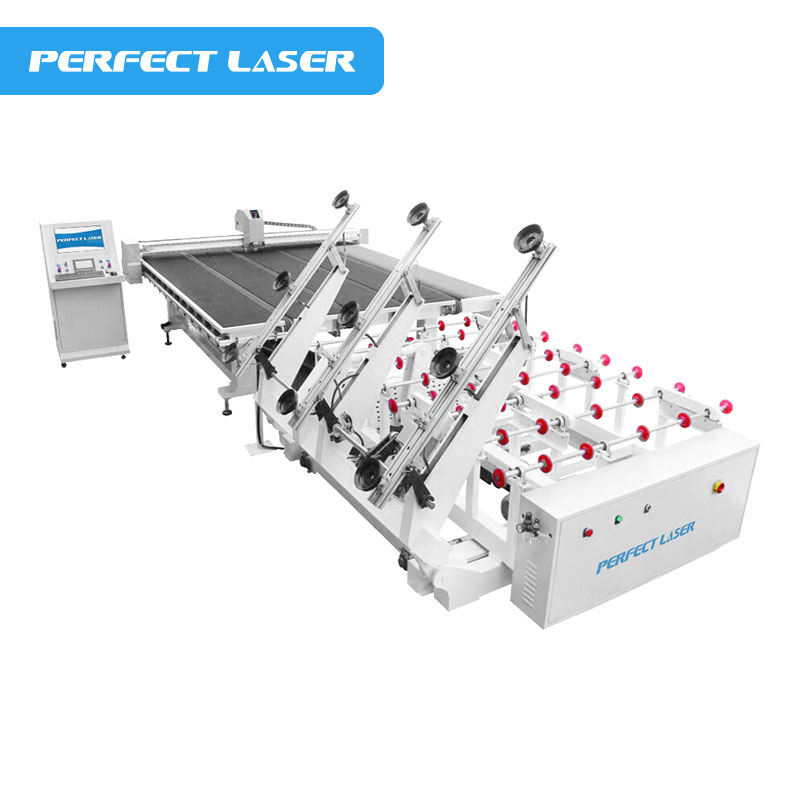

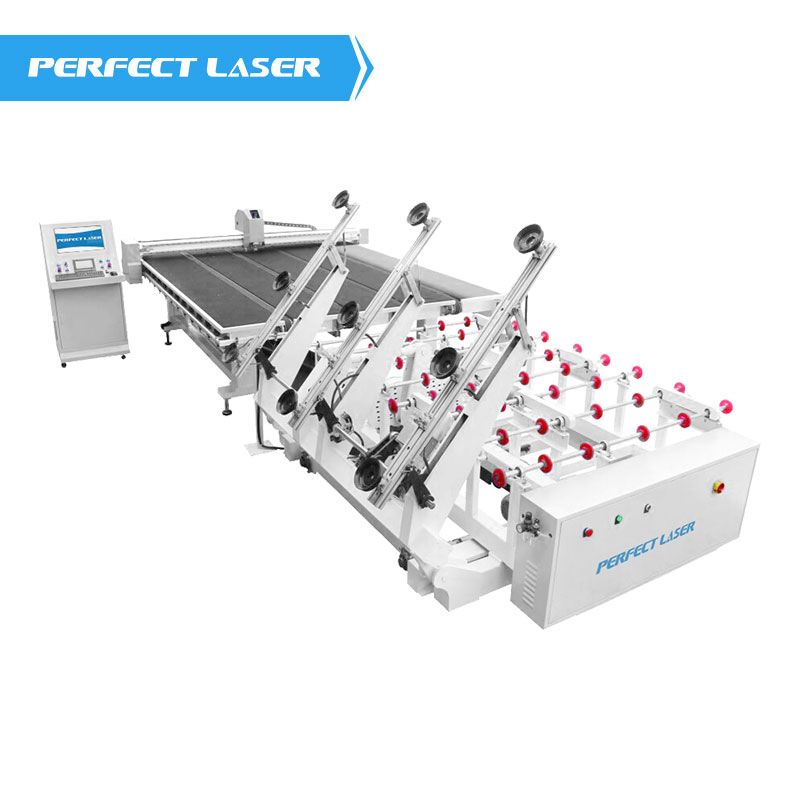

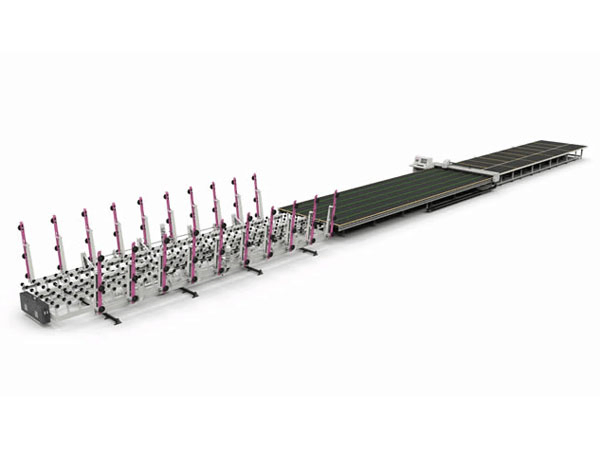

Introducing Italian technology and adopting international processing technology, this high-efficiency automatic large glass cutter is designed for precision cutting. The whole heavy-duty system consists of a single-turn single-station automatic glass lifting and loading table, an automatic glass cutting machine, and a gas floating splitting stage. This solution supports full customization and realizes seamless automatic glass cutting in production lines.
The lifting table utilizes an imported vacuum pump, PLC, and high-end electrical components. With a stable lifting time of 40-60 seconds (adjustable), it handles glass thicknesses from 3-19mm with extreme stability. The cutting system uses imported servo motors and a CNC controller, enabling optimized cutting for various shapes through CAD integration.
Main Features
Glass Lifting & Loading
Mechanical flip with 95-98 degrees adjustable range.
Suction cup expansion up to 150mm for 700mm depth.
Dual sets of glass photoelectric sensors for enhanced safety.
Double-layer adsorption structure to prevent leakage.
Automatic Cutting Unit
360-degree rotating cutting head for any straight or shaped lines.
Waterproof high-density platform panel.
Imported anti-static industrial felt to prevent scratches.
Pneumatic automatic oil injection synchronized with cutting.
Applications & Materials
This equipment is suitable for cutting various linear and special-shaped glass, including electrical appliances, furniture, building curtain walls, hollow laminated rubber, and solar glass.
Technical Specifications
Parameter Item
Loading Table
Cutting Machine
Splitting Table
Max Size
7000x1300mm
7000x1300mm
7000x1500mm
Thickness
3-19mm
3-19mm
-
Speed/Cycle
40-60s per cycle
0-180m/min
1 fan control
Accuracy
-
±0.25mm/m (Linear)
-
Power
8KW / 380V
8KW / 380V
Independent Fan
Training & Commissioning
Comprehensive English operation manuals and training videos are provided. Training covers equipment composition, working principles, computer operations, electronic control systems, and daily maintenance. We offer detailed demonstrations for installation, adjustment, and common malfunction troubleshooting to ensure smooth operation by your team.
Frequently Asked Questions
What is the maximum glass size this machine can process?
The system is designed to handle large-scale glass sheets with a maximum size of 7000 x 1300mm.
What glass thickness range is supported?
The machine efficiently cuts and loads glass with thicknesses ranging from 3mm to 19mm.
How fast is the automatic loading cycle?
The automatic loading table completes a cycle in approximately 40 to 60 seconds, and this timing is adjustable based on production needs.
Can the machine cut irregular shapes?
Yes, the 360-degree rotating cutting head combined with CNC controller and CAD software allows for precision cutting of both straight lines and complex special shapes.
What safety measures are in place for the loading process?
The system features dual sets of photoelectric sensors to prevent induction failure and a double-layer suction cup structure to ensure firm adsorption and prevent accidental drops.
What are the power and air requirements for installation?
The equipment requires a 380V/50HZ power supply and compressed air pressure between 0.3Mpa and 0.6Mpa depending on the specific module.
