Basic Specifications
Model NO.
Automatic fiber laser cutting line
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Free Electron Laser
Laser Technology
Laser Control Fault Cutting
Transport Package
Wooden Case
Specification
5200x2100x1560mm
HS Code
8456901000
Production Capacity
25 Units/Month
Product Introduction

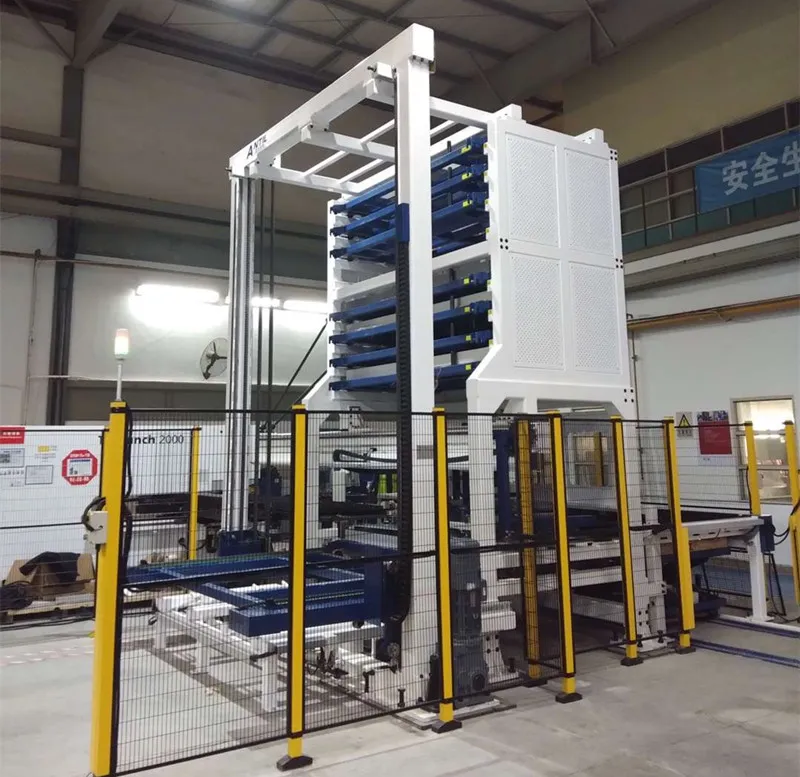

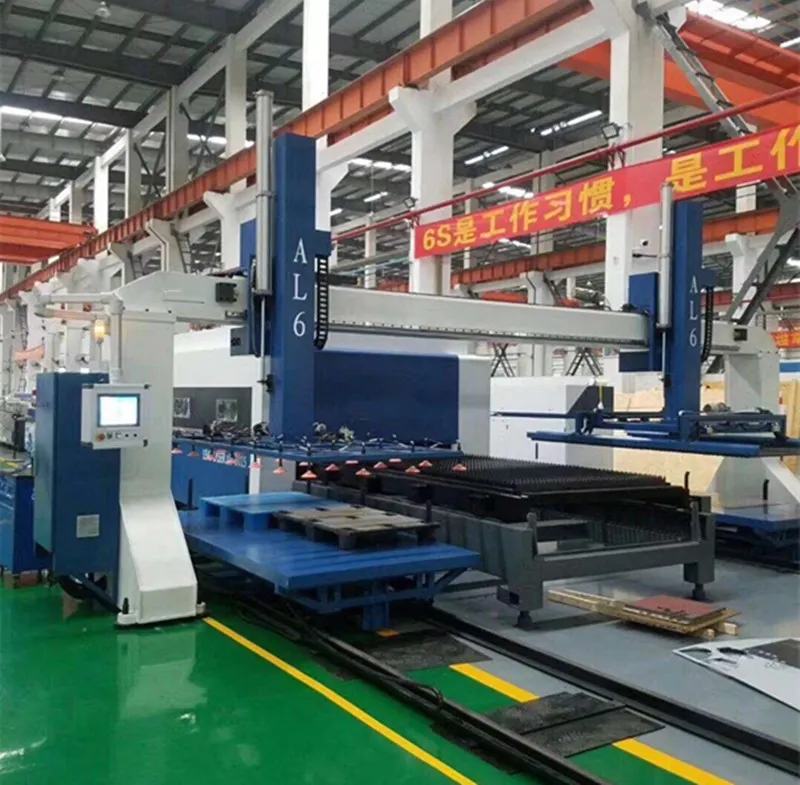

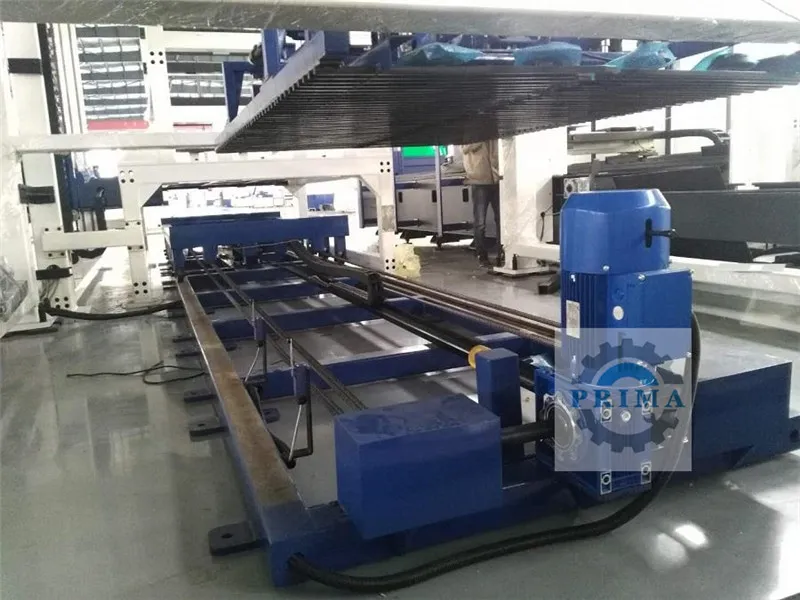

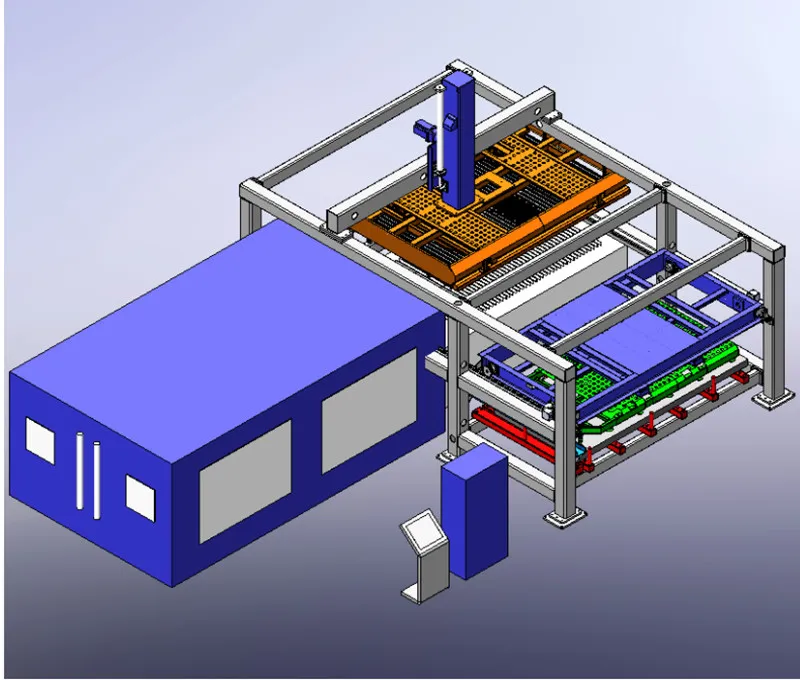

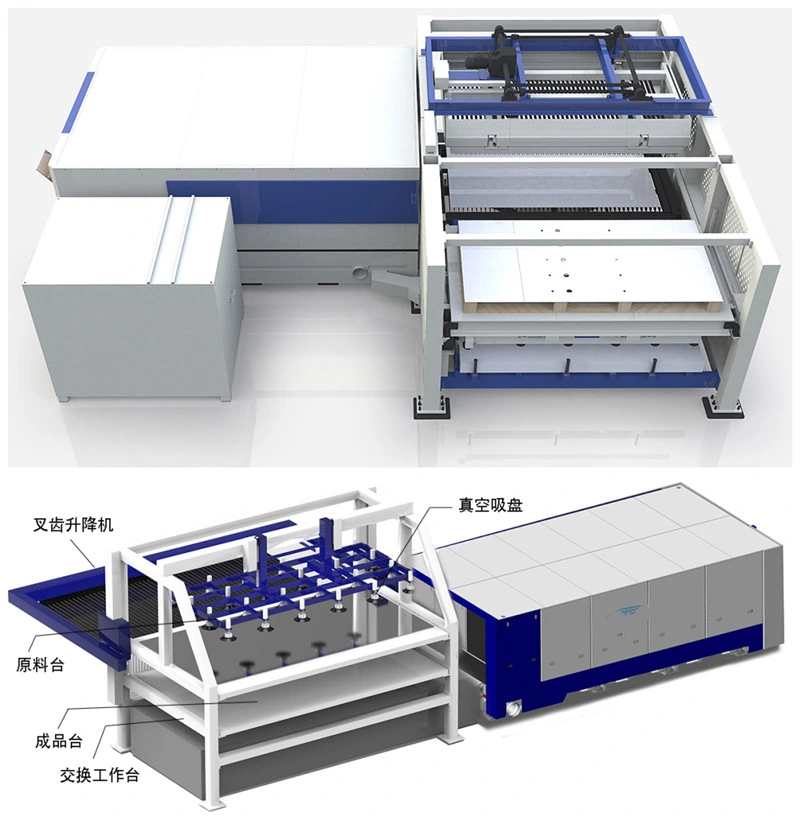

Automatic fiber laser cutting production line is designed for the high-efficiency loading and unloading of sheet metal. This automation system is ideal for 2D laser cutting machines, enhancing productivity and reducing manual labor in metal fabrication processes.
Featuring a high-strength, high-rigidity box-type welding machine frame, the system utilizes high-precision linear guides and a bilateral drive system to ensure extreme accuracy and stability. The integrally cast aluminum beam provides strong rigidity and light weight, allowing for a machine acceleration of 0.6G and a moving speed of 72 m/s.
Key Features & Advantages
⚡
High Efficiency: Photoelectric conversion efficiency can reach 30%, which is twice that of CO2 lasers.
💰
Low Operating Cost: Power consumption is only 20%~30% of traditional CO2 systems. No laser working gas is required, significantly saving maintenance costs.
🎯
Precision Performance: Equipment machining accuracy is maintained within +/- 0.05 mm over long-term operation.
🛠️
Maintenance Free: Optical fiber transmission removes the need for reflection lenses and light path adjustments.
Basic Configuration
| No. |
Description |
Brand |
Origin |

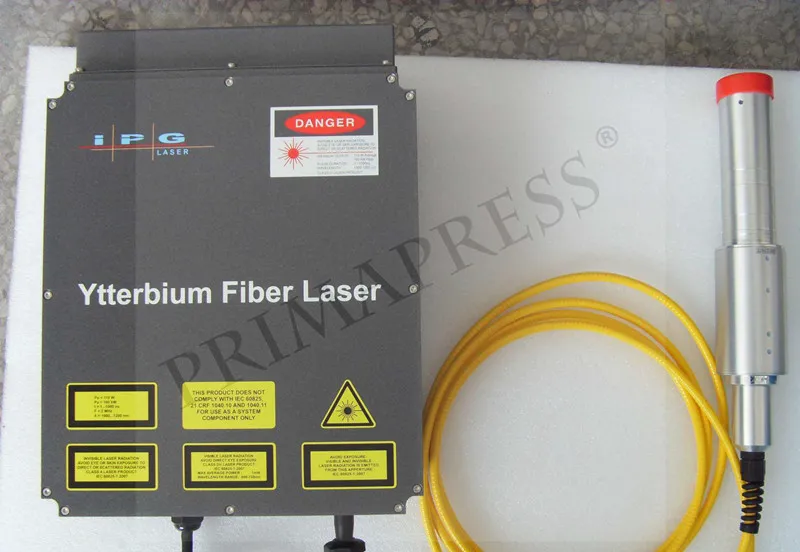

| 5 | Fiber Laser | IPG-700W | Germany |
| 6 | Laser cutting head | RayTools | Swiss |

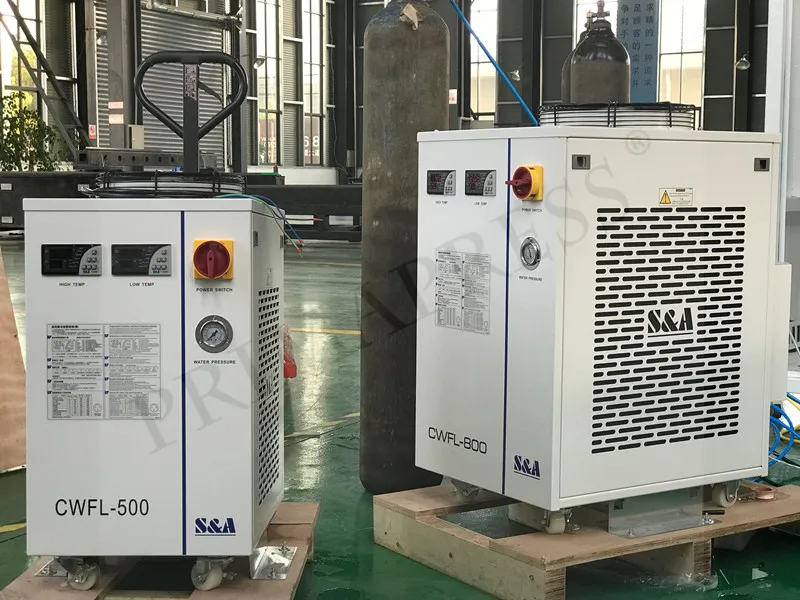

| 7 | Laser chiller | Han's/S&A | China |
| 8 | CNC system | CypCut | China |
| 10 | Servo motor | Schneider | France |
| 11 | Gear rack | YYC / Level 6 | Taiwan |
| 12 | Linear Guide | Hiwin | Taiwan |
| 13 | Precision reducer | Neugar | German |
| 14 | Proportional valve | SMC | Japan |
| 18 | Air cylinder | AirTAC | Korea |
Frequently Asked Questions
Q1: What materials can this fiber laser machine cut?
A: It is professionally used for cutting thin sheet metal, including 0.5~10mm carbon steel, 0.5~4mm stainless steel, aluminum alloy, galvanized sheet, silicon steel, and titanium alloy.
Q2: What is the benefit of the automatic loading/unloading system?
A: The automation system allows for continuous production with minimal manual intervention, significantly improving processing capacity and safety.
Q3: How accurate is the cutting process?
A: Thanks to the high-precision linear guides and gantry double drive structure, the machine maintains a machining accuracy within +/- 0.05 mm.
Q4: Is the laser maintenance-free?
A: Yes, the use of optical fiber transmission means there are no reflection lenses to adjust, and the international first-class quality of the fiber laser ensures long service life without frequent maintenance.
Q5: What is the energy efficiency of this system?
A: The photoelectric conversion efficiency can reach up to 30%, which significantly reduces power consumption compared to traditional CO2 laser systems.
Q6: Is the operation software user-friendly?
A: Yes, the CNC system is concise and easy to operate, requiring minimal training for the operator. It supports multiple graphic input formats and powerful editing functions.
