Datum Machine
Datum Machine
| Model | LEA-DS4020-T |
| Machine bed | Square tube welding |
| Gantry structure | Aluminum |
| Working area | 4000*2000mm |
| Overall dimensions | 8300*3900*2000 |
| Overall weight | 4500kg |
| Guiderail | THK/PEK/HIWIN |
| Laser head | Raytools/Precitec |
| Laser source | IPG/Raycus/MAX |
| Servo motor and drive | YASKAWA/FUJI |
| Control system | Cypcut/WEIHONG |
| Chuck | Dysonbot |
| Clamping Range | 20-220mm(320/350) mm |
| Max linkage speed | 100m/min |
| Max acceleration | 1.5G |
| Positioning accuracy | 0.03mm |
| Repositioning accuracy | 0.02mm |
| Laser power | 1KW-6KW |

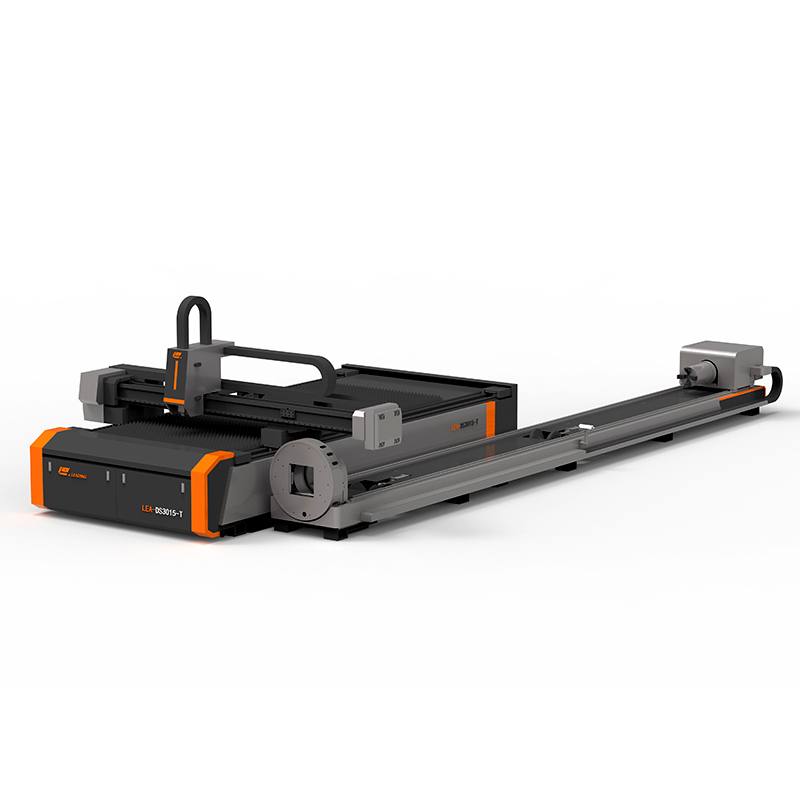

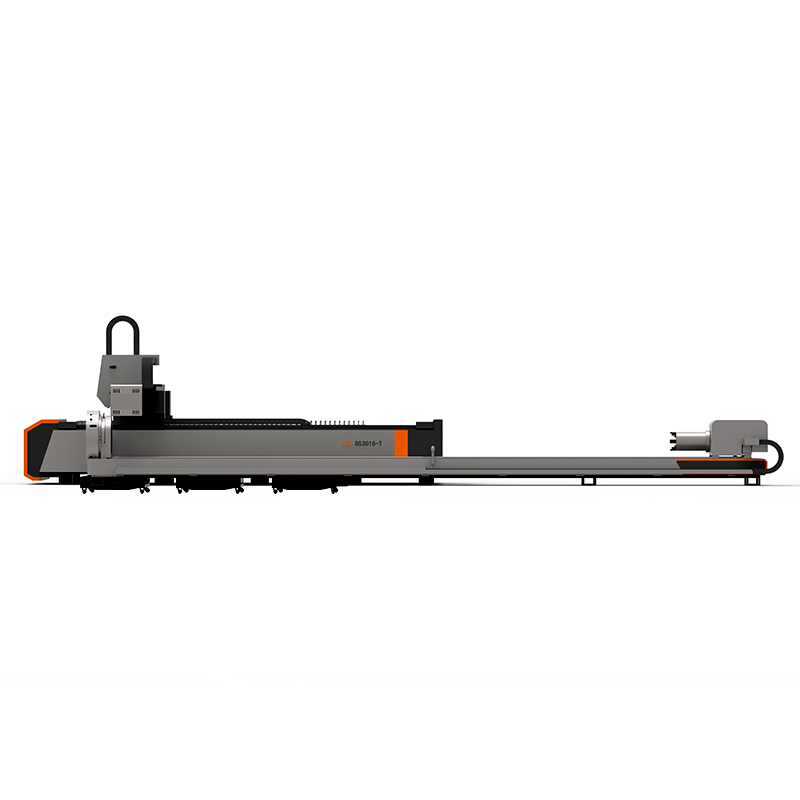

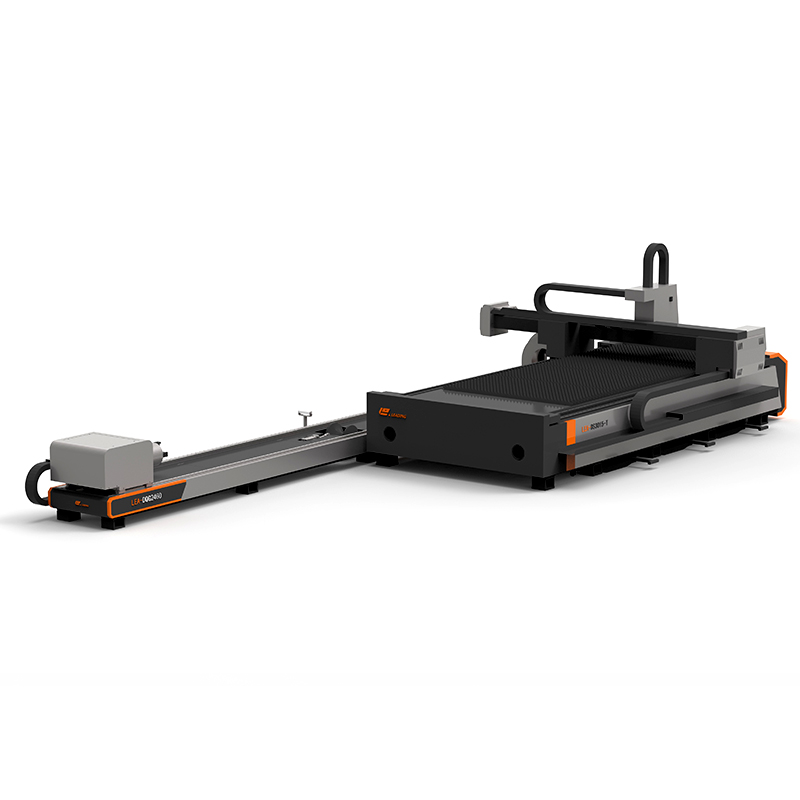

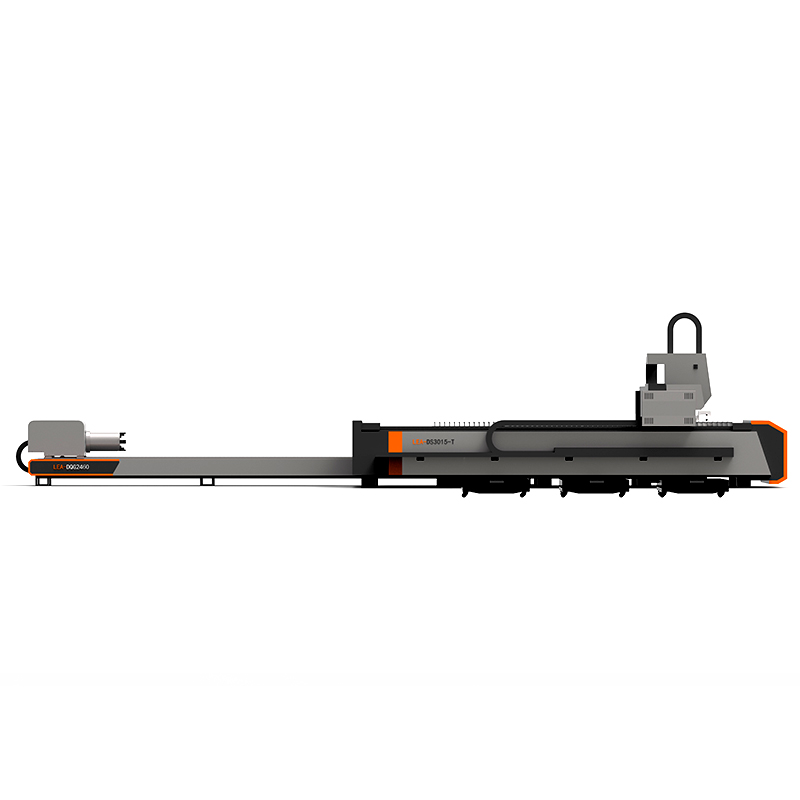

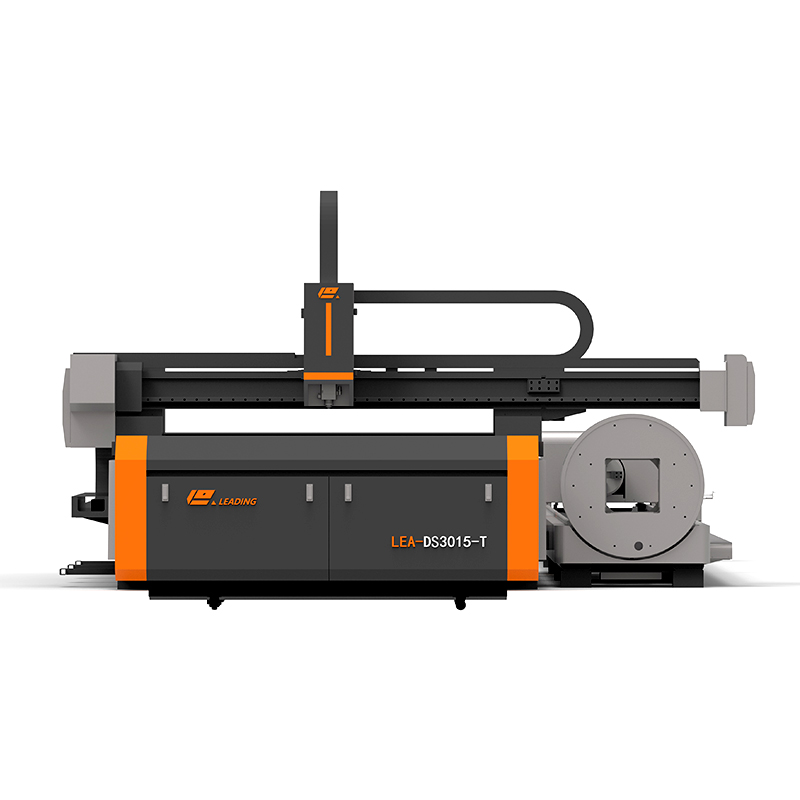

The double-use function saves both investment cost and floor space. It processes both metal sheets and various metal tubes, greatly improving workshop productivity.
Auto-Focus Laser Head: Adjusts focus automatically to shorten perforation time and improve cutting speed. This system ensures high-quality results without manual intervention.
Intelligent Chuck System: Features one-click opening and automatic centering. The diagonal adjustable range is 20-220mm (300mm diameter available upon customization). The design avoids sagging and prolongs service life.
Flexible Laser Options: Choose from industry-leading brands including IPG, Raycus, MAX, or Reci with power outputs ranging from 1000W to 4000W based on your needs.
High-Performance Motion: Equipped with FUJI or Yaskawa servo motors. Acceleration from -3000r/min to 3000r/min takes only 6-7ms, ensuring a compact construction with low weight.
Precision Components: Installation accuracy for guide rails (PEK/THK/HIWIN) and racks (T-WIN/YYC) is controlled at 0.03mm to ensure smooth gantry operation and cutting precision.
Heavy-Duty Bed: Thick-walled steel pipe welding with 600° annealing for stress relief. This rigid structure minimizes deformation and vibration for long-term accuracy.
Intelligent Control: A stable, reliable, and feature-rich system designed for ease of use across various industrial processing occasions.
