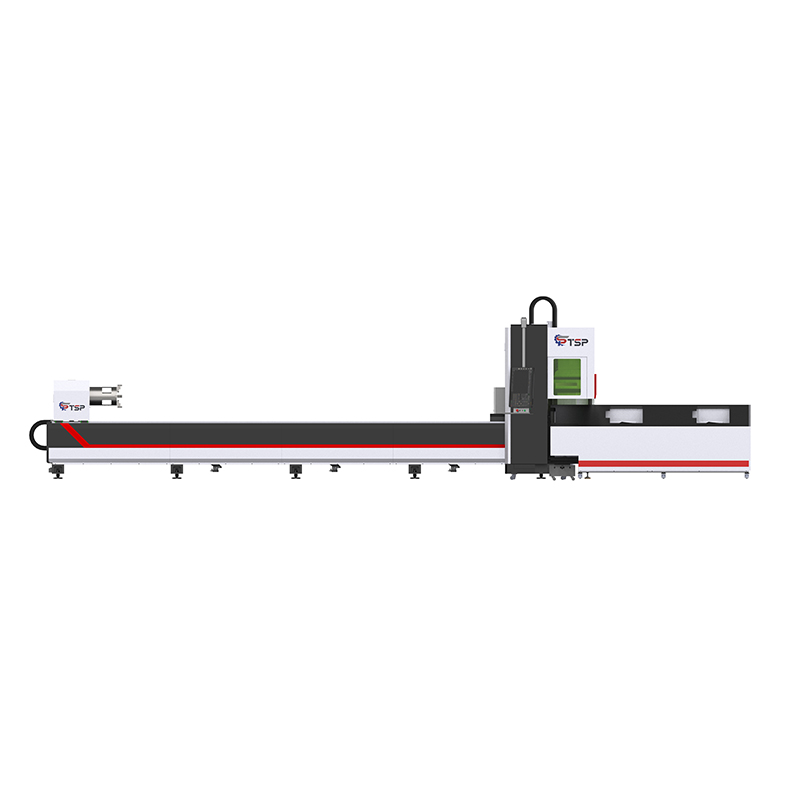

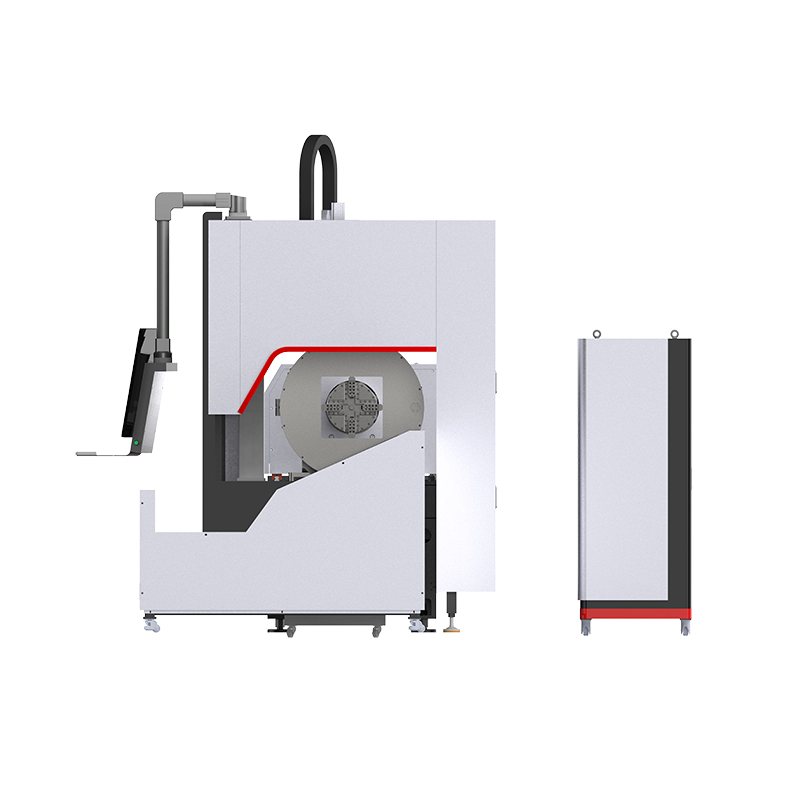

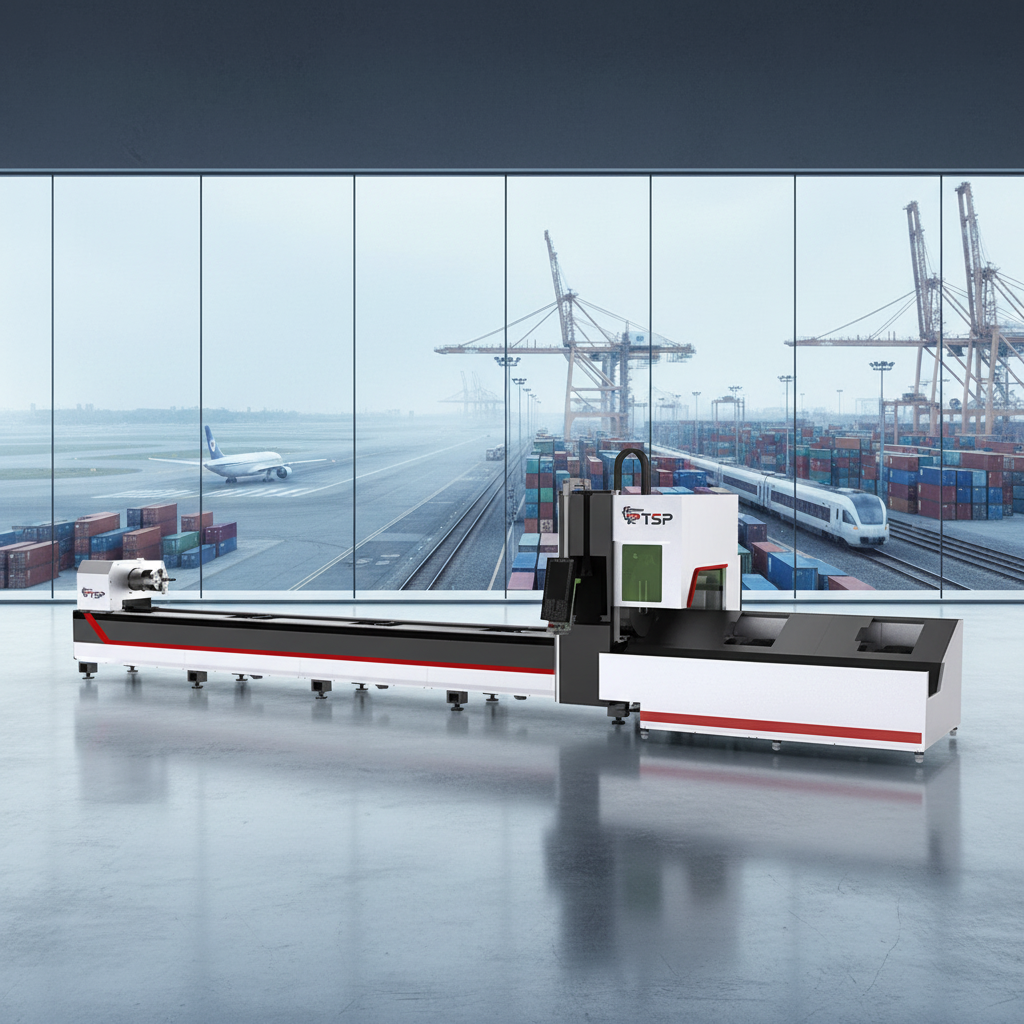

T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter
T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter
T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter
T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter
T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter
1 / 5
T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter
T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter
T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter
T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter
T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter

T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter

Send Inquiry

Product Description

T6035 Automatic Loading Fiber Laser Tube Cutting Machine 6000W 12000W 20000W Metal Pipe Cutter

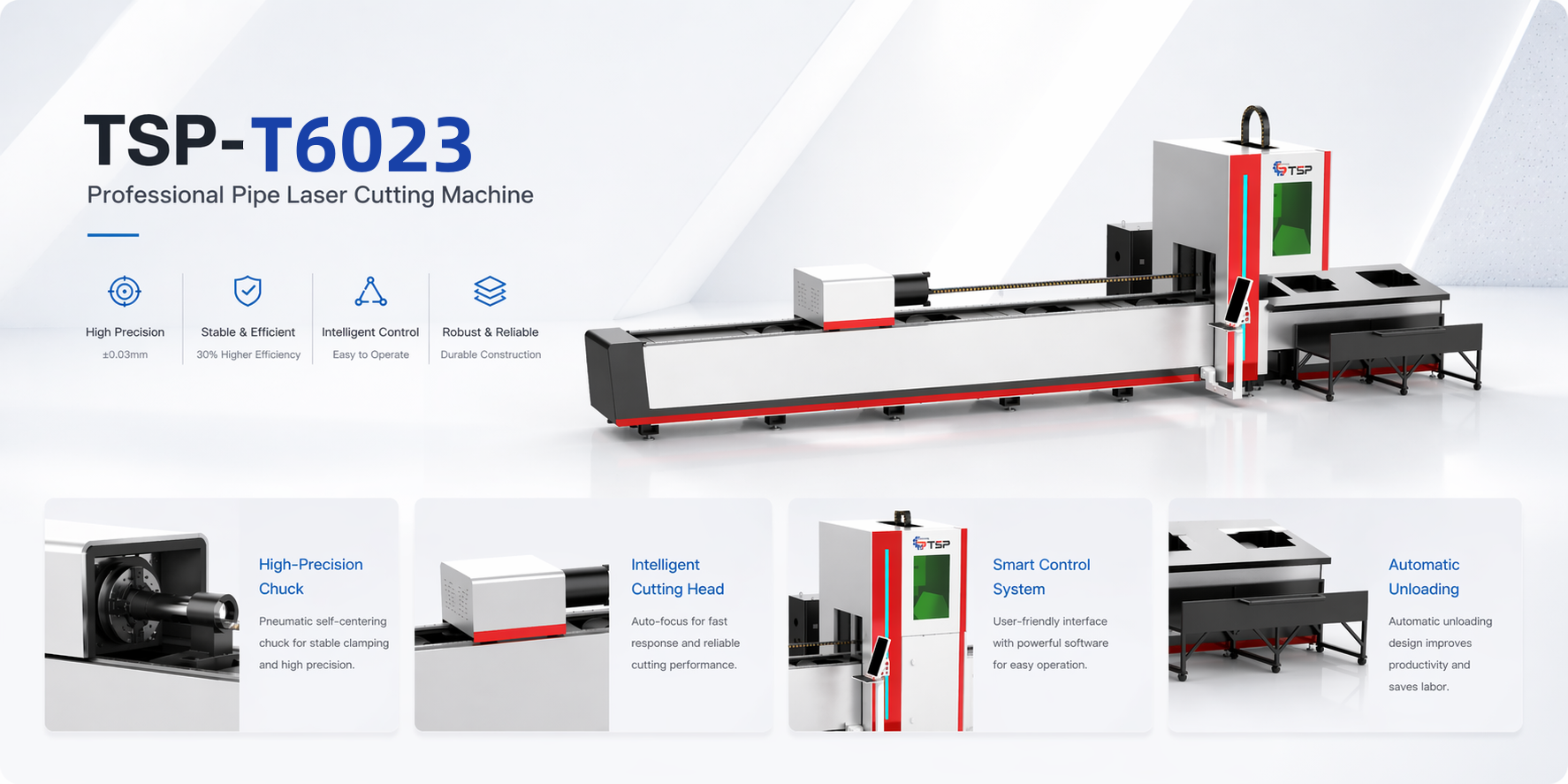

Laser Tube Cutting Machine

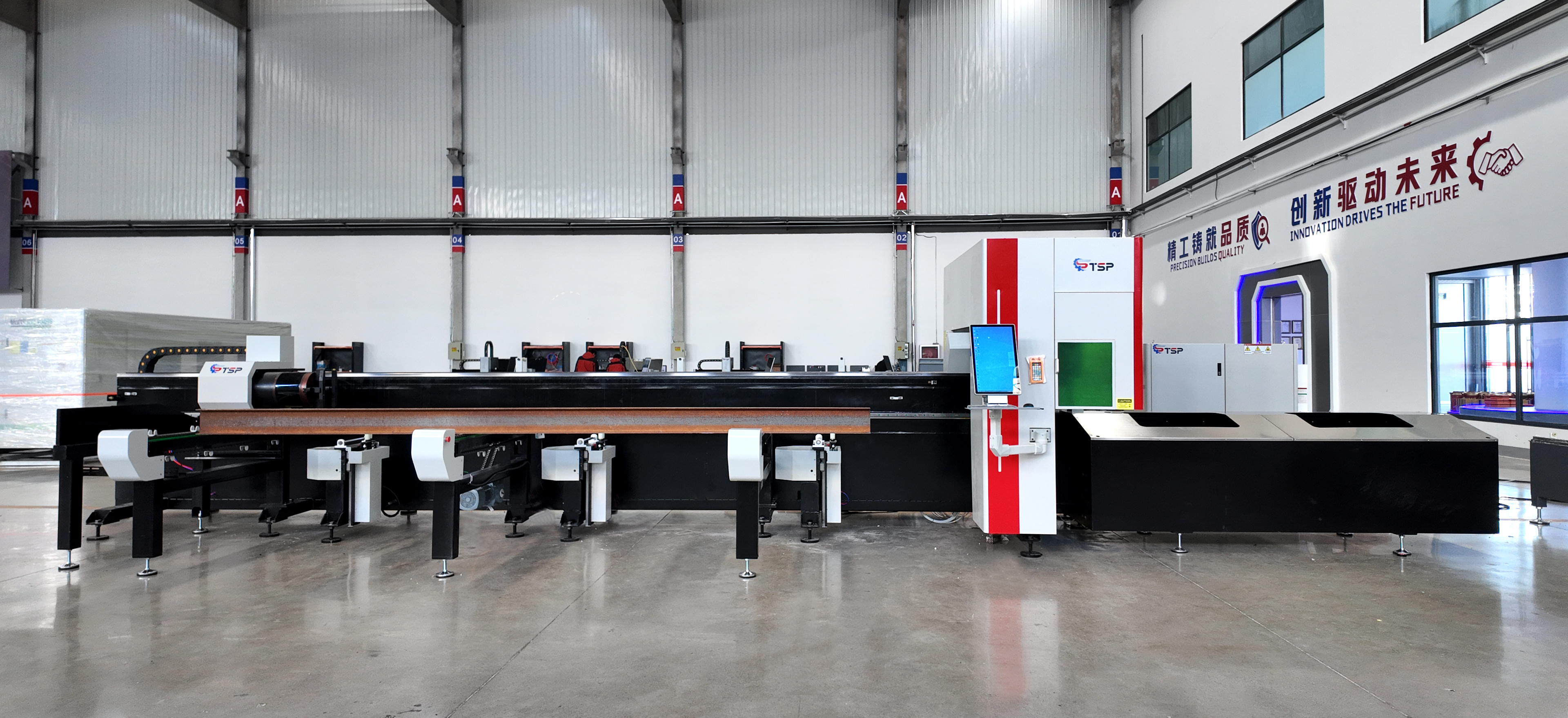

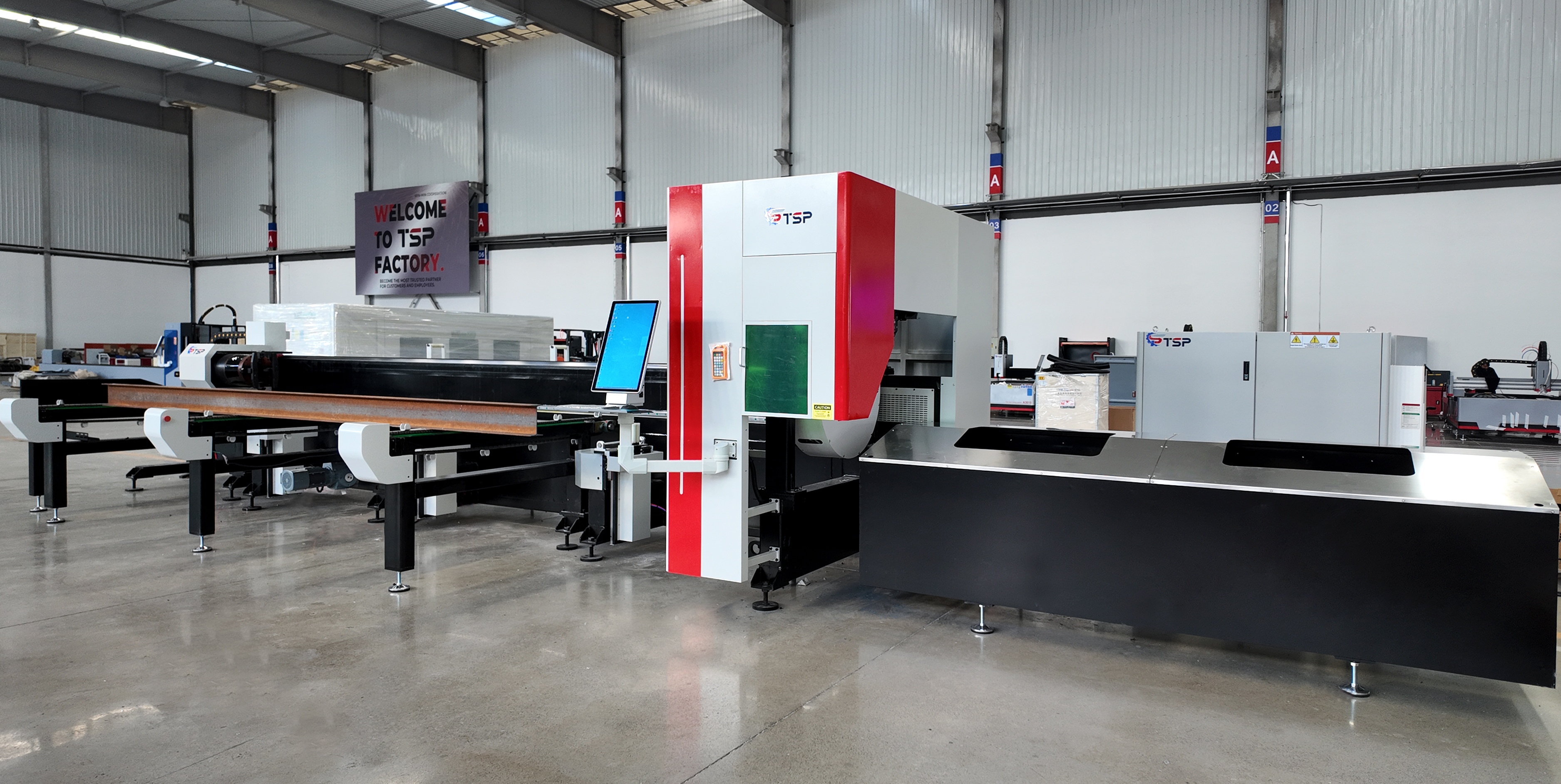

Cutting Detail 1 Cutting Detail 2
TSP supports customized models and continuously upgrades its products to help improve enterprise productivity and manufacturing efficiency.
  • Wide pipe clamping range: Supporting round tubes (φ10mm to φ360mm) and square tubes (10×10mm to 350×350mm). Compatible with I-beams, channel steel, angle steel, and special-shaped pipes.
  • Unique industrial structural design: Outstanding stability and vibration resistance. The compact 650mm chuck spacing ensures stable high-speed operation.
  • Pipe fixing system: Effectively solves deformation issues during the cutting of long pipes for accurate processing.
  • Professional cutting software: High precision data analysis for efficient cutting performance across different pipe types.
  • Automatic lubrication system: Manually set intervals for guide rails, sliders, and gears, with waste oil recycling for easier maintenance.

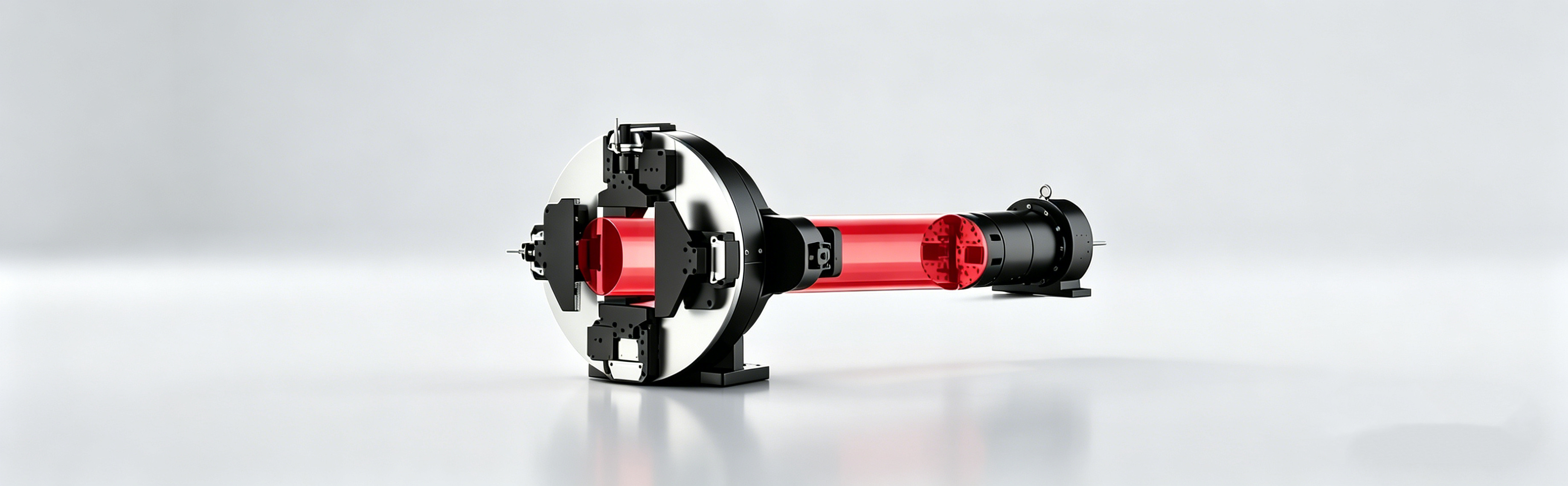

Machine Structure

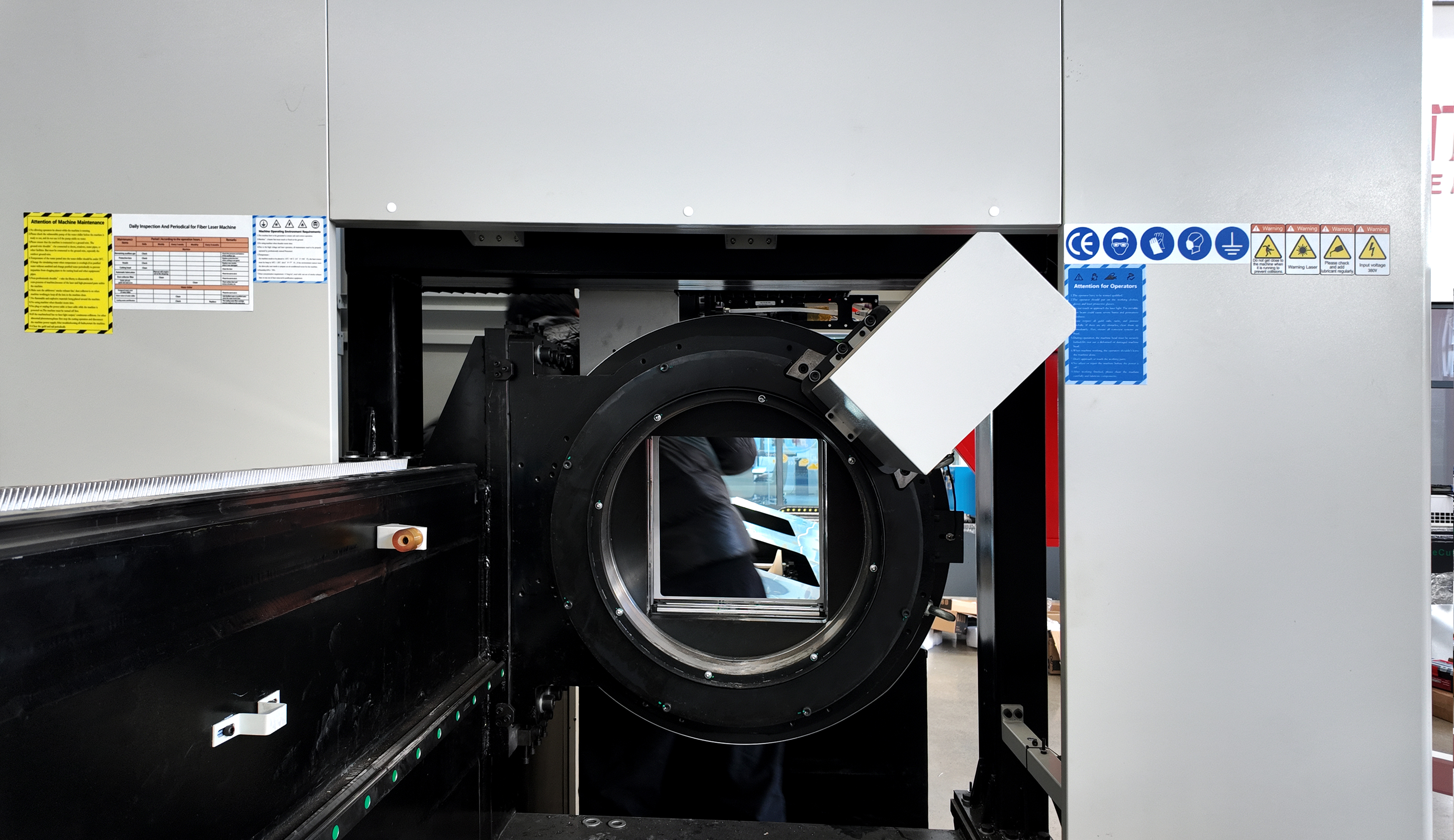

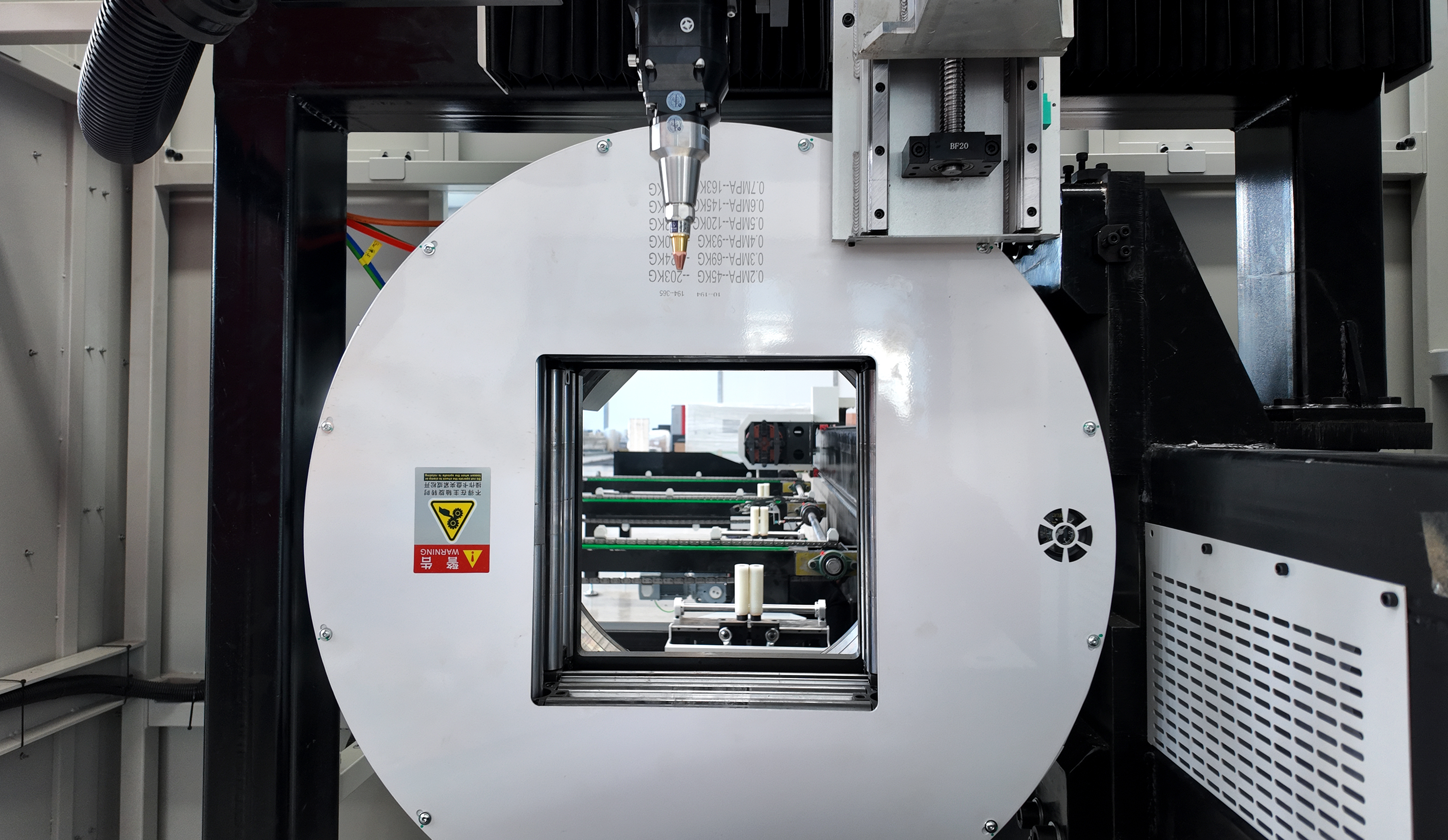

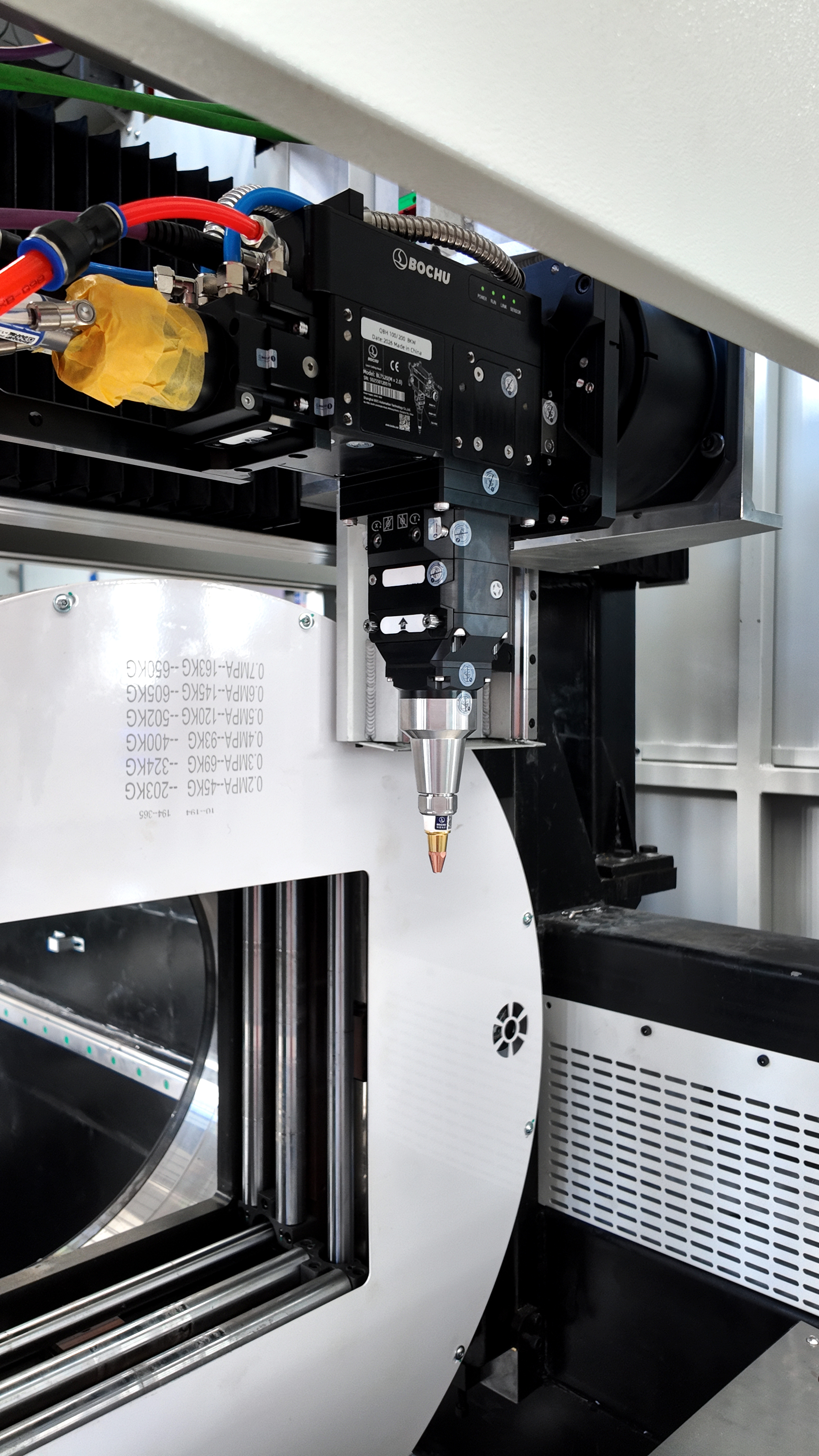

Pipe Processing Laser Head
Product Introduction
The T6020 metal tube laser cutting machine is designed for high-efficiency cutting of round, square, and special-shaped metal tubes. Processing Range: 6500mm length with diameter from φ10 to 160mm. Power Range: 1kW to 20kW. These machines are widely used in rail transportation, automobile manufacturing, engineering machinery, furniture, and pipeline industries.

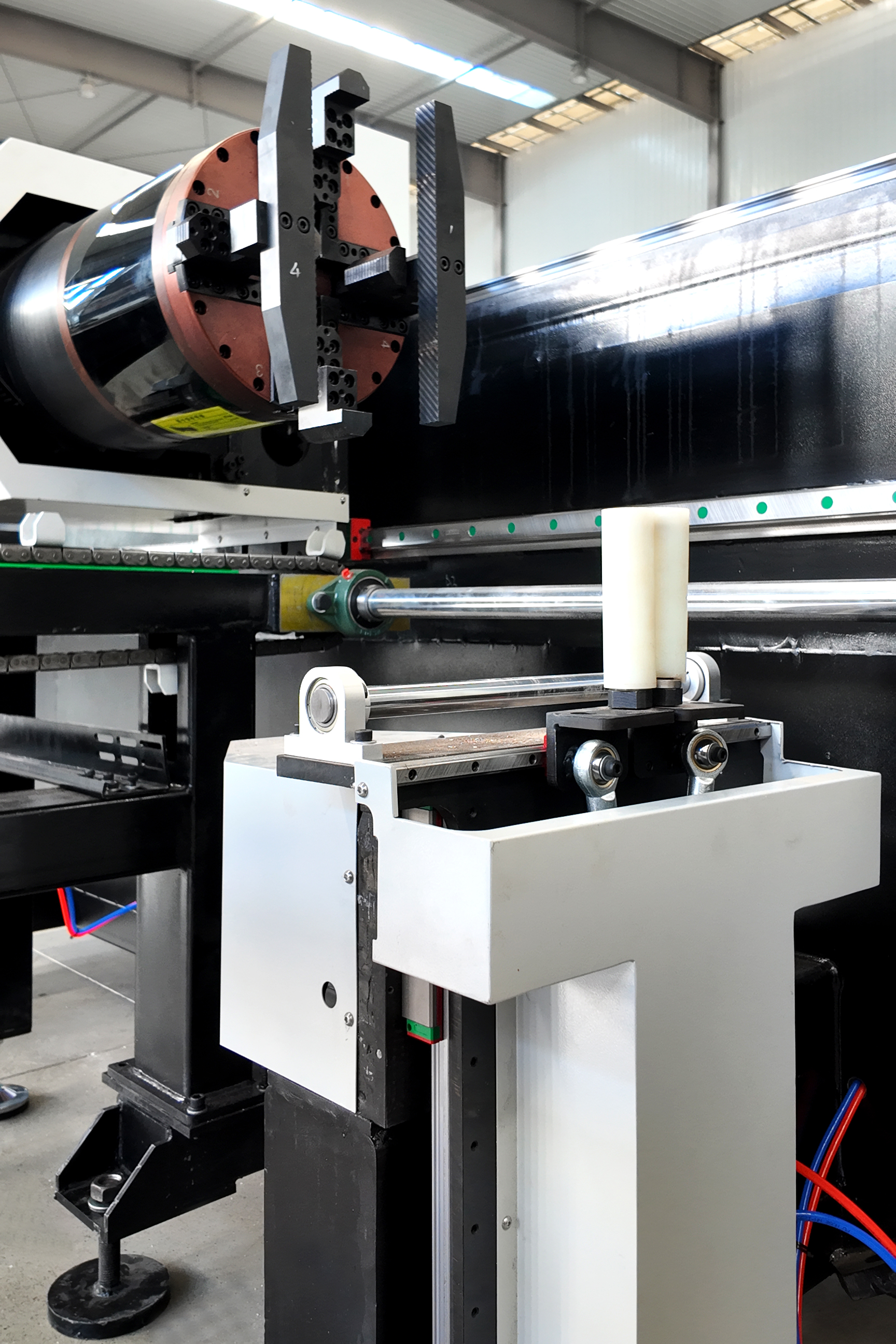

Workshop Production Machine Assembly
Global Distributor Recruitment
1. Proven Standard Models
10 years of market validation, supporting up to 12kW laser power with stable structural performance.
2. Fast Delivery
Mass production capacity of 60–70 machines per month. Standard models delivered in as fast as 7 days.
3. High Cost Performance
Factory-direct pricing ensuring strong market competitiveness and higher profit margins.
Technical Parameters
ModelFiber laser cutting pipe machine
Tube length6000mm
Maximum diameter10-245mm
Fiber power1500W - 20000W
Laser wavelength1064nm
Cutting accuracy± 0.05mm
Repeated positioning accuracy± 0.03mm
Maximum operation speed40 meters/minute
Auxiliary gasAir, Oxygen, Nitrogen
Working Voltage380V/50Hz
Certification
Quality & Certifications
Our laser systems are engineered to meet the highest international standards, including CE, RoHS, and EAC certifications. Verified by TÜV, every machine undergoes 24 rigorous tests followed by a 48-72 hour reliability run to ensure exceptional performance in industrial environments.

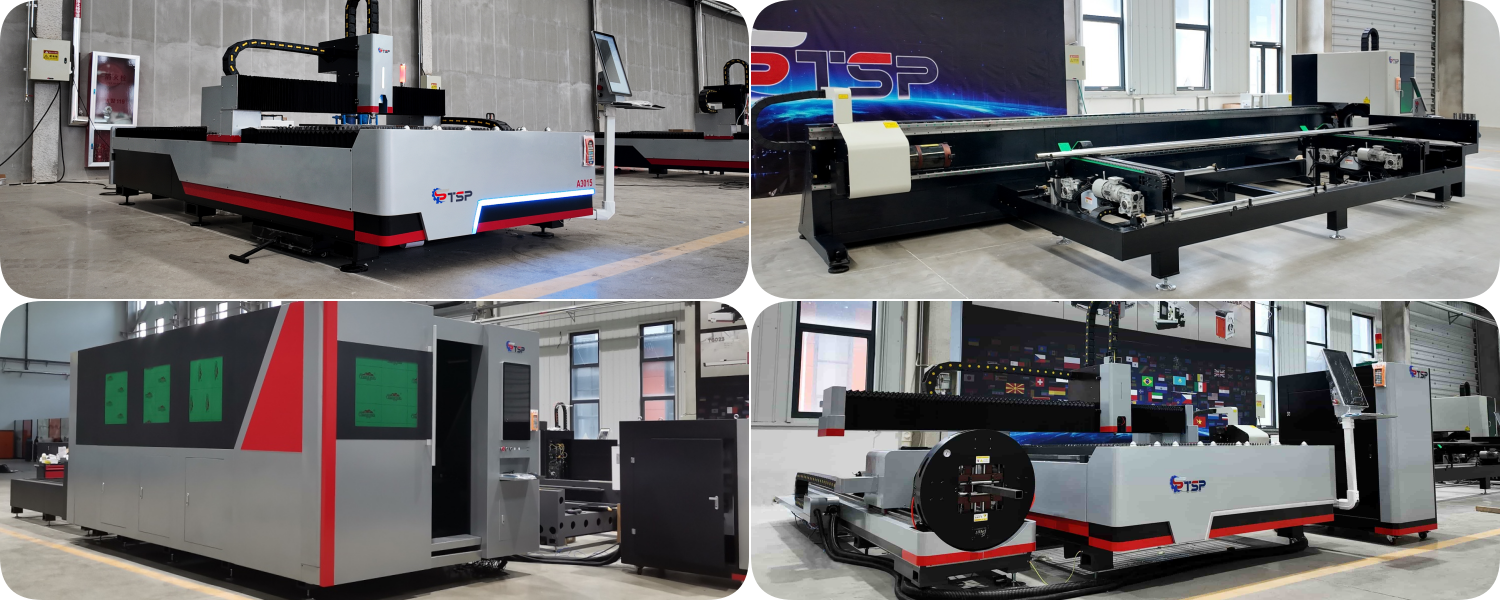

Exhibition Display Customer Visit
Freight & Packaging
  1. Professional cleaning of the fiber laser cutting machine.
  2. Parts wrapped with bubble and plastic film.
  3. Secure fixation with iron frames.
  4. Sealing in fumigated plywood wooden boxes.
  5. Optimized shipping routes (Ocean, Train, or Road) to ensure machine safety.
Shipping Logistics
Frequently Asked Questions
Q: How do I choose the most suitable laser tube cutting machine? A: Please provide your material type, dimensions (length/diameter), and maximum thickness. We will recommend the best model based on these specifications.
Q: What is the maximum pipe length that can be processed? A: The standard model supports 6-meter pipes. We also offer customization for lengths ranging from 2 meters up to 12 meters.
Q: Does the machine support 3D beveling or special shapes? A: Yes, an optional 3D cutting head is available. The system also features automatic compensation for pipe ovality defects up to ±1.5 mm.
Q: What software and file formats are compatible? A: Our professional pipe cutting software supports all major CAD formats, including DXF, DWG, STEP, and IGES.
Q: How is the machine quality controlled before shipping? A: Every machine undergoes 24 functional tests and a 48-72 hour continuous reliability test. All machines are CE certified.
Q: What after-sales support do you provide? A: We offer a three-year warranty (excluding consumables), free factory training, complete video tutorials, and 24/7 online technical support.
