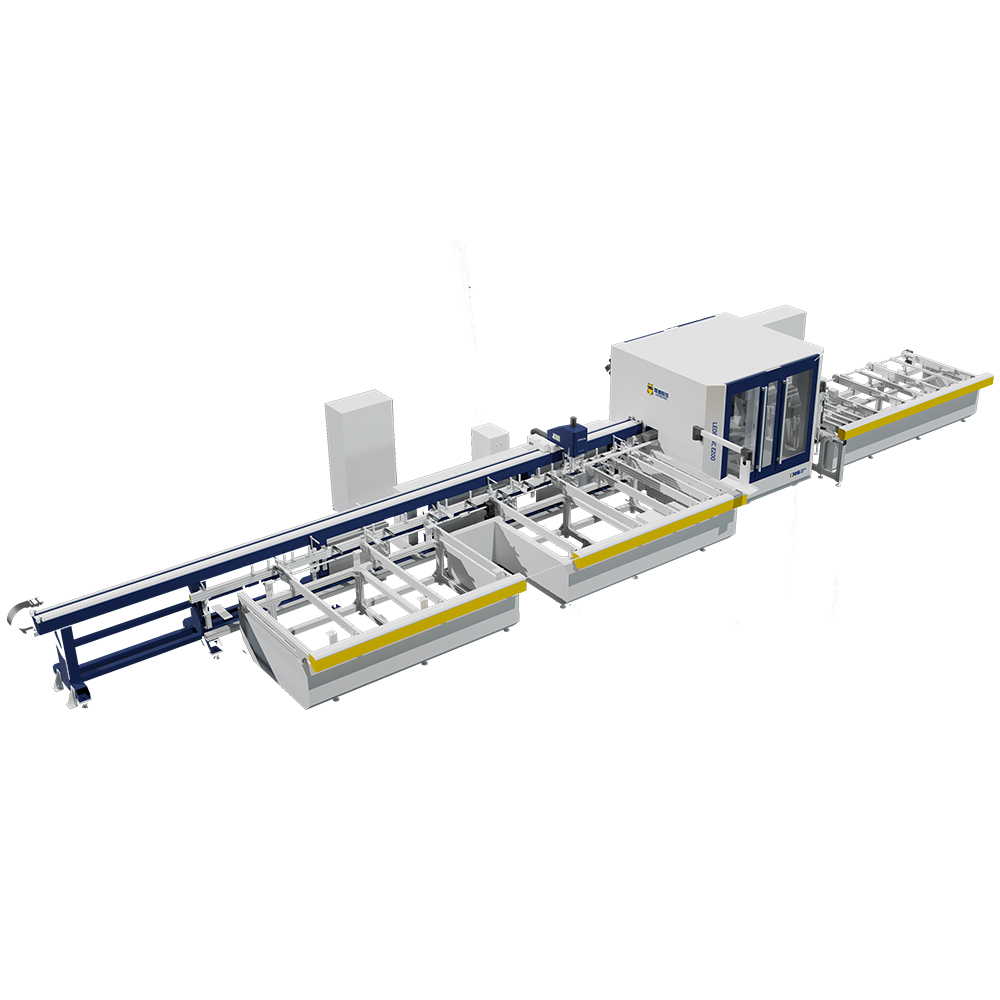

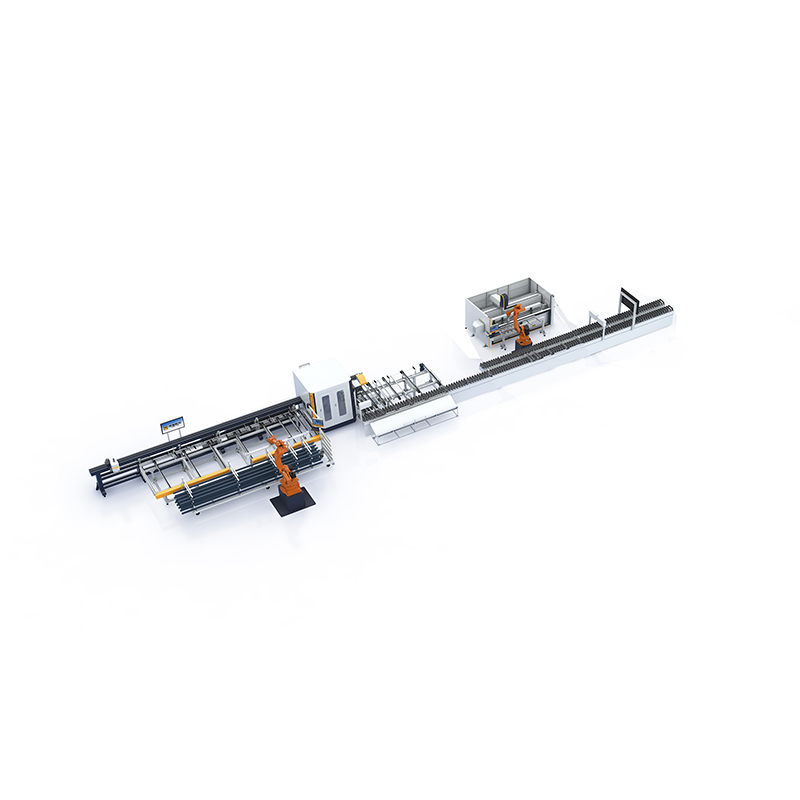

Professionally used for cutting, milling, laser drilling, and marking of aluminum profiles with simultaneous multi-direction processing.
High Efficiency: Features 3 fixed-angle saw blades with servo feed for high smoothness and productivity.
Magnetic levitation high-speed feeding combined with full closed-loop data feedback for maximum precision.
Equipped with 3KW direct-coupled motors, offering 30% higher efficiency than standard 2.2KW alternatives.
Intelligent Operation: Automated feeding, cutting, and discharging; identifies profile data and adjusts parameters automatically.
Versatile Integration: Supports direct docking with ERP software like Klaes, Jopps, and USB/Network data import.
Technical Specifications
Parameter
Value
Sawing length
300~7000mm
Sawing width
150mm
Sawing height
150mm
Maximum speed of manipulator
100m/min
Cutting accuracy
±0.1mm
Sawing angle
45° / 90°
Robot maximum speed
180m/min
Milling accuracy
±0.05mm
Cutting surface flatness
≤ 0.10mm
Machine size
17500×5500×2500mm
Weight
8900kg
Main Component Configuration
Electrical Element
Brand
Origin / Remark
Control system
PA
Germany
Servo motor / Driver
Mitsubishi
Japan
Reduction gear
APEX
Taiwan
Push button switch
Muller
Germany
Travel switch
OMRON
Japan
Terminal block
WEIDMULLER
Germany
Guide rail
HIWIN
Taiwan
Screw / Ball screw
PMI
Taiwan
Fiber laser - Punching
1500W- CHUANGXIN
China
*Note: In case of insufficient supply, equivalent quality brands will be substituted.
Detailed Gallery
Frequently Asked Questions
1. What types of profiles can this machine process?
It is professionally designed for cutting, milling, and laser drilling of aluminum profiles with a width and height of up to 150mm.
2. How accurate is the cutting and milling process?
The machine achieves a high cutting accuracy of ±0.1mm and a milling accuracy of ±0.05mm, ensuring superior quality for complex joints.
3. Can the machine integrate with industrial ERP software?
Yes, it supports seamless online docking with various ERP software such as Klaes, Jopps, Mendaoyun, and others for streamlined production data.
4. Does the machine require highly skilled operators?
No, it features a "fool-like" operation mode with high automation. A general worker can handle feeding, cutting, and discharging after basic training.
5. What is the benefit of the laser processing unit?
The laser system allows for high-efficiency drilling and marking. Power is automatically adjusted based on wall thickness to ensure perfect cutting and engraving quality.
6. How is maintenance handled for this equipment?
The system includes a standard tool life management system and automatic maintenance reminders. Remote service functions are also available for training and troubleshooting.
