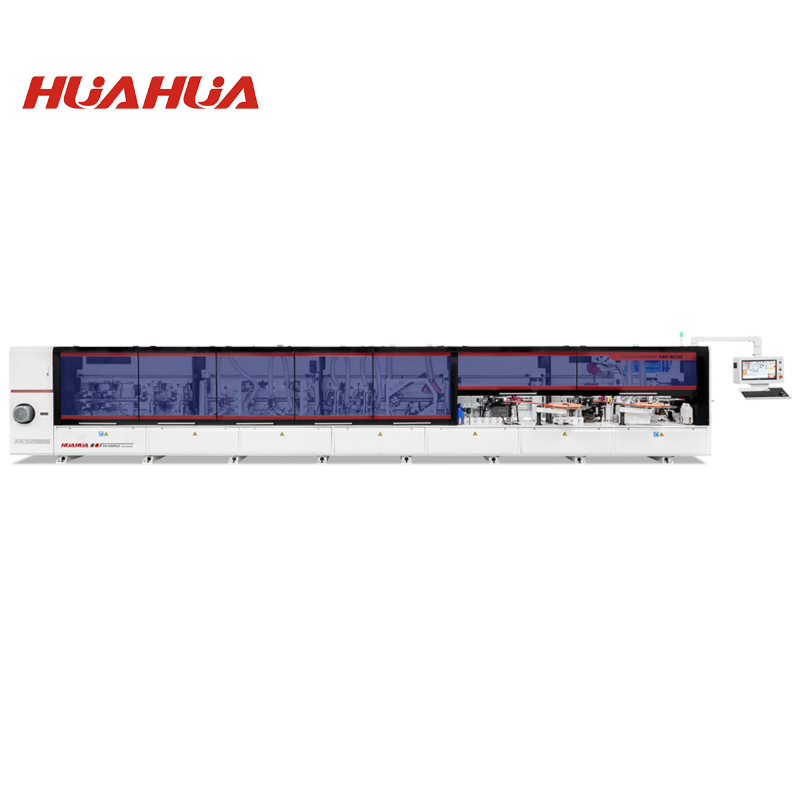

Datum Machine
Datum Machine

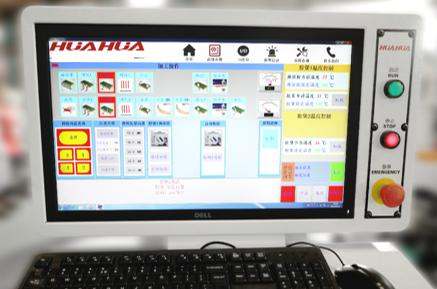

The human-computer interaction is simpler, the large screen has a large field of view, the interface is clearer, and it is easy to operate and use. The standard is English and Chinese language systems, and minor languages can also be customized according to customer needs. It can remotely control the computer, monitor the working status of the computer, and the after-sales processing is more convenient and faster.

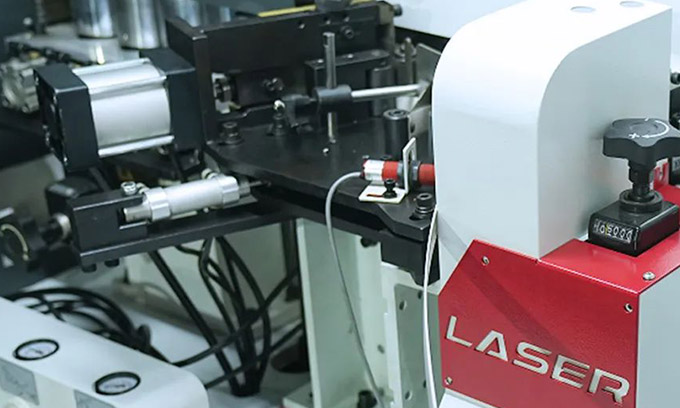

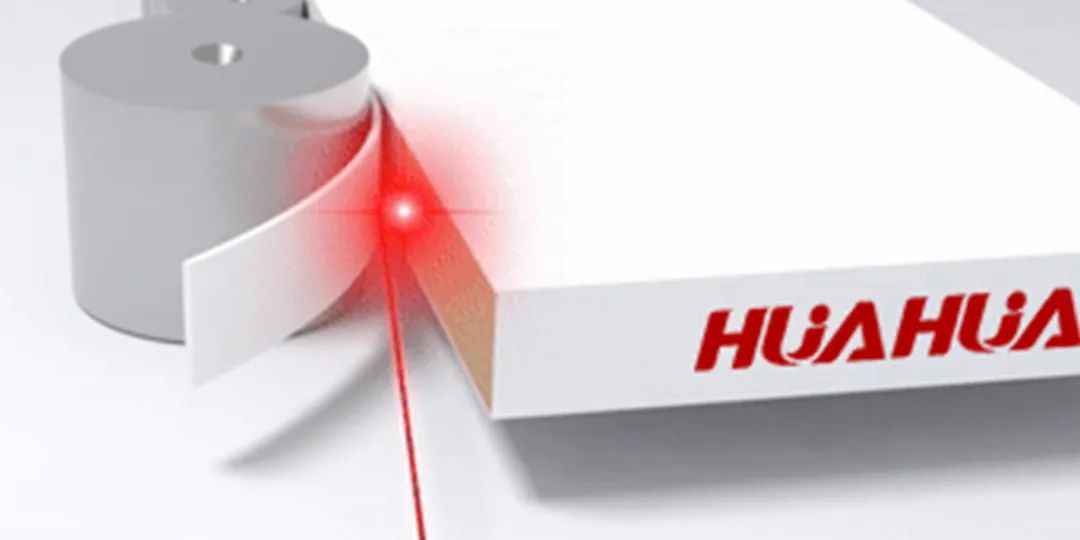

The edge band used is pre-coated with glue and activated by laser, so there is no need to replace the glue and save the time of sol.
Laser edge sealing/EVA/PUR device and fast sol are perfectly matched with one-key switching, flexible and convenient operation, multi-purpose.

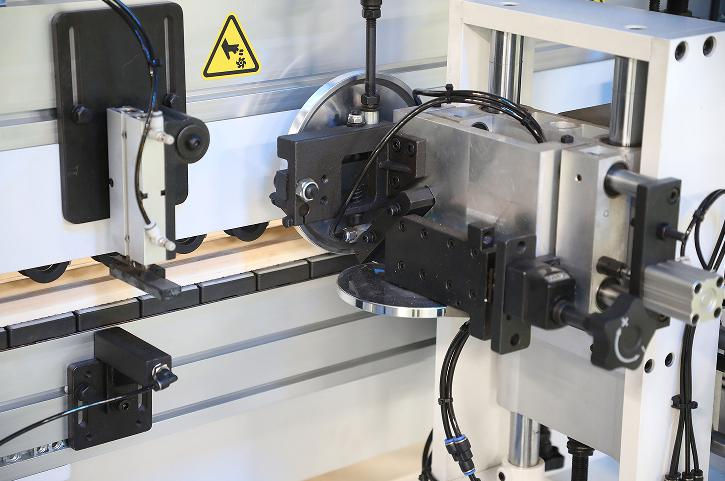

0.37 kW (0.5 HP); 12000 rpm; saw blades Z 30 D-104 x 22 x 3.2 mm, Two motors up & down moving by sliding rails. Quickly cut the front and rear edge banding tape, and the two saw blades are matched before and after to achieve high precision and high efficiency.

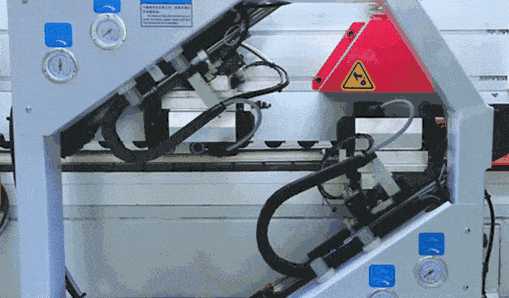

Corner rounding unit for soft and postforming workpieces for the processing of the ends of the panel with 0.4-3.0 mm edge material and 10-40 mm workpiece height. With 4pcs 0.37kw motors and 4pcs 6 teeth R2 cutters (3mm thickness edge belt will use R3).

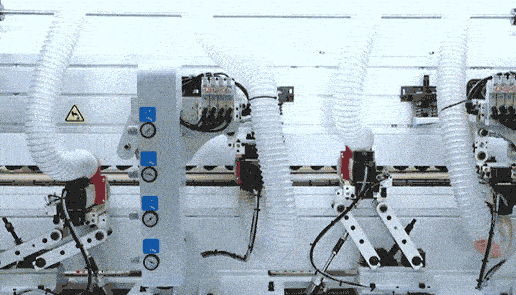

Improve the life of the motor, ensure that the edge banding wire will not enter the buffing motor and the conveying motor, greatly improving the service life of the motor.
| Panel length | ≥120mm | Feed rate | 20-23-26m/min( laser panel 35-60mm only can process low speed) |
| Panel width | ≥95mm | Total power | 31.8kw |
| Panel thickness | 10-60mm | Working pressure | 0.65mpa |
| Edge width | 13-63mm | Size | 11700*1100*1800mm |
| Edge thickness | 0.4-3.0mm 0.8-3.0mm(laser) | Weight | 5000kg |
