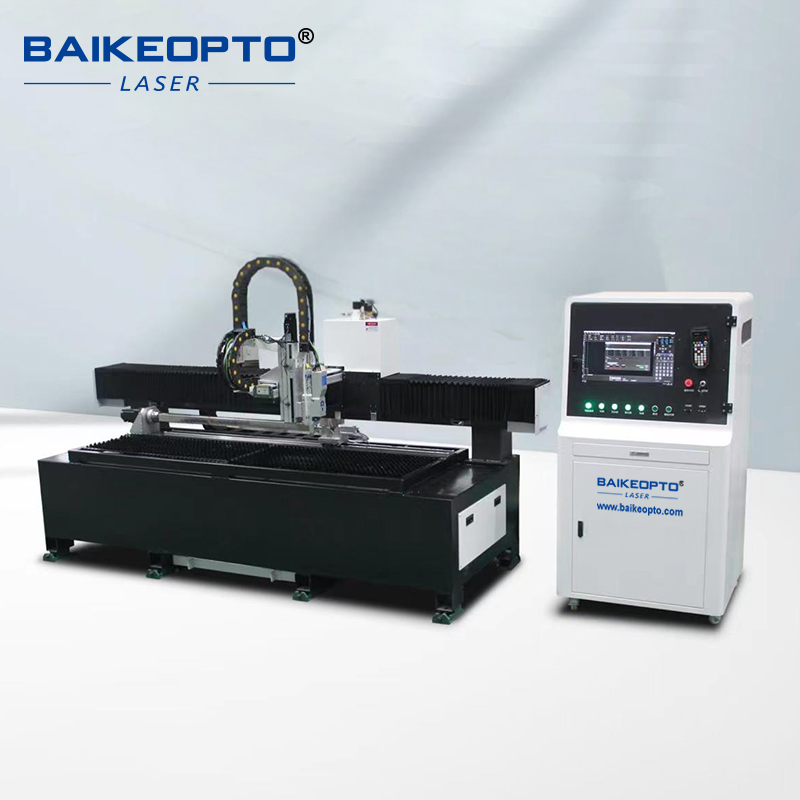

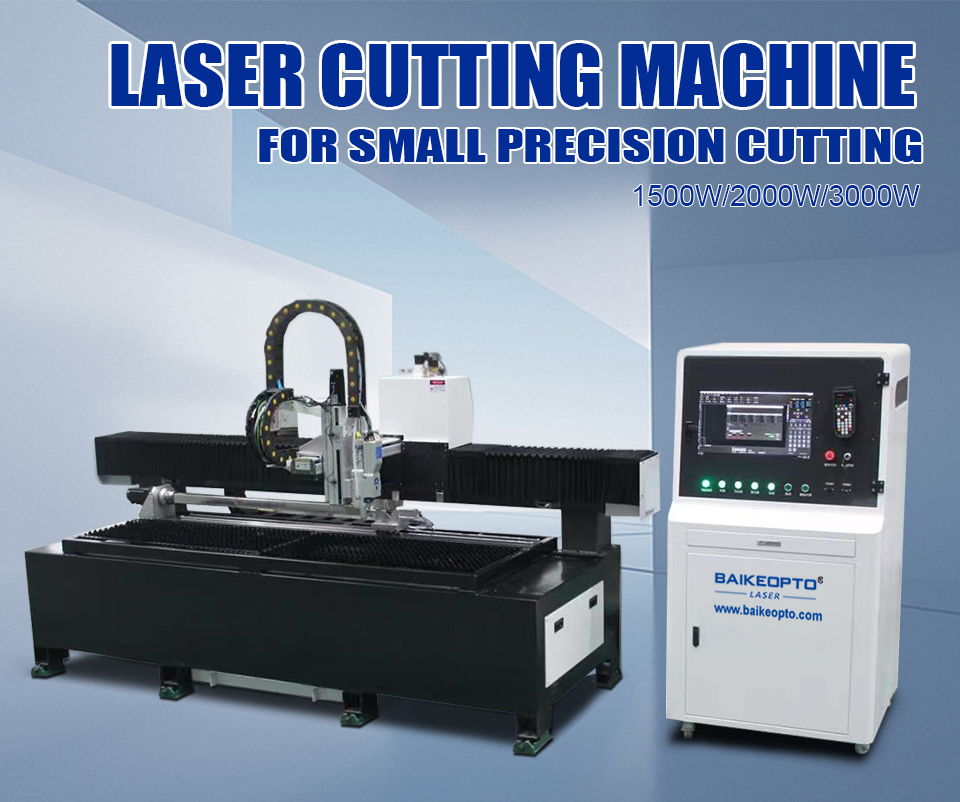

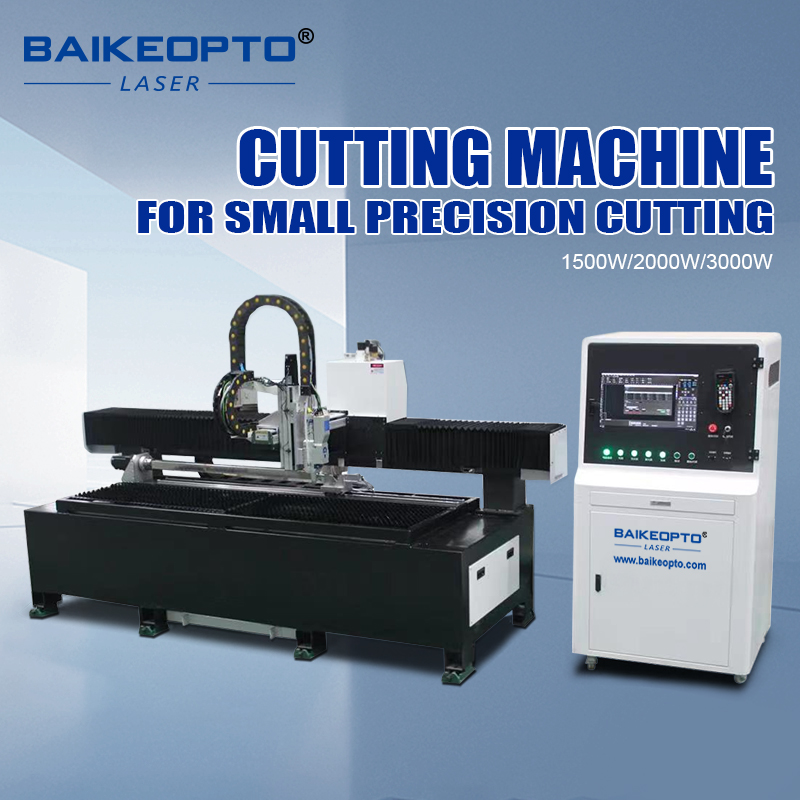

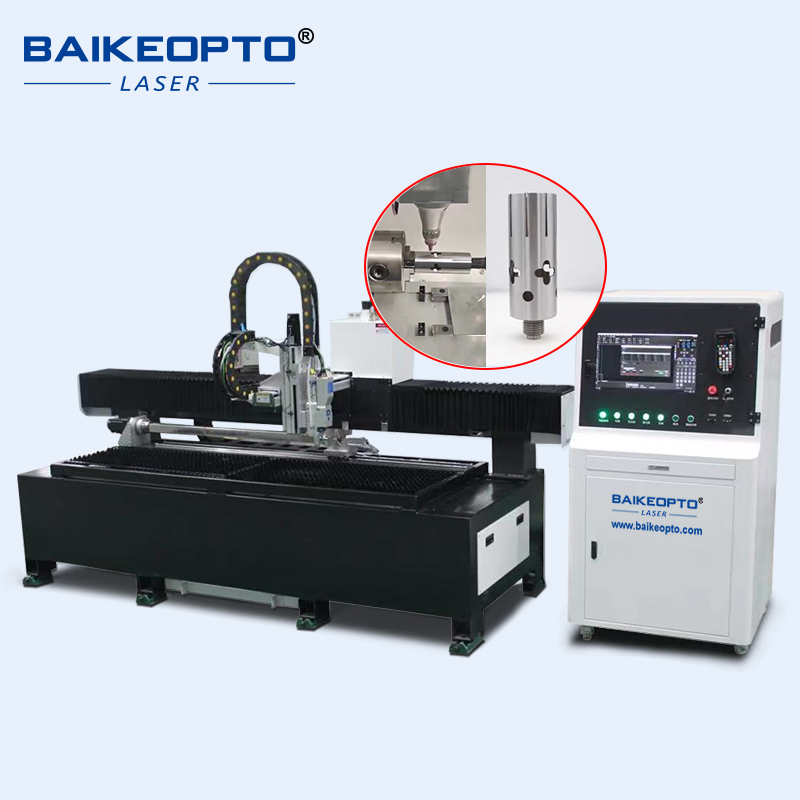

The small flat plate fiber laser cutting machine is a highly efficient, precise and cost-effective integrated cutting and hole cutting machine. Its cutting accuracy and speed are both higher than those of the ordinary standard flat plate laser cutting machine. It is mainly suitable for small and precise cutting, featuring all the advantages and functions of unique flat plate cutting. With an integrated design that serves two purposes in one, it can process both plates and pipe fittings. Customizable installation fixtures and clamps can be used to fix short pipe fittings, enabling drilling and cutting of various small pipe fittings.

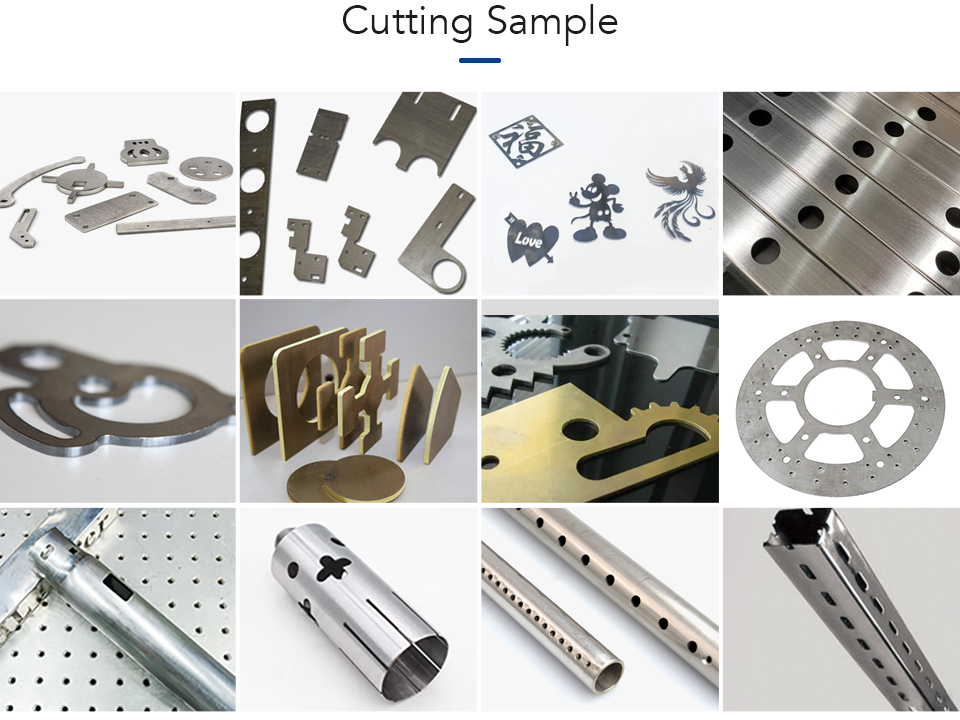

It is mainly used for high-speed cutting and punching of various thin metal sheets and small pipe fittings, especially suitable for stainless steel, aluminized zinc plates, silicon steel, alloy steel, copper, square tubes, round tubes and other metal materials. It is widely applied in various thin metal sheet metal processing, kitchen and bathroom, panel processing, auto parts, handicrafts, hardware products and other metal processing industries.

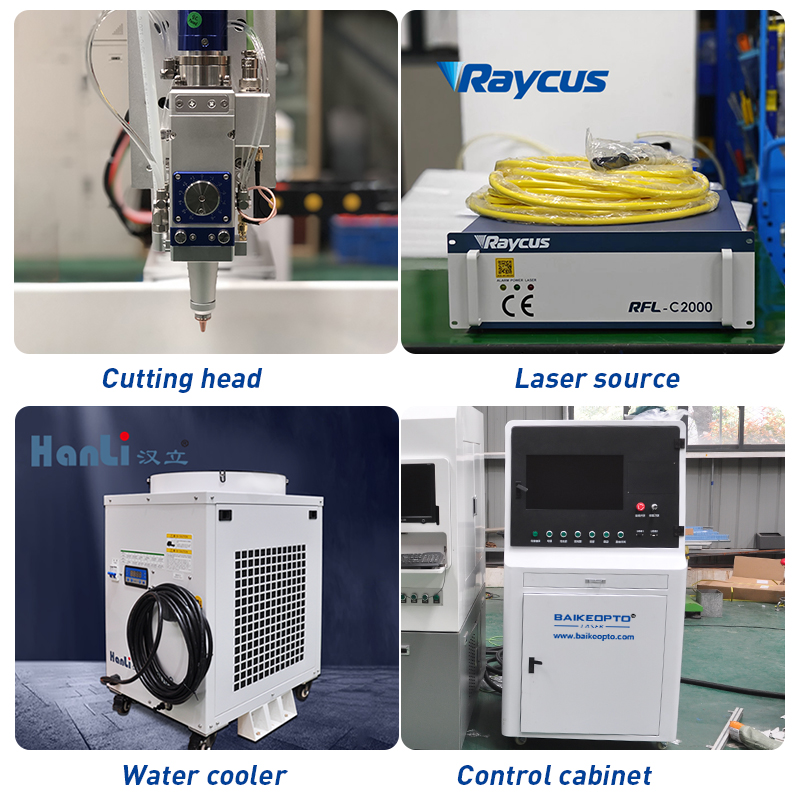

| Name | Unit | Quantity | Brand |
|---|---|---|---|
| Laser source | set | 1 | Raycus |
| Laser cutting head | set | 1 | WSX |
| Water cooler | set | 1 | Hanli |
| PLC system | set | 1 | Standard Tech |
| AC servo motor | set | 4 | Inovance |
| Ball Screw | piece | 3 | TBI |
| Linear Guide | piece | 3 | Hiwin |

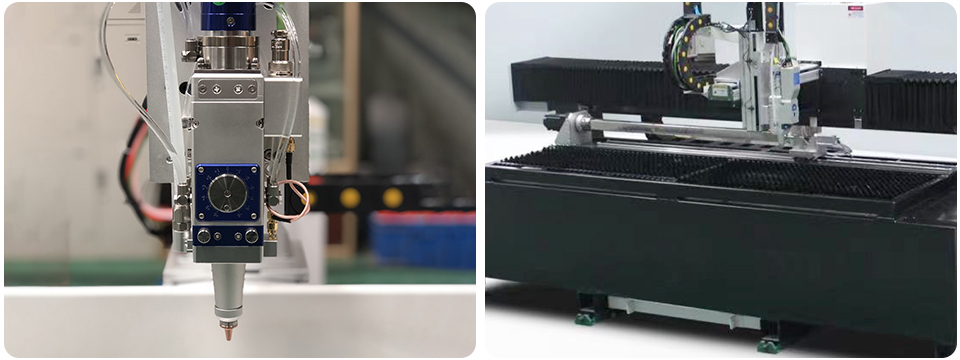

1. Adopts a uniquely designed blowing method to reduce lens contamination.
2. Optical focusing lens group made of imported materials for long life.
3. Professional internal design ensures stable optical focus.
1. High-precision lead screws, linear guides, and servo motors for smooth transmission.
2. Mobile platform structure provides high rigidity and stability without deformation.

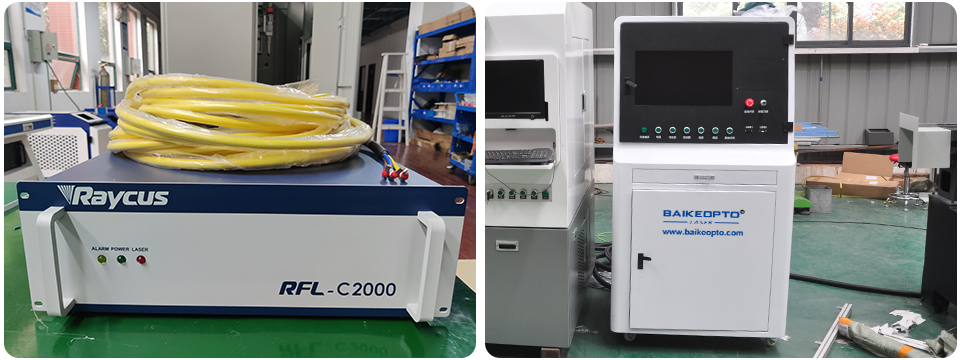

Adopts domestic first-line brand fiber lasers with strong anti-reflection performance, high reliability, and long service life.

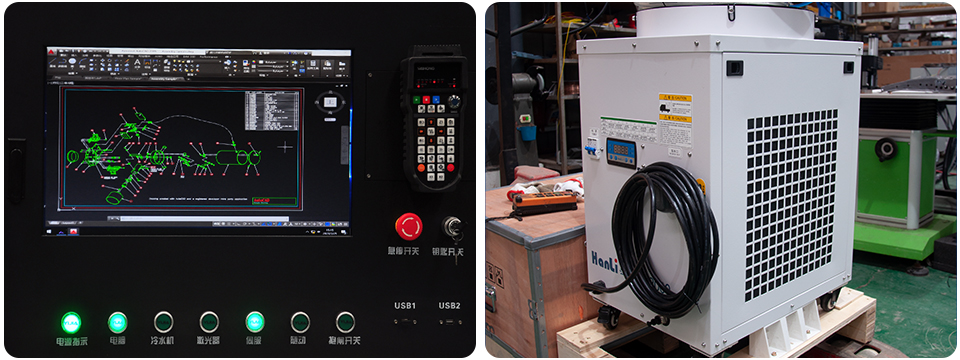

Integrated design featuring independent control of industrial computer, drive shaft, laser, and water cooler for easy maintenance.
Supports multiple formats (DXF, DWG, IGES). Features automated path optimization and a professional CAM interface.
Provides constant temperature cooling for both laser source and cutting head with over-temperature alarms and linkage protection.
The small flat fiber laser cutting machine is economical and practical, takes up less space, and is easy to move. With brand-new technological solutions, we address high return on investment and maintenance issues, effectively enhancing processing efficiency. The operation is highly suitable for teaching, experimental research, and industrial customization.
