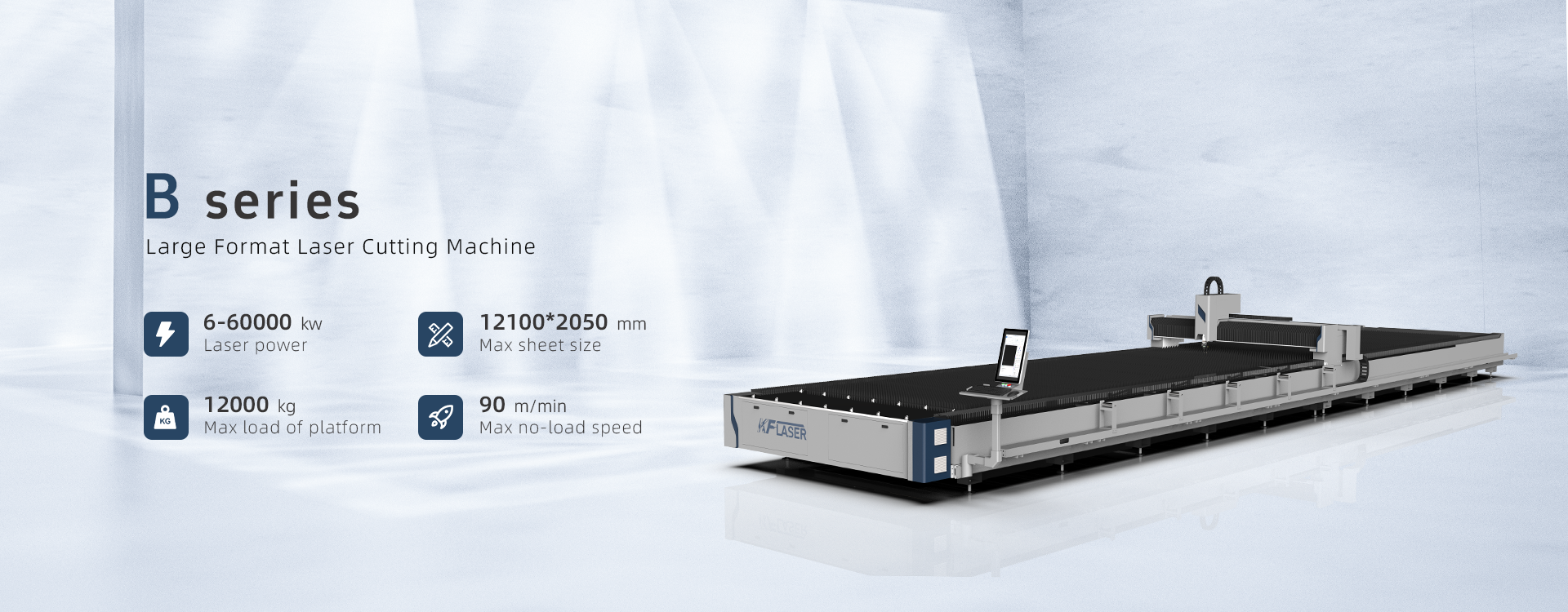

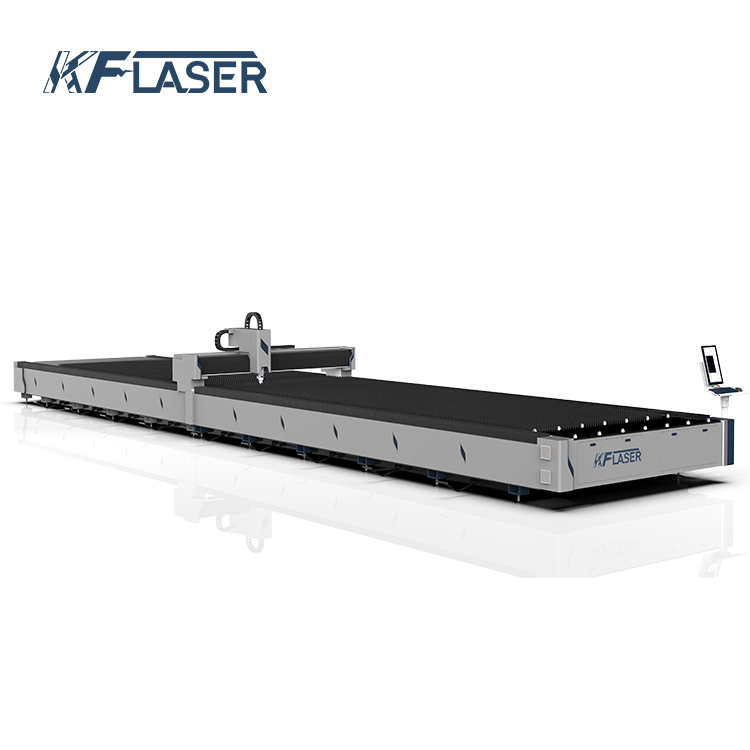

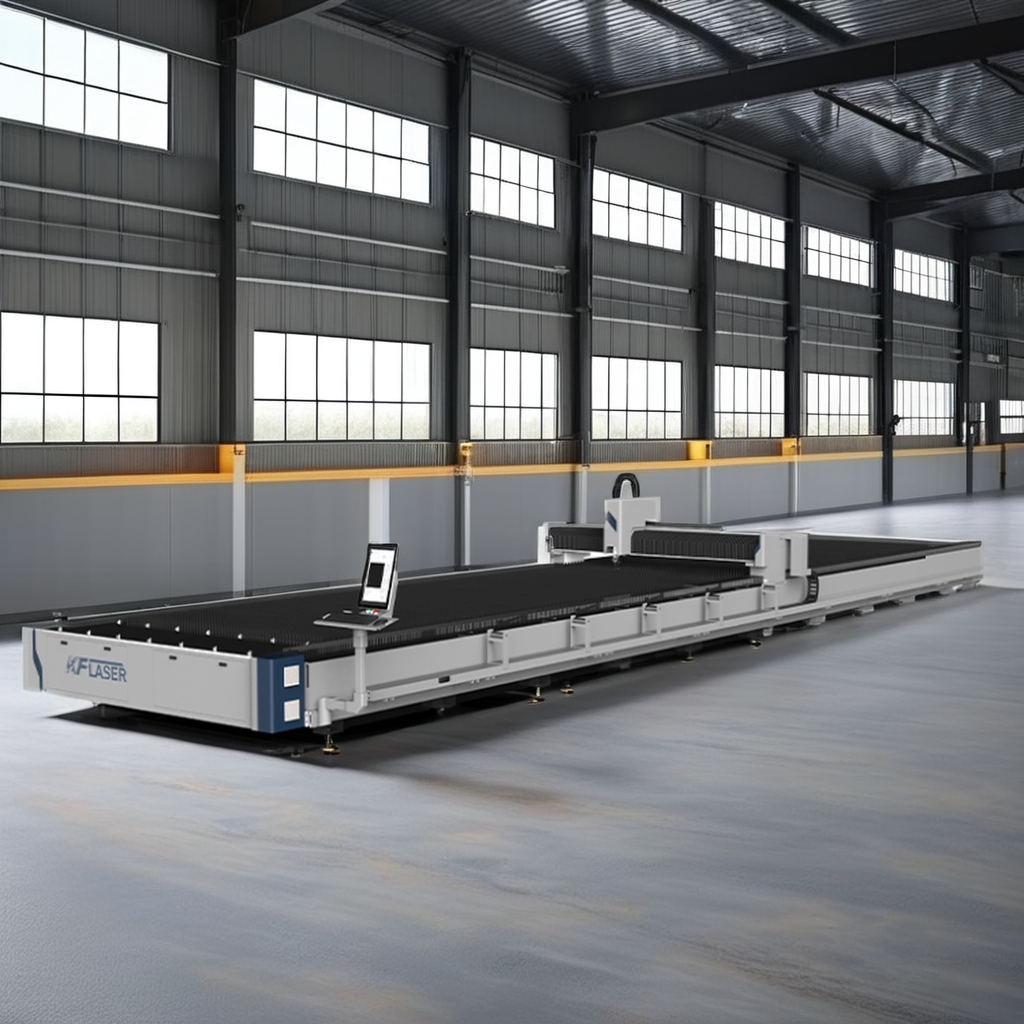

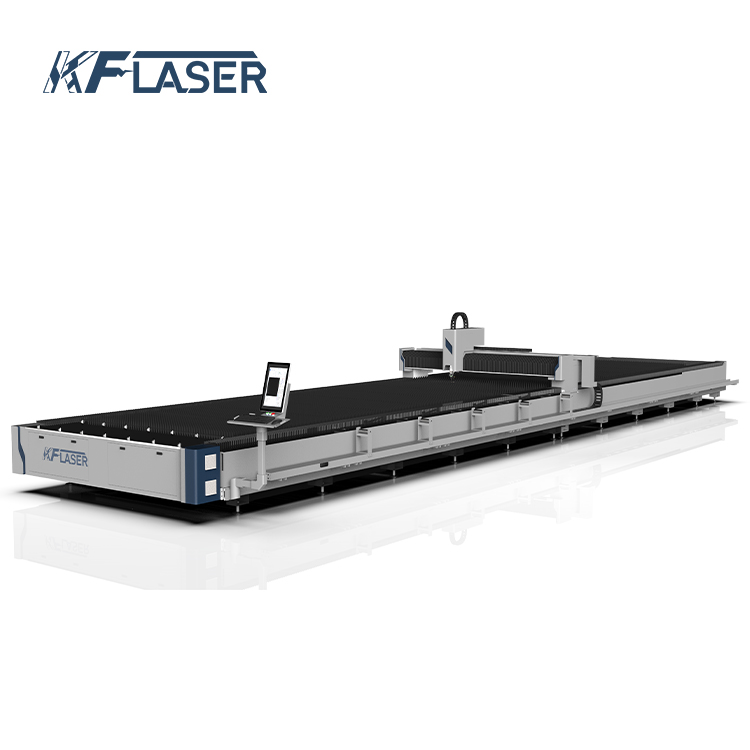

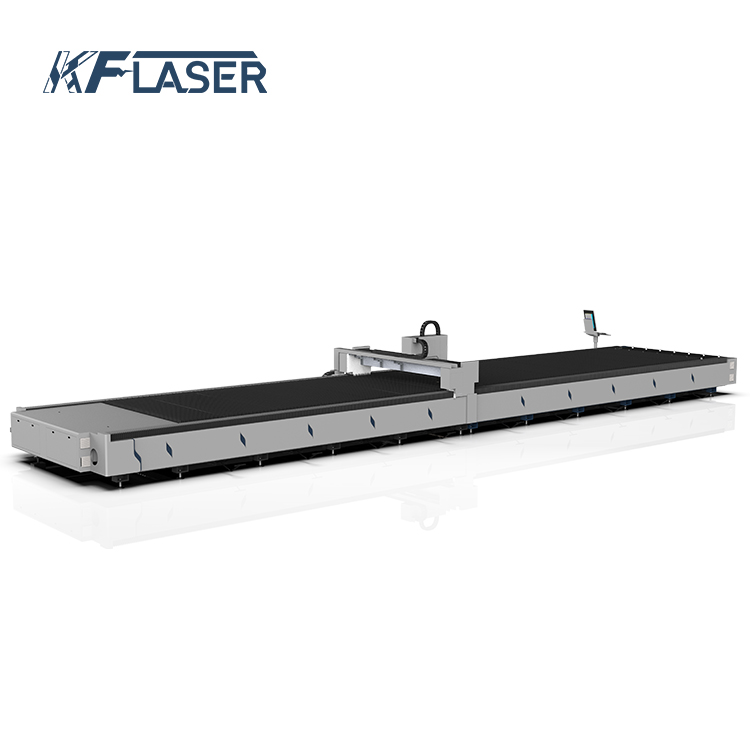

Datum Machine
Datum Machine

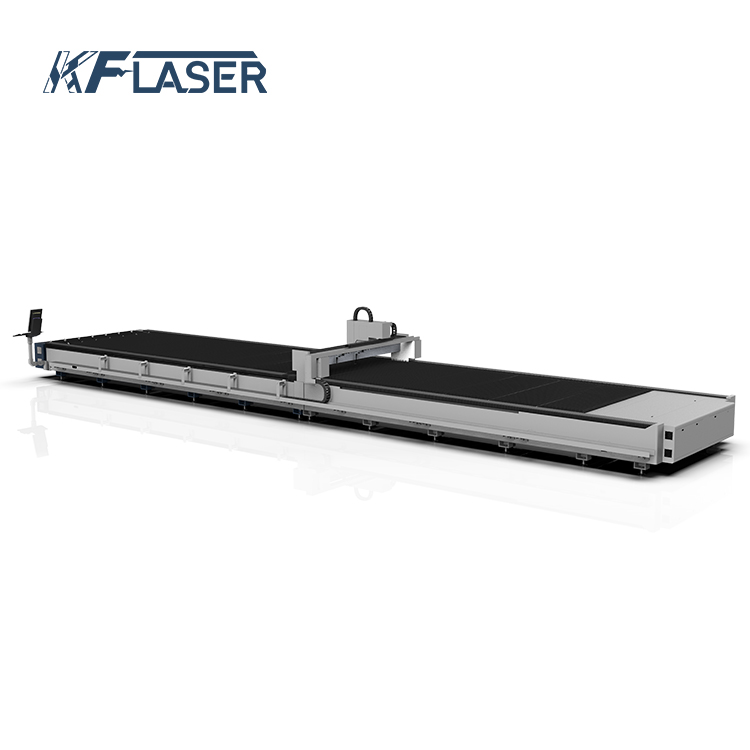

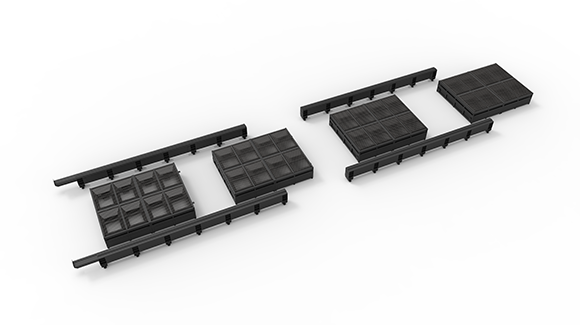

Split type, easy to transport
Low-track bed, with stronger load-bearing capacity
Can support high power and bevel cutting, format supports customization, only bigger, no maximum

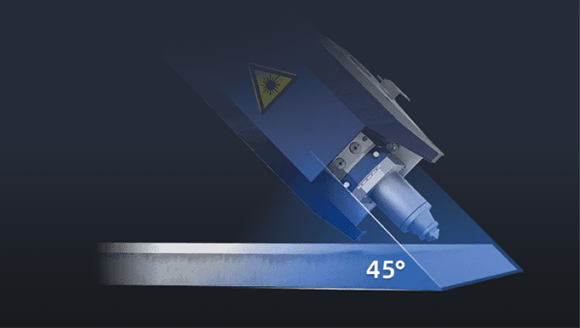

Can process various bevel angles
Tilt angle 45°
Can cut various shapes such as X, Y, V, etc.
One-time molding reduces waste

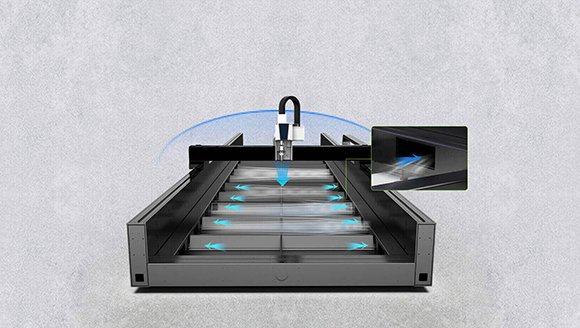

Dust removal in the cutting area
Reduce the heat impact caused by cutting
Enhance the smoke removal effect
Improve the environmental protection level
Autofocus function: Automatically adjusts the focal length according to the thickness of different materials to ensure cutting quality and efficiency.
Dual water cooling circuit system: Effectively reduces the operating temperature of the laser head and improves the stability and life of continuous work.
IP65 dustproof performance: Effectively prevents dust and particles from entering the laser head and protects key components from pollution and damage.
1. Precision and Efficiency: Achieve precise control over the cutting head's position and movement, enhancing cutting accuracy and efficiency.
2. Real-time Adjustment and Adaptability: Instantly adjust cutting parameters to suit different materials and cutting needs. It supports various cutting modes and material processing options.
3. Stability, Reliability and Integration: Ensure stable, reliable operation for long-term use. The system integrates smoothly with automated production lines.

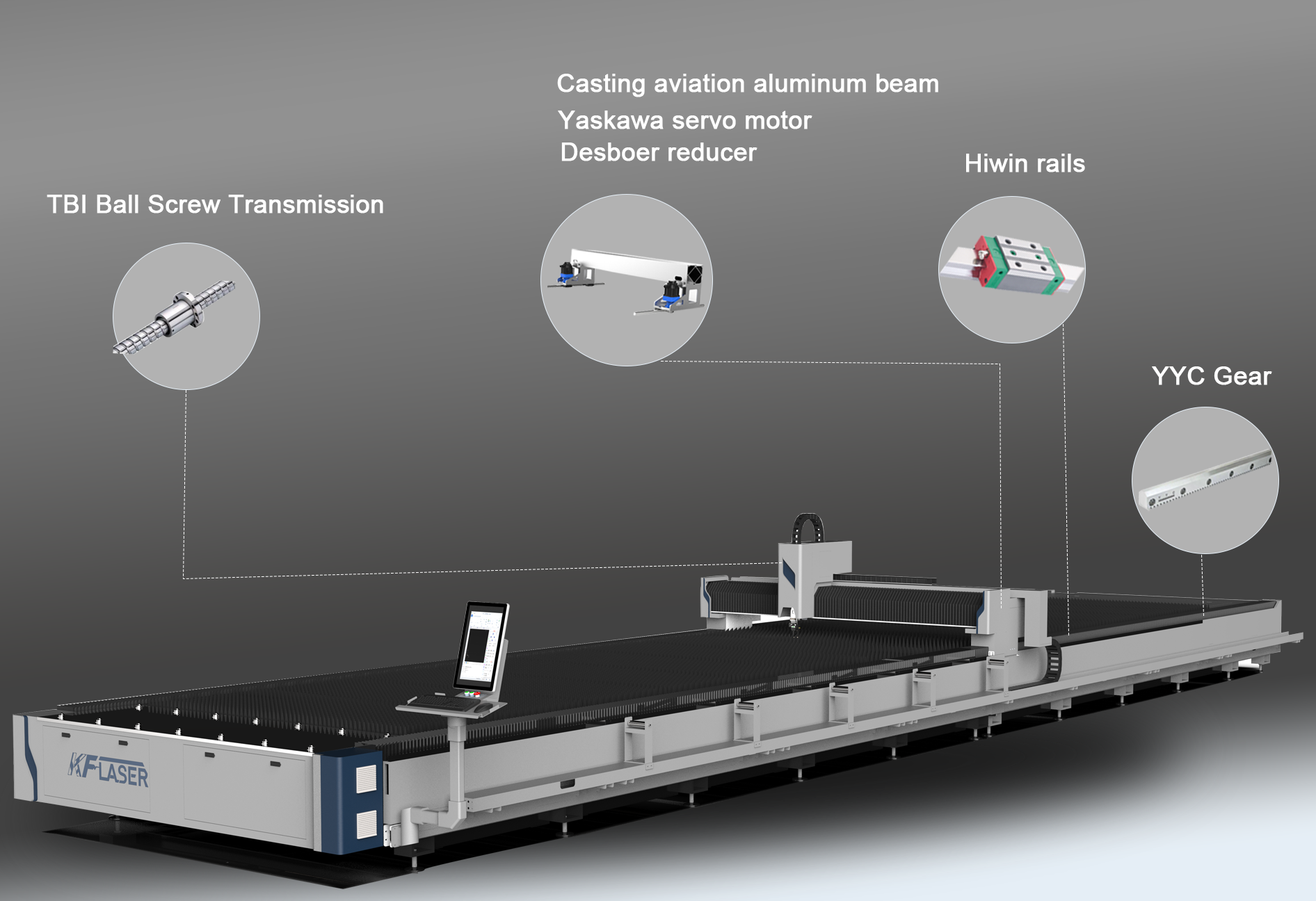

Using Japanese Yaskawa Electric, Japanese Fuji Electric or Inovance Motor, high precision, no step loss, high torque, low noise, using Taiwan yyc/Germany herion gear and Japanese shimpo/French motovario/Germany lead reducer, the machine positioning accuracy reaches 0.02 mm.
1 set of B25 can be packaged in 2× 40HQ standard container. We can enable rush delivery and usually charge significantly reduced freights. After arrival, users may assemble all together by using quick insert. No waiting for new installation.
| Machine Model | B20 series | B25 series | B30 series |
|---|---|---|---|
| Working Area | 12000*2000mm | 12000*2500mm | 12000*3000mm |
| Laser Power | 1-12KW | 1-20KW | 1-20KW |
| Dimension | 15500*3350*1975mm | 15500*3850*1975mm | 15500*4350*1975mm |
| Weight | 15890KG | 17890KG | 19890KG |
| Max Idle Speed | 90m/min | ||
| Max Acceleration | 1.0G | ||
| Positioning Accuracy | ±0.05mm | ||
| Repeat Accuracy | ±0.02mm | ||
| Voltage | 380V, three-phase / 50Hz-60Hz | ||
* Prices are for prepayment only.
