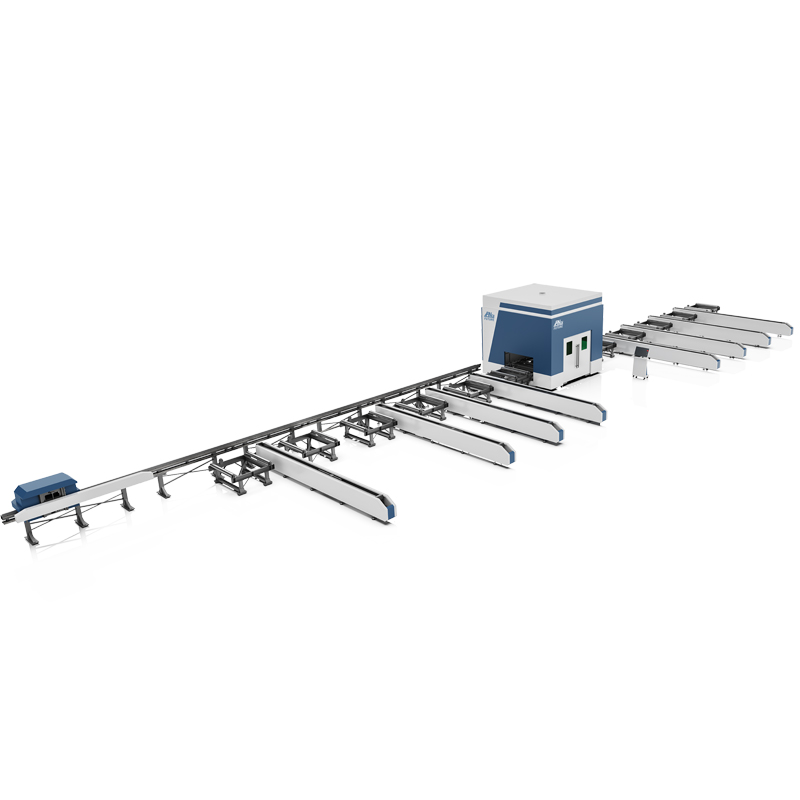

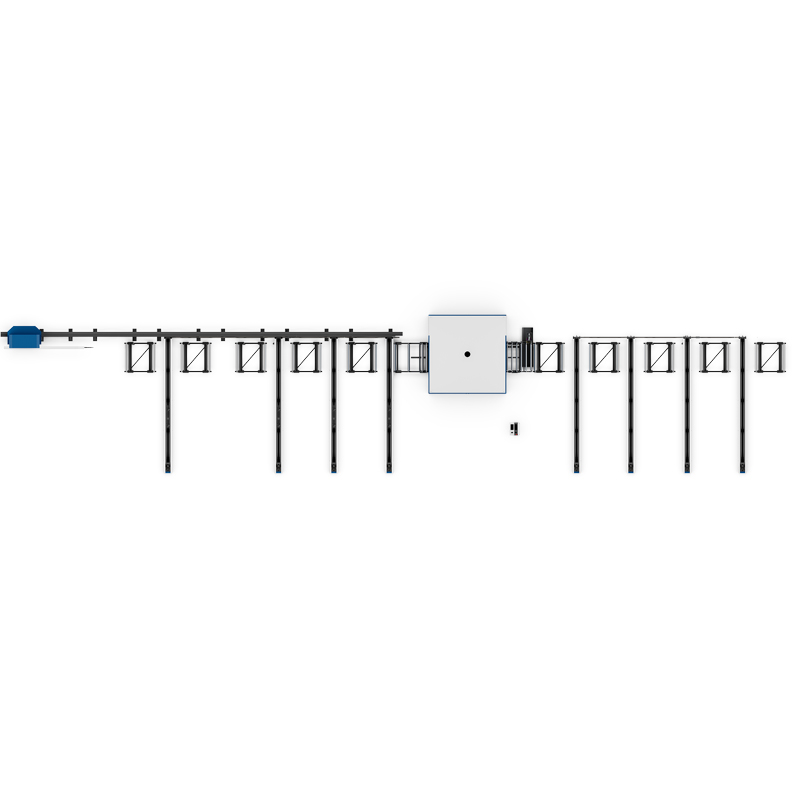

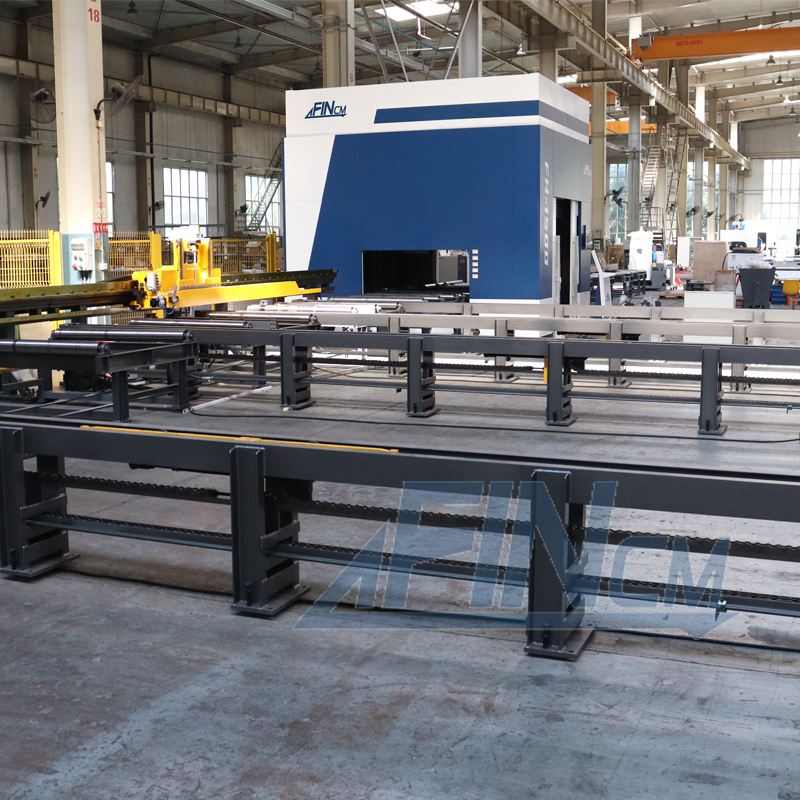

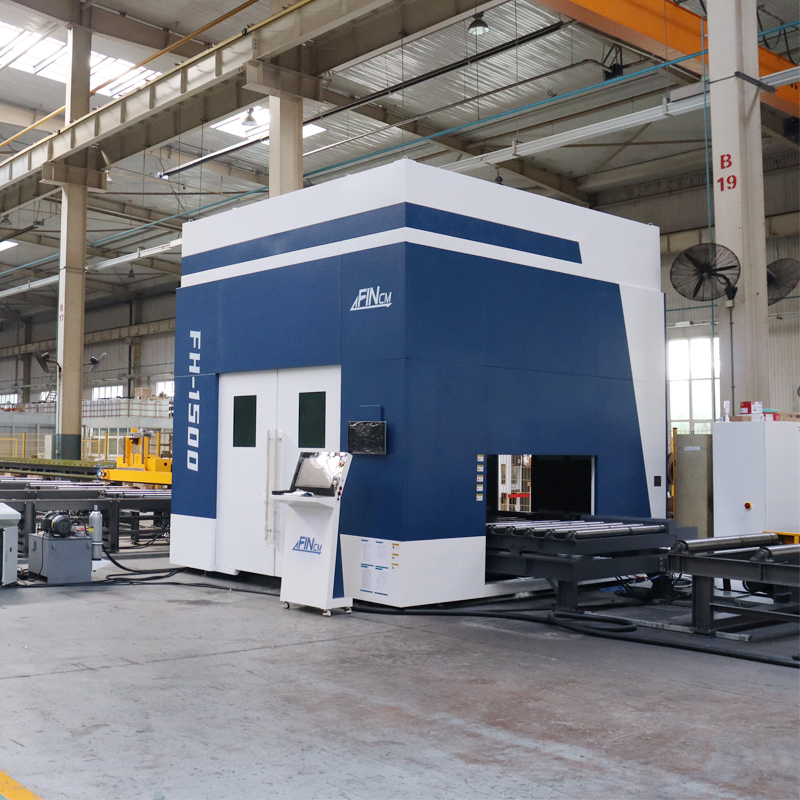

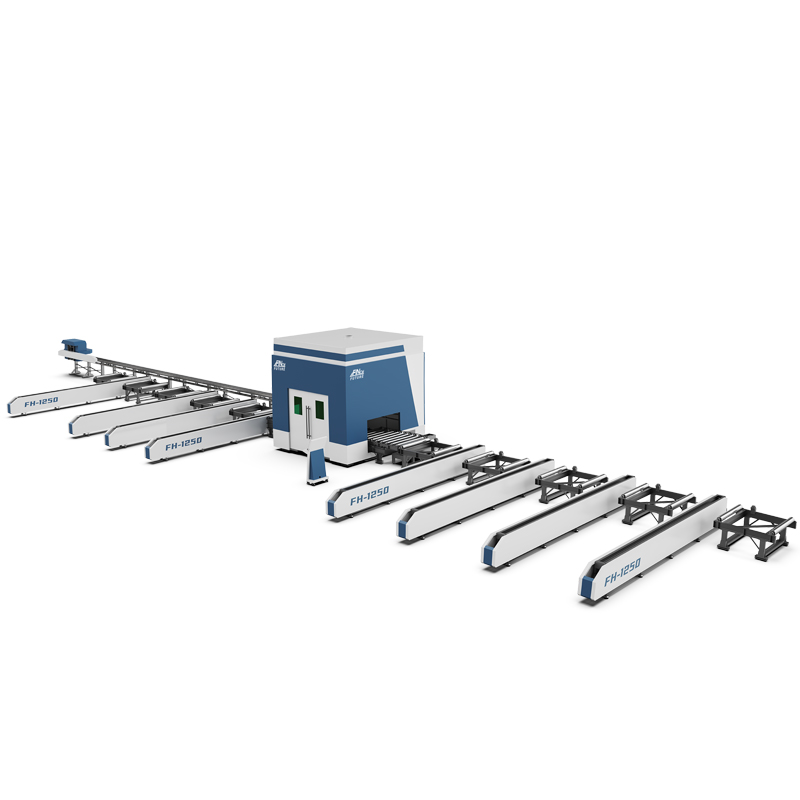

FIN Laser 3D 5 Axis 20kw Automatic Loading and Unloading H-shaped Steel Beam Profile Cnc Lazer Cutter Machines 1250 with WisNest
FIN Laser 3D 5 Axis 20kw Automatic Loading and Unloading H-shaped Steel Beam Profile Cnc Lazer Cutter Machines 1250 with WisNest
FIN Laser 3D 5 Axis 20kw Automatic Loading and Unloading H-shaped Steel Beam Profile Cnc Lazer Cutter Machines 1250 with WisNest
FIN Laser 3D 5 Axis 20kw Automatic Loading and Unloading H-shaped Steel Beam Profile Cnc Lazer Cutter Machines 1250 with WisNest
FIN Laser 3D 5 Axis 20kw Automatic Loading and Unloading H-shaped Steel Beam Profile Cnc Lazer Cutter Machines 1250 with WisNest
1 / 5
FIN Laser 3D 5 Axis 20kw Automatic Loading and Unloading H-shaped Steel Beam Profile Cnc Lazer Cutter Machines 1250 with WisNest
FIN Laser 3D 5 Axis 20kw Automatic Loading and Unloading H-shaped Steel Beam Profile Cnc Lazer Cutter Machines 1250 with WisNest
FIN Laser 3D 5 Axis 20kw Automatic Loading and Unloading H-shaped Steel Beam Profile Cnc Lazer Cutter Machines 1250 with WisNest
FIN Laser 3D 5 Axis 20kw Automatic Loading and Unloading H-shaped Steel Beam Profile Cnc Lazer Cutter Machines 1250 with WisNest
FIN Laser 3D 5 Axis 20kw Automatic Loading and Unloading H-shaped Steel Beam Profile Cnc Lazer Cutter Machines 1250 with WisNest

FIN Laser 3D 5 Axis 20kw Automatic Loading and Unloading H-shaped Steel Beam Profile Cnc Lazer Cutter Machines 1250 with WisNest

Send Inquiry

Product Description

PRODUCT HIGHLIGHTS
  • 1 One machine can simultaneously perform six operations—cutting, drilling, scribing, marking, beveling, and lock-edge cutting—replacing the traditional workflow of multiple connected machines, saving both space and labor.
  • 2 Equipped with a specialized laser head for profile cutting machines, it achieves true 5-axis simultaneous motion across the A, C, X, Y, and Z axes. The A and C axes can perform ±90° reciprocating movements, ensuring optimal all-around cutting of H-beams.
  • 3 Integrated with a fully automatic loading and unloading system, the machine enables automatic H-beam loading, cutting, and intelligent zoned unloading. Steel materials are automatically transferred from the storage area to the processing area without manual intervention. The system supports a maximum loading length of 15 meters and a load capacity of 7 tons.
CUSTOMIZATION CAPABILITIES

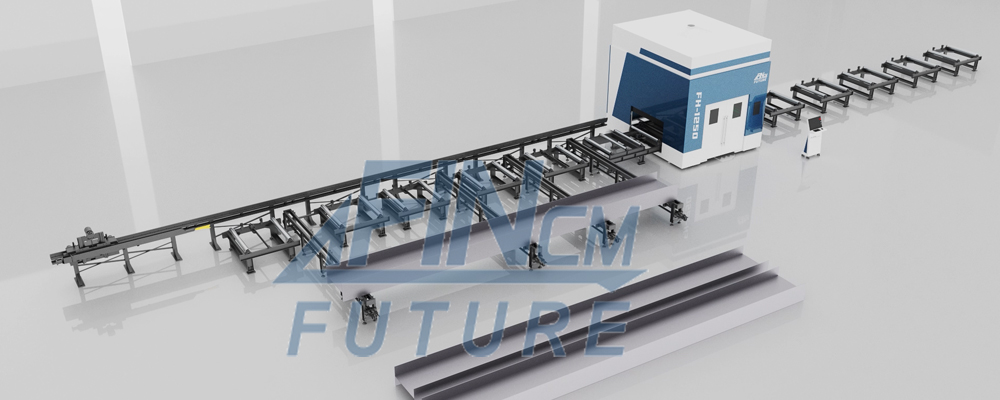

H-shaped Steel Beam Profile Cnc Lazer Cutter
SPECIFICATIONS
Model FH-1250
Flange Height 100-600mm Cutting Thickness (Beveling) 30mm
Web Width 100-1250mm Maximum Weight (Single Section) 7000KG
Laser Power 12000W / 20000W / 30000W Positioning Accuracy ±0.05mm
DETAIL SHOT

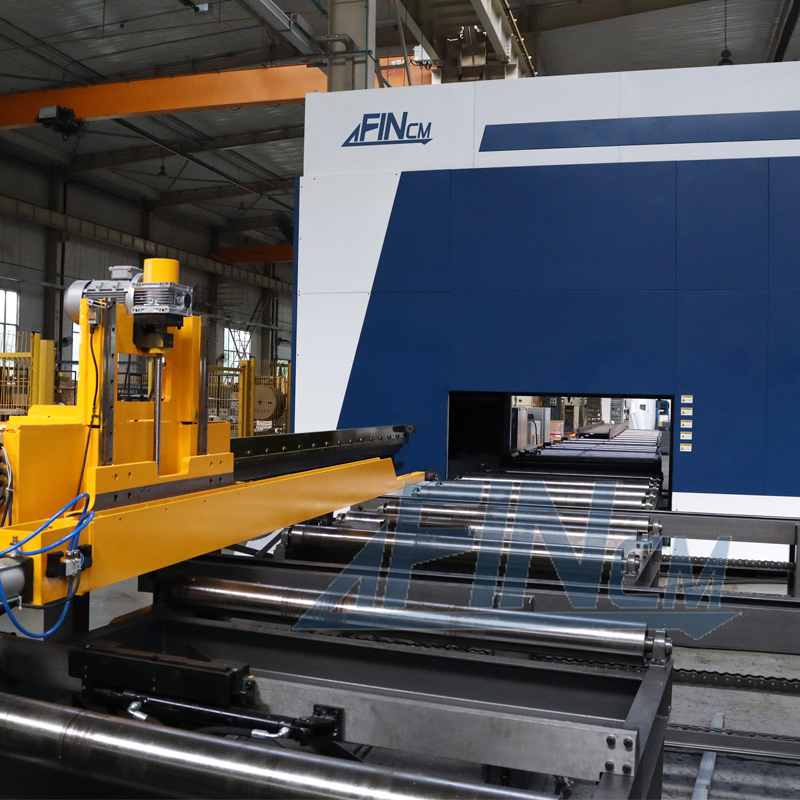

Detail Shot 1 Detail Shot 2

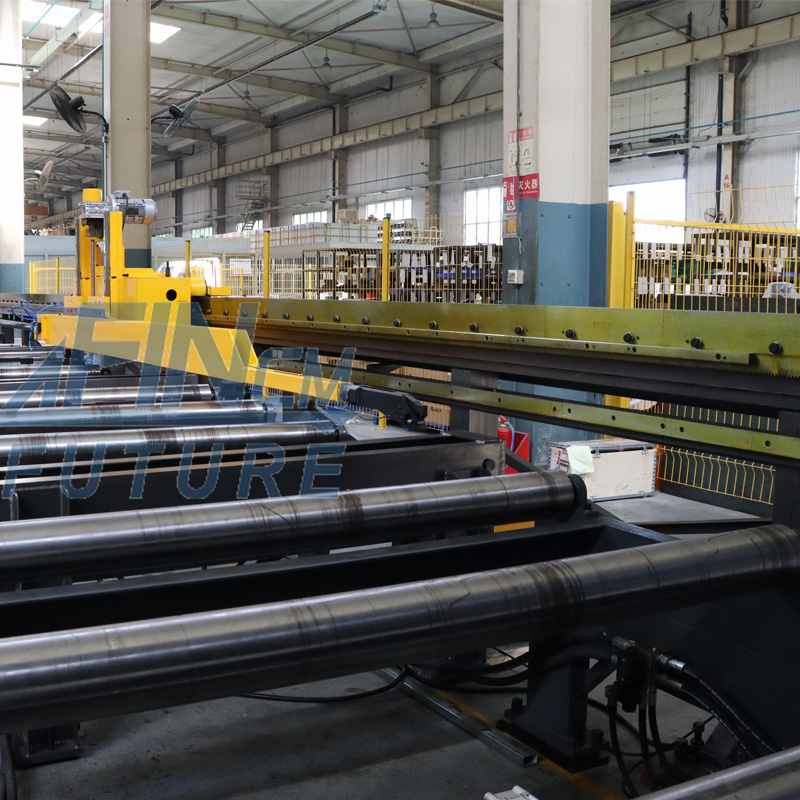

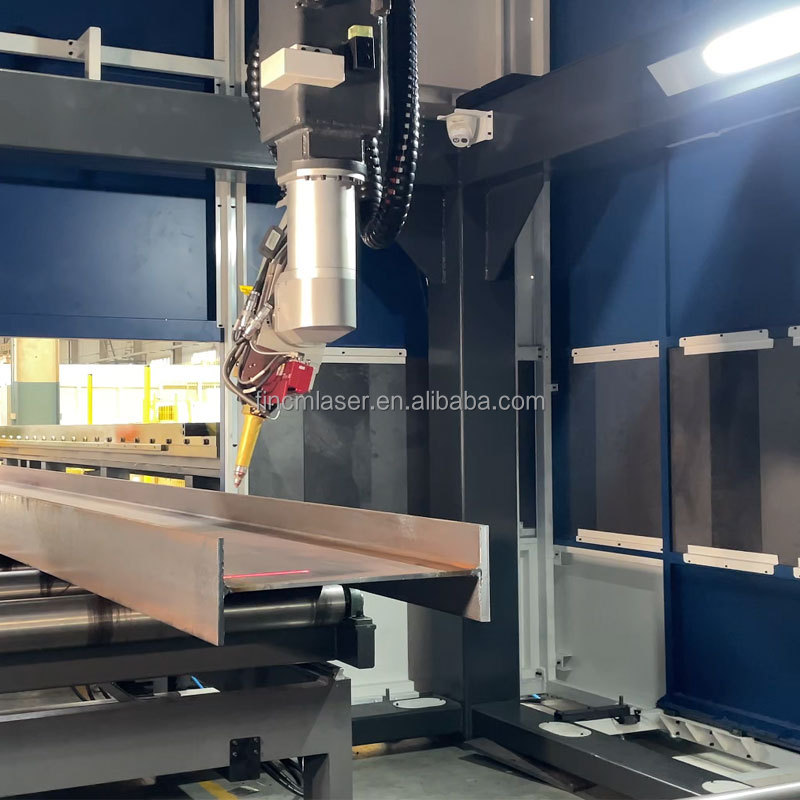

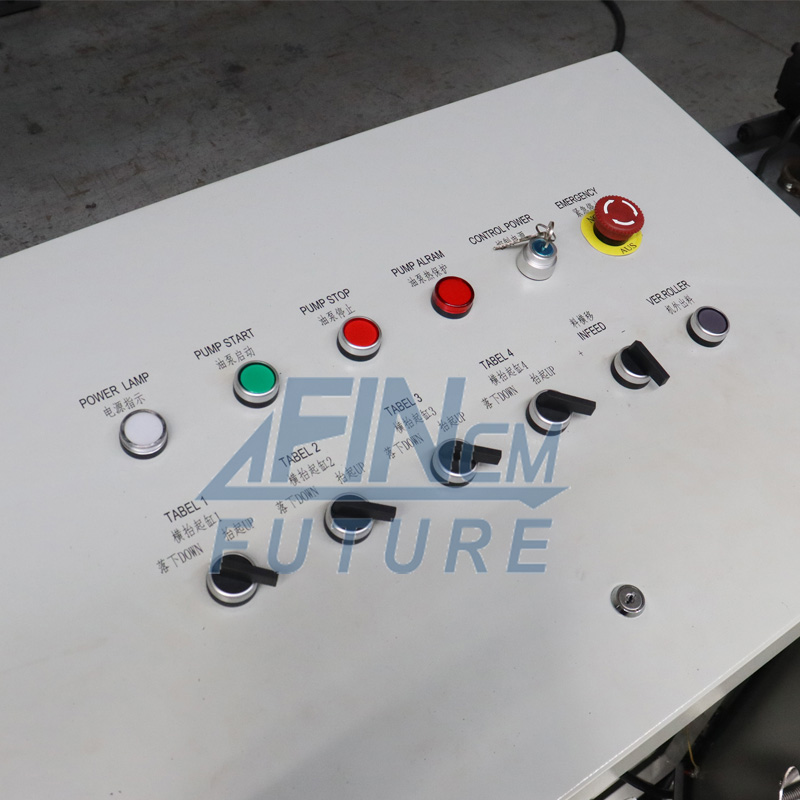

Detail Shot 3 Detail Shot 4 Detail Shot 5
SAMPLES
Cutting Samples
CUSTOMERS' CASES

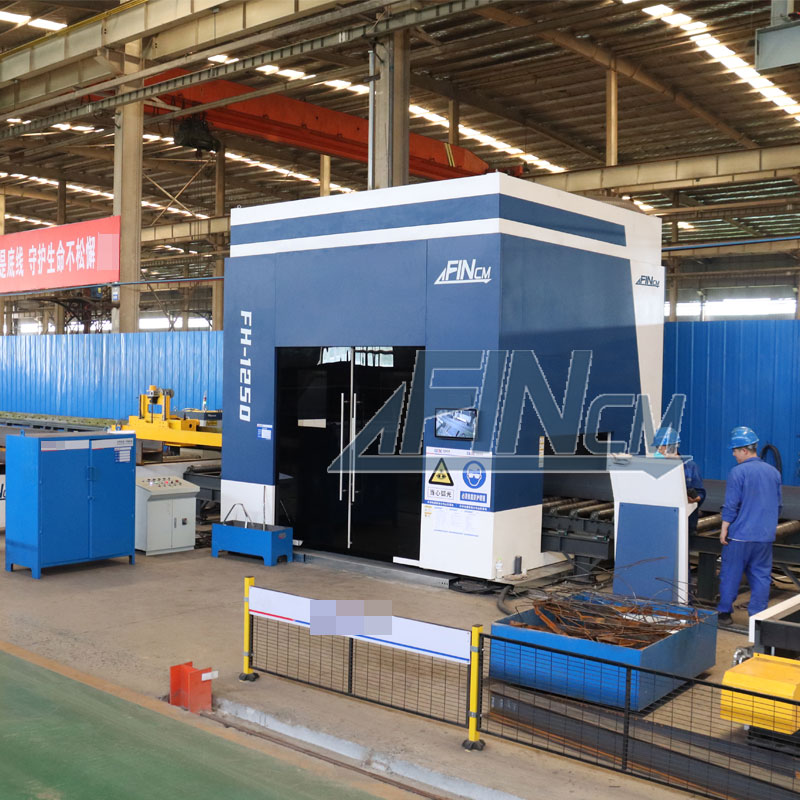

Customer Case 1 Customer Case 2
COMPANY OVERVIEW & FACTORY
Company Overview

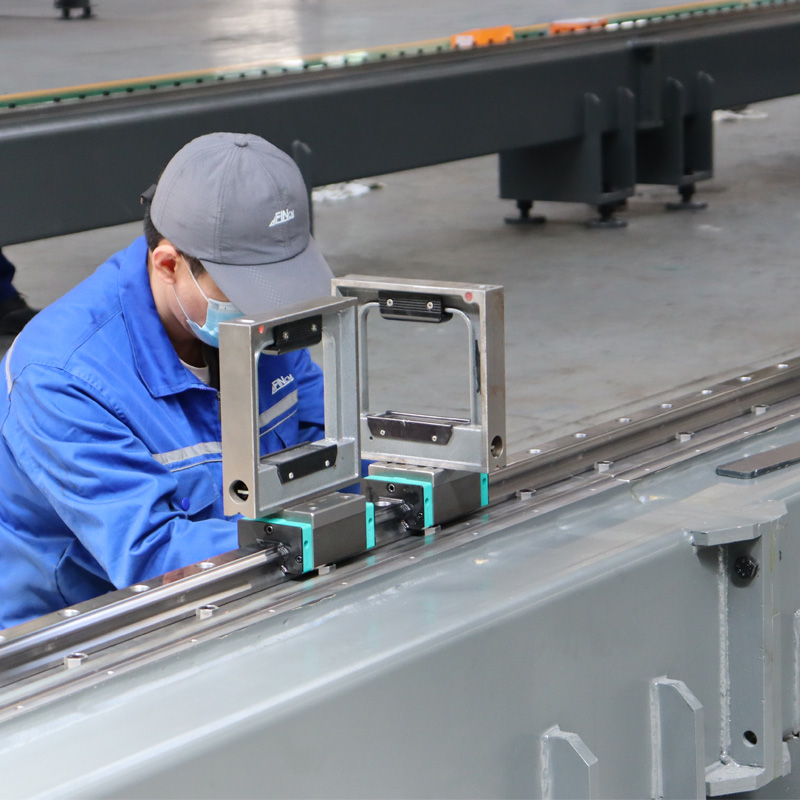

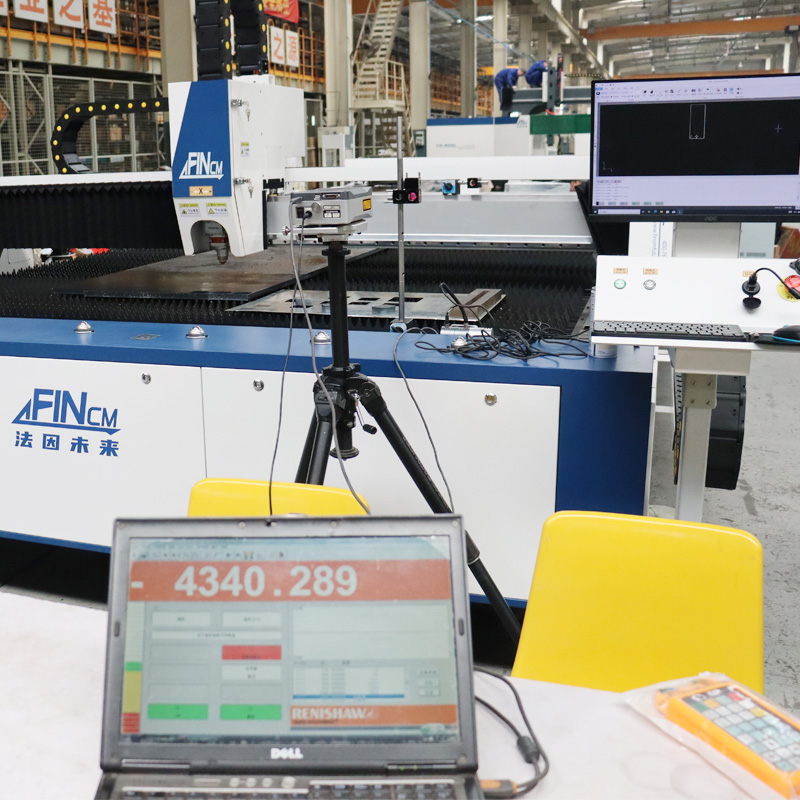

Factory Image 1 Factory Image 2 Factory Image 3
Factory Profile Production Line
TRADE SHOW & SHIPPING
Trade Show Participation Packaging & Shipping
Frequently Asked Questions
Q1: What types of steel profiles can this machine handle? A: The machine is specifically designed for H-beams and various structural steel profiles, supporting web widths up to 1250mm and flange heights up to 600mm.
Q2: What is the benefit of the 5-axis simultaneous motion? A: The true 5-axis system (A, C, X, Y, Z) allows for complex all-around cutting and beveling (up to ±90°) without needing to reposition the material manually.
Q3: How many manual processes does this machine replace? A: It integrates six major operations into one workflow: cutting, drilling, scribing, marking, beveling, and lock-edge cutting, significantly reducing labor and space requirements.
Q4: What is the maximum material capacity for the automatic system? A: The automatic loading and unloading system can handle steel sections up to 15 meters in length with a maximum weight capacity of 7 tons.
Q5: What are the laser power options available? A: Depending on your production needs and material thickness, you can choose between 12000W, 20000W, and 30000W laser power configurations.
Q6: What is the cutting accuracy of the FH-1250 model? A: The machine features a high positioning accuracy of ±0.05mm, ensuring precise fabrication for industrial-grade structural steel projects.
