Datum Machine
Datum Machine

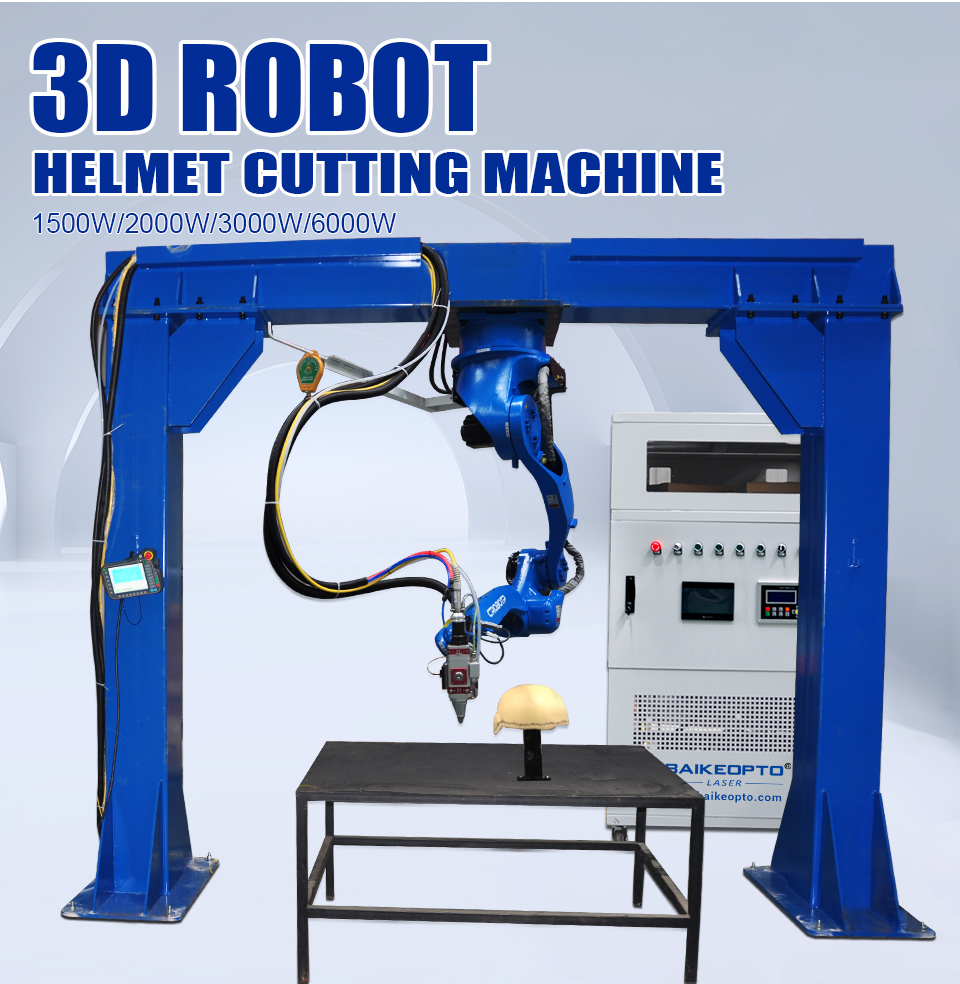

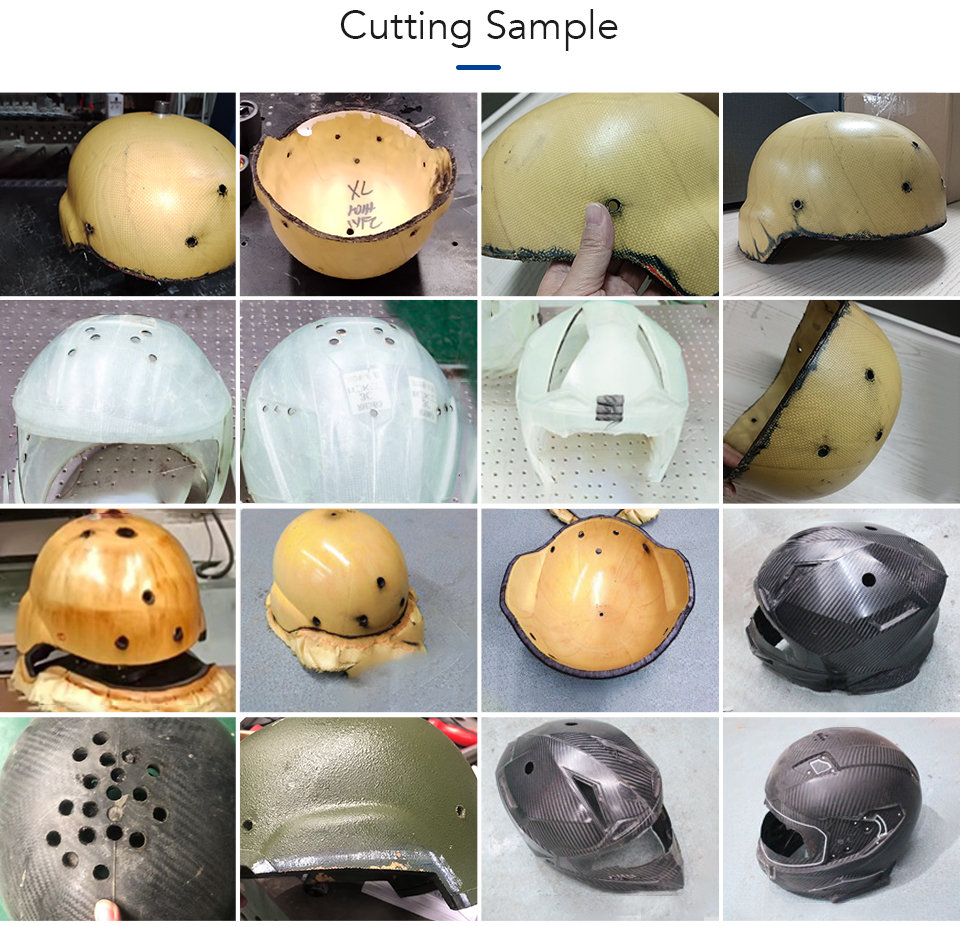

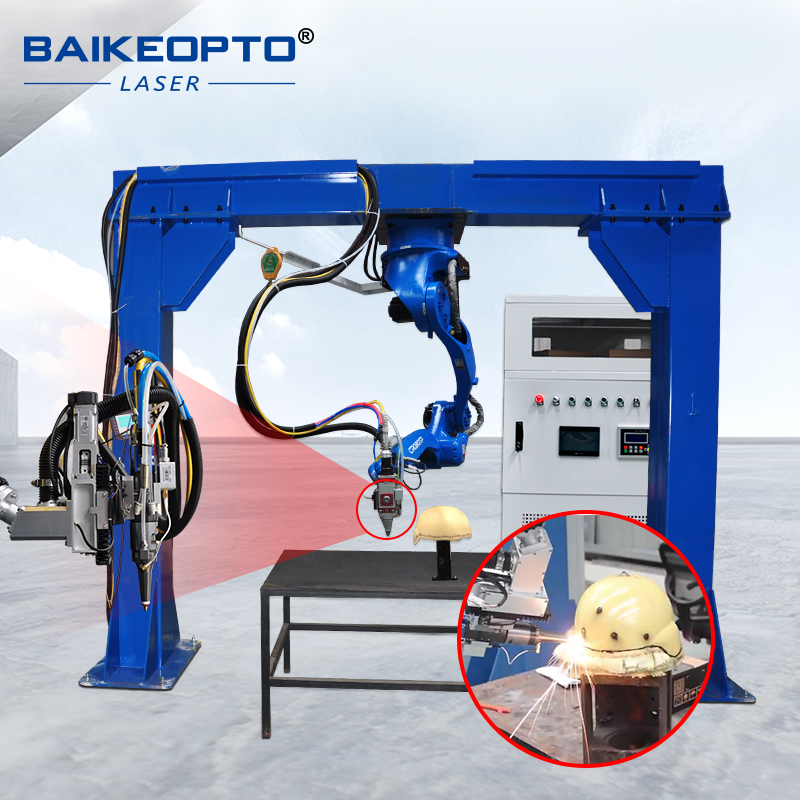

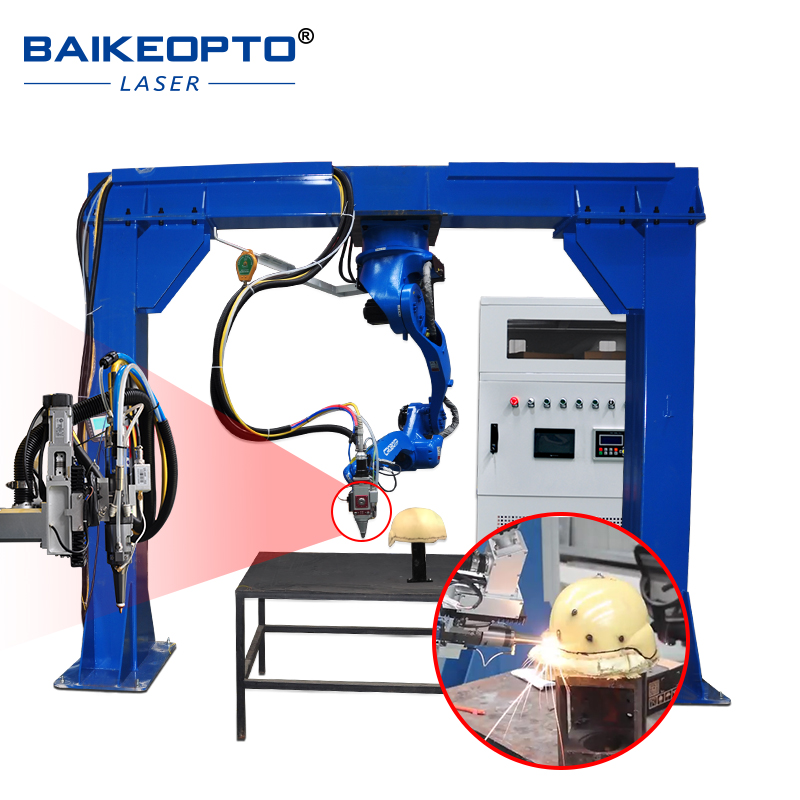

The 3D laser cutting machine is currently the preferred solution product for processing special-shaped pipe fittings such as helmets, aluminum alloy frames, automotive drawn parts, and flat pipes. The processing of this equipment is not affected by the shape and Angle of the workpiece. The cut surface is smooth and flat without burrs, occupies a small area, is easy to operate and maintain, and has a low maintenance cost. It is an advanced three-dimensional fiber laser cutting equipment integrating high stability, high precision, high performance and high speed.
| Parameter Item | Specifications |
|---|---|
| Model | BK-RC1500XS |
| Laser source | RAYCUS Fiber laser |
| Laser power | 1500W |
| Scope of work | 2200mm*1800mm*200mm |
| Repeatability accuracy | ±0.5mm |
| Cutting path accuracy | ±0.15mm |
| Cutting wall-thickness | 0.5-6mm (Depend on materials) |
| Maximum cutting speed | 12m/min |
| Rapid traverse speed | 60m/min |
| Power supply | Three-phase five-wire, AC380V/50Hz |
| Robot Axis | 6 axis |
| Warranty | 1 year |

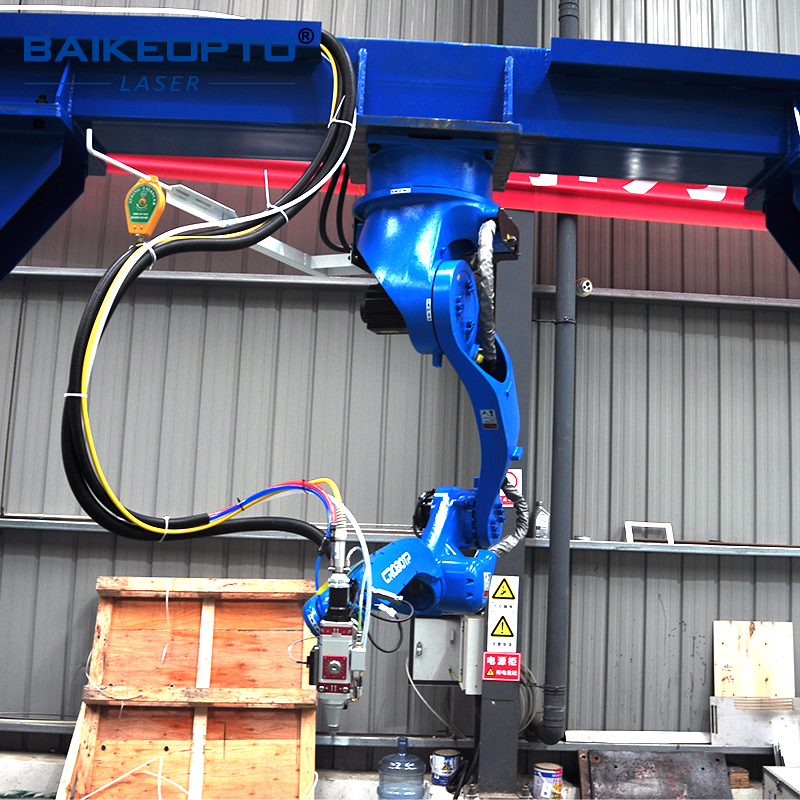

Using first-line brand Raycus fiber laser, with high anti-reaction and long service life. The lightweight 3D specialized anti-collision cutting head can achieve 3D metal thermal cutting of irregular curves.
Efficient water cooling system with flow and over-temperature alarms. Dustproof control cabinet with man-machine operation panel for perfect cutting control.

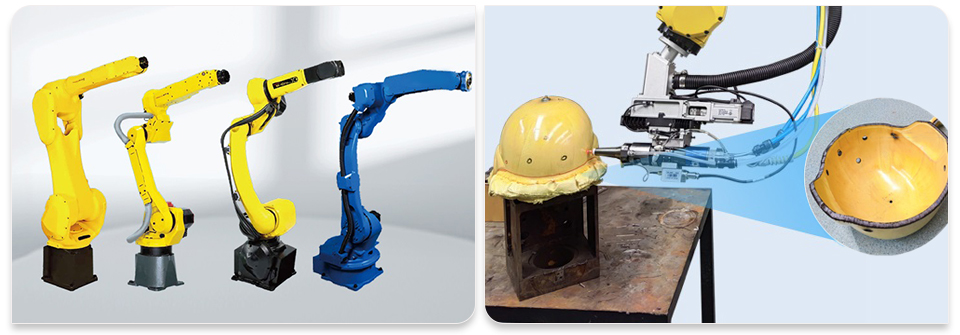

Robots can be selected based on process requirements. Perfectly matched with PLC systems, offline mapping software, and protective rooms for high precision.

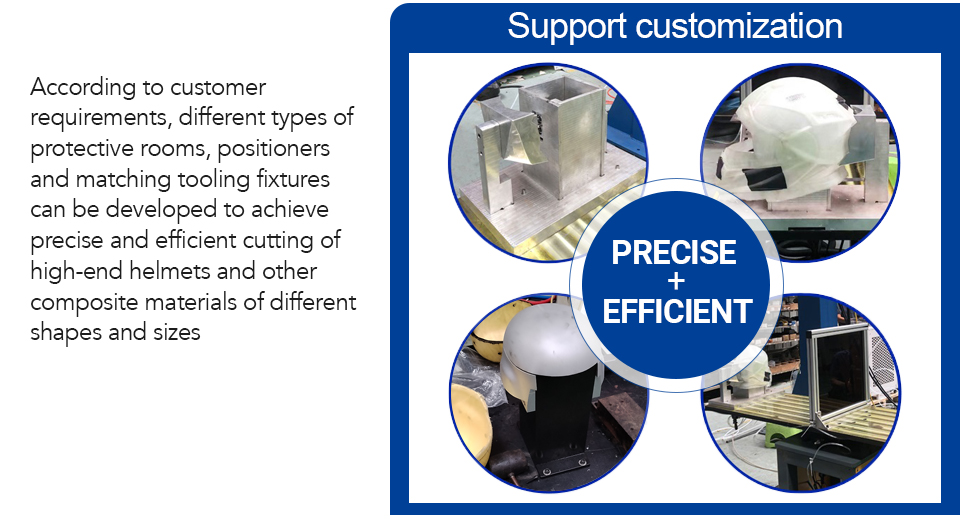

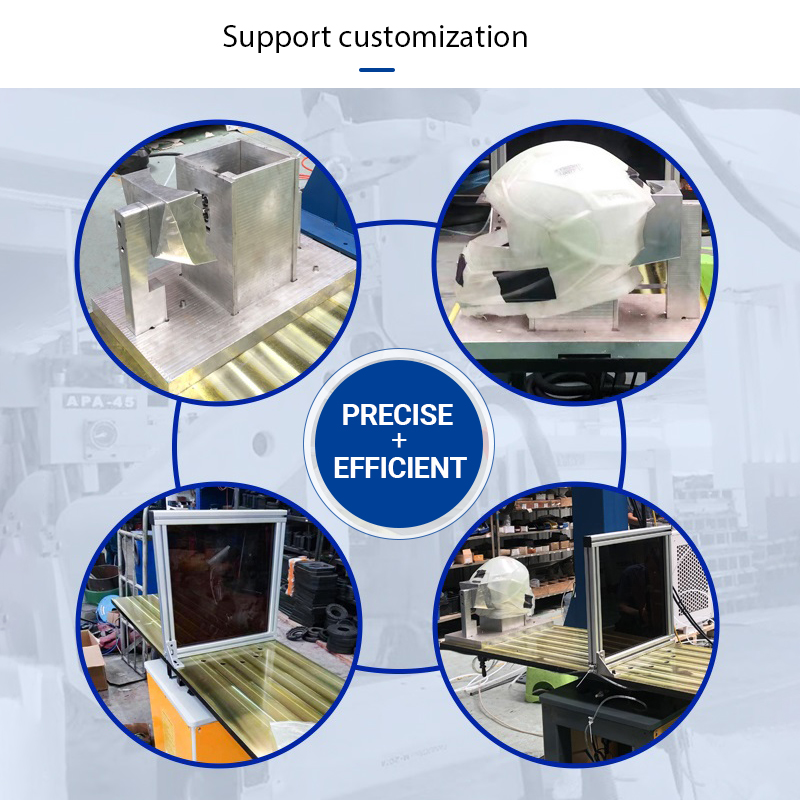

According to customer pipe fittings, we can develop different types of linkage or collaborative position-changers and supporting fixtures to achieve precise and efficient cutting.
Efficiency: Work efficiency is more than 3 times higher than traditional CNC machining.
