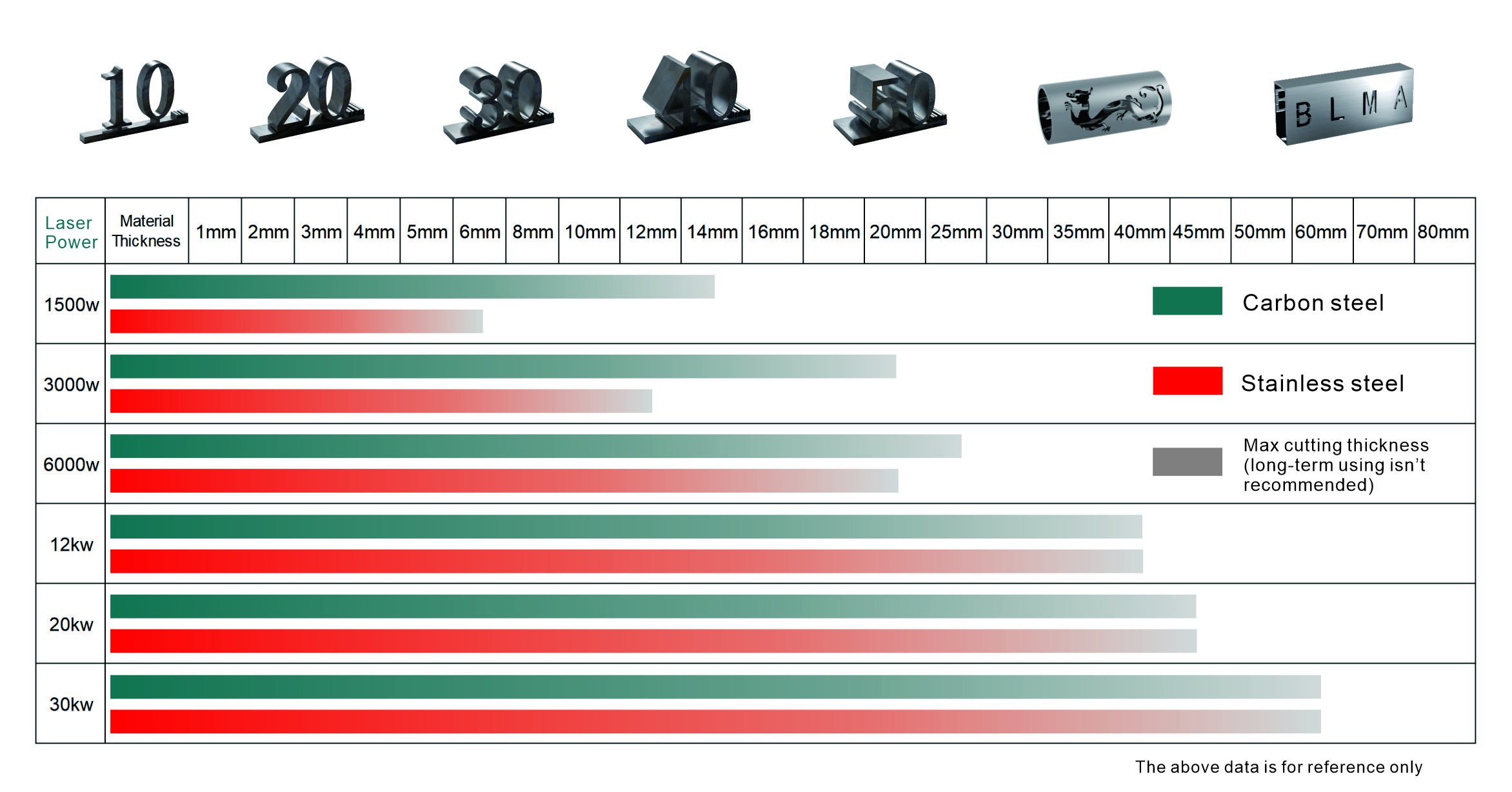

| Material | Thickness (mm) | 2000W Speed | 3000W Speed | 6000W Speed |
|---|---|---|---|---|
| Carbon Steel | 2 | 10-12 | 21-23 | 31-36 |
| 4 | 3.1-3.2 | 3.4-3.6 | 11-13 | |
| 6 | 2.4-2.5 | 2.7-2.8 | 5.5-6.5 | |
| 8 | 1.5-1.7 | 2.1-2.3 | 2.5-2.6 | |
| 10 | 1.2-1.4 | 1.4-1.6 | 2.2-2.3 | |
| 12 | 1-1.1 | 1-1.1 | 1.8-2.0 | |
| 14 | 0.9-1.0 | 0.9-0.95 | 1.4-1.7 | |
| 16 | 0.8-0.85 | 0.8-0.85 | 1.2-1.3 | |
| 18 | / | 0.7-0.72 | 0.7-0.8 | |
| 20 | / | / | 0.6-0.65 | |
| 22 | / | / | 0.55-0.6 | |
| Stainless Steel | 2 | 11-13 | 23-25 | 32-38 |
| 4 | 3.5-4 | 6-8 | 12-15 | |
| 6 | 1.3-1.5 | 2.9-3.1 | 6-7.5 | |
| 8 | / | 1.2-1.3 | 4-4.5 | |
| 10 | / | / | 2.2-2.4 | |
| 12 | / | / | 1.3-1.5 | |
| 14 | / | / | 0.9-1.0 |
Our Minimum Order Quantity is 1 Set.
Price depends on board size, thickness, and material. Please provide these details so we can recommend the suitable model and provide a precise quotation via private message.
Complete product catalogs are available upon request through private message.
Standard delivery is 30 working days. Some regular models are in stock and ready for immediate shipment.
Select product/quantity & trade terms -> Receive Quotation -> Confirm PI -> Sign PI -> Payment (T/T or Alibaba Credit Guarantee) -> Production & Shipping.
