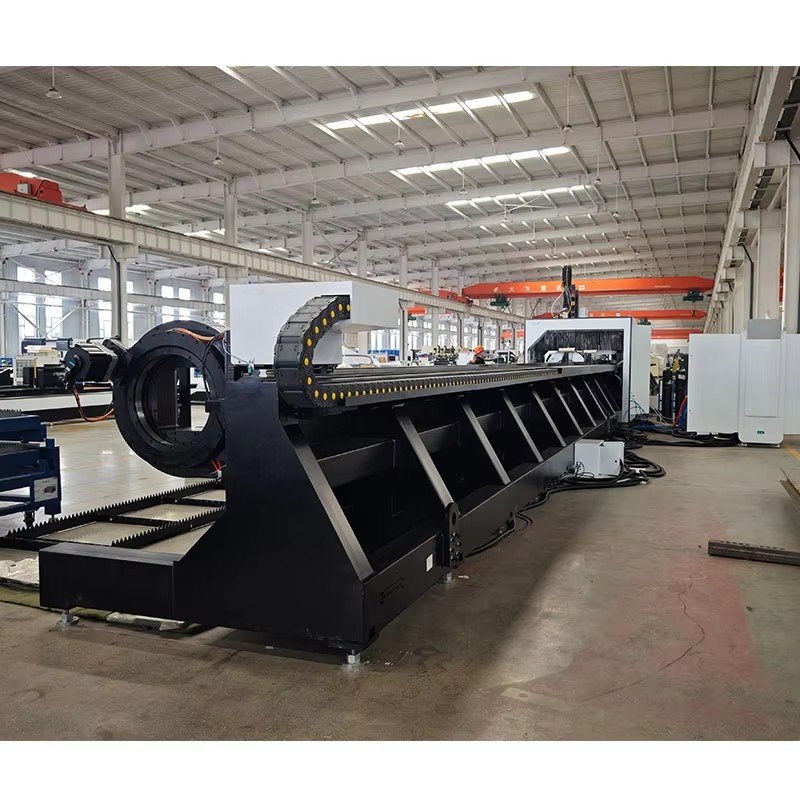

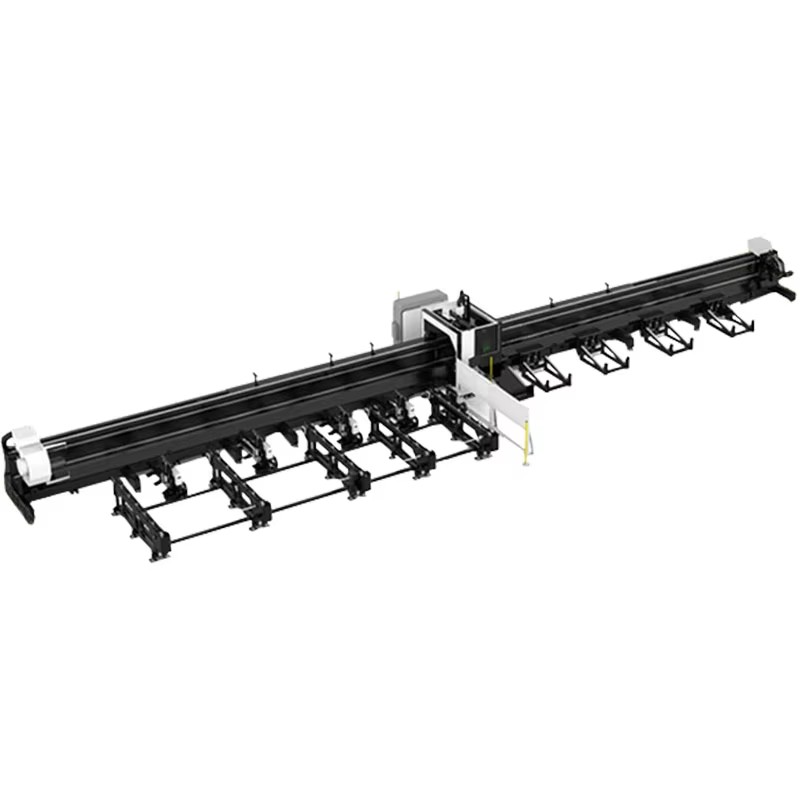

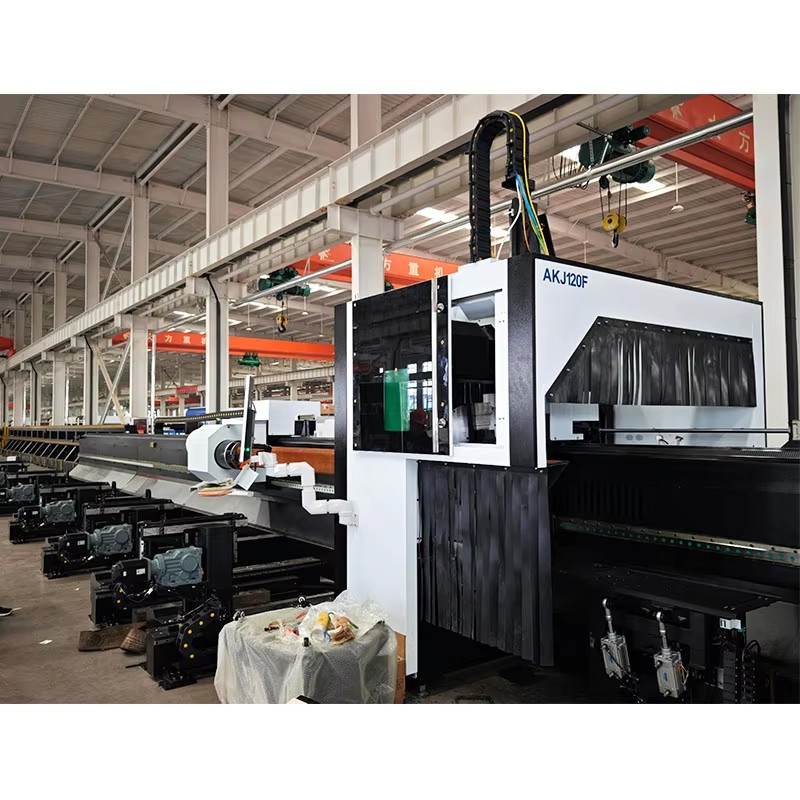

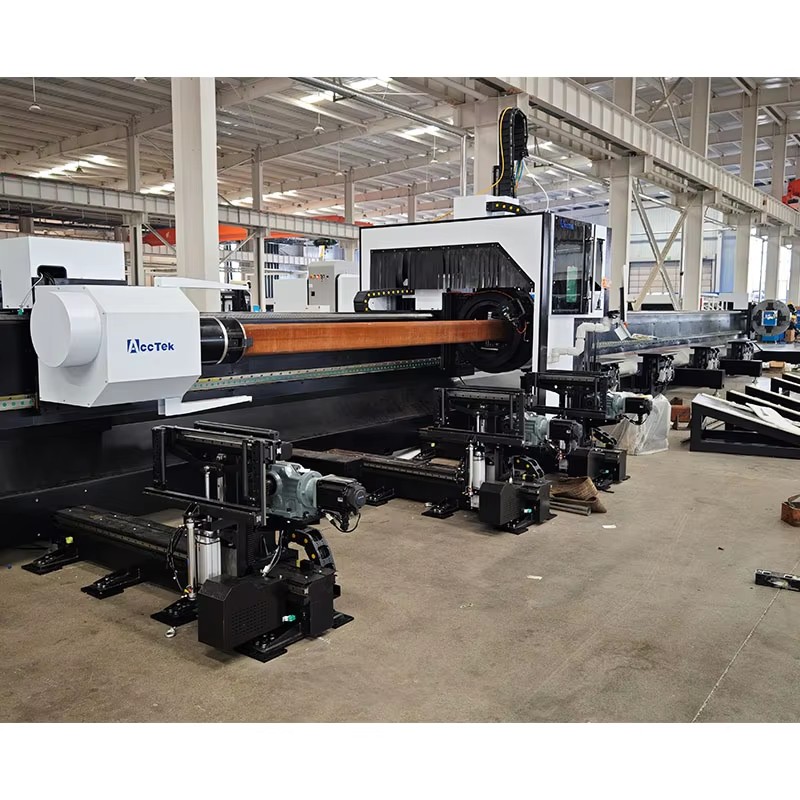

3kw 6kw I Profile H Beam RHS Square Tube Automatic Pipe Cutting Machine 3D Bevel Laser Tube Cutter
-
🎯

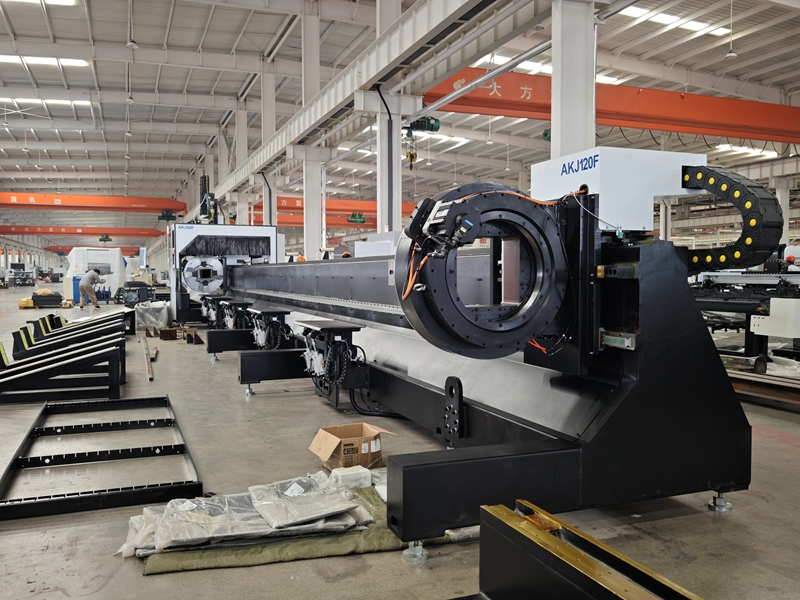

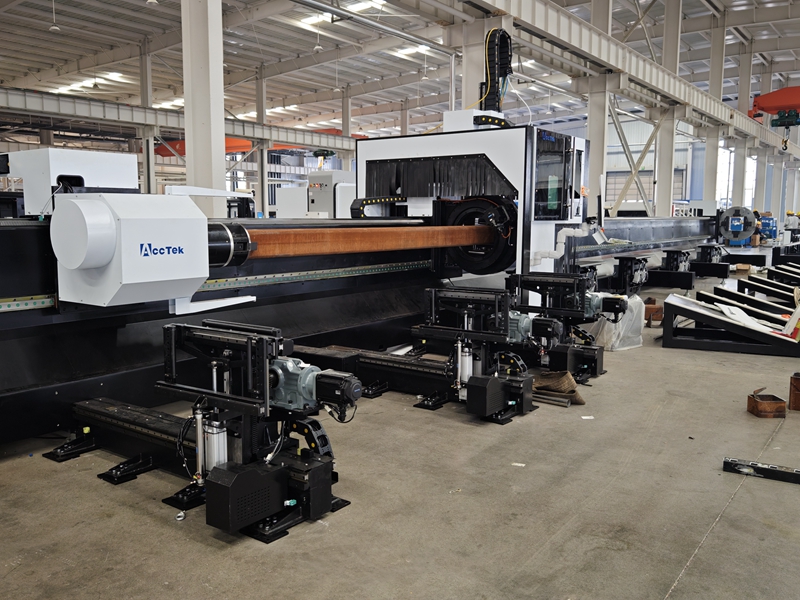

The tube laser cutting machine is suitable for one-time cutting and forming of round tubes, square tubes, special-shaped tubes and profiles.
-
🤖
The reciprocating feeding system is not limited to the length of the pipe, has a high degree of automation, directly imports two-dimensional graphics, automatically identifies the cutting trajectory, and performs precise high-speed processing.
-
✨
Automatic feeding system can be selected according to customer requirements. The laser processed parts have no burrs, no black holes, and high consistency.
-
⚡
Equipped with a fully automatic feeding system. Lasers of different powers can be matched arbitrarily to adapt to pipes with different wall thicknesses.
-
🔍
High precision, suitable for cutting precision pipes, 50% higher than CO2 laser cutting machine, reaching 0.03-0.05mm.
Parameters of Pipe Tube Laser Cutter
| Product Name |
Tube Laser Cutting Machine BCMT |
| Cutting Diameter (mm) |
Φ15-60 / 15x15-60x60 |
| T length range (mm) |
≤ 6200 |
| Tail Length (mm) |
40 |
| Acceleration (G) |
1.5 |
| Machine Size (mm) |
9161 × 2217 × 2110 |
| Body Weight (t) |
≈ 4T |
| Tube Cutting Type |
Round tube, square tube, oval tube, flat tube |
| Tube Cutting Material |
Stainless steel, carbon steel, aluminum, copper, iron |
Machine Details

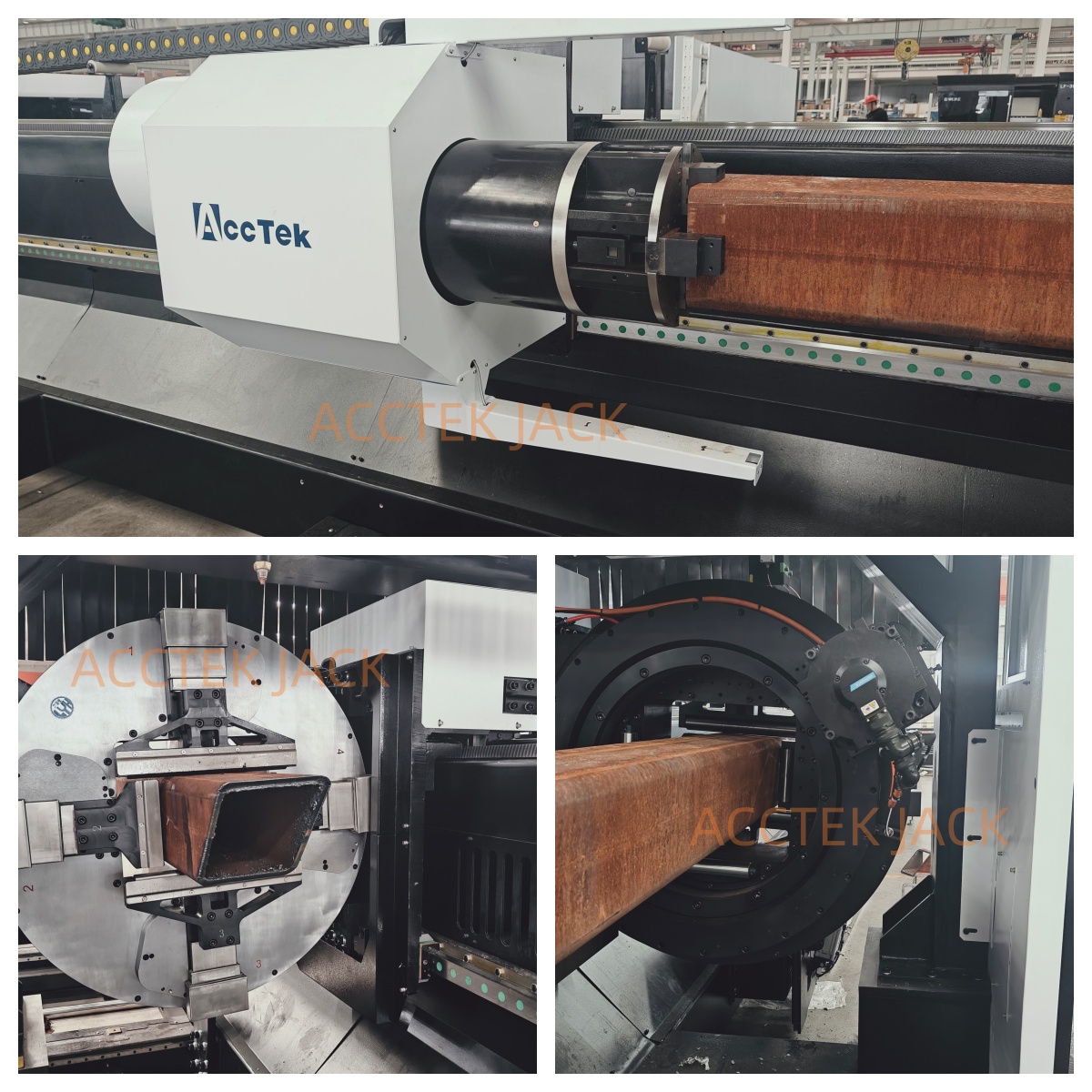

# Fully Automatic Double Pneumatic Chuck
1) One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.
2) Pneumatic open clamp: with large and constant clamping force, the heavy pipe is not loose or slipped, which guarantees the cutting accuracy.
3) The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service life of the chuck.

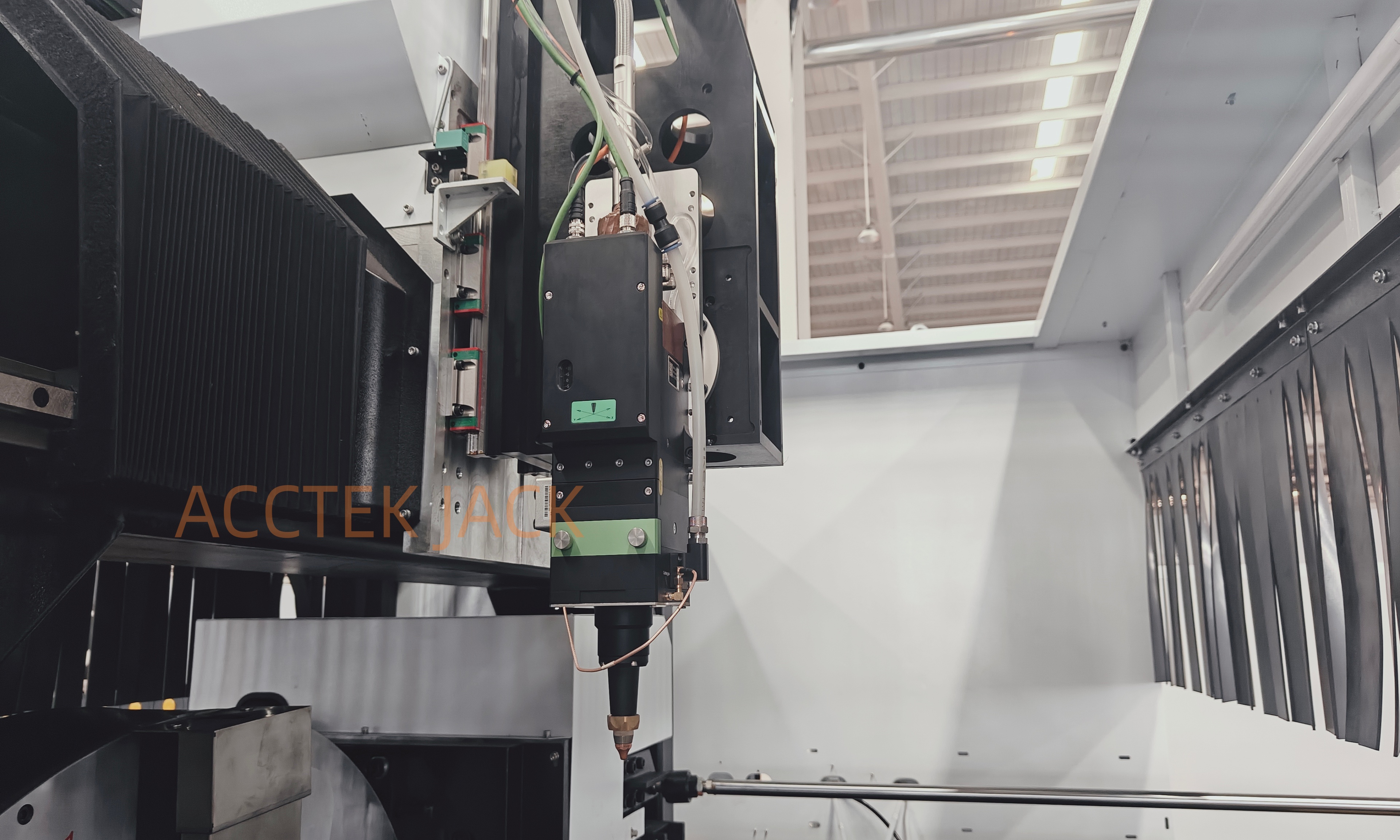

# 3D Boci Laser Head
Boci is most popular as NO.1 in China. Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses. Protective lens can carefully protect key components.
# GEAR & RACK - YYC
High precision and high transmission efficiency for stable operation.

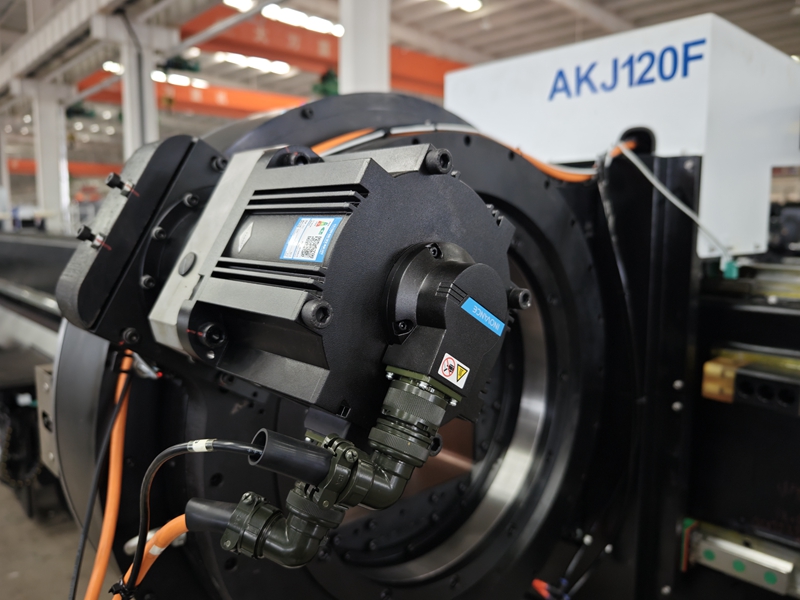

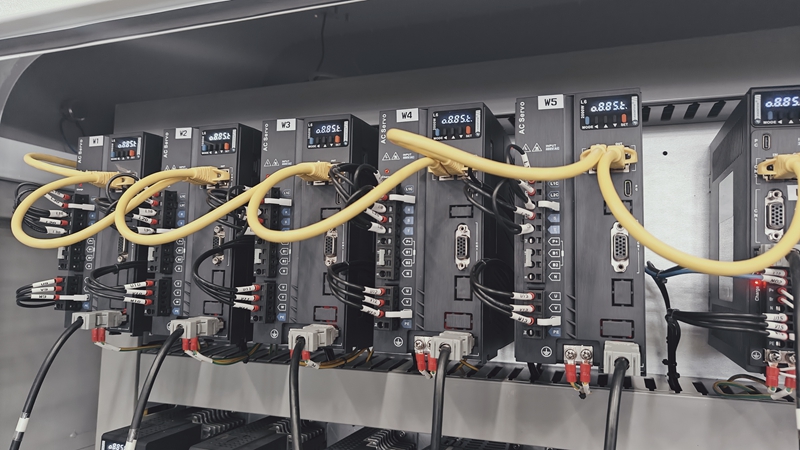

# Japan YASKAWA Servo Motor
1. Adopting Japan Yaskawa servo motor with closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration.
2. X, Y, Z axis jack high power motor drive, acceleration up to 1.5G. Makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.
Application Industry

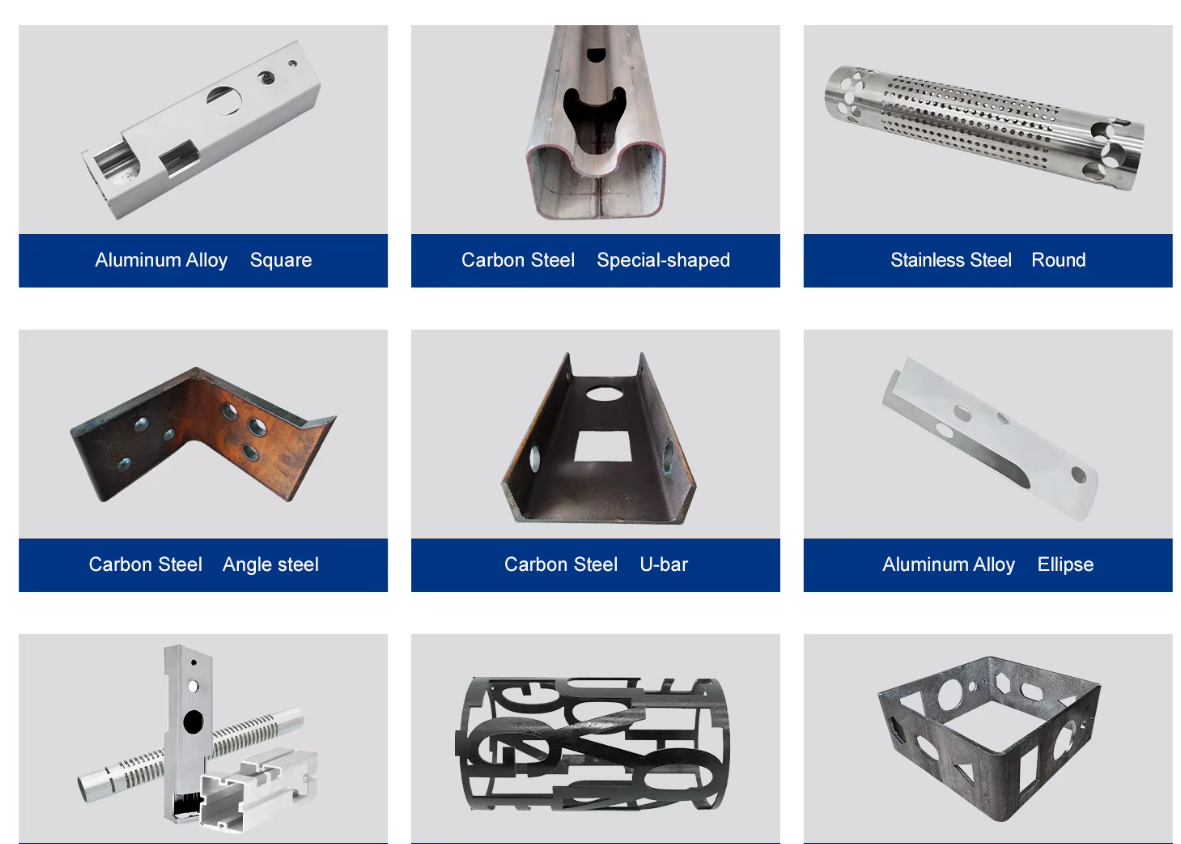

Tube laser cutting machine can be used for cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheets, metal plate, metal pipe and tube, etc.

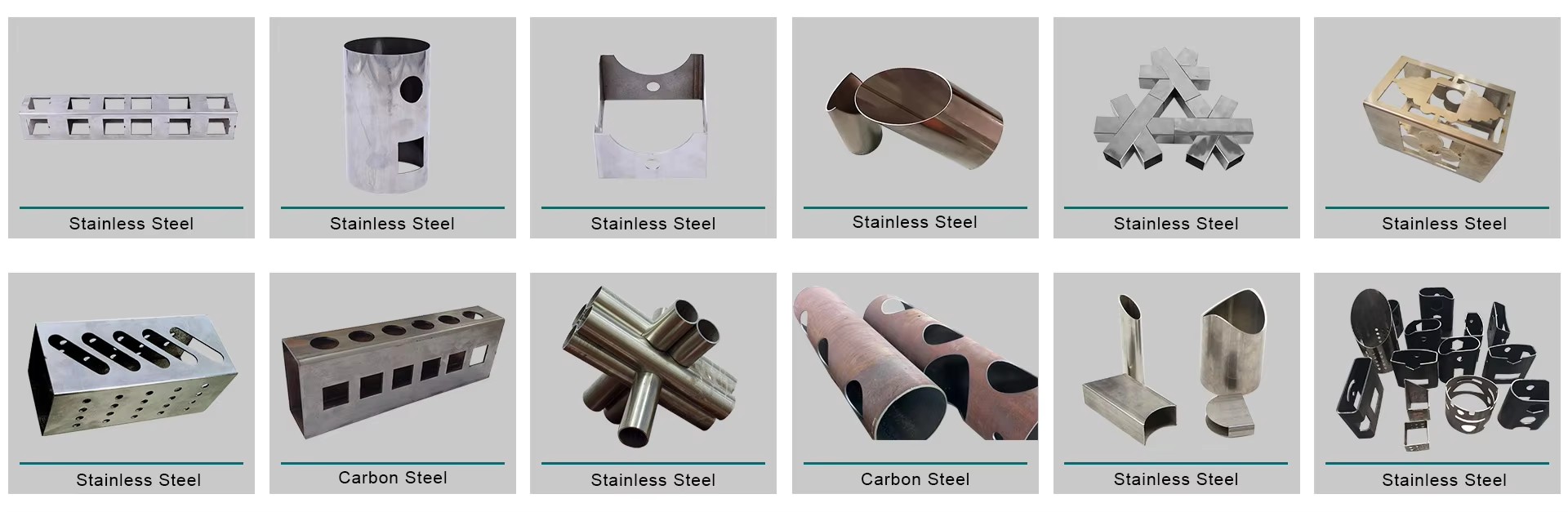

Not only cut conventional tubes like round, square and rectangular tubes and profiles like channel, angle and H-shaped steels, but also cut special-shaped tubes easily like triangular, concave, L and C-shaped tubes, etc.

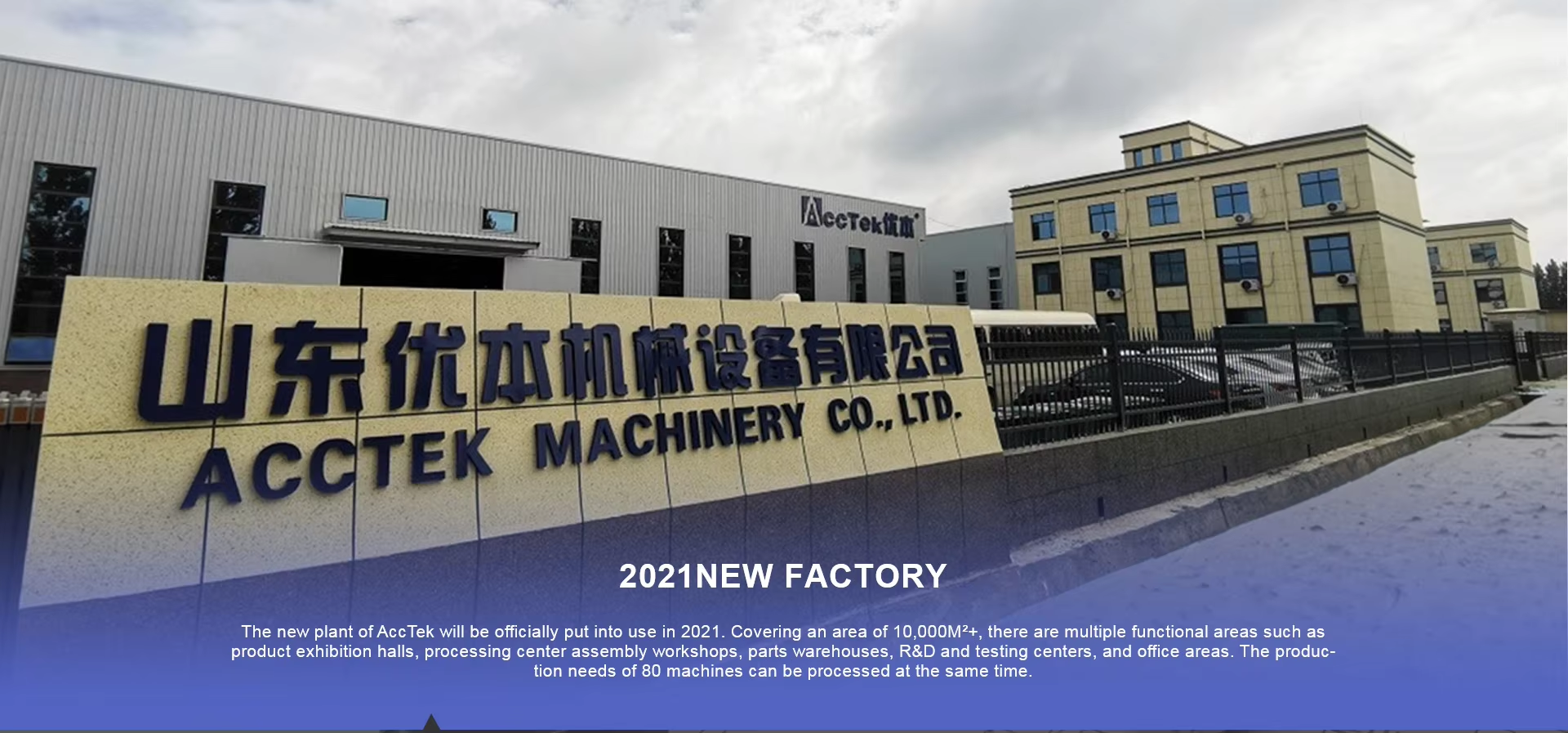

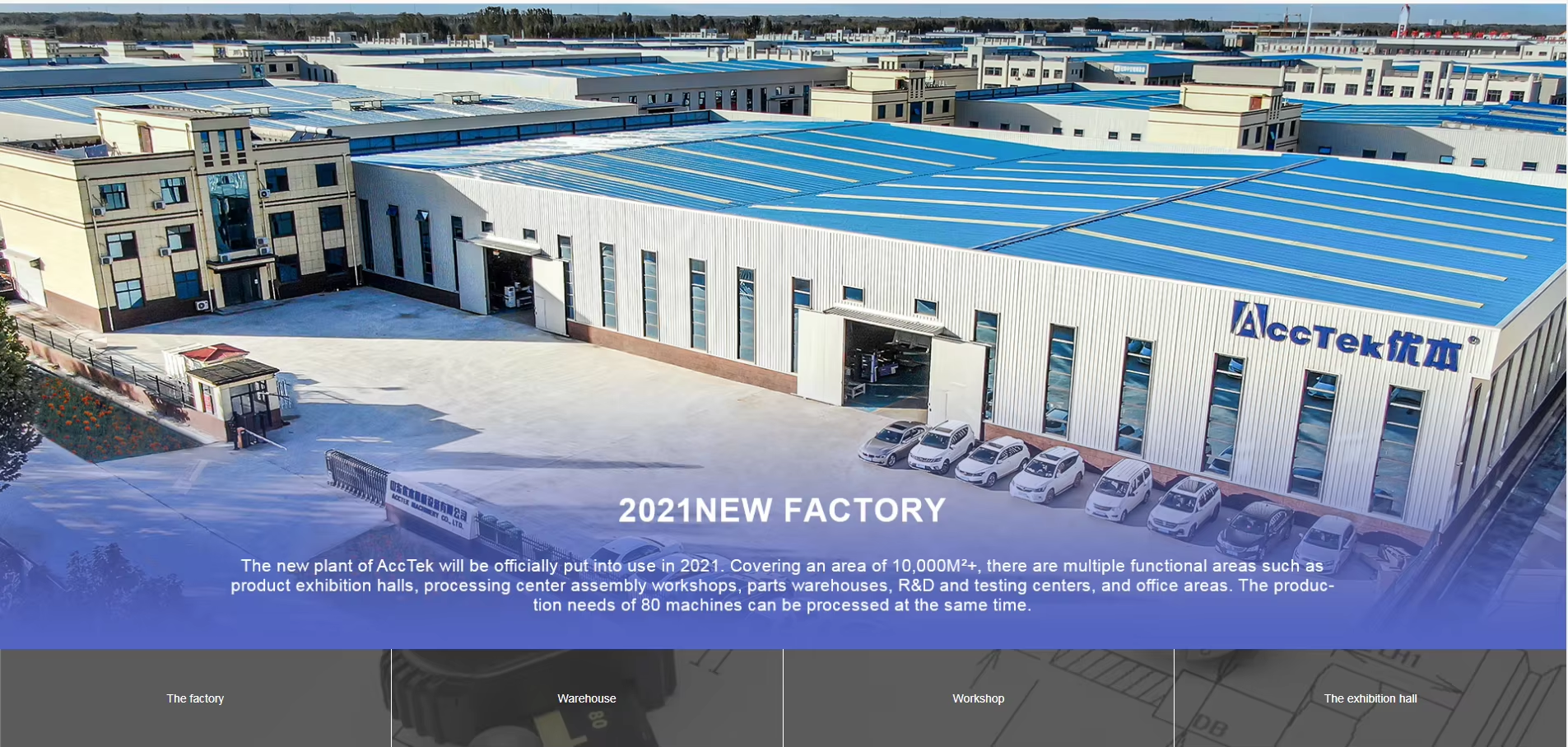

Workflow and Workshop Display
Frequently Asked Questions (FAQ)
What materials can this laser tube cutter process?
The machine is designed to cut various metals including stainless steel, carbon steel, mild steel, alloy steel, aluminum, copper, brass, and galvanized steel.
Which tube shapes can be cut with the 3D bevel head?
It can handle round, square, rectangular, oval, and flat tubes, as well as profiles like H-beams, I-beams, angle steel, and channel steel.
What is the cutting accuracy of the machine?
The machine achieves high precision cutting with a tolerance range of 0.03mm to 0.05mm, which is significantly higher than traditional CO2 cutters.
Does the machine support automatic loading?
Yes, a fully automatic feeding system can be integrated based on specific requirements to improve automation and reduce manual labor.
What is the maximum tube length the machine can handle?
The reciprocating feeding system supports tubes with a length up to 6200mm, providing great flexibility for large-scale industrial profiles.
What are the advantages of the pneumatic chuck system?
The double pneumatic chucks feature automatic centering and constant clamping force, ensuring that heavy pipes do not slip, which maintains high cutting accuracy.
