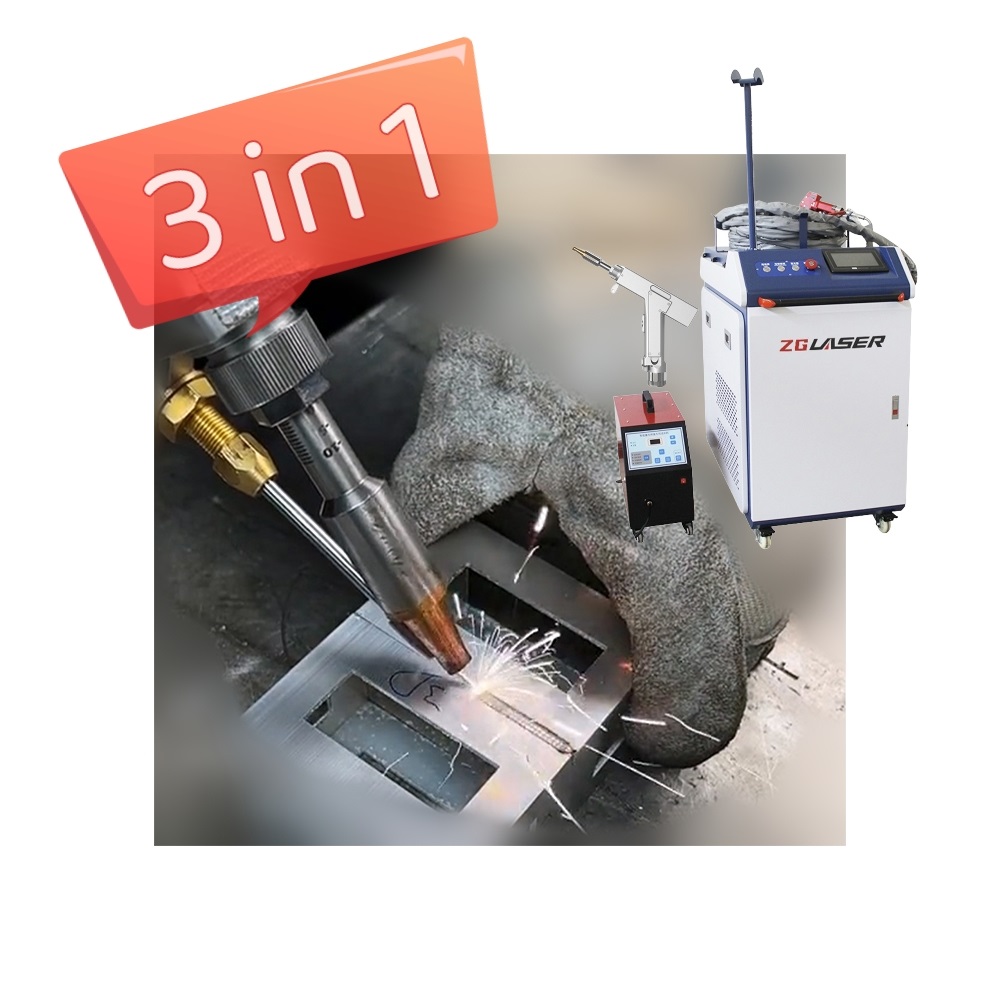

3kw 3-in-1 Multi-Function Steel Sheet Laser Cleaning Machine with Fiber Laser Metal Welding and Cutting
3kw 3-in-1 Multi-Function Steel Sheet Laser Cleaning Machine with Fiber Laser Metal Welding and Cutting
3kw 3-in-1 Multi-Function Steel Sheet Laser Cleaning Machine with Fiber Laser Metal Welding and Cutting
3kw 3-in-1 Multi-Function Steel Sheet Laser Cleaning Machine with Fiber Laser Metal Welding and Cutting
3kw 3-in-1 Multi-Function Steel Sheet Laser Cleaning Machine with Fiber Laser Metal Welding and Cutting
1 / 5
3kw 3-in-1 Multi-Function Steel Sheet Laser Cleaning Machine with Fiber Laser Metal Welding and Cutting
3kw 3-in-1 Multi-Function Steel Sheet Laser Cleaning Machine with Fiber Laser Metal Welding and Cutting
3kw 3-in-1 Multi-Function Steel Sheet Laser Cleaning Machine with Fiber Laser Metal Welding and Cutting
3kw 3-in-1 Multi-Function Steel Sheet Laser Cleaning Machine with Fiber Laser Metal Welding and Cutting
3kw 3-in-1 Multi-Function Steel Sheet Laser Cleaning Machine with Fiber Laser Metal Welding and Cutting

3kw 3-in-1 Multi-Function Steel Sheet Laser Cleaning Machine with Fiber Laser Metal Welding and Cutting

Send Inquiry

Product Description

Laser Welding Machine
⚙️
Products Description
Model ZG-HW-1000 ZG-HW-1500 ZG-HW-2000 ZG-HW-3000
Laser Power 1000watt 1500watt 2000watt 3000watt
Laser Source Fiber Laser Manufactured by Raycus / Max / JPT
Wavelength (nm) 1064 - 1080
Laser Mode Continues / Pulsed
Beam Quality M2 < 1.2 M2 < 1.2 M2 < 1.5 M2 < 1.5
Length of Fiber 5-10m (customized)
Interface QBH
Welding Width 0.2-5mm (adjustable)
Laser Preview Integrated Red Light Preview
Cooling Integrated Water Chiller
Language Chinese / English / Russian / Korean / Vietnamese
Power Supply AC 220V, 50Hz/60Hz AC 380V, 50Hz/60Hz
Security System TSS - Trip Security System Available
Parameter Setting Touch Panel
Welding Materials Carbon Steel, Stainless Steel, Aluminum, Brass, Alloy etc.
Welding Speed 0-120mm/s (adjustable)
Detail 1
Detail 2
Detail 3
Detail 4
Frequently Asked Questions
What materials can this fiber laser welder handle?
This machine is highly versatile and can weld Carbon Steel, Stainless Steel, Aluminum, Brass, and various other alloys with precision.
Is the welding speed adjustable for different tasks?
Yes, the welding speed is fully adjustable from 0 to 120mm/s, allowing you to optimize for material thickness and finish quality.
What cooling system is integrated into the machine?
The system features an integrated industrial water chiller to ensure stable temperature control during long hours of operation.
Can I use this machine if I don't speak Chinese?
Absolutely. The interface supports multiple languages including English, Russian, Korean, and Vietnamese for global ease of use.
What are the power requirements for the different models?
The 1000W and 1500W models operate on AC 220V, while the higher power 2000W and 3000W models require AC 380V power supply.
Is there a safety system to prevent accidental operation?
Yes, the machine is equipped with the TSS (Trip Security System) to ensure operator safety and prevent unauthorized or accidental firing of the laser.
